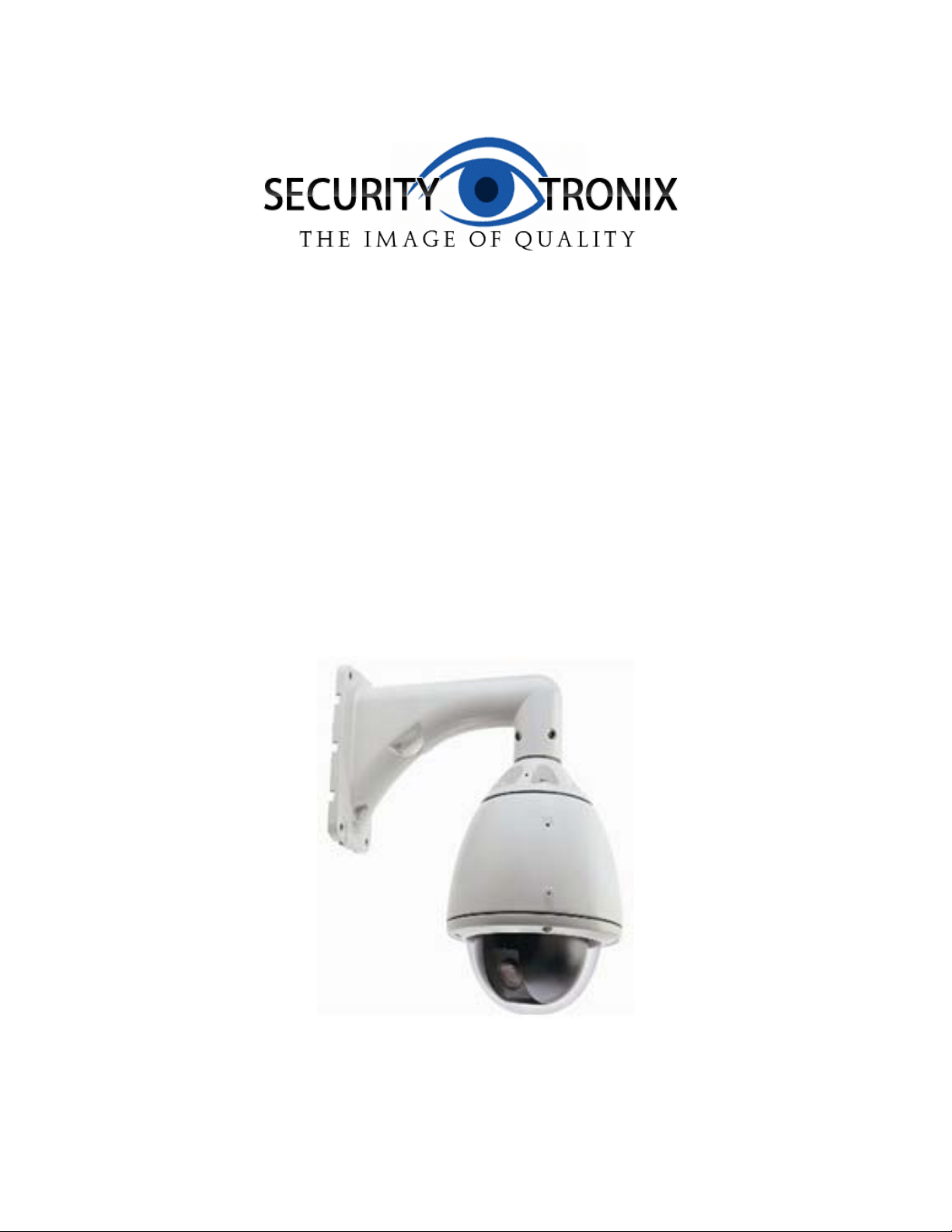

INSTALLATION MANUAL©

ST-PTZ480-22

IP66 Rated High-Speed Intelligent Dome

PTZ Color Camera

v1.2 3/2/11

PACKAGE CONTENTS

This package contains:

One ST-PTZ480-22 high-speed intelligent dome color camera.

One mounting bracket.

One 24VAC 3A power supply.

One installation manual.

PRODUCT DESCRIPTION

The ST-PTZ480-22 is an IP66 rated, professional grade intelligent dome color camera with pan, tilt

and zoom (PTZ) capability of 480TVL of resolution. The camera’s full digital design allows the

saving of all settings in non-volatile memory. Its 256 preset positions provide versatility for cruise

routes and auto tracking functions. The ST-PTZ480-22’s mechanical design permits continuous

horizontal 360°rotation and 90°vertical flip. Temperature management is built-in.

SPECIFICATIONS

ST-PTZ480-22

Specifications (Typical)

1. Image Sensor

1CB-22GD with ¼” SONY CCD

2. Resolution

480TVL

3. Lens

Auto Iris; F=3.9 to 85.8mm; 22X Optical Zoom

4. Illumination

0.1 Lux (Color), 0.01 (B&W)

5. Pan Range

360º continuous

6. Tilt Rotation Range

0º -90º flip

7. Manual Speed Pan

0.1º -135º/sec

8. Manual Speed Tilt

0.1º -120º/sec

9. Preset Speed

135º/sec

10. Preset Accuracy

±0.10°

11. Preset Positions

128

12. Function Display

Yes

13. Operation Crosshair Function

Yes

14. Pan & Tilt Position Display

Yes

15. Recall Function

Yes

16. Operation Return Function

Yes

17. PTZ Tours

3 programmable (pan/tilt/zoom and each tour is 120 seconds)

18. Vector Scan Groups

6 programmable (dwell time speed preset point)

19. Protocol

Pelco-D, Pelco-P selectable

20. Auto Scan

With smart programmable variable speed

21. High Efficient 3-Dimension

Scan

Yes

22. Long-Focus Speed Limited

Yes

23. Intelligent Power Off

Yes

24. Home Position

Yes

25. Camera Menu Operation

Yes

v1.2 3/2/11

26. IP66 for Outdoor Use

Yes

27. Operating Humidity

≤95%

28. Heater Operation

42ºF on; 57ºF off

29. Operating Temperature

-40ºF -122ºF

30. Video Connection

BNC coaxial

31. Power

24VAC @3A, 35W

32. Communication

RS485(+/-)

INSTALLATION AND OPERATION

CAUTION: To reduce the risk of electrical shock do not remove the cover or back of this

unit. No user serviceable parts are inside.

CAUTION: To prevent electric shocks and risk of fire hazards, do not use other than

specified power source.

1. UNPACKING and HANDLING

Each unit is shipped assembled and factory tested.

Ensure that all accessories are removed from the container before discarding packing material

2. MECHANICAL INSPECTION

Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is

clean, and no connectors are broken, damaged, or loose. If equipment appears to be

damaged or defective please contact your distributor or SecurityTronix at 1-610-429-1511 for

assistance.

3. SPECIAL ATTENTION

a. The installer must comply with electrical safety standards. There must be sufficient

space between the camera’s power supply and video line and any high voltage

equipment and/or cables.

b. To help ensure the camera’s life and proper operation do not point the camera

towards the sun or strong light.

c. Do not install the camera in an environment where the temperature is above 122°F.

d. Do not install the camera near a magnetic field or a high-power motor.

e. Do not mount the camera near a radiator or heater.

This symbol is intended to alert the user to the presence of important operating and

maintenance (servicing) instructions.

This symbol is intended to alert the user to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a

risk of electrical shock.

v1.2 3/2/11

f. The installation site and material must fully support the weight of the product.

g. Only use a dry cloth to clean the camera. If there is dirt that is difficult to remove wipe

gently with a mild detergent. Never use strong or abrasive detergents.

h. The included 24VAC at 3A power supply or approved equivalent must be used. Using

a DC or other incorrect power supply will damage the camera.

i. Only qualified installers are allowed to install, test and disassemble the camera.

j. The camera is a low voltage product. If installed outdoors proper safety and lightning

grounding are required.

k. Before installing be sure the grounding, wiring, input power, voltage, DIP switches,

communication protocol and baud rate are correctly set prior to powering up and

using.

4. CAMERA SETUP

Address Set Up

See Appendix A for DIP Switch SW2 configurations for camera addresses.

Alarm Signal

Alarm Relay Output “AUX1”

Alarm Relay Output “AUX2

Alarm Input GND

Alarm input signal -7

1, 2, 3, 4, 5, 6, 7 = Alarm Input Signal

AUX1, AUX2 = Auxiliary Equipment

GND = Alarm Input Grounding

System Setup DIP Switch SW1

Dome Address DIP Switch SW2

Alarm Terminal 8P

Aux. Switch 4P

RS485 Terminal 2P

AC24V Power 1P

120ΩResistance Short-Circuit

v1.2 3/2/11

System Setup DIP Switch SW1 ON = 1 OFF = 0

Baud rate setting

DIP Switch

Function

DIP Switch 3, 2 =

00=2400

01=4800

10=9600

ON and OFF are indicated on the DIP Switches to show the DIP positions.

PELCO-D and PELCO-P can be automatically recognized.

J7 pin = if jumpers 2-3 are short circuited, terminal connects to 120Ωresistance. If jumpers 1-2

short, terminal is not connected to 120Ωresistance.

To select the baud rate set switches 3 and 2 on the System Setup DIP Switch as described

above.

Camera Module Selection

The ST-PTZ480-22 uses the CB-22GD camera module

although various other camera modules may be

compatible with the unit. The DIP switches on the

camera module’s PCB board are factory set for the

CB-22GD and are not to be adjusted by the installer or

user.

5. WIRING CONNECTIONS

a. Connect the power supply cable and communications cable to the AC24V and RS485

connections on the connection block as shown above.

b. Connect the camera to the monitor with a 75Ωcoaxial video cable.

c. Connect power supply’s AC plug to a suitable AC power outlet.

d. Make an RS485 connection between the camera and the PTZ controller. Ensure the

connections at the PTZ controller and camera have the same polarities.

1. Power supply and

communication cable:

AC24V power supply

AC24Vpower RS485

2. Video output

v1.2 3/2/11

High Speed Dome

Ver：2.20

PELCO D/P

BPS：2400

ID：001

Tile Ref OK

Pan Ref OK

SONY FCB-EX480CP

6. FUNCTIONS and OPERATION

Basic Operation

After powering up the ST-PTZ480-22’s version number,

communication protocol, baud rate and address will be

shown on the monitor. At the same time, the system will

check the pan and tilt status and display the results. The

information will disappear once operations begin.

The table below is a quick guide to the camera’s basic operations using a PTZ Controller:

Function

Operation

Pan/Tilt

Move joystick to left, right, up, and down

Menu Confirmation

Press [OPEN]

Menu Cancellation

Press [CLOSE]

Zoom In

Press [TELE] or rotate joystick clockwise for the desired image.

Zoom Out

Press [WIDE] or rotate joystick counter clockwise for the desired image.

Focus Far

Press [FAR] until there is a clear image

Focus Near

Press [NEAR] until there is a clear image

Auto Focus

The dome is in the auto focus mode when the joystick is moved left, right, up, down or

turned. For manual focus press any key.

Enter Programming

Call preset 95 or user defined preset. Please refer to short-cut menu.

Set Return Zero

Pan/Tilt Point

Call preset 34 or user defined preset. Please refer to short-cut menu.

Start Pan Scan

Call preset 99 or user defined preset. Please refer to short-cut menu.

Auto Flip

Call preset 33 or user defined preset. Please refer to short-cut menu.

Left limit: Call preset 92 or a user-defined preset. Please refer to short-cut menu.

Pan Scan Limit

Right limit: Call preset 93 or a user-defined preset. Please refer to short-cut menu.

Call Tour 1

Call preset 96 or a user-defined preset. Please refer to short-cut menu.

Call Tour 2

Call preset 97 or a user-defined preset. Please refer to short-cut menu.

Call Tour 3

Call preset 98 or a user-defined preset. Please refer to short-cut menu.

Call Camera Mode 1

Call preset 100

Call Camera Mode 2

Call preset 101

Call Camera Mode 3

Call preset 102

v1.2 3/2/11

Camera ►

Pan ►

Shortcut Key ►

Self act

Nothing

Alarm Set ►

Degree

Exposure ►

White Balance ►

Focus ►

Privacy ►

Other ►

Camera Model ►

Zoom Speed

Focus Speed

Menu Operation

Call preset 95 to enter the menu setup. The main menu will be shown on the screen. Note the

following symbols:



Indicates current working cursor

Indicates current activated cursor

►

Indicates there is a sub-menu after the current menu

The menu content is only changed under activated status. During menu operation the OPEN

key is used for confirmation and the CLOSE key is used for cancellation. The UP key is to

move the cursor up and the DOWN key is to move the cursor down.

Upon calling preset 95 the main menu screen may

appear as

Camera Sub-Menu

The quality of the target image is dependent upon the camera parameters set under the

camera menu. These parameters should be set to site-specific situations. The camera menu

will allow the control of exposure, white balance, privacy zones, digital zoon, infrared light

sensitivity, zoom speed, focus speed and other functions.

Under the main menu position the cursor to Camera

and press OPEN to enter the camera sub-menu and

set up the camera’s parameters.

Note that exposure, white balance, focus, privacy,

other and camera model have a sub-menu.

Zoom speed changes when activated.

Exposure

To maintain a clear image a suitable white balance and correct focus must be selected.

Further, the exposure must be properly controlled to ensure sufficient light. Under Exposure

press OPEN to enter the exposure sub-menu. The exposure sub-menu will display several

functions. Various functions have multiple settings.

To change exposure mode under “Exp Mode” press OPEN to enter the exposure mode

menu. Once done the menu becomes “Exp Mode”. Move the joystick up or down to change

the exposure modes.

Exp Mode

AUTO

Shutter speed

Iris

Gain

Bright

BackLight

OFF

BackLight Val

Slow Shutter

OFF

Exp Mode Auto

Shutter Speed 6 (0 –19)

Iris 15 (0 –17)

Gain 1 (0 –15)

Bright 15 (0 –18)

Backlight OFF (ON/OFF)

Backlight Val 0

Slow Shutter OFF (ON/OFF)

v1.2 3/2/11

Exp Mode

Auto

Shutter speed

Iris

Gain

Bright

BackLight

OFF

BackLight Val

Slow Shutter

OFF

Diagram: 2.1.2

Exp Mode

Auto

Shutter speed

Iris

Gain

Bright

BackLight

OFF

BackLight Val

Slow Shutter

OFF

Exposure ►

White Balance ►

Focus ►

Privacy ►

Other ►

Camera Model ►

Zoom Speed

Focus Speed

Confirmation of an exposure mode selection –

Under “Exp Mode” press OPEN. The menu will

then turn to “Exp Mode”.

Cancellation of an exposure mode selection –

Under “Exp Mode” press CLOSE. The menu will

then turn to “Exp Mode”.

Exit Exposure Mode – “Exp Mode” press CLOSE

to exit the exposure mode and return to the main menu.

For other exposure mode operations under “Exp

Mode” move the joystick up or down. The symbol

will move to the relative menu to show the current

menu can be operated. Upon pressing OPEN to

activate a menu the symbol will appear before the

selected menu. Then move the joystick up or down

the change the menu setup. Press OPEN to confirm

the changes or CLOSE to cancel. Once completed

the symbol will appear before the menu.

White Balance

White Balance (WB) is the process of removing unrealistic color casts so objects that appear

white in person are rendered white in the image. Proper camera white balance must take into

account the “color temperature” of a light source –the relative warmth or coolness of a light

source. The camera offers the option of AUTO white balance or MANUAL white balance.

Under ”White Balance” press OPEN to enter the

white balance sub-menu.

For WB Mode Setup –Under ”WB mode” press OPEN to activate the WB mode menu after

which the menu turns to “WB mode”. Move the joystick up or down to change the setup.

The order of parameters on the right will be Auto, Manual, Outdoor, Indoor, ATW and OPW.

For R Gain Setup –Under ”WB mode” move the joystick down to “R Gain” and press

WB mode

Auto

R Gain

210

B Gain

175

White Balance Auto

R Gain 210 (0 –255)

B Gain 175 (0 –255)

v1.2 3/2/11

Camera Mode Save：

Normal

Day

Night

Camera Mode Exec：

Normal

Day

Night

OPEN to enter the R Gain setup. Then move the joystick up or down to adjust the R Gain

values from 0 to 255. Once the value has been selected press OPEN to confirm or CLOSE to

cancel. White Gain must be set to “manual” in order to adjust red and blue balance levels.

For B Gain Setup –Under ”WB mode” move the joystick down to “B Gain” and press

OPEN to enter the B Gain setup. Then move the joystick up or down to adjust the B Gain

values from 0 to 255. Once the value has been selected press OPEN to confirm or CLOSE to

cancel. White Gain must be set to “manual” in order to adjust red and blue balance levels.

Other

To access an Other sub-menu move the joystick to the desired sub-menu. Once selected the

current sub-menu press OPEN then move the joystick up or down to select the desired

parameters. Press OPEN to confirm the selection or CLOSE to cancel.

Camera Mode

The Camera Mode is used to set various camera settings for the ambient environment. Given

the ambient environment may be changing (e.g., day and night) the unit allows the user to

create and recall specific settings to easily manage changing conditions. Under the Camera

Mode menu press OPEN to enter the camera mode setup menu.

The 3 menus under “Camera Mode Save” are

previous saved camera modes. Move the cursor to

a camera mode and press OPEN. will change to

and return to after 1 second after which the

camera mode is successfully saved.

There are 3 saved camera modes for calling under

“Camera Mode Exec”. The order is the same as

that of “Camera Mode Save”. Move the cursor to a

certain camera mode then press OPEN to confirm

and exit.

Digital Zoom

Auto ICR

OFF

ICR

OFF

Display

OFF

Camera Mode Save：

Normal

Day

Night

Camera Mode Exec：

Normal

Day

Night

Privacy ►

Other ►

Camera Model ►

Zoom Speed

005

Focus Speed

001

Digital Zoom ON (ON/OFF)

Auto ICR OFF (Auto ICR ON/OFF)

ICR OFF (Manual ICR ON/OFF)

Display OFF (Camera Info ON/OFF)

Camera Mode Save Save Camera Mode

Camera Mode Exec Call saved Camera Mode

Normal Mode 1 (Standard)

Day Mode 2 (Day)

Night Mode 3 (Night)

v1.2 3/2/11

Camera modes can be selected by calling certain presets:

NORMAL –call preset 100

DAY –call preset 101

NIGHT –call preset 102.

NORMAL is the default mode.

Zoom Speed

Under the Exposure sub-menu move the cursor to “Zoom Speed” and press OPEN and

change the parameters after the symbol turns to . Then press OPEN to confirm or

CLOSE to cancel after which the symbol will return to . Lower numbers are slower zoom;

higher numbers are faster zoom.

Focus Speed

Under the Exposure sub-menu move the cursor to “Focus Speed” and press OPEN and

change the parameters after the symbol turns to . Then press OPEN to confirm or

CLOSE to cancel after which the symbol will return to .

Pan

The Pan Menu is found under the Main Menu. Through the Pan Menu users can open and

close a home position, adjust auto pan speed, set the tour speed and dwell time and open and

close auto flip.

Home Place OFF (ON/OFF, 1 –32)

Leisure Time 30

AS Speed 20 Auto Pan Speed (0 –80)

PS1 Speed 100 Tour 1 Speed (100 –120)

PS1 Time 5 Tour 1 Leisure Time (5 –120)

PS2 Speed 100 Tour 2 Speed (100 –120)

PS2 Time 5 Tour 2 Leisure Time (5 –120)

PS3 Speed 100 Tour 3 Speed (100 –120)

PS3 Time 5 Tour 3 Leisure Time (5 –120)

Auto Flip ON (ON/OFF)

Home place

OFF

Leisure Time

AS speed

PS1 Speed

100

PS1 time

PS2 Speed

100

PS2 time

PS3 Speed

100

PS3 time

Auto Flip

Tabla de contenidos

Otros manuales de Cámara de seguridad de Securitytronix

Securitytronix

Securitytronix ST-PTZMINI-IR10XTA Manual de usuario

Securitytronix

Securitytronix ST-D600IRVP2812 Manual de usuario

Securitytronix

Securitytronix ST-HD-D2812M-2MP Manual de usuario

Securitytronix

Securitytronix ST-DWD650IRVP2812-B/W Manual de usuario

Securitytronix

Securitytronix ST-D600VP3.6-B-W Manual de usuario

Securitytronix

Securitytronix HD-Coaxinator ST-HD-D2812-1MP Manual de usuario

Securitytronix

Securitytronix ST-DLI600VP3.6-B-W Manual de usuario

Securitytronix

Securitytronix TVI-AC344-MB Manual de usuario

Securitytronix

Securitytronix ST-D600IR2812-DSHB Manual de usuario

Securitytronix

Securitytronix ST-D650IRVP-B Manual de usuario

Securitytronix

Securitytronix ST-DWD700-3.6-B Manual de usuario

Securitytronix

Securitytronix ST-PTZ650FM-23X Manual de usuario

Securitytronix

Securitytronix ST-DLI6502812-JBX-B Manual de usuario

Securitytronix

Securitytronix ST-CVTMD520-WPIR-W Manual de usuario

Securitytronix

Securitytronix ST-PTZMINI-540W Manual de usuario

Securitytronix

Securitytronix ST-DLI600VPDV2812-B-W Manual de usuario

Securitytronix

Securitytronix ST-D600DNVP2812 Manual de usuario

Securitytronix

Securitytronix ST-BT1000IRVFDV-B Manual de usuario

Securitytronix

Securitytronix HD-COAXINATORTVI ST-HDC2FD Manual de usuario

Securitytronix

Securitytronix ST-D600IR2812-HB Manual de usuario

Securitytronix

Securitytronix ST-BT6003.6-W2 Manual de usuario

Securitytronix

Securitytronix HD-COAXINATOR ST-HD-TD3.6-1MP Manual de usuario

Securitytronix

Securitytronix HD-COAXINATORTVI ST-HDC2PTZ Manual de usuario

Securitytronix

Securitytronix ST-IP-BT3.6-1 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
