ProLogic L22 Operation Instructions
1
ProLogic L22 Operation Instructions
Document No: EC-0601A-L22-180911
Version No: V1.01
1.0 System Installation
1.1 System Components
1.2 Pairing the EntryPad with the Lock(s)
1.3 Lock and EntryPad Installation
1.4 Installing Battery
1.5 Test Lock Operation
2.0 Code Length Options
2.1 PW L – 6 / Users 10
2.2 PW L – 8 / Users 30
2.3 PW L – 6 / Users 30
3.0 Lock Operation
3.1 Opening the Lock
3.2 Opening the Lock in Time Delay
3.3 Opening the Lock Under Duress
3.4 Opening the Lock in Dual Control
3.5 Opening the Lock with a Multi-Lock System
4.0 Set Date and Time
4.1 Set Clock Time
4.2 Show Clock Time
4.3 DayLight Savings Time
5.0 Code Management
5.1 Enrolling New Users
5.2 Change Code
5.3 Delete One User
5.4 Delete All Users
5.5 Disable/Enable User
5.6 Obfuscate Code Entry
5.7 Set ID01 to Master
6.0 System Identification
6.1 System Info
7.0 Time Delay
7.1 Set/Cancel Time Delay
8.0 Audit Trail Functionality
8.1 Show Audit Trail
9.0 Manager Mode
9.1 Enable Manager Mode
9.2 Disable Manager Mode
10.0 Single or Dual Control
10.1 Enable Dual Mode
10.2 Dual Mode Group ID
11.0 Door Management
11.1 Max. Door Open Time
11.2 Configuring a Multi-lock system
11.3 Set Number of Locks
11.4 Numbering Locks
11.5 Authorize Locks
11.6 Enable Sequence
12.0 Duress Management
12.1 Duress Setup and Wiring Configuration
12.2 Duress Code Shift
13.0 Device Management
13.1 Set Device ID
14.0 Data Management
14.1 Encryption Key Set
15.0 Recovering the System – Reset to Default
15.1 Recovery Code Set
15.2 Recover System
15.3 Disable Recover
15.4 Mechanical Reset
16.0 System Testing
16.1 Cycle Testing
16.2 Hardware Testing
17.0 Menus
17.1 The ProLogic L22 Menus
ProLogic L22 Operation Instructions
2
IMPORTANT: It is imperative that all programming be completed with the safe
door in its open position, such that the programmer can gain access to the lock
body in the event of an incorrect programming.
1.0 System Installation
1.1 System Components
The system consists of (1) EntryPad – Part # EC-0601A-L22 plus (1) or more Lock bodies as follows:
SwingBolt – Part # EL-0601
SwingBolt with Status Sensor – Part # EL-0601-S
DeadBolt – Part # EL-0701
SpringBolt – Part #EL-0801
Note: The ProLogic L22 can control up to 4 locks when used in conjunction with the Expansion Box –
Part # CB11-1T4. (If setting up a multi-lock system, please refer to Section 11.2 – Multi-Lock Systems)
1.2 Pairing the EntryPad and the Lock
SecuRam safe lock systems can operate in two different modes depending upon the type of EntryPad
being used with the lock body. The ProLogic L22 is a digital lock system and therefore the lock must also
be programmed in digital mode. Both modes follow the same steps to reset / set which is done by
following the steps detailed below:
Step 1: Ensure the battery is connected to the EntryPad.
Step 2: Ensure the lock cable is disconnected from the lock body.
Step 3: Locate the Reset Hole on the back of the lock (under the QC sticker).
Step 4: Inside the reset hole is a reset button. Use a paper clip to depress the reset button 3
times. This dissipates any latent energy in the lock.
Step 5: Now depress the reset button and hold.
Step 6: While continuing to depress the reset button, connect the lock cable to the lock body.
Step 7: Continue to hold down the reset button for 5 seconds and then release.
Step 8: Verify that the pairing has been completed, by opening the lock with the default code
111111.
Step 9: Press any button on the EntryPad to initiate a lock communication test. The EntryPad
will display the following information:
ProLogic L22 Operation Instructions
3
Followed by:
Enter a valid code to test the lock.
The Default codes are as follows:
Super Code (ID00) is 111111
Manager Code (ID01) is 123456
Upon entry of a valid code, the lock will open. If the lock does not open and the LCD screen
displays the message “Fail to Link with Lock”, repeat the reset procedure. Be sure to hold down
the reset button through steps 5-7.
If you have difficulty resetting the lock, please call SecuRam Tech Support at (805) 988-8088 or email
info@securamsys.com.
1.3 Lock and EntryPad Installation
Included within your installation kit are (2) shoulder bolts and (3) lock mounting bolts.
Install the shoulder bolts on the safe door in the pre-drilled holes above and below the spindle
hole.
Now insert the lock cable (attached to the EntryPad) through the spindle hole.
On the backside of the safe door, you will see the lock mounting plate and the predrilled lock
mounting holes.
Connect the lock cable to the lock body and position the lock body appropriately on the lock
mounting plate.
Ensure that the lock cable is positioned so that it lies in the channel on the back of the lock. This
channel is provided to protect the lock cable from damage or crimping during installation.
Using the provided lock bolts, secure the lock body to the mounting plate.
Note: it is very important to ensure that there is an adequate gap between the lock bolt and the bolt
work. This gap must be 0.125”.
1.4.1 Installing the Battery – Standard Battery Compartment (located on the back of the EntryPad)
ProLogic L22 Operation Instructions
4

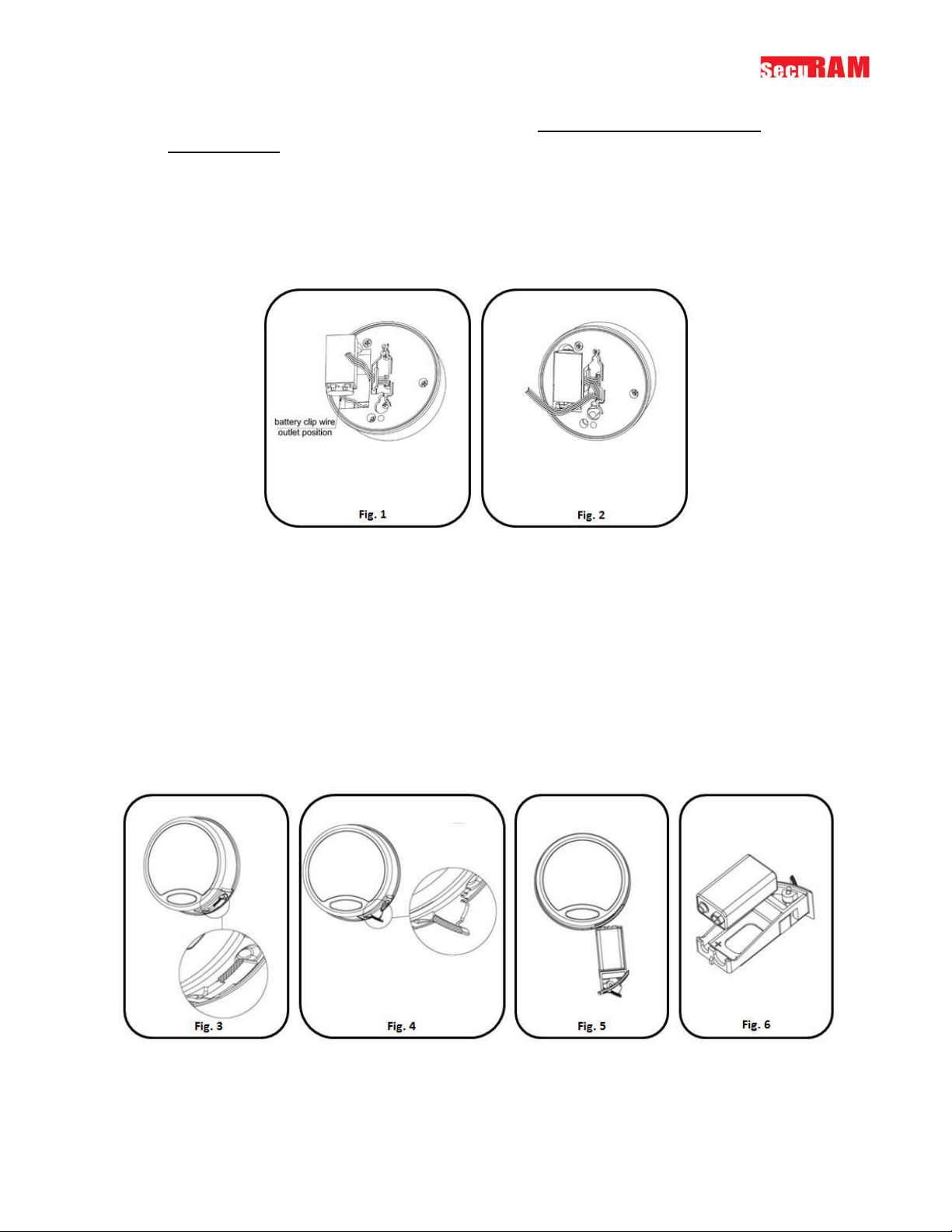

Connect the battery terminal clip to the 9V battery. (Duracell or Energizer brands are
recommended).
Position the battery so that the terminals are in the downward position and push the battery
into the battery compartment. See Fig. 1.
Carefully tuck the excess lock cable into the cavity on the back of the EntryPad and install the
EntryPad on the shoulder bolts. See Fig. 2.
Be careful not to crimp or damage the lock cable upon EntryPad installation.
1.4.2 Installing the Battery – SureLock Battery Compartment (removable battery compartment)
Locate the SureLock Battery Compartment at the 5 o’clock position of the EntryPad. See Fig. 3.
Release the latch of the battery compartment, by pulling lever downward. See Fig 4.
Pull out the battery compartment from the bottom of the EntryPad. See Fig 5.
Install a new 9V alkaline battery (Duracell or Energizer brands are recommended) into the
compartment. The battery compartment will only receive the battery when the positive and
negative terminals are oriented correctly. See Fig. 6
Put the battery compartment back into the EntryPad. Push the latch of the battery
compartment up until it snaps closed. See Fig. 3
ProLogic L22 Operation Instructions
5
1.5 Testing the Lock Operation
The ProLogic L22 comes with two factory default codes:
• Super Code (ID00) is 111111
• Manager Code (ID01) is 123456
Enter one of the valid codes to verify that the communication between the lock and EntryPad. The lock
will open.
2.0 Code Length Options
IMPORTANT: This must be completed before any programming.
The ProLogic L22 allows you the ability to select the code length for all safe lock operators and the total
number of users allowable on the lock. Setting the code length and number of Users is a global setting
and applies to all safe lock operators.
Note: If you skip this step and program the lock, you can change the Code Length/Number of Users at a
later time. All safe doors must be opened to make this change as a reset will be required on all lock
bodies. All programming will be deleted and the lock will be set back to default.
There are 3 options available as follows:
Code Length 6 digits – 10 total codes available - This is the default mode and meets the UL
requirement.
Code Length 8 digits – 30 total codes available – This mode also meets the UL requirement.
Code Length 6 digits – 30 total codes available – This mode does not meet the UL requirement.
2.1 PW L – 6; Users – 10 – This is the default mode
NOTE: This operation must be performed with the SAFE DOOR OPEN and with access to the back of
the lock, as a mechanical reset must be performed during this programming sequence.
Step1: Press the Menu/OK button.
Step 2: Using the and , scroll to the System Menu and Press Menu/OK.
Step 3: The display will prompt you to enter a valid code. Enter the Super Code (ID00) only .
This function is not available to Manager Codes ID01 or ID02. The “Select Menu” message will
be displayed as follows:
Step 4: Scroll and to the menu selection “PW L – 6; Users – 10” and Press OK
ProLogic L22 Operation Instructions
6
Step 5: The LCD will display a warning followed by “Delete All Users?”, press OK to confirm.
All users have been deleted.
IMPORTANT: The LCD will advise if a reset is required to finalize the programming. If required, follow
the Mechanical Reset procedure outlined in 15.4 Mechanical Reset.
The code length will now be 6 digits and the total available users will be 10.
The Super Code ID00 will now be 1-1-1-1-1-1
The Manager Code ID01 will now be 1-2-3-4-5-6
The Default Recovery Code will be 9-9-9-9-9-9
The Default Encryption Code will be 6-8-5-1-9-8
2.2 PW L – 8; Users – 30
NOTE: This operation must be performed with the SAFE DOOR OPEN and with access to the back of
the lock, as a mechanical reset must be performed during this programming sequence.
Step1: Press the Menu/OK button.
Step 2: Using the and , scroll to the System Menu and Press Menu/OK.
Step 3: The display will prompt you to enter a valid code. Enter the Super Code (ID00) only .
This function is not available to Manager Codes ID01 or ID02. The “Select Menu” message will
be displayed as follows:
Step 4: Scroll and to the menu selection “PW L – 8; Users – 30” and Press OK
ProLogic L22 Operation Instructions
7
Step 5: The LCD will display a warning followed by “Delete All Users?”, press OK to confirm.
All users have been deleted.
IMPORTANT: The LCD will advise if a reset is required to finalize the programming. If required, follow
the Mechanical Reset procedure outlined in 15.4 Mechanical Reset.
The code length will now be 8 digits and the total available users will be 30.
The Super Code ID00 will now be 1-1-1-1-1-1-0-0
The Manager Code ID01 will now be 1-2-3-4-5-6-0-0
The Default Recovery Code will be 9-9-9-9-9-9-0-0
The Default Encryption Code will be 6-8-5-1-9-8-0-0
2.3 PW L – 6; Users – 30
NOTE: This operation must be performed with the SAFE DOOR OPEN and with access to the back of
the lock, as a mechanical reset must be performed during this programming sequence.
Step1: Press the Menu/OK button.
Step 2: Using the and , scroll to the System Menu and Press Menu/OK.
Step 3: The display will prompt you to enter a valid code. Enter the Super Code (ID00) only .
This function is not available to Manager Codes ID01 or ID02. The “Select Menu” message will
be displayed as follows:
Step 4: Scroll and to the menu selection “PW L – 6; Users – 30” and Press OK
ProLogic L22 Operation Instructions
8
Step 5: The LCD will display a message to indicate that this setting does not meet the UL
requirement.
Step 6: The LCD will then display a warning followed by “Delete All Users?”, press OK to
confirm.
All users have been deleted.
IMPORTANT: The LCD will advise if a reset is required to finalize the programming. If required, follow
the Mechanical Reset procedure outlined in 15.4 Mechanical Reset.
The code length will now be 6 digits and the total available users will be 30.
This mode is not certified by UL.
The Super Code ID00 will now be 1-1-1-1-1-1
The Manager Code ID01 will now be 1-2-3-4-5-6
The Default Recovery Code will be 9-9-9-9-9-9
The Default Encryption Code will be 6-8-5-1-9-8
3.0 Lock Operation
Upon initial power up, the LCD screen starts a communications test as shown below:
Including Model Number
Software Version Number
No. of Users/ No. Users Programmed
Lock ID#/Host ID#
Model Name
No. of Audit Events
ProLogic L22 Operation Instructions
9
After this initial power up it will also check to ensure that the system is communicating correctly. The
display will read “Link with Lock OK”.
If the Display reads: “Fail to Link with Lock” proceed to Section 1.2 entitled “Pairing the EntryPad and
the Lock”
3.1 Opening the Lock
The safe lock system has two default codes installed as follows:
• Super Code (ID00) 1-1-1-1-1-1
• Manager Code (ID01) 1-2-3-4-5-6
Step 1: Enter a valid code – for example ID00.
The display will read “ID00 Verified”.
And the Lock will open.
The display will read:
The lock will relock after 6 seconds.
Note: Time to relock is hard coded and cannot be changed.
3.2 Opening Lock with Time Delay Programmed
When Time Delay has been programmed, the user must enter a valid code.
Note: Users are defined as ID03- ID30
Wait through the preprogrammed time delay period, then enter the code again to open the lock safe, as
follows:
Step1: Enter a valid code
Note: ID00, ID01 and ID02 are Administrator users and will bypass Time Delay.
ID00
ProLogic L22 Operation Instructions
10
Step 2: Display will read “Time Delay Start”
Step 3: Display will flash on every 15 seconds, counting up until it reaches the preprogrammed
time delay value.
Note: Administrators can override Time Delay to open lock anytime.
Step 4: When Time Delay expires, the EntryPad will beep twice then display: “Time Window
XX:00”, indicating the length of time the User has to enter a valid user code to gain entry.
Note: The Counter will count down until the Time Window has expired. A user code is used to
open the lock.
Step 5: Enter a valid Code to open the lock.
3.3 Opening the Lock Under Duress
The ProLogic L22 has a Duress Feature, which allows a User or Admin to open the lock and send a silent
Duress signal indicating that you are in danger. By default, the duress function is active. It can be
disabled by changing the Duress Code Shift Value to 00. Refer to Section 12.2.
In Order to send a signal, the system must have a CB10 junction box installed and must be connected to
an alarm panel.
To Open the Lock under Duress:
Step 1: Enter a valid Code, but add or subtract 1 from the code. The Lock will open as normal and a
silent alarm will be issued.
Note: This will be logged as “Duress Unlock” in events.
For example, if your code is 123456; under Duress, enter 123455 or 123457 to send silent alarm.
Note: The ProLogic L22 has a function called “Duress Code Shift”. This function allows you to turn off
the duress function. See Section 12.2.
Otros manuales para ProLogic L22
1
Tabla de contenidos
Otros manuales de Cerrar de Securam
Securam
Securam SafeLogic Basic Series Manual de usuario
Securam
Securam ECSL-601 Manual de usuario
Securam
Securam SCANLOGIC FPC-1808-II-MB Manual de usuario
Securam
Securam SafeLogic Basic Manual de usuario
Securam
Securam V8 Manual técnico
Securam
Securam ProLogic L01 Manual de usuario
Securam
Securam FPC-0601A-D22 Manual de usuario
Securam
Securam ScanLogic Optical Manual de instalación
Securam
Securam ScanLogic B22 Manual de usuario
Securam
Securam ScanLogic D66 Manual de usuario
Securam
Securam SafeLogic Xtreme Manual del propietario
Securam
Securam SH-WB01 Manual de usuario
Securam
Securam SH-TB01 Manual de usuario
Securam
Securam SafeLogic Xtreme Manual de usuario
Securam
Securam D Series Manual de usuario
Securam
Securam ProLogic L22 Manual de usuario
Securam
Securam ProLogic B01 Manual de usuario
Securam
Securam MANAGER Series Manual de usuario
Securam
Securam SafeLogic C10 D-Drive Manual de usuario
Securam
Securam ProLogic L02-C Manual de usuario
