Securam SH-WB01 Manual de usuario

SECURAM EOS

Model: SH-WB01

Doc.No.: SH-WB01-20220606

Version No.: V1.02

Date：2022-06-06

Congratulations on your purchase of the SECURAM EOS Wi-Fi Smart Lock!

Table of Contents

Quick Tour of EOS 2

What’s included in the package 4

Installation 5

Open lock with Administrator Code 5

I. Set Up 5

II. Pair Lock to SECURAM Guard App and Mobile Device 6

III. Lock Operation 6

IV. Masking Codes 7

V. Arm & Disarm System 7

VI. Delete Users 7

VII. Set Volume 7

VIII. Integrated Door Sensor 8

IX. Reset to Factory Default 9

X. Repeated Code Entry - Lock Out Mode 9

XI. Low Battery 9

XII. Emergency 9V Jumper 9

XIII. Override Key 10

XIV. Strikeplate 10

Specifications 11

1. Quick Tour of the EOS

The EOS has 9user capacity (including administrator)

oEach user can register up to 2 fingerprints

The first User added is the Administrator

oAdministrator can:

Unlock using fingerprint or code

Manage all users

Access all programming menus

Additional Users can be set as Family/Owners or Visitors

oFamily/Owners can unlock using fingerprint, code, keys or app.

oVisitors unlocks using fingerprint, code or app, provided the Visitor permission is

enabled in app.

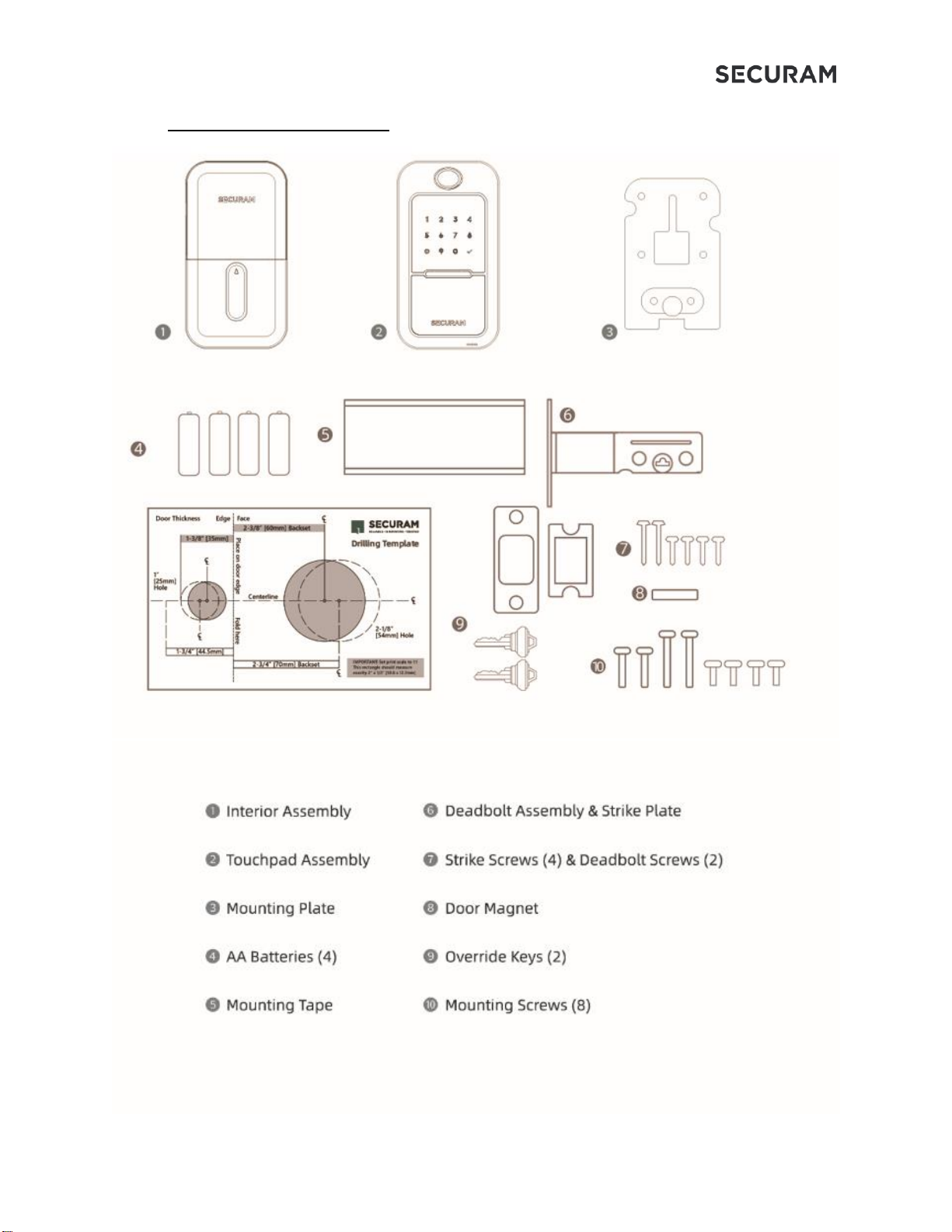

2. What’s included in the package

3. Installation:

Download the SECURAM Guard App from the App Store or Google Play Store.

QR Code:

Website Link: https://securamsys.com/app/

Follow the instructions in the app to install the SECURAM EOS.

4. To open the lock with the default Administrator Code:

The default Administrator code is 123456.

Enter 123456 then button, to open the lock using the default Administrator code.

I. Set Up:

The easiest way to set up your SECURAM EOS is to follow the voice guidance.

Press the Function button to begin:

Add User Press 2 - To add the first user –Administrator

oAdd User

oEnter code –enter the admin code –the default is 123456, then press 

oLock should say “Verified Successfully, Enroll the Administrator first”

To Enroll Administrator, please follow the steps as prompted by the lock:

oThe lock will say “Place first finger”–place your finger on the fingerprint reader located

on the top of the touchpad. Follow the instructions to lift and place finger on the

reader until “Finger enrolled successfully” is announced.

Lock will ask you to place a second finger.

Note: if you do not want to add a fingerprint for a user, press to skip

o“Place second finger”–place a second finger on the fingerprint reader

oPlace finger and lift finger as instructed

oLock will announce “Fingerprint enrolled successfully”

oLock will ask you if you want to Enroll a Code

Note: First Administrator must have a code –Code length must be between 4 to 8 digits.

oLock will say “Enter new code followed by check mark”–enter a unique code between 4

and 8 digits in length, followed by button

oLock will ask you to repeat the code entry: “Repeat new code”–enter the same code

again followed by the button

oLock will confirm successful code saved by saying “Operation successful”

IMPORTANT: this new code is the Administrator code. It replaces the default Administrator

code 123456. This code would be used to pair the lock and app.

oTo add other Users, follow the same process as above.

oAdditional Users may be enrolled as either Owners (by placing a finger on the finger

printer reader) or Visitors (by selecting 0).

Note: Owners will be listed as Family in the App. Visitor access may be disabled or

restricted in the app.

II. Pair Lock to the SECURAM Guard App on your mobile device: The SECURAM Guard app will allow

you to manage your EOS Lock.

Press the Function button to begin:

Pair phone press 8

oPairing Mode

oPlease log in as Administrator

oVerified successfully

oNow please follow the instructions on the app to complete the setup

III. Lock Operation

Unlocking

oPlace fingerprint on sensor

oEnter code and press 

oUse override key

Locking

oPress any number or push the lock button (bar button under the number pad)

Auto Lock –the lock can be set up to automatically lock after opening. This feature can be set

up in the app.

oWhen the scheduled auto lock time elapses, the system extends the lock bolt

Remote control from app

oLocking and Unlocking

oManaging users- add, delete, schedule visitors, disable, enable.

oHistory, Alerts, Issue One-time access code

IV. Masking Codes: Valid codes can be 4-8 digits in length. We have added the ability to mask your

code by adding extra digits to your valid code. Masking can be used in case someone is watching as you

enter your code and you do not want them to know your code. To mask your code, enter a maximum of

9 digits where your code is entered as consecutive digits. For example:

oValid code is 9876

oTo mask your code, you could enter 789876824 (9 digits)

oLikewise, you could enter 1987688 plus the button (less than 9 digits)

oThe lock will open

Note: masking codes is a built-in feature.

V. Arm & Disarm System

Arming from the EOS’ touchpad will monitor all devices that are set to be monitored in the app. When

the system is armed, the administrator will receive push notifications for all security activities.

Press the function button then 0 to switch the system mode between armed and disarmed.

The system may be disarmed from the app, or by unlocking from the Administrator or Owner/Family

VI. Delete Users: Administrator’s account may delete All Owners or All Visitors on the lock.

Note: Individual users may be deleted from the app

Press the Function button to begin:

Delete User press 3

oDelete User

oPlease login as Administrator –enter the Administrator code or fingerprint

oVerified Successfully

oPress 1 for Owners; 0 for Visitors

1 = Would you like to delete all owners?

Press plus the button –to delete all Owners

Press –cancel operation

Owner(s) deleted successfully –All Owners will be deleted except for the

Administrator

0 = Would you like to delete all Visitors?

Press plus the button –to delete all Visitors

Press –cancel operation

Visitor(s) deleted successfully

Note: Individual Owners/Visitors can be deleted in the SECURAM Guard App.

VII. Set Volume: There are 3 options for the Volume setting: Low, High or Off.

Press the Function button to begin:

Set Volume press 6

oPress 6 to adjust volume

Press 6 - Volume High

Press to confirm

Press 6 - Volume Off

Press to confirm

Press 6 - Volume Low

Press to confirm

Operation Successful

VIII. Integrated door sensor

The SECURAM EOS is equipped with an optional Integrated Door Sensor to detect door open/closed

position. To set up the door sensor, extend the sensor slider from the back of interior assembly. You

may need to remove the interior assembly from the door to extend the sensor slider.

Then, secure the Door Sensor Magnet to the door frame with the included tape. The sensor slider

should be close to the sensor magnet. (Maximum distance of .4 inch)

The sensor will then report to the app, the position of the door –Open or Closed.

Note: EOS door sensor is disabled by default. This feature can be activated through the app.

IX. Reset to Factory Default

The lock can be reset to factory default by pressing the reset button on the back of the interior

assembly. This will delete all Users, and will set the Administrator’s code back to default: 123456. The

EOS will be unpaired from the SECURAM Guard App.

Open the battery compartment

Find the red reset button

Using a paper clip, press and hold the red reset button inside the reset hole for approximately 5

seconds. You will hear “Reset to Factory Default”

All User codes and fingerprints will be deleted and the Administrator code will be set back to

123456 and will be disconnected from the app.

X. Repeated invalid code entry –Lock Out Mode

After entering 5 invalid codes, the touchpad is disabled for 3 minutes –Lock out mode. Even though the

touchpad is disabled, fingerprints or the app can still open the lock.

Successful unlocking with a fingerprint during lockout mode will enable to touchpad again.

XI. Low Battery

Under a low battery conditions, the SECURAM EOS will provide a low battery warning upon code or

fingerprint entry. The lock will unlock with the voice warning “Low Battery”, and the low battery

indicator flashes red. Please change batteries. Programming features are disabled when battery is low

NOTE: Lock programming cannot be performed under low battery conditions.

XII. Emergency 9V Jumper

In the event that low batteries prevent you from unlocking the door, the Emergency 9V Jumper ports

can be used to power the lock to open. Contact the jumper with a 9V battery (polarity does not matter)

and enter code or verify fingerprint to unlock.

XIII. Override Key

The SECURAM EOS is equipped with a mechanical override key to open the lock. Insert the key and turn

to unlock. To access the keyway, on the area under the touch pad, apply slight pressure on the lower left

hand corner. The top edges of the access door will pop out. Grab the edges, slightly lift, then rotate the

access door counter clockwise. The access door remains attached to the lock.

XIV. Strike Plate & Security Box (Optional)

Inside the package you will find the Strike Plate and Security box. Install the strike plate on the jamb of

the door to receive the deadbolt. The Security box can be installed behind the strike plate as necessary.
