Any suggestions or comments to this instruction or

product are welcome. Please contact us through

our website or email engineer@sdcsecurity.com

P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSET\INST-Z7200 Rev M 08-21 Page 1

Z7200

CYLINDRICAL LOCK

FOR USE ON DOORS 1-3/8” ~ 2" (35mm ~ 51mm) THICK

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM

[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

INSTALLATION INSTRUCTIONS

1. MARK DOOR 2. DRILL HOLES

a. Mark centerline on door face and door edge

(usually 38" from finished floor)

b. Select backset 2-3/8” or 2-3/4” and mark hole

center on door face

NOTE: BACKSET ON DOOR FACE MUST BE

THE SAME AS BACKSET OF YOUR

LOCK.

c. Mark two holes for screw post.

2-1/8” (54mm)

Hole for lockset

5/16” (8mm) hole for

screw post

1" or 31/32"

(24.6mm or 25.4mm)

hole for latch

Fold template for High or

Low Bevel positioning

(reference template)

OPTIONAL:

DOOR CORE DRILLING GUIDE #7000-DG &

CORING DRILL BIT #7000-DB

TOOLS REQUIRED FOR NEW INSTALLATION:

1 philips head screwdriver 1 2-1/8” (54MM) hole saw

1 1" (25.4mm) drill bit 1 5/16” (8mm) drill bit

1 chisel 1 file

LATCH

LOCK BODY

ASSEMBLY OUTSIDE

MOUNTING

PLATE

OUTSIDE

ROSE

OUTSIDE

LEVER

INSIDE

LEVER

CATCH

TOOL

INSIDE

ROSE w/LINER

INSIDE MOUNTING

PLATE

5. REMOVE INSIDE TRIM

INSIDE LEVER

INSIDE ROSE

LINER

LEVER CATCH

TOOL

OUTSIDE LEVER

ASSEMBLY

INSIDE MOUNTING

PLATE

ROSE

Use lever catch tool to depress lever

catch, visible under hole of inside lever

shank and slide off inside lever, rose

liner and mounting plate.

P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSET\INST-Z7200 Rev M 08-21 Page 2

a. Insert latch in hole and keep it parallel to door face.

Mark outline and remove latch

b. Chisel 1/8” (3mm) deep or until faceplate is flush with

door edge.

c. Insert latch and tighten screws.

NOTE: LATCH BOLT BEVEL MUST FACE TOWARDS

CLOSING DIRECTION.

a. Close door to mark horizontal line of strike.

b. Measure one half of door thickness from

door stop to mark vertical center line of strike.

Drill 1" (25.4mm) hole, 1/2” (12.7mm) deep at

intersection of horizontal and vertical center lines.

c. Cut out jamb 3/32” (2.4mm) deep or until strike

is flush with jamb. Tighten screws securely.

CENTER

LINE

1" (25.4mm) hole

1/2” (12.7mm) deep

4. INSTALL STRIKE3. INSTALL LATCH

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM

[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

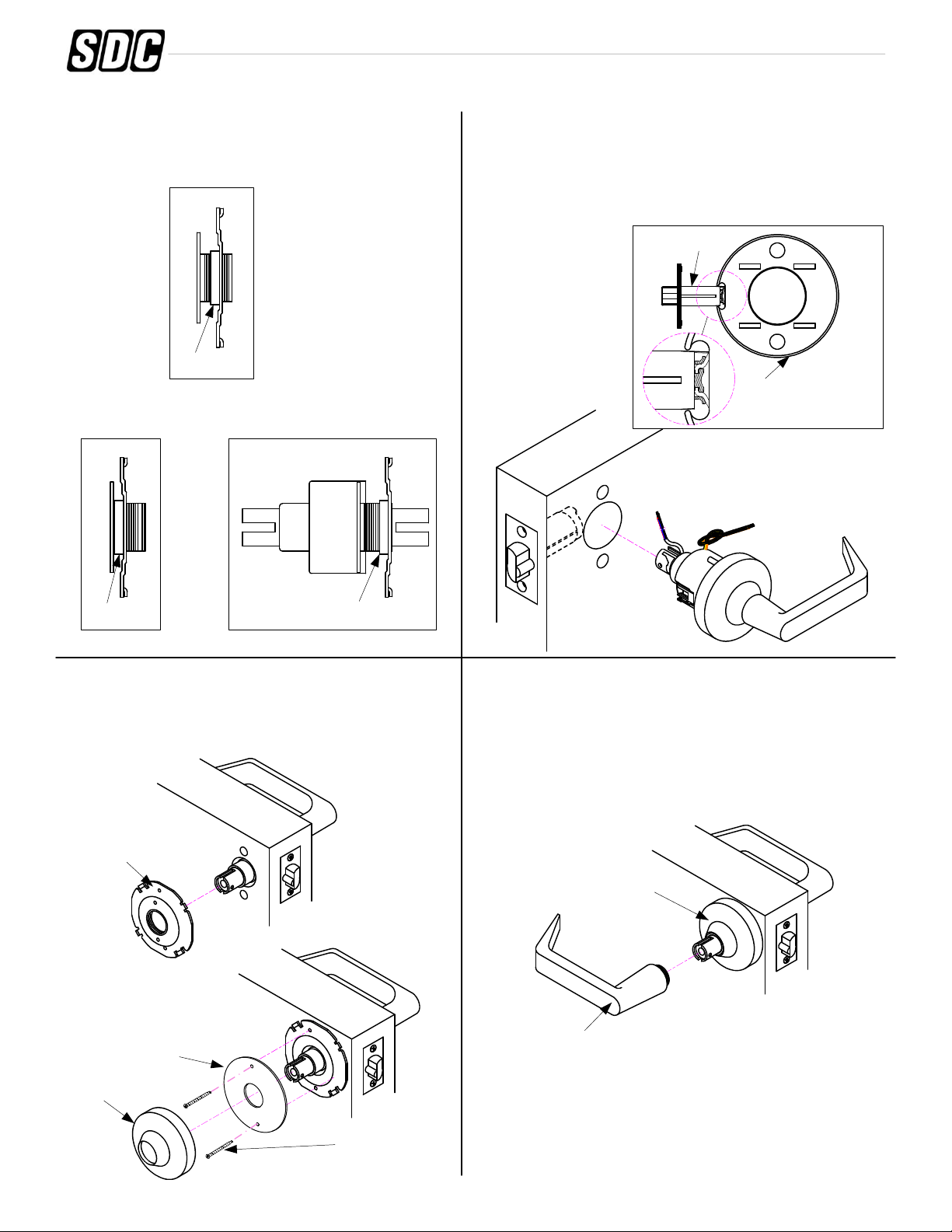

6. ADJUST DOOR THICKNESS 7. INSTALL OUTSIDE LEVER ASSEMBLY

Install outside lever assembly on the door. Make sure tail

of latch is engaging with retractor correctly as illustrated.

Refer to wire diagram on last page for wiring.

9. INSTALL LEVER

a. Depress lever catch with tool provided.

Push inside lever on completely until

catch engages in lever.

Confirm lever is secured.

INSIDE

LEVER

INSIDE

ROSE

1-3/4" thick

Door thickness : 2" thick

1-3/8" thick

P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSET\INST-Z7200 Rev M 08-21 Page 3

LOCK BODY

ASSEMBLY

LATCH

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM

[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

INSIDE

MOUNTING

PLATE

MOUNTING

SCREWS

INSIDE

ROSE

LINER

b. Press inside rose

onto mounting plate

and tighten screws securely.

a. Install inside mounting plate to lock body.

8. INSTALL INSIDE MOUNTING PLATE

AND ROSE

LATCH STATUS MECHANICAL SWITCH SPDT

3A @ 30VDC

WIRE DIAGRAM

Flat (No Bevel)

5/32" (4mm)

1-3/4” Door

1-5/8"

(41mm)

1/8" (3mm)

Holes

2-3/8" (60mm) BACKSET

MARK CENTER OF

2-1/8” (54mm)

HOLE ON DOOR FACE

2-3/4” (70mm) BACKSET (FOR METAL

DOORS ONLY)

DOOR EDGE

2X 5/16" (8mm)

hole

High Bevel

Low Bevel

1" (25mm)

Hole

2-3/4”

(70mm)

2-15/32" (62.7mm) (FOR METAL

DOORS ONLY)

DO NOT USE AS A PHYSICAL TEMPLATE. THIS LAYOUT

IS INTENDED AS A DIMENSIONAL REFERENCE ONLY.

USE THE TEMPLATE PACKAGED WITH THE LOCK

LAYOUT

Using the PR-7200 limits the power consumption, reduces operating temperature, and suppresses inductive

kickback. (The PR-7200 is only supplied with the Fail-Safe models.)

COM = WHT/RED

N/C = ORG/RED

N/O = YEL/RED

LATCH STATUS

P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSET\INST-Z7200 Rev M 08-21 Page 4

RED

BLK

WHT

BLU

RED(+)

WHT(-)

LOCKSET PR-7200

POWER REGULATOR

BLU

WHT

TO PWR

SUPPLY

RED (+)

BLK (-)

12vdc @ INRUSH: .6A

HOLDING: .25A

RED(+)

WHT(-)

RED

BLK

WHT

BLU

LOCKSET PR-7200

POWER REGULATOR

BLU

WHT TO PWR

SUPPLY

RED (+)

BLK (-)

24vdc @ INRUSH: .3A

HOLDING: .15A

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM

[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

COM = GREY

N/C = YELLOW

N/O = ORANGE

REX

REQUEST-TO-EXIT MAGNETIC SENSOR

200mA @ 30VAC (RESISTIVE)

*Both options cant be used

simultaneously.
