ZA7200 SERIES HITOWER CYLINDRICAL LOCK

INSTALLATION INSTRUCTIONS

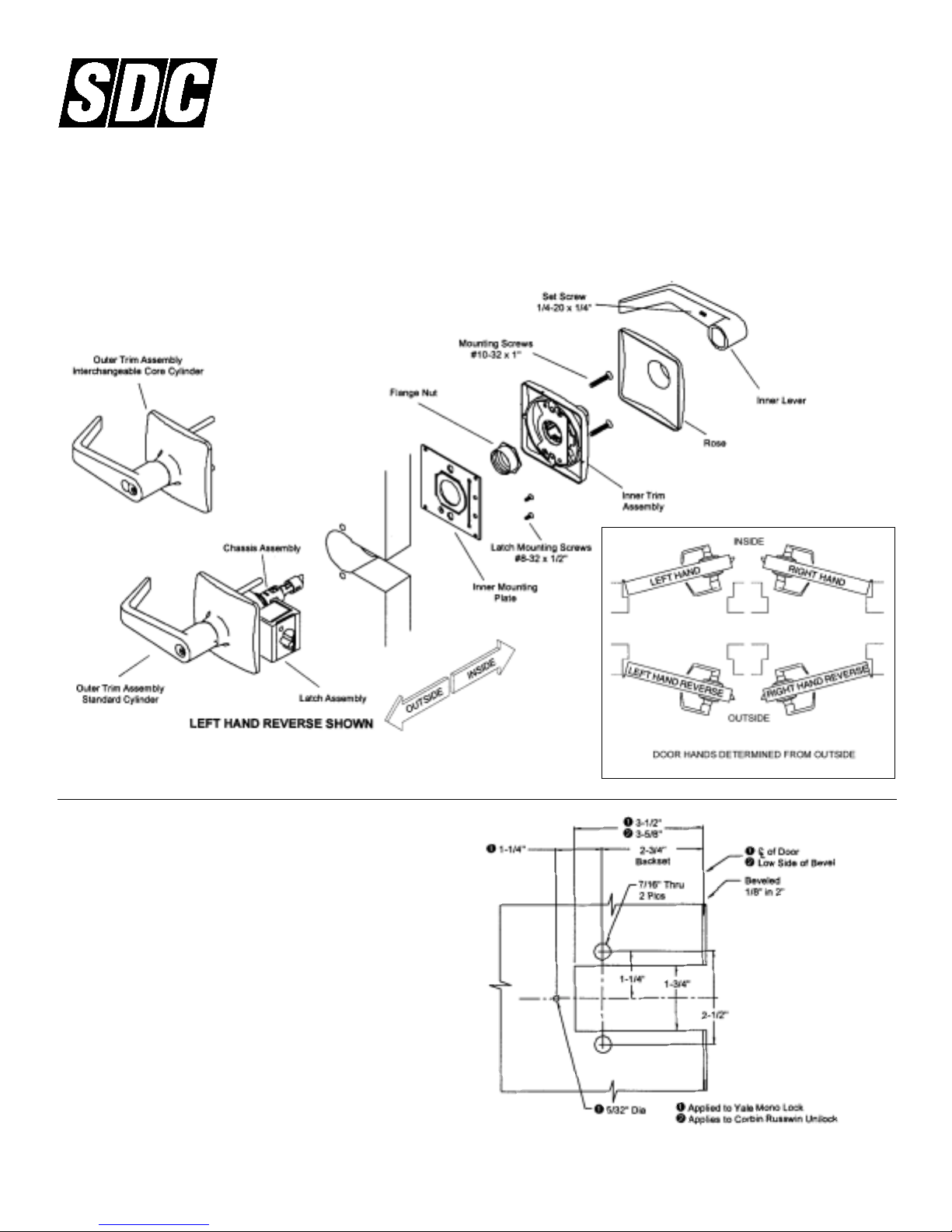

STEP 1 MARK DOOR

Fold template on line indicated.

Place on HIGH EDGE of door bevel.

Position centerline of template on heightline

(suggested height is 38” (965mm) from floor.)

A. Locate and mark center for 2-1/8” (54mm) hole.

B. Locate and mark positions for notches.

Caution: Notches must be horizontal.

C. Locate and mark center for two (2) 5/16” (8mm)

thru-bolt holes.

D. Locate and mark center for 1” (25mm) latch bolt hole

in door edge.

Note: If steel frames are used, the latch centerline must

be in line with the center of the strike preparation.

Hint: For retrofitting of existing 2-1/8” (54mm) holes, fold template in half to locate position for the two (2) 5/16” (8mm) holes.

IMPORTANT: THIS LOCK IS NON-HANDED. LOCK IS

FACTORY PACKED PREADJUSTED FOR 1-3/4” (45MM)

THICK DOORS. TO ADJUST LOCK FOR OTHER DOOR

THICKNESS, SEE STEPS 8, 9 & 10. SPACERS MUST

BE USED FOR DOORS THINNER THAN 1-3/4” (45MM)

THICK.

M:\INS\INST-ZA7200 0200 Page 1

STEP 2 BORE HOLES - INSTALL LATCH

When drilling through door, be careful not to damage door finish.

A. Bore a 2-1/8” (54mm) hole and two (2) 5/16” (8mm) holes from both sides

of door to avoid splintering wood.

B. Bore a 1” (25mm) hole into door edge. Using latch faceplate as pattern,

trace outline and mortise door edge so latch is flush with door. If 3/4

projection latch is to be installed, see Step 20.

NOTE: For wood jambs, close door and using a strike locating tool or other

pointed object, mark position of hole in jamb. Open door and drill 1” (25mm) hole

in jamb minimum 3/4” (19mm) deep.

C. File two (2) 5/32” (4mm) x 5/32” (4mm) x 1/8” (3mm) deep notches into both

sides of door.

D. Insert latch unit in door, making certain that latch bolt bevel faces direction

of closing door. Attach with two #8 combination screws provided.

NOTE: We recommend using a drill guide to ensure straight and level holes.

IF USING THE SECURITY DOOR CONTROLS OPTIONAL DRILL GUIDE

Install drill guide (030736-000-70) into door. Make certain correct backset

locators are even with door edge. Drill two (2) 5/16” (8mm) holes from both

sides to center.

NOTE: Drill guide replacement is recommended after 10 door preparations.

STEP 3 INSTALL CHASSIS AND OUTER TRIM ASSEMBLY

NOTE: For ease of installation, lock should be in the unlocked position.

Slide chassis assembly into door from outside making sure that lock housing

engages latch prongs. Retractor must also engage latch tail.

IMPORTANT: Chassis assembly must be positioned in center of door for proper

operation.

STEP 4 INSTALL INNER MOUNTING PLATE

A. Place inner mounting plate onto chassis assembly making sure that plate

tabs engage horizontal notches in door.

B. Position flanged nut over chassis assembly and tighten securely with black

hex wrench provided.

M:INS/INST-ZA7200 0200 Page 2

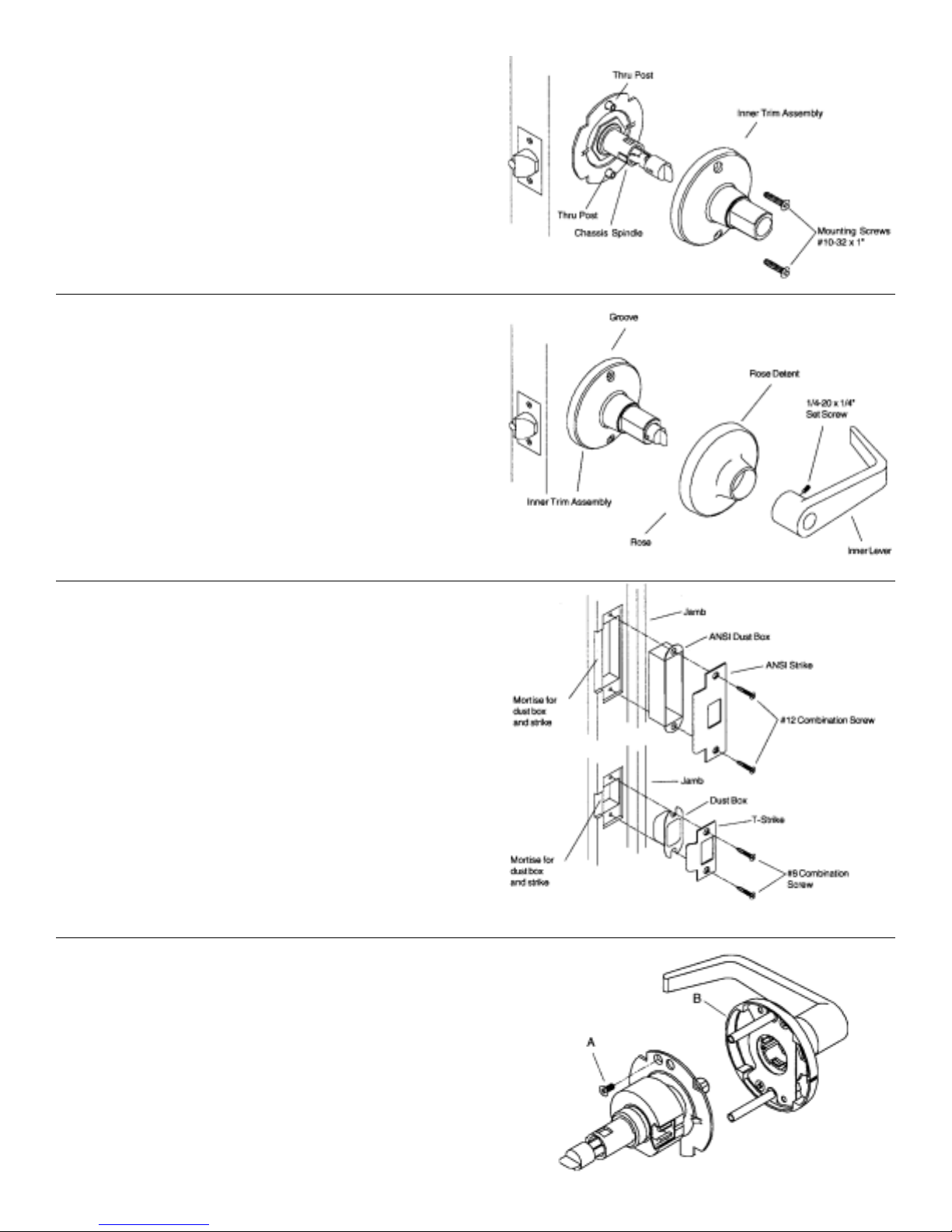

STEP 5 INSTALL INNER TRIM ASSEMBLY

Slide inner trim assembly over chassis spindle. Thru-posts will engage inner trim

assembly on 1-3/4” (45mm) thick doors. Secure to door with two (2) #10-32 x 1”

machine screws provided.

STEP 6 INSTALL INNER LEVER

A. Position rose over inner trim assembly making sure rose detent engages

groove in spindle assembly.

B. Install lever handle and tighten set screw with hex key provided.

Stop! Test operation to be sure latch bolt moves freely. Do not force. If lockset

does not operate properly, remove lockset from door and check door preparation

and door thickness adjustment. See Step 4 to re-install chassis.

STEP 7 LOCATE AND INSTALL STRIKE

A. For wood jambs center strike latch opening over 1” (25mm) hole in jamb.

Trace outline around the strike on door jamb.

B. Mortise door jamb to accommodate strike box and strike.

C. Insert strike box if required and fasten strike to jamb with combination

screws provided.

CAUTION: Deadlocking plunger of latch bolt must not enter opening in

strike plate.

Note: When strike box is not used, recess in jamb must be a minimum of 9/16”

(14mm) deep to allow latch bolt to extend to its full projection.

STEP 8 INSTRUCTIONS FOR REMOVING OUTSIDE TRIM

A. Remove the outside trim retaining screw (A).

B. Slide the outside trim (B) from the chassis assembly.

C. See Step 9 for chassis adjustment procedure, or Step 10 for spacer

installation.

D. Slide the outside trim (B) onto the chassis.

E. Replace the outside trim retaining screw (A).

M:INS/INST-ZA7200 0200 Page 3

M:INS/INST-ZA7200 0200 Page 4

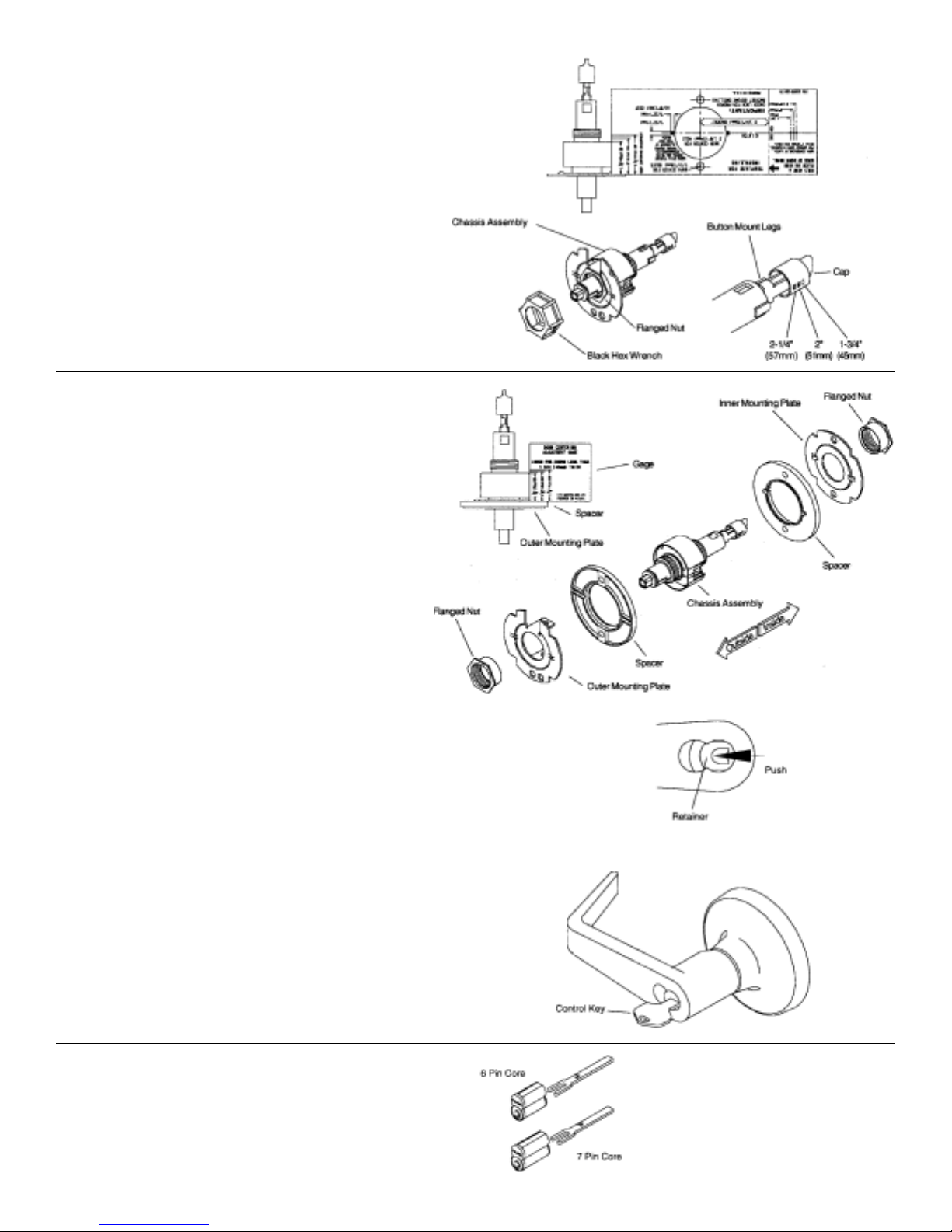

STEP 9 ADJUST LOCK FOR DOOR THICKNESS

Lock is factory packed preadjusted for 1-34” (45mm) doors

unless ordered special.

A. Place template provided against retractor housing to find

marking for door thickness.

B. If adjustment is necessary, use black hex wrench provided

and rotate flanged nut counterclockwise to adjust. Again, use

template markings to measure adjustment before installing

lock on door.

HINT: Three full turns of nut equals (=) 1/8” (3mm) adjustment.

C. Pinch button mount legs together and move cap to desired

position.

STEP 10 INSTALLING SPACERS FOR DOORS

THINNER THAN 1-3/4” (45mm)

A. Remove flanged nut with black hex wrench provided along

with outer mounting plate.

B. Place one spacer over outer chassis spindle as shown.

C. Re-install outer mounting plate and flanged nut. Using

adjusting gauge provided, adjust flanged nut for proper door

thickness as shown.

D. See Step 4 for chassis installation.

E. Place second spacer over inner chassis spindle before

installing inner mounting plate and flanged nut. Continue at

Step 5.

STEP 11 TO REMOVE ALL LEVERS WITH INTERCHANGEABLE CORE CYLINDERS

A. Insert control key into core and rotate 15 degrees clockwise.

Pull key to remove core.

B. Insert screwdriver into Figure 8 core hole and into lever

retainer.

C. Depress retainer and slide lever off spindle.

TO RE-INSTALL LEVER

D. Slide lever over spindle and push on over retainer.

E. Pull on lever to be sure retainer engaged lever.

F. Re-install core with tailpiece pushed into core.

STEP 12 IC CORE AND TAILPIECE

Be certain to use correct tailpiece with core. Six pin cores should

only use the “6P” tailpiece and seven pin cores should only use the

“7P” tailpiece.

M:INS/INST-ZA7200 0200 Page 5

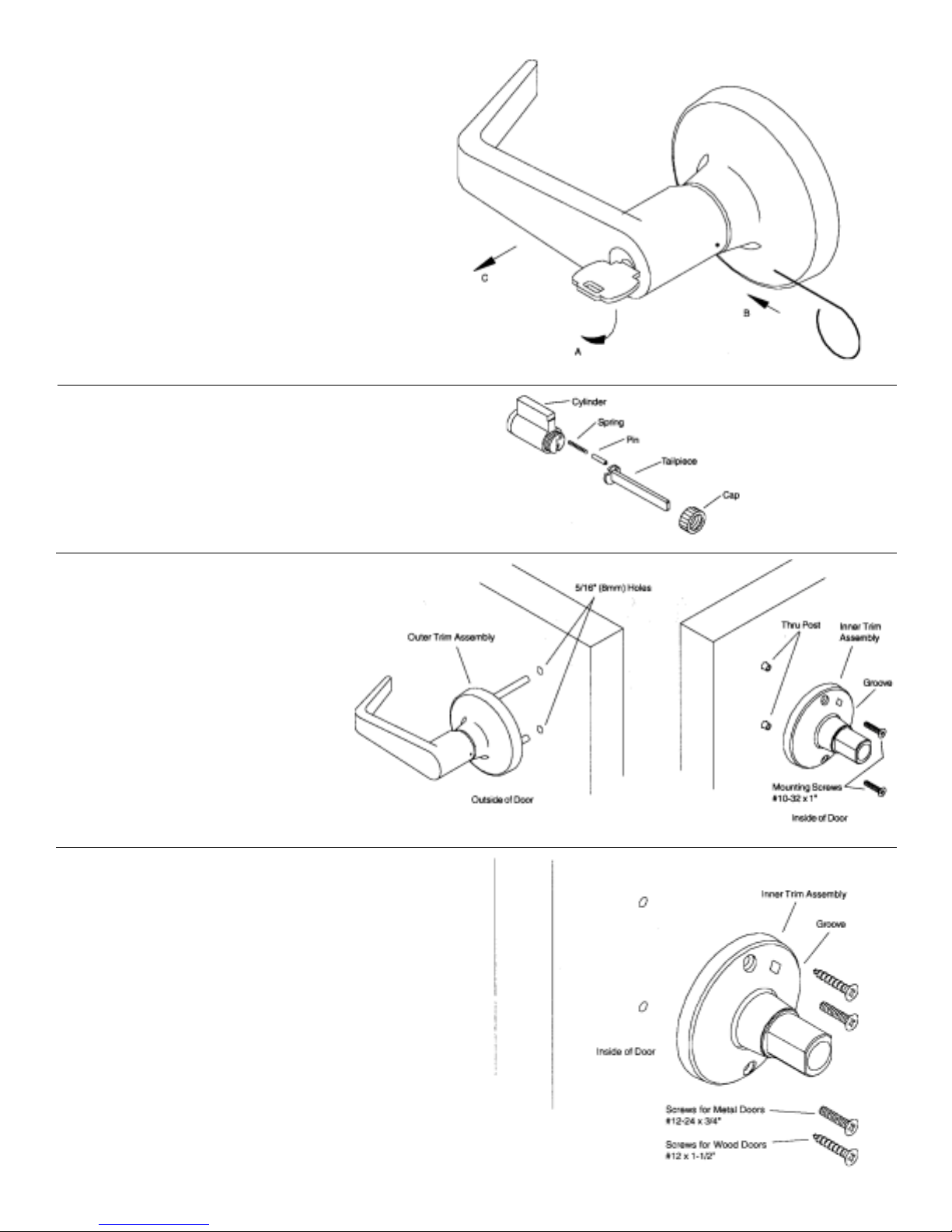

STEP 13 TO REMOVE ALL CYLINDER LEVERS

(Except Interchangeable Core)

A. Insert key and rotate clockwise approximately 60 degrees.

B. Depress lever retainer with tool provided.

C. Slide lever off spindle.

TO RE-INSTALL LEVER

D. Insert cylinder into spindle.

E. Slide lever onto spindle.

F. Insert key into cylinder and rotate clockwise approximately 60

degrees and push lever over retainer.

G. Pull on lever to be sure retainer engaged lever.

STEP 14 TAILPIECE INSTALLATION

For proper function of the lock, the tailpiece must be installed

correctly. All T-Series tailpieces should be installed VERTICALLY

in the cylinder.

STEP 15 DOUBLE DUMMY TRIM, T18

A. Using template described in Step 1, locate and

mark center for two (2) 5/616” (8mm) Thru-Bolt

Holes.

B. Bore two (2) 5/16” (8mm) holes from both sides

of door to avoid splintering wood.

C. Holding outer trim against door, position inner

spindle assembly over thru-posts and secure to

door with two (2) #10-32 x 1” machine screws

provided.

D. See Step 6 for lever installation.

STEP 16 SINGLE DUMMY TRIM, T12

A. Using template described in Step 1, locate and mark center

for two (2) mounting holes.

B. For Wood Door - Drill two (2) pilot holes 5/32” (4mm) x 7/8”

(22mm) deep for #12 wood screws.

For Metal Door - Drill and tap two (2) holes for #12-24

machine screws.

C. Position spindle assembly over mounting holes and secure to

door with screws provided.

D. See Step 6 for lever installation.

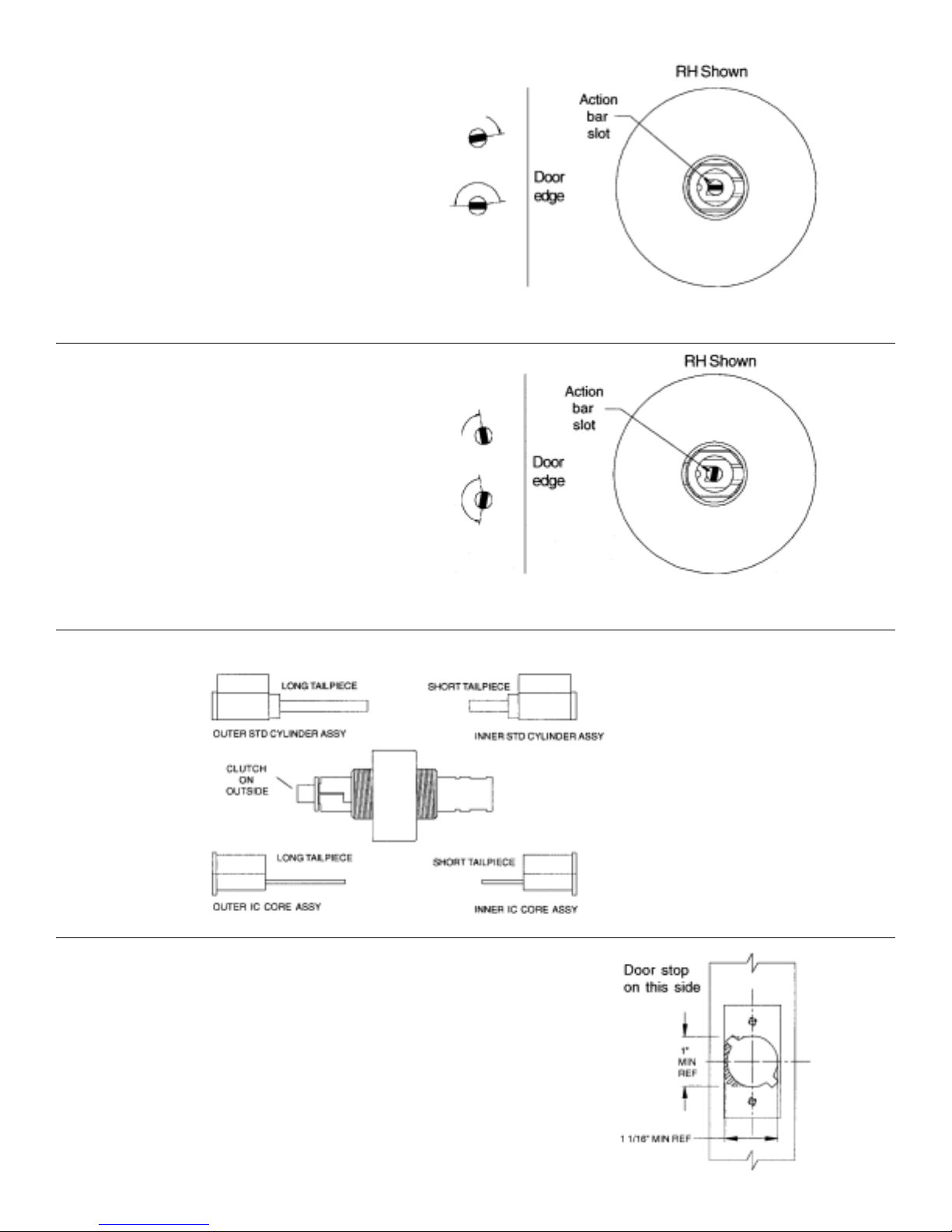

STEP 17 TIMING INSTRUCTIONS FOR STANDARD CYLINDER LOCKS

A. If the cylinder and handle are installed, refer to Step 13 for lever

removal instructions.

B. Using a thin flat screwdriver, turn the action bar slot clockwise (cw)

until it stops at about 2:00.

C. Then turn the action bar counterclockwise (ccw) to the 9:00

position.

NOTE: No physical stop is at this location.

D. With the key out, install standard cylinder into the spindle.

E. Refer to Step 13 for lever installation instructions.

F. Operate key to test for proper operation.

STEP 18 TIMING INSTRUCTION FOR IC CORE LOCKS

A. If the core is installed, refer to Step 11 for IC core removal

instructions.

B. Using a thin flat screwdriver, turn the action bar slot clockwise (cw)

until it stops at about 11:00.

C. Then turn the action bar counterclockwise (ccw) to the 7:00

position.

NOTE: No physical stop is at this location.

D. Using the control key, insert IC core into the lever and spindle.

E. Remove control key.

F. Operate key to test for proper operation.

STEP 19 TAILPIECE INSTALLATION INSTRUCTIONS FOR T381 FUNCTION

SEE STEP 14 FOR STD

CYLINDER TAILPIECE

INSTALLATION

SEE STEP 12 FOR IC

CORE TAILPIECE

INSTALLATION

STEP 20 INSTALLATION INSTRUCTIONS FOR OPTIONAL 3/4 PROJECTION LATCH

A. Determine the hand of the door.

B. On the side closest to the door stop, remove shaded area as

shown. Use a standard rotary file 3/8 diameter maximum.

C. Try latch for fit and function.

D. Secure latch with two (2) #8-32 machine screws provided.

M:INS/INST-ZA7200 0200 Page 6

M:INS/INST-ZA7200 0200 Page 7

WIRING DIAGRAM

MODEL #ZA7250 FUNCTION:

#ZU7350 Fail-Safe power to lock. Locked outside, free

egress from inside. Lock is unlocked by access

control, remote switch, or means of outside key

or by rotating inside lever.

MODEL #ZA7260 FUNCTION:

#ZU7360 Fail-Secure power to unlock. Locked outside,

free egress from inside. Lock is unlocked by

access control, a remote switch, applying

momentary power, or by a key from outside, or

by rotating the inside lever.

ELECTRICAL SPECIFICATIONS

FAIL SAFE/FAIL SECURE

.185 AMP @ 24VDC ±2V

DISTANCE IN FEET FROM POWER SOURCE TO FARTHEST LOCKING DEVICE

AMPS

0.25

0.50

0.75

1.00

1.50

2.00

2.50

3.00

3.50

AMPS

0.25

0.50

0.75

1.00

1.50

2.00

2.50

3.00

3.50

25 50 75 100 150 200 250 300 400 500 1000

18 18 18 18 18 16 16 14 14 12

18 18 18 16 16 14 12

18 18 16 14 12 12

18 16 14 14 12

18 14 12 12

16 14 12

16 12

14 12

25 50 75 100 150 200 250 300 400 500 1000

18 18 18 18 18 18 18 18 16 16 16

18 18 18 18 18 16 16 14 14 12

18 18 18 18 16 14 14 12 12

18 18 16 16 14 14 12 12

18 18 16 14 14 12

18 16 14 14 12

18 16 14 12

18 14 12 12

18 14 12

Minimum Wire

Gauge for 24 Volts

AC or DC

Minimum Wire

Gauge for 12 Volts

AC or DC

AWG WIRE CHART

To determine the correct wire gauge to use on “one circuit” the following information is required:

1. The quantity, voltage, and current draw of all lock(s) to be used.

2. The distance in feet from the power supply to the furthest lock.

Add together the current draw (amps) of all locks on the same circuit. Cross reference the total amps with the distance between the

power source and the furthest lock to determine the wire gauge required.

“One circuit” implies that from the power supply two wires are being run to one or more locks in parallel. The last lock on that pair of

wires from the power supply is not to exceed the maximum distance number as shown on the chart for that gauge of wire, quantity

and type of lock. If the gauge size or maximum distance is inadequate for your application, divide the quantity of locks in that circuit

to create two or more separate circuits and use the chart to figure each new circuit independently even though the same power

supply is being used. This will increase the total number of wires being run but it will allow for a smaller gauge of wire and increase

the maximum distance from the power supply to the furthest lock in that circuit. The chart shows the maximum distance allowable for

a 5% voltage drop from the power supply to the furthest lock on one circuit.

All wiring must be installed in accordance with all state and local codes.

M:INS/INST-ZA7200 0200 Page 8

IMPORTANT: THIS LOCK IS NON-HANDED. LOCK IS

FACTORY PACKED PREADJUSTED FOR 1-3/4” (45MM)

THICK DOORS. TO ADJUST LOCK FOR OTHER DOOR

THICKNESS, SEE STEPS 8, 9 & 10. SPACERS MUST

BE USED FOR DOORS THINNER THAN 1-3/4” (45MM)

THICK.

STEP 1 EXAMINE DOOR PREPARATION AND HANDING

These instructions are applicable to the two most common

door preparations −Yale Mono Lock and Corbin Russwin

Unilock −as shown in the illustration on the right. If your

door preparation is different, STOP! You need to contact

the factory for instructions specifically for your door

preparation.

STOP! Ensure that the lock handing matches the door

handing and bevel. If it does not match, refer to Step 9

before continuing.

SECURI TY DO O R CO NTRO LS

3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861

www.sdcsecurity.com • E-mail: service@sdcsecurity.com

ZU7300 SERIES HITOWER UNIT LOCK

INSTALLATION INSTRUCTIONS

M:INS/INST-ZU7300 0200 Page 1

M:INS/INST-ZU7300 0200 Page 2

STEP 2 MARK DOOR

Fold template on lines indicated.

Place on HIGH EDGE of door bevel.

A. Place template on high edge of door bevel. Center the template to the slot

opening and mark 2-1/8” diameter on surface of door. Repeat same for low

edge of door.

B. Locate and verify clearance for two (2) 5/16” (8mm) thru-bolt holes.

STEP 3 BORE HOLE

When drilling through door, be careful not to damage the door finish.

A. For wood doors: Using a standard commercial boring jig, bore the 2-1/8”

(54mm) hole. Drill from both sides of door to avoid splintering wood.

B. For steel doors: Grind off the marked area to provide clearance for the

chassis housing.

NOTE: In most cases the chassis mounting posts will fit through the

existing holes in the door.

STEP 4 INSTALL TRIM AND CHASSIS ASSEMBLY

Slide trim and chassis assembly into door from outside.

IMPORTANT: Chassis assembly must be positioned in center of door for proper operation.

STEP 5 INSTALL INNER MOUNTING PLATE

A. Place inner mounting plate onto chassis assembly making sure that

mounting plate slot and latch adapter tab are fully engaged.

B. Secure mounting plate to latch adapter with the two (2) #8-32 x 1/2” flat head

screws supplied.

C. Position flanged nut over chassis assembly and tighten securely with black

hex wrench provided.

D. Optional: Secure mounting plate to door with two (2) #8 x 3/4” Phillips Pan

head self-drilling sheet metal screws or equivalent (not supplied).

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cerradura de puerta de SDC

SDC

SDC Z7836 Series Manual de usuario

SDC

SDC 45 Series Manual de usuario

SDC

SDC 1511S Manual de usuario

SDC

SDC PD2090A Manual de usuario

SDC

SDC TEMPLATE 180 SERIES Manual de usuario

SDC

SDC SK-82 Manual de usuario

SDC

SDC E70PS Series Manual del propietario

SDC

SDC E75 Series Manual de usuario

SDC

SDC 352 Narrow Line EMLock Manual de usuario

SDC

SDC Z7870 Manual de usuario

SDC

SDC 1190A Series Manual de usuario

SDC

SDC 1291 ADMR Spacesaver Manual de usuario

SDC

SDC Z7200 Manual de usuario

SDC

SDC 30-4 Manual de usuario

SDC

SDC S6100 Series Manual de usuario

SDC

SDC S6800 Series Guía de inicio rápido

SDC

SDC S6300 Series Manual de usuario

SDC

SDC S6200 Series Manual de usuario

SDC

SDC 1511S Manual de instrucciones

SDC

SDC E72K-A CIVIC SERIES Manual de instalación

SDC

SDC Z7700 Series Manual de usuario

SDC

SDC Z7500 Series Manual de usuario

SDC

SDC Spacesaver 1091 ADMR Manual de usuario

SDC

SDC E75 Series Instrucciones de funcionamiento

Manuales populares de Cerradura de puerta de otras marcas

Assa Abloy

Assa Abloy effeff 827A-IP Manual de usuario

We.lock

We.lock SECBNEBL51 Manual de usuario

Iseo

Iseo MA1A Manual de usuario

ID Lock

ID Lock 150 Manual de usuario

Lockly

Lockly ACCESS TOUCH PRO Manual de usuario

iLoq

iLoq G50S Manual de usuario

ilco

ilco 452 Manual de usuario

Samsung

Samsung shs-h705 Manual de usuario

TRU-BOLT

TRU-BOLT 08102017 Manual de usuario

CDVI

CDVI 500-LADJ Manual de usuario

Igloohome

Igloohome Deadbolt 2S Metal Grey Instrucciones de instalación y mantenimiento

eSSL

eSSL FL-300 Manual de usuario

JAKO

JAKO JKBTNX4 Manual de usuario

Dorma

Dorma MUNDUS PREMIUM GK 50 Guía del usuario

SCOOP

SCOOP Pullbloc 4.1 FS Panik Manual de usuario

Yale

Yale MORTISE 8800 SERIES Manual de usuario

Siegenia

Siegenia KFV AS3500 Manual de usuario

Saflok

Saflok Quantum ädesē RFID Manual de usuario
