SDC Spacesaver 1091 ADMR Manual de usuario
801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 •
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
P:\INSTALLATION INST\Electric Bolt Locks\TEMP-1091A\Temp-1091ADMR.vsd REV A 09-17 Page 1
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
1.755
10.500
11.605
.865
O1.150
1.500
.750
TECHNICAL DATA (FOR STANDARD UNIT)
FACE PLATE: 10-1/2" x 1-1/2" X 1/8"
STRIKE: 4" x 1-1/2” x 1/8”
ID REQUIREMENTS: 10-1/2” x 1-1/2” x 1-1/2”
BOLT: 5/8” DIA. STAINLESS STEEL
BOLT THROW: 3/4”
NOTE: TEMPLATE DIMENSIONS ARE SUBJECT TO
CHANGE WITHOUT NOTICE.
Door Preparation
1.51
.750
L
COF BOLT
L
COF DOOR
1.50
.125
4.00
3.25
4.00
(2X) TAP FOR #10-32

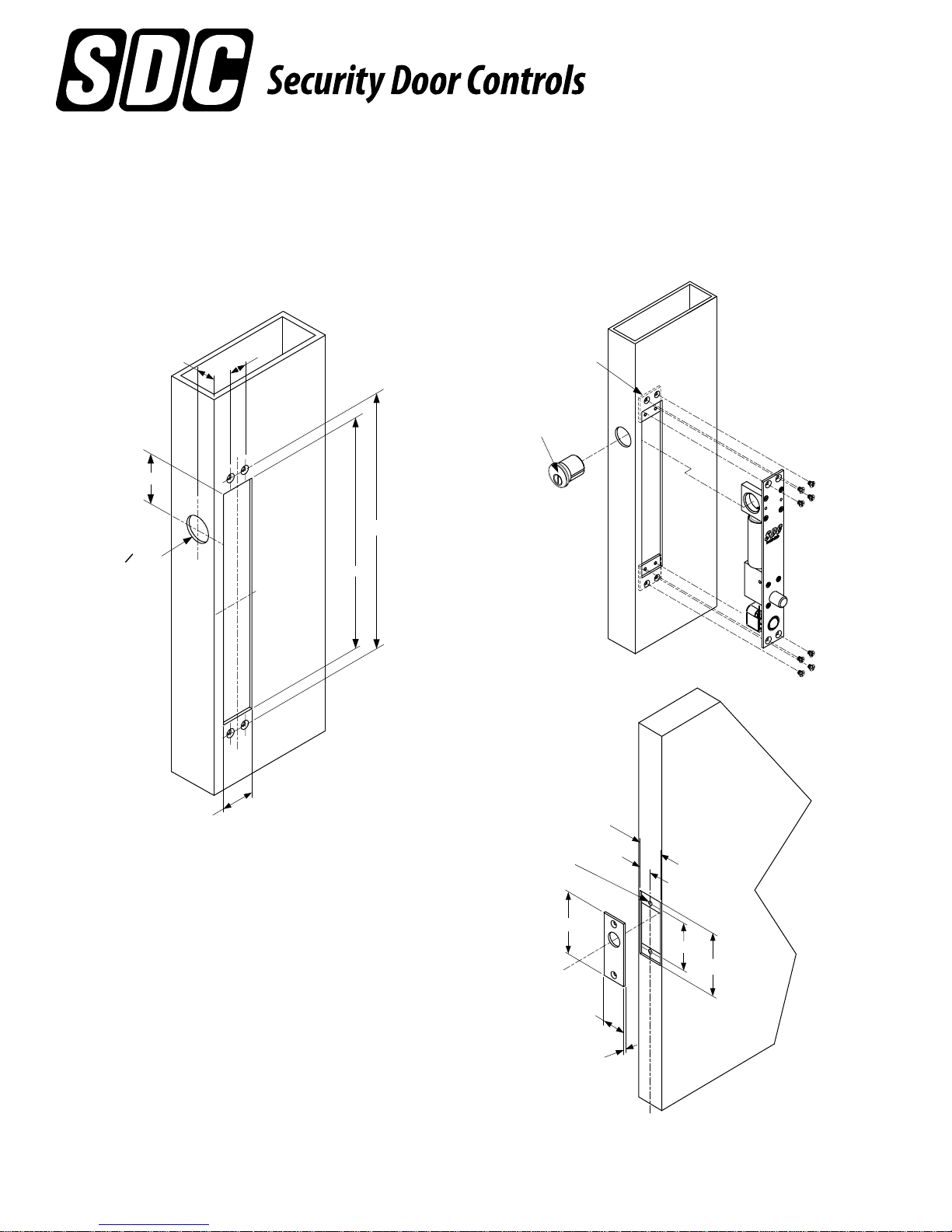

1091ADMR
INSTALLATION INSTRUCTIONS/TEMPLATE
MECHANICAL RELEASE
ALUMINUM FRAME MOUNT CONFIGURATION
(8X) TAP TABS
FOR #10-32
CYLINDER NOT
INCLUDED
P:\INSTALLATION INST\Electric Bolt Locks\TEMP-1091A\Temp-1091ADMR.vsd REV A 09-17 Page 2
TECHNICAL DATA (FOR STANDARD UNIT)
FACE PLATE: 10-1/2" x 1-1/2" X 1/8"
STRIKE: 4" x 1-1/2” x 1/8”
ID REQUIREMENTS: 10-1/2” x 1-1/2” x 1-1/2”
BOLT: 5/8” DIA. STAINLESS STEEL
BOLT THROW: 3/4”
NOTE: TEMPLATE DIMENSIONS ARE SUBJECT TO
CHANGE WITHOUT NOTICE.
Door Preparation
1.51
.750
L
COF BOLT
L
COF DOOR
1.50
.125
4.00
3.25
4.00
(2X) TAP FOR #10-32
1.755
10.500
11.605
.865
O1.150
.750
1.500

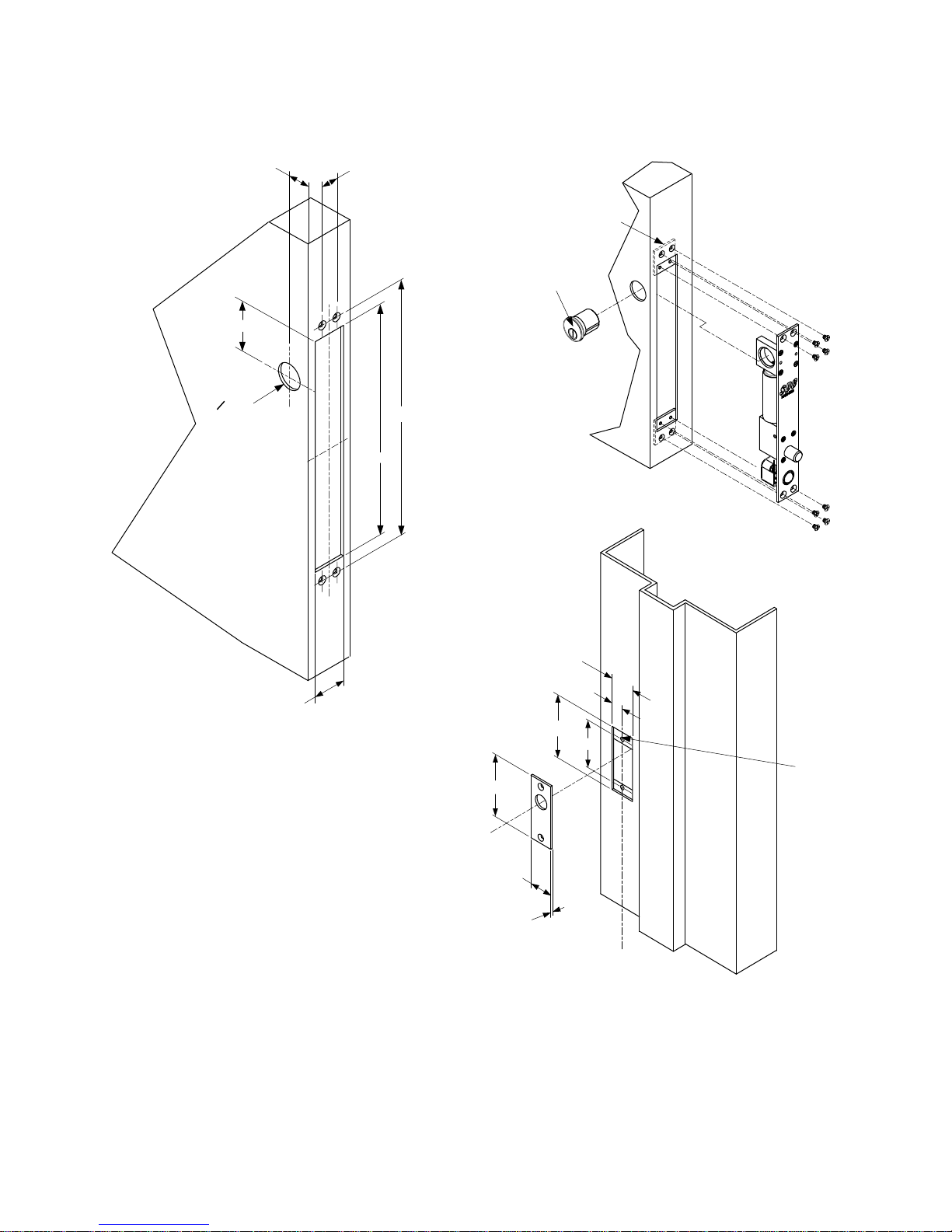

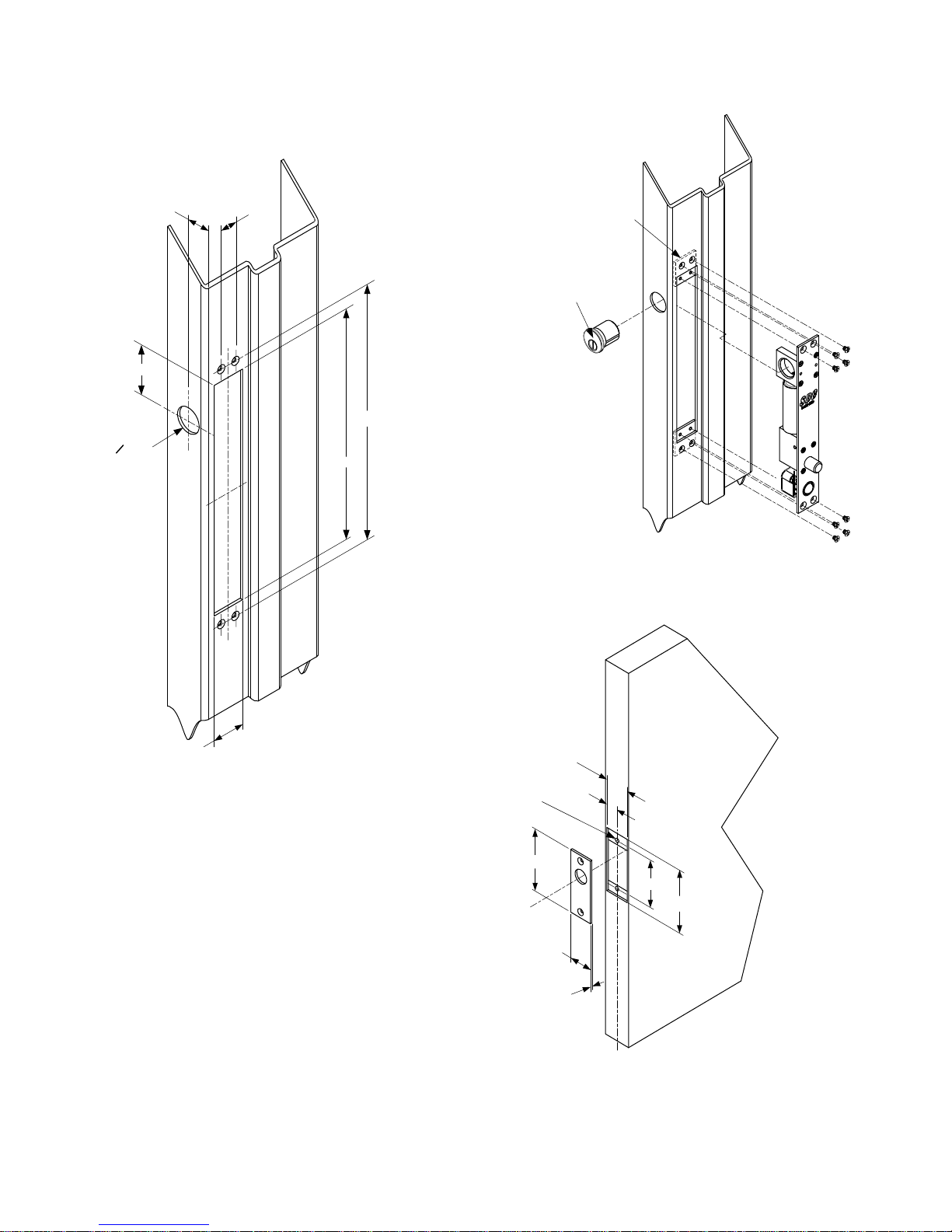

HOLLOW METAL MOUNT CONFIGURATION
(8X) TAP TABS
FOR #10-32
CYLINDER NOT
INCLUDED
P:\INSTALLATION INST\Electric Bolt Locks\TEMP-1091A\Temp-1091ADMR.vsd REV A 09-17 Page 3
TECHNICAL DATA (FOR STANDARD UNIT)
FACE PLATE: 10-1/2" x 1-1/2" X 1/8"
STRIKE: 4" x 1-1/2” x 1/8”
ID REQUIREMENTS: 10-1/2” x 1-1/2” x 1-1/2”
BOLT: 5/8” DIA. STAINLESS STEEL
BOLT THROW: 3/4”
NOTE: TEMPLATE DIMENSIONS ARE SUBJECT TO
CHANGE WITHOUT NOTICE.
1.755
10.500
11.605
.865
O1.150
.750
Door Preparation
1.500
Frame Preparation
1.51
.750
L
COF
BOLT
L
COF
STRIKE
1.50
.125
4.00
3.25
4.00
(2X) TAP
FOR
#10-32
DOOR MOUNT CONFIGURATION
(8X) TAP TABS
FOR #10-32
CYLINDER NOT
INCLUDED
P:\INSTALLATION INST\Electric Bolt Locks\TEMP-1091A\Temp-1091ADMR.vsd REV A 09-17 Page 4

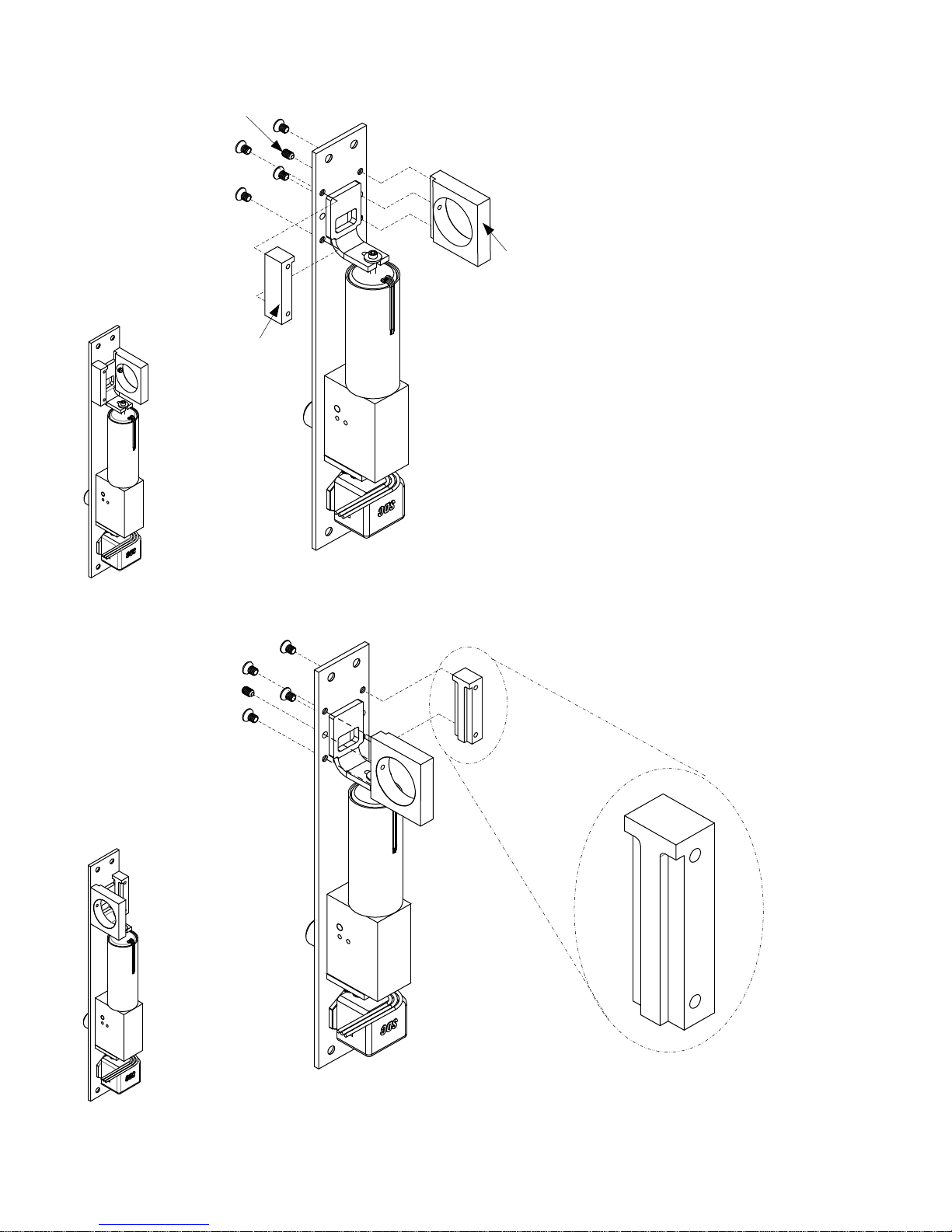

INSTRUCTIONS FOR REVERSING THE CYLINDER
Reverse the components and
re-install as shown.
Make sure the sliding Link Block is aligned properly
Remove the Cylinder locking set screw, and screw the
Cylinder out of the Mounting Block.
Remove the four screws securing the Mounting Block
and the Sliding Link Block.
Mounting Block
Sliding Link Block
Cylinder
Locking
Set Screw
LOCK WIRING
ELECTRICAL DATA:
Dual Voltage Solenoid
12VDC@ .9 mA (max.)
24VDC@ .45 mA (max.)
Continuous Duty
RED
BLU
BLK
WHT (-)
12VDC SOLENOID
CONFIGURATION
PIGTAIL
CONNECTOR
RED
BLK
BLU
WHT (-)
PIGTAIL
CONNECTOR
24VDC SOLENOID
CONFIGURATION
YELLOW / RED
WHITE / BLACK
ORANGE / RED
YELLOW / BLACK
WHITE / BLACK
ORANGE / BLACK
DPS
DPS/ BPS CONFIGURATION
BPS
DPS polarity shown with door closed
BPS polarity shown with bolt retracted
OPTIONAL BOLT POSITION SENSOR (BPS-MAGNETIC)
B Indicates bolt locked or unlocked 5 Watt
OPTIONAL DOOR POSITION SWITCH (DPS-MECHANICAL)
D Indicates door opened or closed 4A @ 30VDC (Resistive)
COM
=
=
=
N/O
N/C
=
=
= COM
N/O
N/C
*When both options are ordered the Common is shared
YEL (+)
YEL (+)
P:\INSTALLATION INST\Electric Bolt Locks\TEMP-1091A\Temp-1091ADMR.vsd REV A 09-17 Page 5
N/C
N/O
Access
Control or
Push Button
(N/C)
COM
+
(-)
24VDC
POWER
INPUT
NOTE: Cap
unused wires

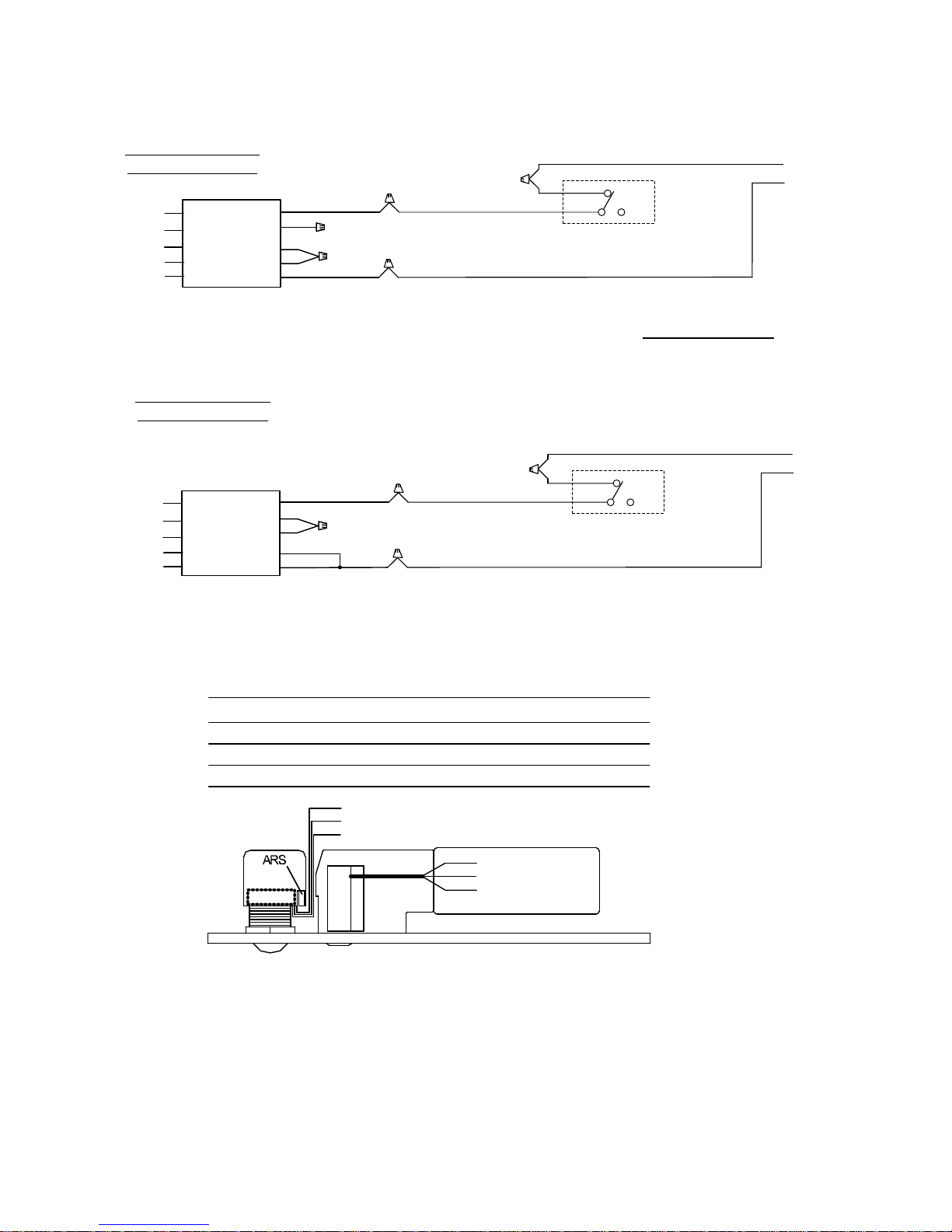

Select 24VDC OR 12VDC Configuration, and use provided pigtail connector:
FROM
LOCK
(PRE-
WIRED)
N/C
N/O
Access
Control or
Push Button
(N/C)
COM
+
(-)
12VDC
POWER
INPUT
FROM
LOCK
(PRE-
WIRED)
