SDC 1190A Series Manual de usuario

M:\INS\Temp-1190A REV A 0702 Page 1

Security Door Controls

3580 Willow Lane

Westlake Village, CA 91359

(805) 494-0622

Fax: (805) 494-8861

www.sdcsecurity.com

E-mail: service@sdscecurity.com

TEMPLATE

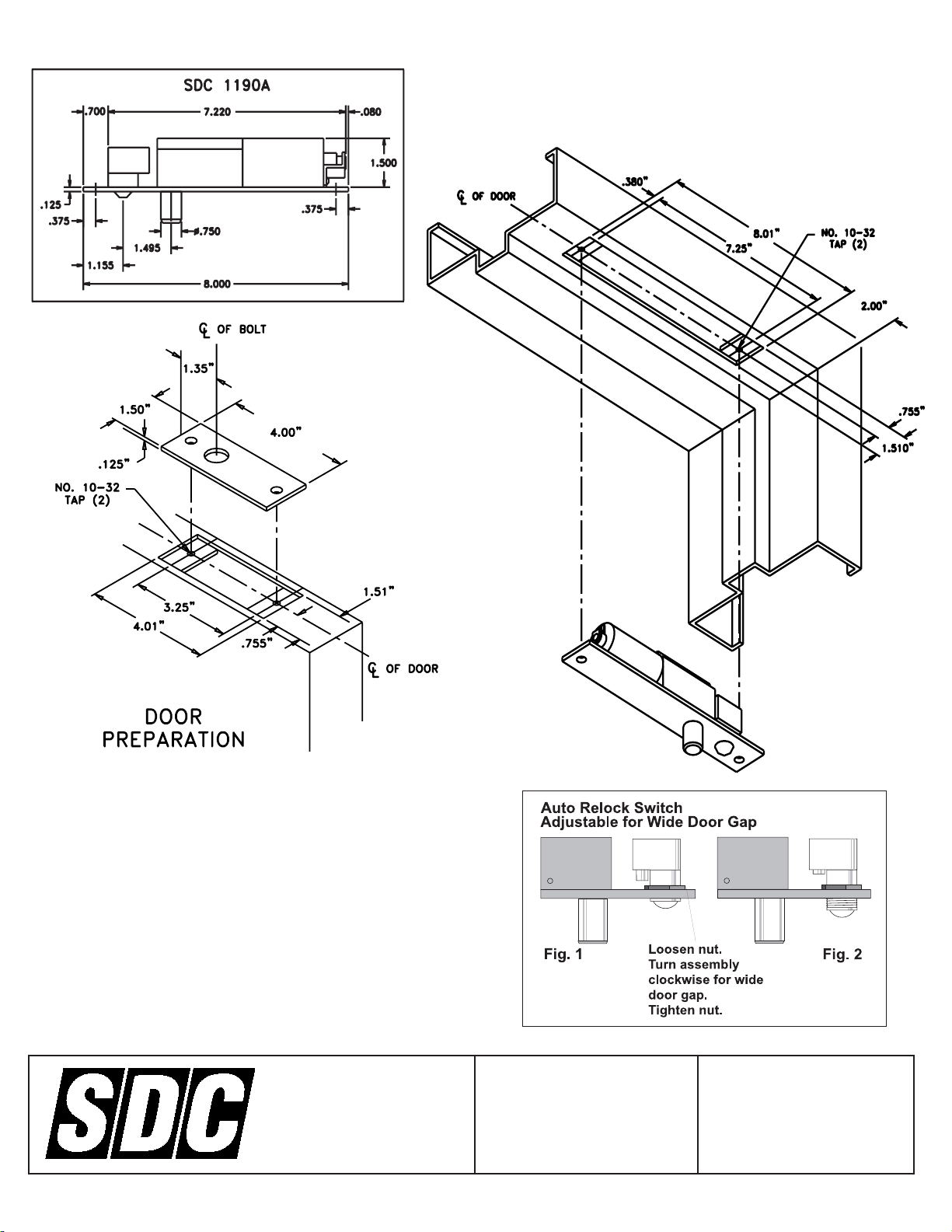

1190A

DATE 3/19/01

DRAWING

3293

NOTE: TEMPLATE DIMENSIONS ARE SUBJECT TO CHANGE WITHOUT

NOTICE.

TECHNICAL DATA (for standard unit)

FACE PLATE: 8” X 11/2” X 1/8”

STRIKE: 4” X 11/2” X 1/8”

ID REQUIREMENTS: 8” X 11/2” X 11/2”

FINISH: US28 STANDARD (PLATED FINISHES OPTIONAL)

BOLT: 3/4” DIA. SOLID STAINLESS STEEL

BOLT THROW: 3/4”, ROTATING

FAIL-SAFE: LOCKED WHEN ENERGIZED

AUTO RELOCK SWITCH: ADJUSTABLE BALL TYPE

SOLENOID: CONTINUOUS DUTY

ELECTRICAL DATA: 19 WATTS - .8 AMP MAX AT 24VDC

A RECTIFIER IS SUPPLIED FOR AC

OPERATION

(SPECIFY VOLTAGE REQUIRED)

STATUS SENSORS: BOLT AND DOOR POSITION (OPTIONAL)

NOTE: FOR WOOD INSTALLATION CONSULT FACTORY.

SECURITY DOOR CONTROLS

3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861

www.sdcsecurity.com • E-mail: service@sdcsecurity.com

INSTALLATION INSTRUCTIONS

FS23M, 1090, 1190 SERIES

OVERHEAD INSTALLATION HORIZONTAL

1. Examine the top rail of the door for the most suitable location for the strike. Mark the door for the end of the strike closet to the lock

stile, and make a corresponding mark on the header to line up with the first mark.

2. Locate center line of door thickness on the header and attach adhesive cut out template to header. Lining it up with marks, center

punch the tab-mounting screw locations and counter-sink for #10 screw. Saw or rout out the cutout area.

SIDEJAMB INSTALLATION VERTICAL

3. Examine the lock stile jamb for the point nearest the center of the door height, with space available for the lock and strike. Mark the

door stile horizontal for the top end of the strike and make a corresponding mark on the jamb.

4. Locate center line of door thickness on the jamb and attach adhesive cutout template to jamb, lining up the the top of the cutout with

the horizontal mark on the jamb. Center punch the tab mounting screw locations and counter sink for #10 screw. Saw or rout the

cutout 1-1/2” x 8”.

5. Attach the mounting tabs inside.

6. (FS23M only) bore 5/16” hole for pilot lamp on inside face of frame as shown.

7. Attach power supply leads to lock leads as shown. Handle the lock carefully; do not hang it by the wire leads. Insert wires into the

header cavity carefully so they do not interfere with proper locating of the lock in the cutout.

8. Insert lock. Horizontally, the bolt end is nearest the lock stile. Vertically, the bolt must be at the top end of the cutout. Secure with

10/32 machine screw.

9. Using strike for a template, mark screw hole location and drill holes for screws supplied. Mortise as required. Attach strike.

10. The automatic relock switch is set for 1/8” clearance between the top of the door and transom bar or head jamb. Any additional

gap may be compensated for by loosening the lock nut and turning the switch assembly clockwise until proper adjustment is

reached. Be sure to tighten lock nut when adjustment is satisfactory.

All Space Saver locks are easi-

ly installed in any existing

entrance merely by mortising

out a cutout, attaching the

wiring, inserting the lock, and

bolting it into position with two

attaching tabs. Cutting studs is

no longer a problem or

expense.

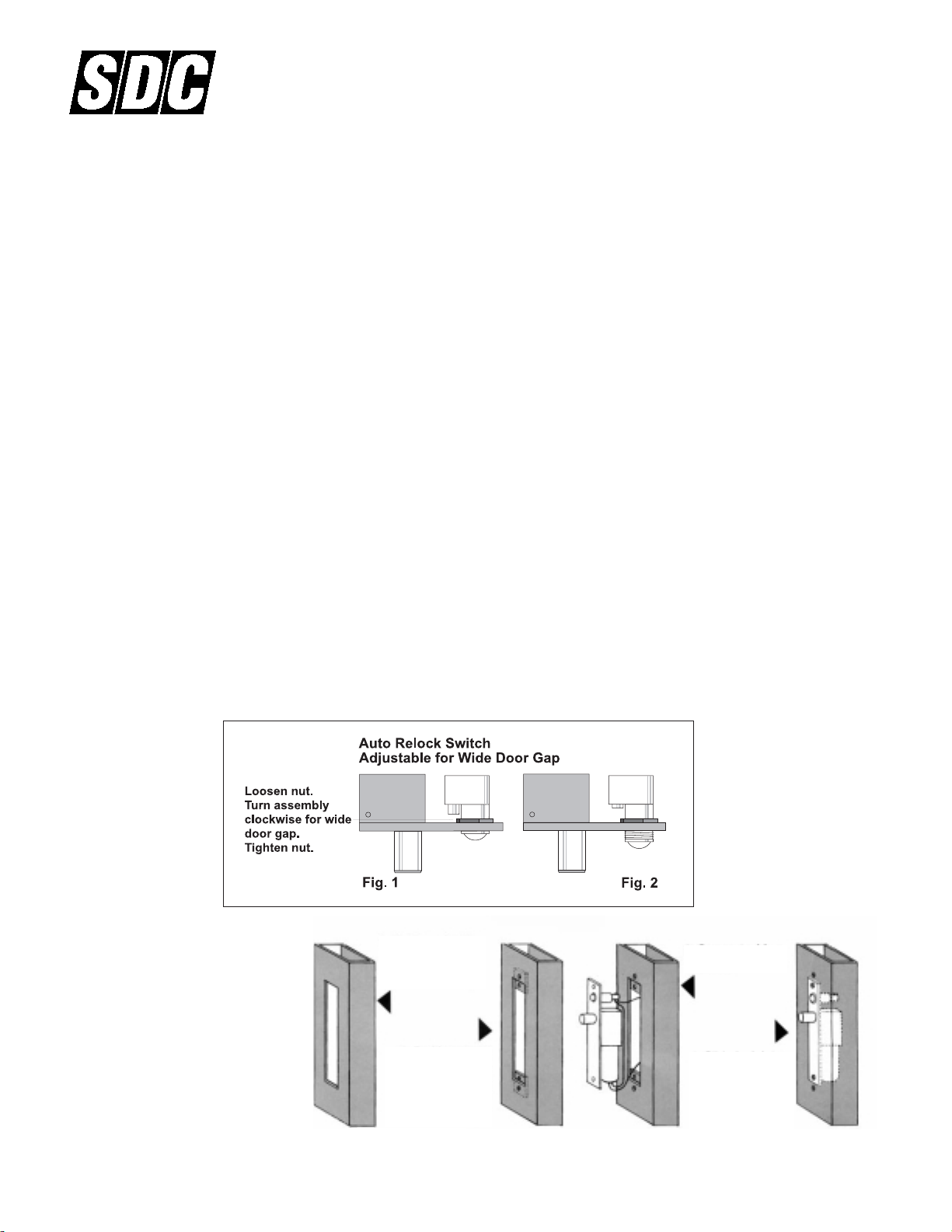

Easy Installation or Servicing

M:\INS\INST-90 DEG REV A 0702 Page 1

2. Position screws

for attaching tabs,

drill holes, attach

tabs.

1. Mortise cutout in

tube for face plate

(fits flush with

surface of tube).

3. Connect wiring

to lock.

4. Slide lock into

position, attach

to tabs.

SPECIFICATIONS

FS23M Face plate: 8” x 1-1/2” x 1/8” (203.2mm x 38.1mm x 3.175mm)

I.D. Requirements: 8” x 1-1/2” x 1-1/2”

(203.2mm x 38.1mm x 38.1mm)

Solenoid: Continuous duty

Standard voltage: 24VDC, 0.5 Amp

12VDC, 1 Amp

Strike: M-Mortise 4” x 1-1/2” x 0.125” (101.6mm x 38.1mm x 3.175mm)

For wood 1-3/4” deep (44.45mm)

Bolt: 5/8” (15.88mm) dia. nylon with magnet insert, 5/8” (15.88mm) throw. Red pilot

lamp standard to indicate door locked.

1091A/1091ADC (Deadlocking)

Face plate: 8” x 1-1/2” 0.125” (35.1mm x 35.1mm x 3.175mm)

1091STA: 4-7/8” x 1-1/4” x 0.0937” ANSI

(123.53mm x 31.75mm x 2.28mm)

I.D. Req. 8” x 1-1/2” x 1-1/2”

(203.2mm x 38.1mm x 38.1mm)

Solenoid: Continuous duty

Standard voltage: 24VDC, 0.5 Amp

12VDC, 1 AMP

Strike: M-Mortise 4” x 1-1/2” x 0.125” (101.6mm x 38.1mm x 44.45mm)

Bolt: 5/8” (15.88mm) dia. S.S., 3/4” (6.35mm) throw

1190A

Face plate: 8” x 1-1/2” x 0.125”

(203.2mm x 38.1mm x 3.175mm)

I.D. Requirements: 8” x 1-1/2” x 1-1/2”

(203.2mm x 38.1mm x 38.1mm)

Solenoid: Continuous duty

Standard voltage: 24VDC, 0.7 Amp

Strike: M-Mortise 4” x 1-1/2” x 0.125” (101.6mm x 38.1mm x 3.175mm)

Bolt: 3/4” (6.35mm) dia. S.S., 3/4” (6.35) throw

TROUBLE SHOOTING

Problem Solution

Bolt does not project Check voltage and alignment

of strike.

Bolt projects but chatters Voltage too low.

Bolt will not retract Strike misaligned

BOLT POSITION SENSOR (MAGNETIC)

No. 6 SPDT Indicates bolt locked or unlocked .25 Amp

DOOR POSITION SENSOR (MAGNETIC)

No.9 SPDT Indicates door opened or closed .25 Amp

DOOR POSITION SWITCH (MECHANICAL)

DPS SPDT Indicates door opened or closed 5 Amp

DIMENSIONS: INCHES

MILLIMETER

Drill for Pilot

Lamp on inside

face of frame

M:\INS\INST-90 DEG REV A 0702 Page 2

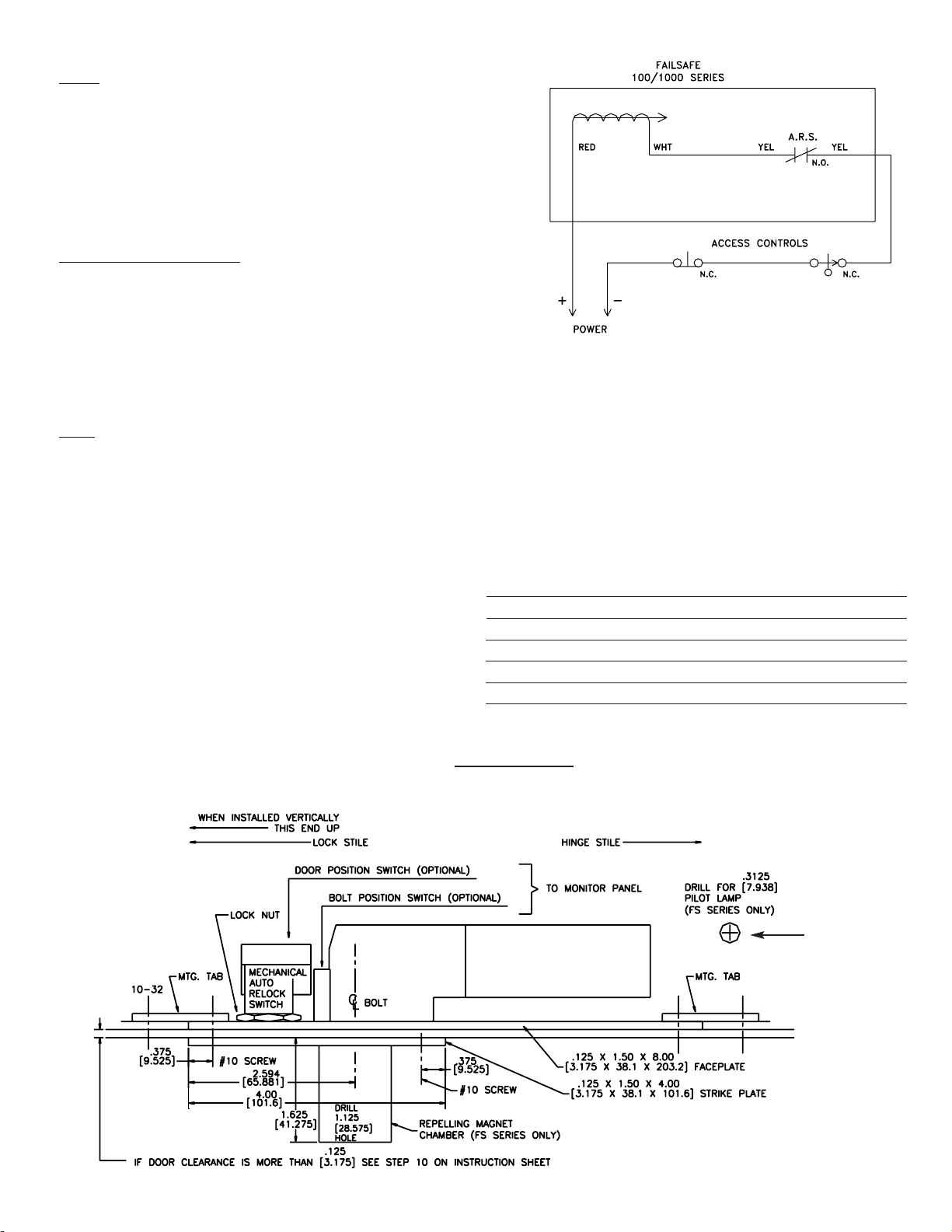

DOOR IS SHOWN CLOSED AND LOCKED.

UNLOCKING MAY BE CONTROLLED BY

MULTIPLE SWITCH LOCATIONS.
