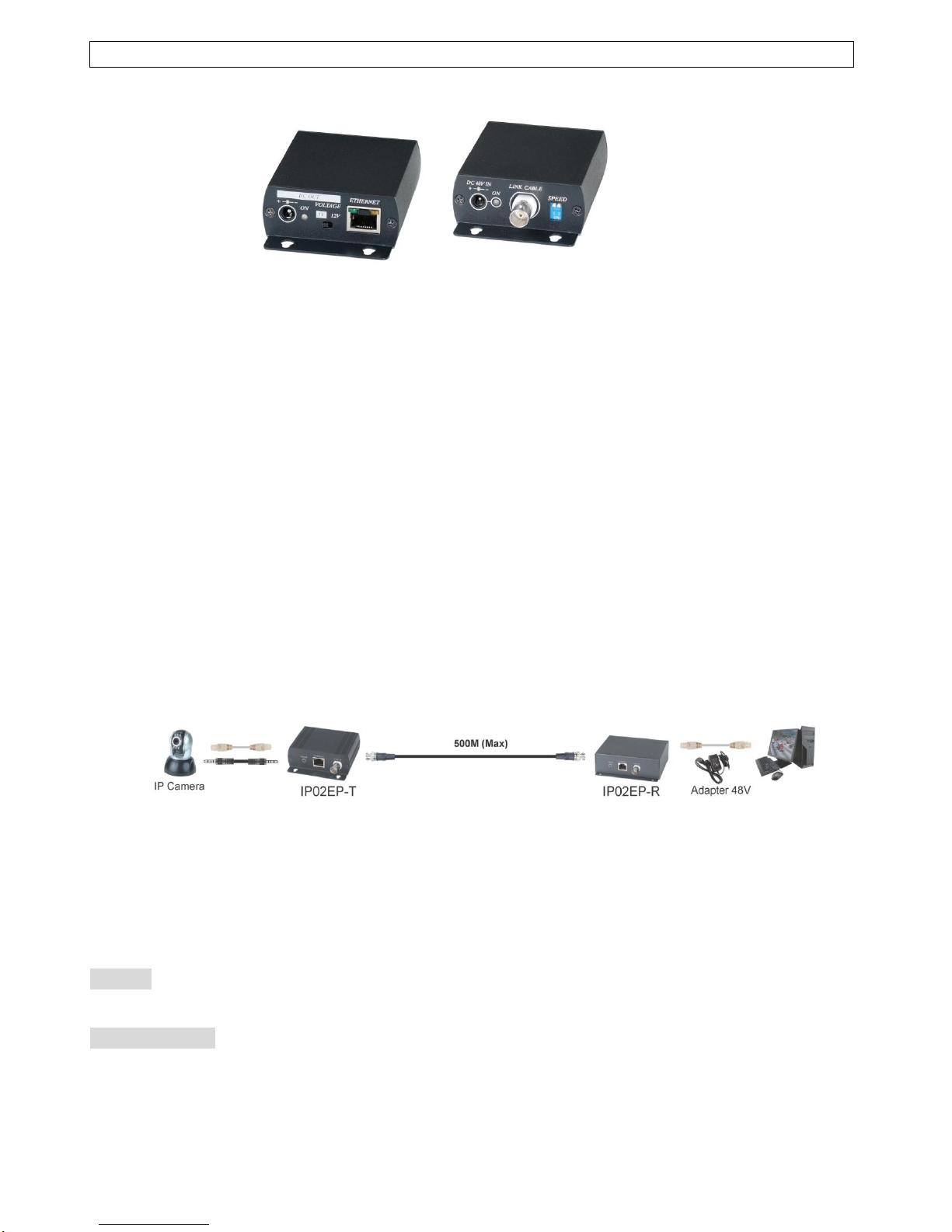

IP CABLING TRANSMISSION –Active Series

ITEM NO.: IP02EP IP Extender with Power over Coax 500M

IP02EP IP extender is designed to extend any TCP/IP devices for long range transmission up to 500M over

existing coaxial cable. The benefit could send power to camera use over same coax cable. It is perfect to

add one IP camera with power over existing CCTV analog video camera environment. It is a great

surveillance solution for sending IP video links to remote camera installation that are beyond the 100 meters

distance limit of Ethernet and also provide camera power together.

IP02EP IP Extender with Power over Coax 500M

Extend IP camera signal and power together over existing coaxial cable.

Provide power to IP camera DC5V or DC12V.

Long range transmission up to 500 meters (Max.)

Support 10/100BASE-T transmission rate.

Perfect to upgrade the analog camera system into IP CCTV application.

Plug and play for easy installation.

Installation View:

1. Connect IP02PT, IP02PR with coax cable at both ends before powering.

2. Power input use external DC 48V adapter to provide IP camera power DC5V/DC12V.

To make sure the transmission quality, you could setup the DIP Switch based on the cable distance,

a longer distance setup to lower data rate; a short distance could be setup at higher data rate.

Cable:

Link cable use high quality 75Ω coaxial cable.

RJ45 Define:

Ethernet Cable (Use TIA/EIA-568-B)

1. Orange-White TX+

2. Orange TX-

3. Green-White RX+

4. Blue Reserve

5. Blue-White Reserve

ETHERNET

DC OUT

DC 5V or DC 12V

2

6. Green RX-

7. Brown-White Reserve

8. Brown Reserve

DIP Switch Setting：

IP02ET Uplink data rate setting

１２

↑↑ 21Mbps (default)

↓↑ 25Mbps

↑↓ 28Mbps

↓↓ 36Mbps

IP02ER Uplink data rate setting

１２

↑↑ 3Mbps (default)

↓↑ 4Mbps

↑↓ 9Mbps

↓↓ 11Mbps

LED Indication:

Green ：Power ON/OFF

Blue : Power output DC 5V

Red : Power output DC12V

Yellow ：Ethernet 10/100Mbps linking

Green ：Flash →Data transmission

Panel View:

IP02EPT

IP02EPR

3

Specifications:

ITEM NO.

IP02EPT

IP02EPR

Transmission Interface

RJ45 x 1(Ethernet) ,BNC x 1 (75 Ω)

Power Input Connector

BNC ( DC48V)

DC JACK 2.0mm x 1

(DC 48V 0.83A 40W)

Power Output Connector

DC JACK 2.5mm x 1

(DC 5V 2A，DC 12V 1A)

BNC ( DC48V)

Data , Power Switch

DIP SW 2P2 x 1,SLIDE SW 2 step x 1

DIP SW 2P2 x 1

LED Indication

RJ45 (Yellow/Green) x 1

Power (Green) x 1, Power output

(Blue/Red) x1

RJ45 ( Yellow/Green)

Power ( Green) x 1

Linking Cable

75Ω coax cable

Ethernet Speed

10/100 Mbps

Data Rate

Uplink：36Mbps , Downlink：11Mbps

Uplink：11Mbps, Downlink:36Mbps

Transmission Distance

500 M (Max)

Power Consumption

28W

28W

Temperature

Operation: 0 to 70℃, Storage: -20 to 85℃, Humidity: up to 95%

Dimension mm

67 x 102 x 27

67 x 103.7 x 27

Weight g

180

180

Rev.A
