SC&T VW02T Manual de usuario

Wall Plate VGA CAT5 Extender

ITEM NO.: VW02

The VGA Extender allows VGA video signals to be transmitted up to 135 meters via 4-paris CAT5 STP

or UTP cable. Used in pairs, the VGA Extender is used in home or commercial applications as a smart,

fast and cost-effective, eliminates costly and bulky VGA cable, allowing VGA monitors to be connected

extended distances from the PC via standard twisted pair cable. Ideal for classrooms video

distribution, lecture halls, retail kiosks, video information displays, overhead projector systems,

PC-training systems, and tradeshows PC demo systems. Wall mountable type could be using CAT5

structuring cable for easy installation to simplifies and beautifies any audiovisual environment.

VW02 Wall Plate VGA CAT5 Extender

Used in pairs via one CAT5 UTP cable to send VGA up to 100 meters.

VGA connector to shielding RJ45 female.

Wall plate outer dimension: 86 x 86 mm

Passive device, no power required, not support VGA DDC protocol.

Supports up to 1280x1024 pixels.

Up to 135 meters via standard 4 pairs CAT5 STP or UTP cable instead of VGA cable.

Transmitter built in virtual DDC to avoid improperly setting at resolution and frequency.

Transmitter built in sync mode selection for signal stability.

Receiver built in sync filter level adjustment for signal stability.

Perfect for classrooms, lecture halls, tradeshows, video information displays…etc.

Panel View:

VW02T VW02R

Installation View:

VW02T

VW02R

100M (Max)

Installation:

Recommend Cable:

1. CAT5e UTP/STP or CAT6 UTP cable.

2. There are some certain models or brands of monitors with very high demand at sync-sensitive,

recommend use STP (shielding twisted pair) cable to instead of UTP (unshielded twisted pair) cable.

RJ45 Pin Configuration: TIA/EIA 568B Wiring standard

1. Orange-white Red +

2. Orange Red -

3. Green-white H-Sync

4. Blue Green +

5. Blue-white Green -

6. Green V-Sync

7. Brown-white Blue +

8. Brown Blue -

Slide Switch Setting:

VW02-T Sync Mode Select

←Mode 1

→Mode 2

1. For new type monitors, such like over 17” LCD Monitor, recommends setting at mode 1

for the best stability. If the picture not normal, then switch to Mode 2.

2. For old type monitors, such like CRT or under 17” LCD Monitor, recommend setting at

mode 2. If the picture still not normal after adjust the dip switch of VE01P-R. Then

please use STP (shielding twisted pair) cable.

DIP Switch Setting:

VW02-R Sync Filter Level

====================

１２３４５

↓↓↓↓↓ Level 0 (Min)

↑↓↓↓↓ Level 1

↓↑↓↓↓ Level 2

↓↓↑↓↓ Level 3

↓↓↓↑↓Level 4

↓↓↓↓↑Level 5 (Max)

Sync Filter is designed for using UTP CAT5 cabling.

Sync Filter level adjustment is to add the sync stability, but not adjust picture quality or

eliminate skew.

Since different brand monitor have different setting, so there is no recommended setting.

Please adjust the level based on picture stability. If no picture display or picture not stable, then

please use STP cable.

Caution:

1. The wiring must be away from electro magnetic equipment, i.e. microwave, wireless, hi voltage

cable…etc.

2. The maximum distances supported by the VGA Extender are dependent on the type of twisted pair

cable and image resolution of the PC’s VGA interface. Make sure that the maximum

recommended operational distances have not been exceeded.

3. All wiring is “straight-through” twisted pair cable, not being used for other LAN or telephone

equipment.

4. Do not connect the VGAExtender to a telecommunication outlet wired to unrelated equipment.

Troubleshooting at picture problem:

1. No picture display:

Check Link cable.

Check DIP switch setting.

Check VGA cable connect.

Change the resolution or frequency.

Change Link cable for STP cable.

2. Picture not stable or disappear intermittence or no picture display:

Check DIP switch setting.

Change the resolution or frequency.

Wiring away from electro magnetic equipments.

Change Link cable for STP cable.

3. Picture tilt:

Check DIP switch setting.

Change the resolution or frequency.

Change Link cable for STP cable.

Application Tips to use CAT5 STP cable:

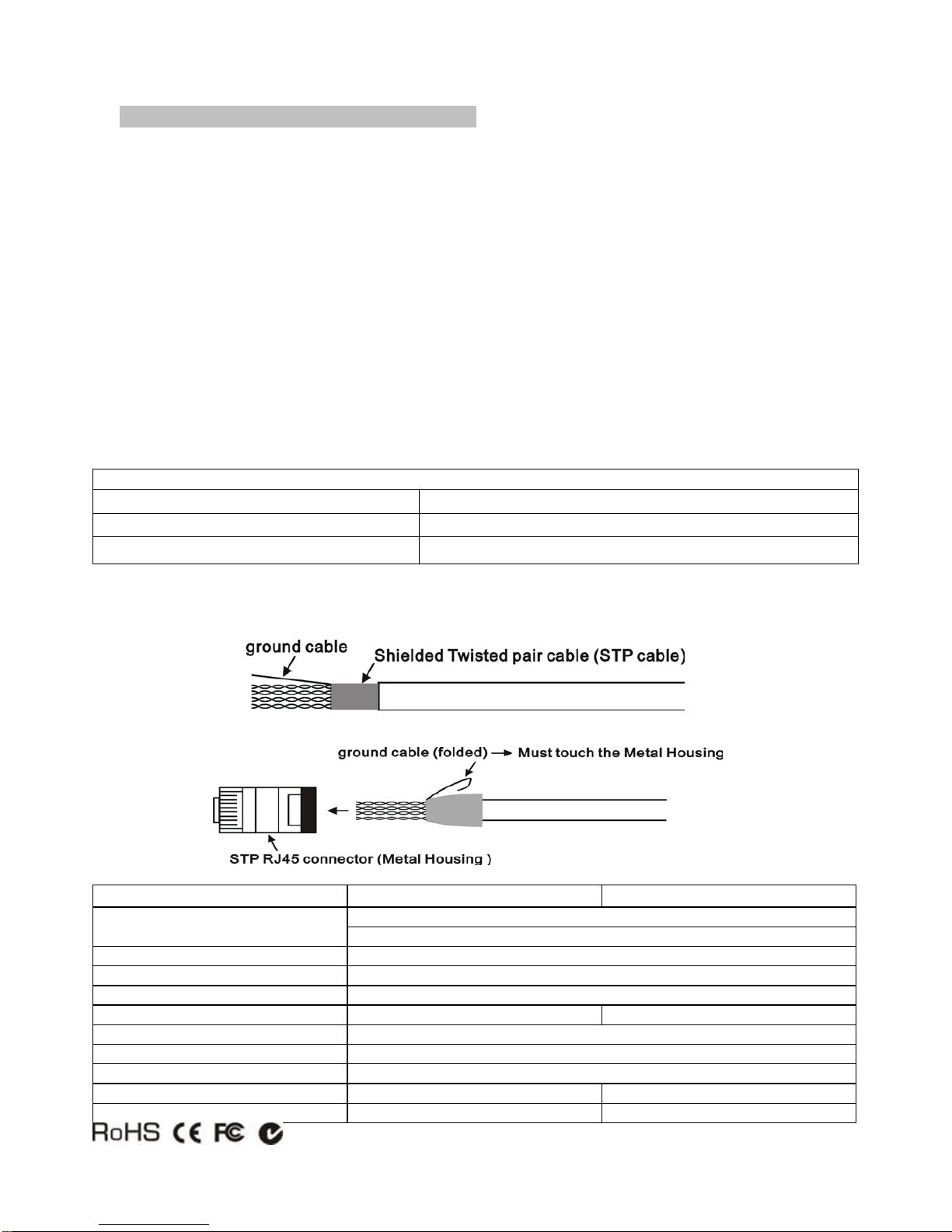

Following is the correct cable connection when use STP cable:

1. STP (shielding twisted pair) Cable.

2. STP (shielding) RJ45 connector with STP cable connection.

Specification:

ITEM NO. VW02T VW02R

Input Signals

Video: 1 Vp-p

Horizontal & Vertical SYNC : TTL standard. 300kHz max. bandwidth

Insertion Loss

Less than 3dB per pair over the frequency range

Video Signal Return Loss

-15dB max from DC to 60Mhz

75 ohms (DB15), 100 ohms (RJ45)

Setting Switch

2 Stage Slide Switch

5 Stage Dip Switch

Transmission Distance

60 -100 meters depend on image resolution

Link Cable

CAT5 / CAT5e / CAT6 / STP or UTP Cable

Temperature

Operation: 0 to 55 C, Storage: -20 TO 85 c, Humidity: up to 95%

Dimensions mm

86 x 55 x 86

Weight g

122

120

Rev. B

Max. Distance via CAT5 Cable

800x600 pixels (30MHz) 100M

1024x768 pixels (60MHz) 75M

1280x1024 pixels (100MHz) 60M
