User Manual

DP01F-4K6G-KS

Introduction

DP01F-4K6G is a DisplayPort (DP) extender that overcomes the length restriction of a standard DP cable

using fiber optic cable. The extender can send DisplayPort Video & Audio data with USB, RS232 or

bi-directional IR signal for up to 60km.

Features

Supports DisplayPort 1.2

Supports HDCP 2.2

Resolution up to 4K@60Hz 4:4:4

Working distance up to 60 km, depending on the fiber module that is used.

Supports full-duplex RS232 (115200bps), bi-directional IR (30~60KHz), or 2 ports of USB (keyboard &

mouse only) for remote control transmission, either one.

DP01FT-4K6G could work with HE01FR-4K6G, using DisplayPort as input and HDMI as output.

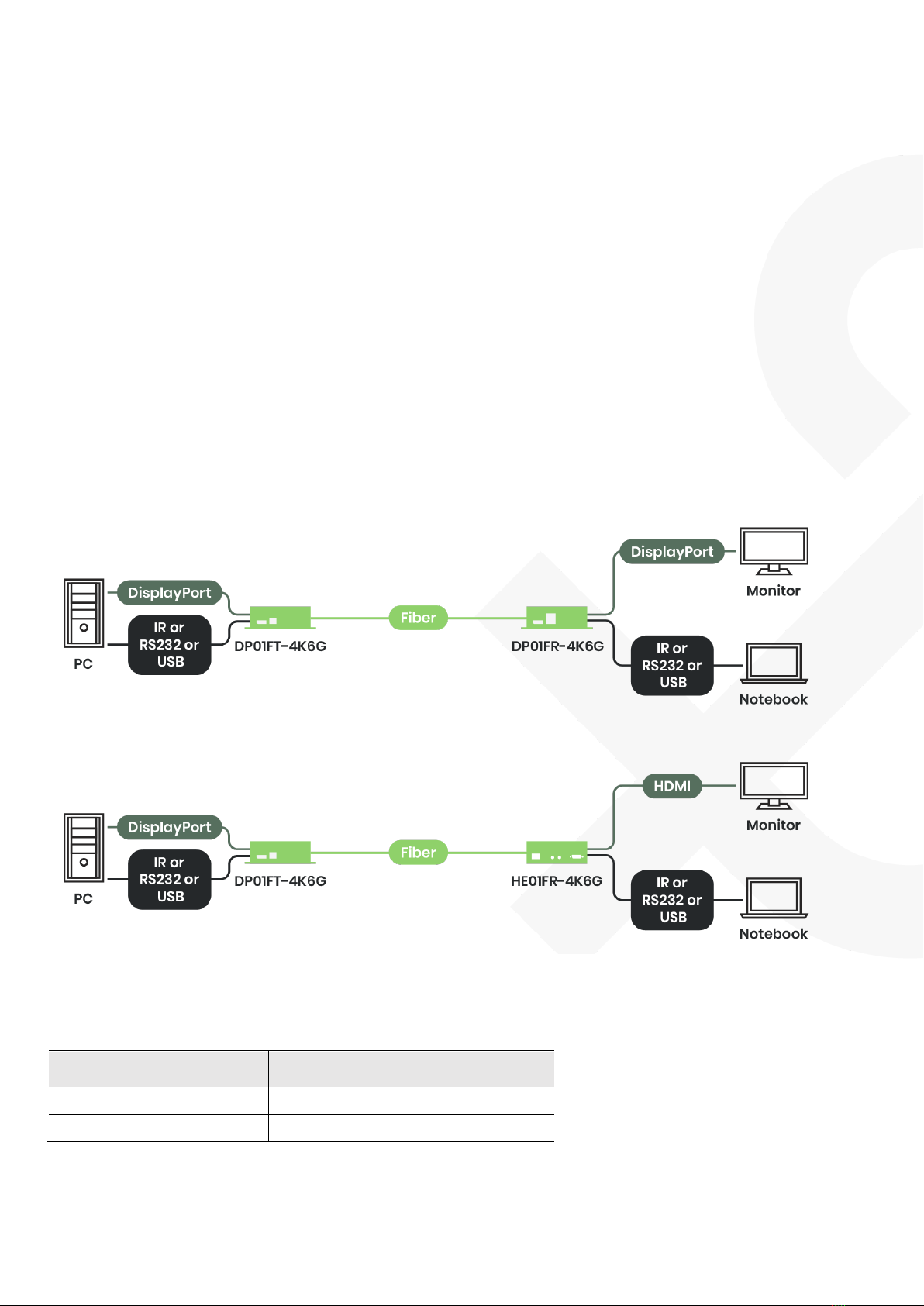

Application

Working Distance

The distance of the fiber module that SC&T offers.

Optical Module

Max. Distance

Max. Resolution

10G SFP+ Fiber Single Mode

10 km

3840x2160 60Hz

10G SFP+ Fiber Multi Mode

300m

3840x2160 60Hz

User Manual

DP01F-4K6G-KS

Panel Viewss

DP01FT-4K6G

Interface

Description

DisplayPort

Connect to DisplayPort Video Source

USB Type-B

Connect to USB Host

DIP Switch

Select IR/RS232/Keyboard & mouse Extension

LED Indicator

Indicate working status

DC Jack

Input 5V 2A Power

SFP+

Connect to Single/Multi mode SFP+ module

IR Tx 3.5mm

Connect to IR Emitter Cable

IR Rx 3.5mm

Connect to IR Receiver Cable

RS232

Connect to RS232 Emitter / Receiver Cable

User Manual

DP01F-4K6G-KS

DP01FR-4K6G

Interface

Description

DisplayPort

Connect to DisplayPort Monitor

USB Type-A

Connect to USB devices

DIP Switch

Select IR/RS232/Keyboard & mouse Extension

LED Indicator

Indicate working status

DC Jack

Input 5V 2A Power

SFP+

Connect to Single/Multi mode SFP+ module

IR Tx 3.5mm

Connect to IR Emitter cable

IR Rx 3.5mm

Connect to IR Receiver cable

RS232

Connect to RS232 Emitter / Receiver cable

User Manual

DP01F-4K6G-KS

LED Indicator

LED Indication

LED Color

Status

Power

GREEN On/ Off

Power On/ Off

Connection

BLUE On/ Off

Fiber Linked/ Unlinked

DIP Switch

Follow the instructions below to enable IR, RS232 or keyboard & mouse extension. Please also note that ON

refers to ↓, and OFF refers to ↑

RS232 PIN Define

DB9(Female)

Define

Pin 2

Pin 3

Pin 5

GND

DB9(Male)

Define

Pin 2

Pin 3

Pin 5

GND

Switch

Function

SW 1

IR Extension

RS232 Extension

OFF

Keyboard & Mouse

Extension

SW 2

OFF

User Manual

DP01F-4K6G-KS

Caution

Using VESA certified DisplayPort cable to transfer high-resolution video is recommended

Power consumption may vary according to the connected USB devices

DO NOT put IR Emitter/Receiver cables too close to each other to avoid interference.

This product is designed for indoor applications. If it is desired for outdoor use, please install

additional equipment for waterproof protection and surge protectors to prevent damage caused by

lighting.

Do not put anything on the power and system cables; place them where they cannot be stepped on.

Please be sure there is nothing resting on any cables.

Avoid using this product close to water places, or near high-temperature devices such as radiators,

stoves, etc.

Shut down the power supply and unplugged all equipment immediately if:

owater or any kind of liquid has been spilled into the product;

othe product has been damaged by external force;

othe product does not operate normally as this manual indicates;

oPlease contact us for further repair if the above conditions happen.

Package Includes

Item

Amount

DP01FT-4K6G

DP01FR-4K6G

10G SPF+ Single-mode Optical

Transceiver

DC5V 2A adaptor

USB A/B cable

User Manual

DP01F-4K6G-KS

Specification

ITEM NO.

DP01FT-4K6G

DP01FR-4K6G

Support

Compliance

DP 1.2, HDCP 2.2

Max. Video Resolution

4K@60Hz 4:4:4

Max. Transmission Distance

60km over single-mode

300m over multi-mode

Audio Format

DisplayPort Audio pass-through

RS232 Baud Rate

115200 bps (Full Duplex)

IR Support

30~60KHz, ±10°, 5M,

Bi-Directional

30~60KHz, ±55°, 5M, Bi-Directional

Ports & Interfaces

Video Input

1 x DisplayPort

1 x SFP 10G+

Video Output

1 x SFP +

1 x DisplayPort

RS232 Interface

1 x DB9(Female)

1 x DB9(Male)

IR Interface

2 x 3.5mm Phone Jack

USB Interface

1 x USB Type B

2 x USB Type A

Power

Power Supply

DC 5V 2A

Power Consumption

5.5 W (For DP01FR-4K6G, Power consumption may vary according to

the connected USB devices)

Ambient Temperature

Operation

-10 ~ 45℃

Storage

-30 ~ 70℃

Working Altitude

2000m

Humidity

Up to 95%

Physical Characteristics

Dimensions

109.6 x 114.5 x 30mm

Weight

262g

260g
