Sanus MLL11 Manual de usuario

MLL11 Instruction Manual

Unsure? Call 1-800-359-5520

(UK: 0800-056-2853)

Does your TV weigh more than 130 lb (58.9 kg) including accessories?

—

Perfect!

Yes

—

This mount is NOT compatible. Visit MountFinder.Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to ﬁnd a compatible mount.

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let’s make sure this mount is perfect for you!

130 lb

(58.9 kg)

Ready to begin?

Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV

owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact

Customer Service at 1-800-359-5520 (UK: 0800-056-2853).

What is your wall made of?

Drywall with

wood studs? Perfect! Solid concrete or

concrete block? Perfect! ?

CAUTION: Avoid potential personal injuries and property damage!

• This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone

• The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

• Do not use this product for any purpose not explicitly speciﬁed by manufacturer

• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Do you have all of the tools needed?

7/32 in.

(5.5 mm)

Wood

1/2 in.

(13 mm)

3/8 in.

(10 mm)

Concrete

635 mm

25 in.

76.2 mm

3 in.

177.8 mm

7 in.

484 mm

19.05 in.

178 mm

7.01 in.

702.1 mm

27.64 in.

120.7 mm

4.75 in.

475 mm

18.7 in.

50 mm to 705 mm

Dimensions

25.6 mm

1.01 in.

Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts

are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.

Never use damaged parts!

NOTE: Not all hardware included will be used.

TV Brackets

Parts and Hardware for STEP 1

M5 x 12mm M5 x 35mm

M6 x 12mm M6 x 20mm M6 x 35mm

M8 x 16mm M8 x 20mm M8 x 35mm

TV Screws Washers

Spacers

03 x4

04 x4

05 x4 07 x4

06 x4

01 x1 02 x1

08 x4

09 x4

10 x4

11 x4 12 x4

13 x4

M5 M6/M8

Parts and Hardware for STEP 2

5/16 x 2.75 in.

Wall Plate

Lag Bolts

Washers

Concrete Anchors

14 x1

15 x4

16 x4

17 x4

5/16 x 2 ¾ in.

STEP 1 Attach Brackets to TV

FLAT BACK ROUND BACK CABLESINSET HOLES

1-1 Select TV

Screw Diameter

1-2 Select TV

Screw Length

Hand thread screws into the threaded inserts

on the back of your TV to determine which

screw diameter (M5, M6, or M8) to use.

If your TV has a flat back AND you want your TV closer to

the wall, use the shorter screws (a).

Use the spacers and longer screws (b) to accommodate:

• Round/irregular back TVs

• TVs with inset mounting holes

• Extra space needed for cables

Too Short

Too Long

CAUTION:

Verify adequate thread

engagment with the screw or

screw/spacer combination.

-Too short will not hold the TV.

-Too long will damage the TV.

Correct

Standard configurations

are shown. For special

applications, or if you

are uncertain about your

hardware selection,

contact Customer Service

at 1-800-359-5520.

M5 M6 M8

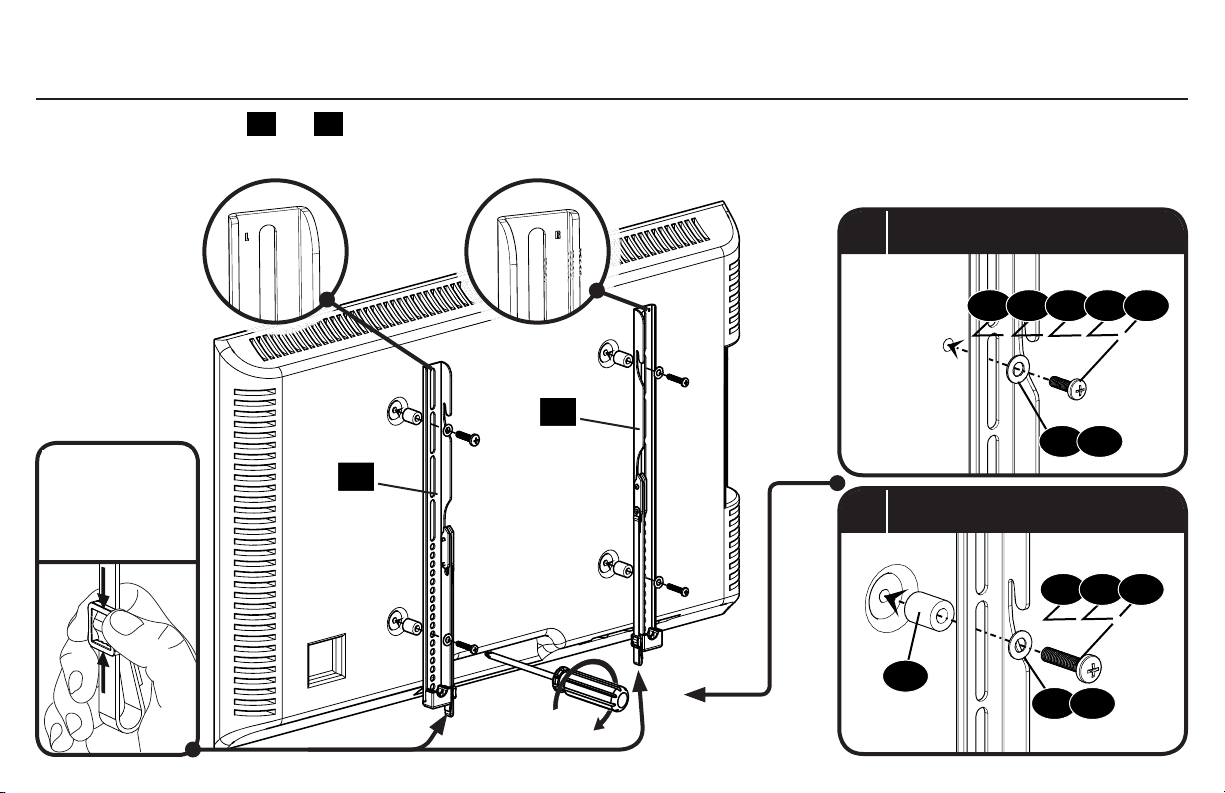

1-3 Attach TV Brackets

Ensure that your brackets 01 and 02 are level on the back of the TV. Standard conﬁgurations are shown. For special applications, or if you

are unsure about your hardware selection, contact Customer Service.

aFlat Back

bRound Back / Extra Space

08 09 10

11 12

04 05 06 07

For ease of

access, straps

should be level

with the bottom

of the TV.

STEP 2A Attach Wall Plate to Wall - Wood Stud

CAUTION: Avoid potential personal injuries and property damage!

• Drywall covering the wall must not exceed 5/8 in. (16 mm)

• Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)

• Minimum horizontal space between fasteners: 16 in. (406 mm)

1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.

2. Level the wall plate 14 and mark the hole locations.

1 2

16 - 24 in.

(41 - 61 cm)

≤ 5/8 in.

(16 mm)

3. Pilot holes MUST be drilled to a depth of 3 in. (75 mm), using a 7/32 in. (5.5 mm) diameter drill bit.

3. Tighten the lag bolts 17 only until the washers 16 are pulled firmly against the wall plate 14 .

CAUTION: Avoid potential injuries or property damage! Improper use could reduce the holding power of the lag bolt 17 .

To avoid potential injuries or property damage. DO NOT over-tighten the lag bolts 17 .

3 in.

(75 mm)

7/32 in.

(5.5 mm) 14

17 16

STEP 2B Attach Wall Plate to Wall - Solid Concrete or Concrete Block

CAUTION: Avoid potential personal injuries and property damage!

• Mount the wall plate 14 directly onto the concrete surface

• Minimum solid concrete thickness: 8 in. (203 mm)

• Minimum concrete block size: 8 x 8x 16 in. (203 x 203 x 406 mm)

• Minimum horizontal space between fasteners: 16 in. (406 mm)

1. Level the wall plate 14 and mark the hole locations.

2. Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.

3/8 in.

(10 mm)

3 in.

(75 mm)

16 in.

(406 mm)
