IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let’s make sure this mount is perfect for you!

—

Perfect!

Yes

—

This mount is NOT compatible.

Visit sanus.com or call 888-384-1115 to ﬁnd a compatible mount.

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use

of this product, contact Customer Service at 888-384-1115.

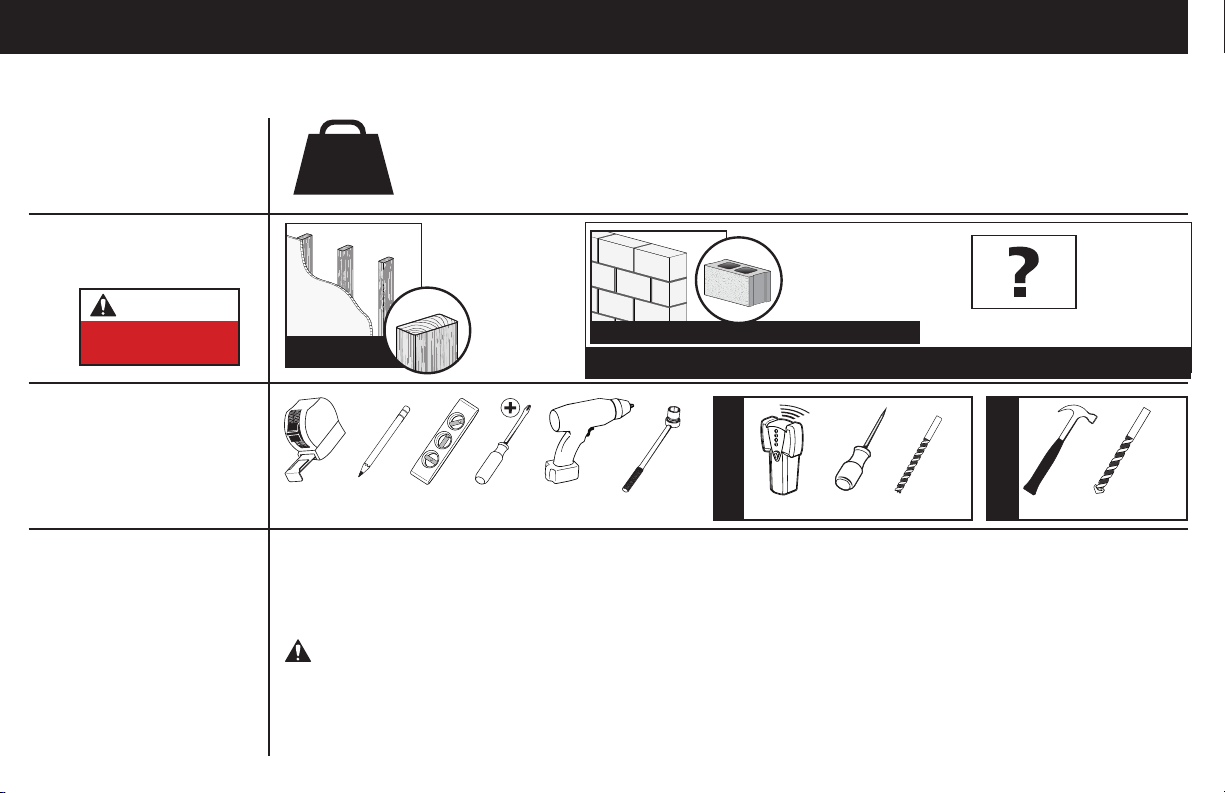

Do you have

all the tools

needed?

What is your

wall made of?

130 lbs.

(58.9 kg)

Ready to begin?

Does your TV

(including accessories)

weigh more than

130 lbs. (58.9 kg)?

CAUTION:

DO NOT install

into drywall alone

Unsure?Drywall with

wood studs?

Solid concrete or

concrete block?

Call Customer Service: 888-384-1115

Perfect!

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Wood Stud Install

Concrete Install

Awl

Pencil Level Stud Finder

Screwdriver

Tape

Measure

7/32 in.

(5.5 mm)

Wood

Drill Bit

Electric

Drill Hammer

1/2 in.

(13 mm)

Socket

Wrench Drill Bit

3/8 in.

(10 mm)

Concrete

Concrete Installation Kit Required (not included)

6.5

165.2

16.9

430.0

25.0

635.0

28.1

712.5

15.9

405.0

3.9

99.4

UP TO

25.6

650.0

OFFSET

0.4

9.7

2.0

51.8

10°

5°

LEVELING

1.5°

Dimensions

in.

[mm]

Before getting started, let’s make sure this mount is perfect for you!

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M8 x 50mm

M8 x 40mm

M8 x 30mm

2.5mm 5mm

22mm

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M8 x 50mm

M8 x 40mm

M8 x 30mm

2.5mm 5mm

22mm

TV Brackets

01 02

x1 x1

Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts

are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.

Never use damaged parts!

Parts and Hardware for STEP 1

NOTE: Not all hardware included will be used.

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M8 x 50mm

M8 x 40mm

M8 x 30mm

2.5mm 5mm

22mm

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M8 x 50mm

M8 x 40mm

M8 x 30mm

2.5mm 5mm

22mm

M4/M5 M6/M8

M4 x 12mm M8 x 16mm

M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M8 x 50mm

M8 x 40mm

M8 x 30mm

2.5mm 5mm

22mm

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M8 x 50mm

M8 x 40mm

M8 x 30mm

2.5mm 5mm

22mm

03 x4 04 x4 06 x4

05 x4

07 x4 09 x4

TV Screws

10 x4

08 x4

Washers

M4/M5 WASHER

Qty 4

M6/M8 WASHER

Qty 4

SPACER

Qty 4

M4 x 12mm SCREW

Qty 4

M8 x 20mm SCREW

Qty 4

M4 x 35mm SCREW

Qty 4

M5 x 12mm SCREW

Qty 4

M5 x 35mm SCREW

Qty 4

M8 x 35mm SCREW

Qty 4

M6 x 12mm SCREW

Qty 4 M6 x 35mm SCREW

Qty 4

M6/M8

M5 x 12mm

M8 x 16mm

M5 x 35mm

M8 x 35mm

M6 x 20mm

M6 x 12mm

M6 x 35mm

1/4 x 2 ½ in.

11 x4 12 x4

Spacers

13 x4

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M8 x 50mm

M8 x 40mm

M8 x 30mm

2.5mm 5mm

22mm

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M8 x 50mm

M8 x 40mm

M8 x 30mm

2.5mm 5mm

22mm

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M8 x 50mm

M8 x 40mm

M8 x 30mm

2.5mm

5mm

22mm

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M8 x 50mm

M8 x 40mm

M8 x 30mm

2.5mm

5mm

22mm

Parts and Hardware for STEP 2

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

Lag Bolts

17 x4

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

Washers

16 x4

5/`6 in.

Contact Customer Service at 888-384-1115 to have these

additional pieces shipped directly to you.

5/16 x 2¾ in.

.695 x .350 x .075 in.

5/16 in.

5/16 x 2¾ in.

.695 x .350 x .075 in.

Fischer UX 10 x 60R Anchor

Concrete Installation Kit CMK1 (NOT INCLUDED)

5/16 x 2¾ in.

.695 x .350 x .075 in.

5/16 x 2¾ in.

Wall Plate Template

Wall Plate

15 x1

STEP 1 Attach Brackets to TV

M6 M8

FLAT BACK ROUND BACK CABLESINSET HOLES

1.1 Select TV

Screw Diameter

1.2 Select TV

Screw Length

Hand thread screws into the threaded inserts

on the back of your TV to determine which

screw diameter (M5, M6, or M8) to use.

If your TV has a flat back AND you want your TV closer to

the wall, use the shorter screws (a).

Use the spacers and longer screws (b) to accommodate:

• Round/irregular back TVs

• TVs with inset mounting holes

• Extra space needed for cables

Too Short

Too Long

CAUTION:

Verify adequate thread

engagement with the screw or

screw/spacer combination.

-Too short will not hold the TV.

-Too long will damage the TV.

Correct

Standard configurations

are shown. For special

applications, or if you

are uncertain about your

hardware selection,

contact Customer Service

at 888-384-1115.

11 13

STEP 1 Attach Brackets to TV

1.3 Attach TV Brackets

Ensure that your TV brackets are level on the back of the TV. Standard conﬁgurations are shown.

Secure TV brackets using your short screw/washer (a| Flat Back) or long screw/washer/spacer (b| Round Back / Extra Space) selection.

IMPORTANT: Ensure TV brackets are securely fastened before moving on to the next step.

aFlat Back

bRound Back / Extra Space

03 09

Spacer Options

STEP 2A Attach Wall Plate to Wall Wood Stud Option

CAUTION: Avoid potential personal injuries and property damage!

• Drywall covering the wall must not exceed 5/8 in. (16 mm)

• Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)

• Minimum horizontal space between fasteners: 16 in. (406 mm)

1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.

2. Position the wall plate template 14 at your desired height and line up the holes with your stud center line. Level the template and tape in place.

Min. 16 in.

(406 mm)

Max. 5/8 in.

(16 mm) 14

17 16

3. Drill pilot holes using a 7/32 in. (5 mm) diameter drill bit. Remove wall plate template 14 .

IMPORTANT: Be sure to drill into the center of the studs.

IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).

4. Install wall plate assembly 15 using four lag bolts 17 and four washers 16 . Tighten the lag bolts only until they are pulled firmly against the

wall plate.

CAUTION: Avoid potential personal injury or property damage! All four lag bolts MUST BE firmly tightened to prevent unwanted movement

of the wall plate 15 .Ensure the wall plate is securely fastened to the wall before continuing on to the next step.

3 in. (75 mm)

7/32 in.

(5.5 mm)

STEP 2B Attach Wall Plate to Wall Solid Concrete or Concrete Block Option

CAUTION: Avoid potential personal injuries and property damage!

• Mount the wall plate 15 directly onto the concrete surface

• Minimum solid concrete thickness: 8 in. (203 mm)

• Minimum concrete block size: 8 x 8x 16 in. (203 x 203 x 406 mm)

• Minimum horizontal space between fasteners: 16 in. (406 mm)

1. Position the wall plate template 14 on the wall at your desired height. Level the wall plate template and mark the hole locations.

2. Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.

Concrete Installation Kit CMK1 is not included

(see page 5) Contact Customer Service at

888-384-1115 to have the additional hardware

shipped directly to you.

Min.

16 in.

(406 mm)

14 14

3/8 in.

(10 mm)

3 in. (75 mm)

Tabla de contenidos

Idiomas:

Otros manuales de Soporte de TV de Sanus

Sanus

Sanus VISIONMOUNT VMF Manual de usuario

Sanus

Sanus MLF13 Manual de usuario

Sanus

Sanus VisionMount LT25 Manual de usuario

Sanus

Sanus New VisionMount VXF220-B1 Manual de usuario

Sanus

Sanus DLL1 Manual de usuario

Sanus

Sanus VLF320 Manual de usuario

Sanus

Sanus CLASSIC MSF07c Manual de usuario

Sanus

Sanus Sanus Foundations FS45 Manual de usuario

Sanus

Sanus SLT4-B2 Manual de usuario

Sanus

Sanus SLF428-B2 Manual de usuario

Sanus

Sanus New VisionMount VMT15 Manual de usuario

Sanus

Sanus Simplicity SMF3 Manual de usuario

Sanus

Sanus New VisionMount VMT15 Manual de usuario

Sanus

Sanus VLF515 Manual de usuario

Sanus

Sanus VLF613 Manual de usuario

Sanus

Sanus VML44A Manual de usuario

Sanus

Sanus LLT1 Manual de usuario

Sanus

Sanus Simplicity SLF226 Manual de usuario

Sanus

Sanus VMT5 Manual de usuario

Sanus

Sanus SA405 Manual de usuario

Sanus

Sanus Vuepoint F58c2 Manual de usuario

Sanus

Sanus VMD2 Manual de usuario

Sanus

Sanus SOA-AVS1 Manual de usuario

Sanus

Sanus XF228 Manual de usuario

Manuales populares de Soporte de TV de otras marcas

Ergotron

Ergotron Neo Flex Cantilever UHD Manual de usuario

StarTech.com

StarTech.com FPCEILBTB Manual de usuario

VonHaus

VonHaus 05/038 Manual de usuario

Techlink

Techlink ECHO TV Manual de usuario

Sandstrom

Sandstrom SSTVMC12X Manual de usuario

Sony

Sony SU-WL700 Guía

ICW

ICW SCACC18 Manual de usuario

LG WM-L640V Manual de usuario

Gembird

Gembird WM-65ST-01 Manual de usuario

ERARD

ERARD FiTUP XXL 035320 Manual de usuario

PEERLESS

PEERLESS PLCK-1 Guía

Kanto

Kanto RCF180 Manual de usuario

GEM

GEM GEM GP001 Manual de usuario

Gladiator Joe

Gladiator Joe GJ0A0053 Manual de usuario

Vivotek

Vivotek AM-105 Manual de usuario

Vivo

Vivo VESA STAND-VAD1B Manual de usuario

AmazonBasics

AmazonBasics B07QG3LMG4 Manual de usuario

Secura

Secura QLF210 Manual de usuario
