Sanus VSF415 Manual de usuario
THANK YOU FOR CHOOSING SANUS
THE #1 TV MOUNT BRAND IN THE US.
Scan for easy
install video
VSF415
Scan for easy
install video
VSF409
VSF409/415
Instruction Manual
WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator (ICD) is in use, magnetic fields may aect the operation of
those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5in.) between your device and the magnet. Please consult with your physician or medical
professional prior to using this product.
SANUS
MAGNETIC STUD FINDER
Designed to find your studs and make life easier – included in hardware kit.
TWO SIMPLE STEPS
TO FINDING YOUR STUDS:
Holding it vertically, lightly move the SANUS
Magnetic Stud Finder up and down while
sliding across your wall. The magnet within
will be attracted to the screws in the stud.
Once the magnet has landed on a screw,
place a pencil mark on the wall
directly below the magnet.
You can verify this is a stud by moving the
Magnetic Stud Finder up or down to find
a second or third screw within the wall.
Pull apart the SANUS Magnetic Stud Finder to
expose the probing pin within. Starting about
1/2inch away from the first pencil mark insert
the probing pin into the wall every 1/8inch until
it inserts completely into the wall. Once that
happens, you know you've found one edge of
your stud. Repeat this process till you have
found the stud edges and center of the stud.
Step 1 Step 2
magnet
locates screws in drywall
to show exactly where
your studs are
probing pin
helps find the edges of
your stud within the wall
level
attaches to your wall plate
for hands free leveling
3
Lo haremos sin estrés
Si tiene preguntas mientras realiza la instalación, llámenos.
1-800-359-5520 (Reino Unido: 0800-056-2853) Estamos listos para ayudarlo.
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520 (UK: 0800-056-2853) We’re ready to help!
VSF415VSF409
4
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
No
—
Perfect!
Yes
—
This mount is NOT compatible. MountFinder.Sanus.com or call
1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this
product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).
CAUTION: Avoid potential personal injuries and property damage!
●This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls –
DO NOT install into drywall alone.
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
Do you have
all the tools
needed?
Before getting started, let’s make sure this mount is perfect for you!
1
2
3
4
What is your
wall made of? Drywall
with wood
studs?
Solid concrete
or concrete
block? Unsure?
Perfect! Perfect!
Ready to
begin?
Call Customer Service:
1-800-359-5520
(UK: 0800-056-2853)
CAUTION:
DO NOT
install into
drywall alone ?
50 lbs.
(22.7 kg)
Does your TV
(including accessories)
weigh more than
50 lbs. (22.7 kg)?
Wood Stud Install
Concrete Install
Pencil Screwdriver
Tape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric Drill Hammer
1/2 in.
(13 mm)
Socket
Wrench Drill Bit
3/8 in.
(10 mm)
Concrete
Para Español ver página 26
5
STEP 1 Attach Bracket to TV
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Parts and Hardware for STEP 1
M4 M6/M8
M4 x 12mm
M6 x 12mm
M8 x 12mm
M4 x 30mm
M6 x 20mm M6 x 35mm
M8 x 35mm
M8 x 20mm
16.5mm
M4
M6/M8
13 x4 22mm
TV Bracket
NOTE: Not all hardware included will be used. TV Screws
TV Washers TV Spacers
01 x1
02 x4
04 x4
07 x4
10 x8
05 x4
08 x4
11 x4
03 x4
06 x4
09 x4
12 x4
6

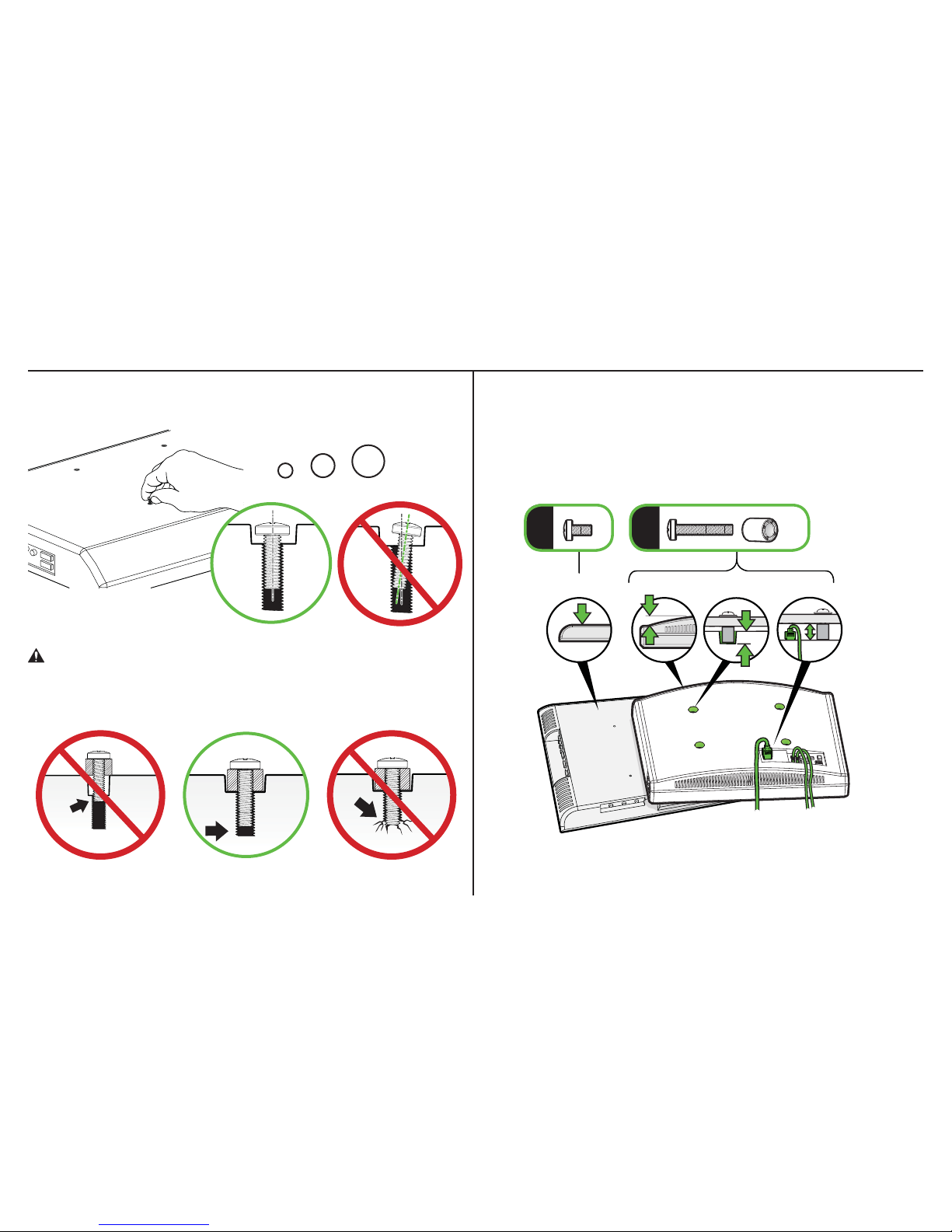

1.1 Select TV Screws 1.2 Spacers
Hand thread screws into the threaded inserts on the back of your TV
to determine which screw diameter (M4, M6, or M8) to use.
CAUTION: Verify adequate thread engagement of the screw/
spacer combination on your TV.
Too short will not hold the TV and too long will damage the TV.
M4 M6 M8
Too Short Correct Too Long
Standard configurations are shown. For special applications, or if you are
uncertain about your hardware selection, contact Customer Service at
1-800-359-5520
.
FLAT BACK ROUND BACK CABLESINSET HOLES
a:If your TV has a flat back AND you want your TV closer to the wall,
use the shorter screws.
b:Spacers and longer screws are supplied to accommodate:
●Round (irregular) back TVs
●TVs with inset mounting holes
●Extra space needed for cables
ab
7
1.3 Measure Your TV Hole Pattern
cm
inches
Inch dimensions approximate
Measure the width and height of your TV hole pattern in mm.
Record your measurements:
Width ________ mm x Height ________ mm
75 mm = 7.5 cm ≈ 3 in.
100 mm = 10 cm ≈ 4 in.
200 mm = 20 cm ≈ 7.87 in.
200 mm
[7.87 in.]
200 mm
[7.87 in.]
200 mm
[7.87 in.]
Ø4.8 mm
[.19 in.]
Ø6.6 mm
[.26 in.]
Ø8.4 mm
[.33 in.]
100 mm
[4 in.]
100 mm
[4 in.]
75 mm
[3 in.]
75 mm
[3 in.]
200mm x 200mm
Go to PAGE 8
200mm x 100mm
100mm x 100mm
75mm x 75mm
Go to PAGE 9
8
01
10 11
02 04 05 07 08
11
13
06 09

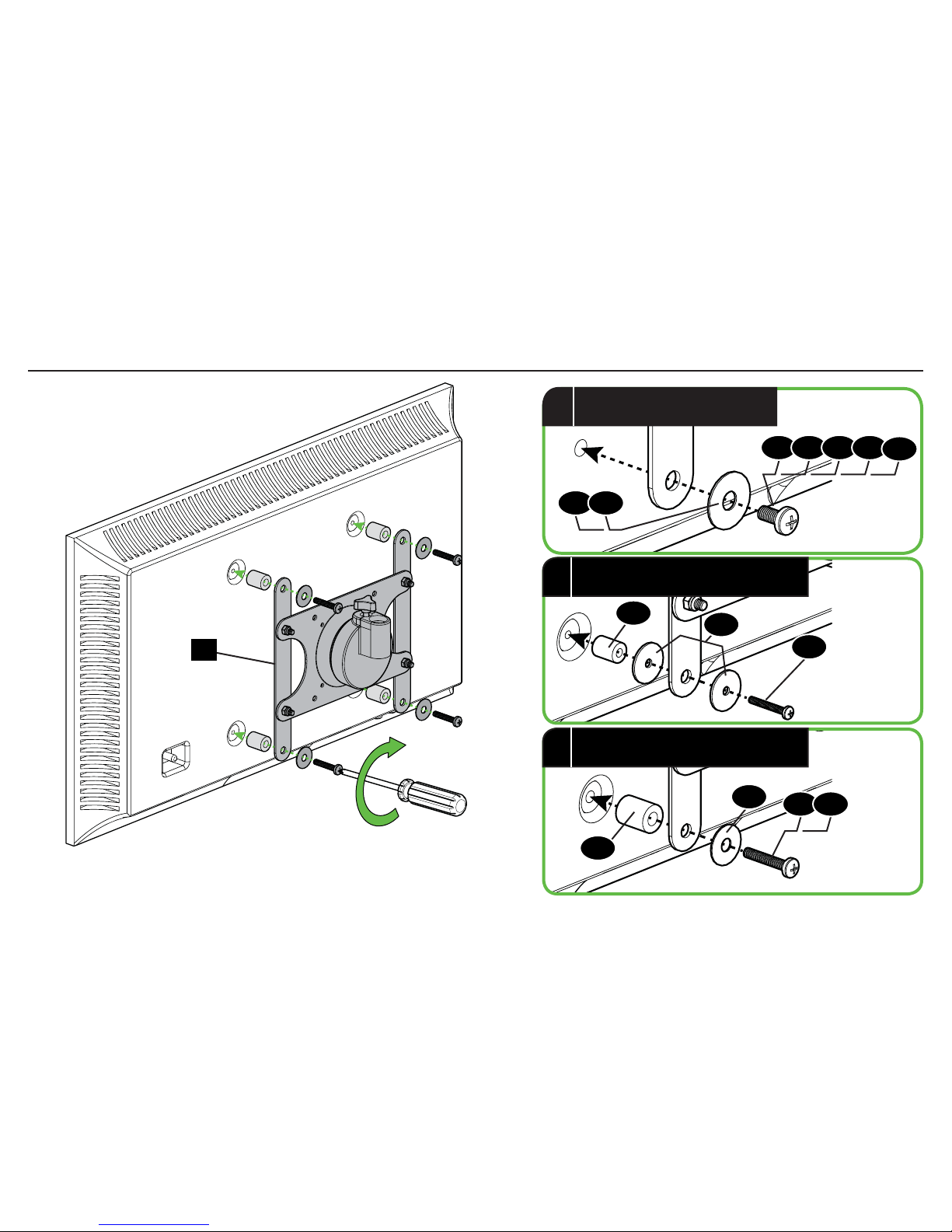

1.4 Attach TV Bracket with Extensions [200 x 200 mm ONLY]
03
12 10
aM4/M6/M8 Flat Back
bM6/M8 Round Back / Extra Space
bM4 Round Back / Extra Space
When finished, go to PAGE 13
9

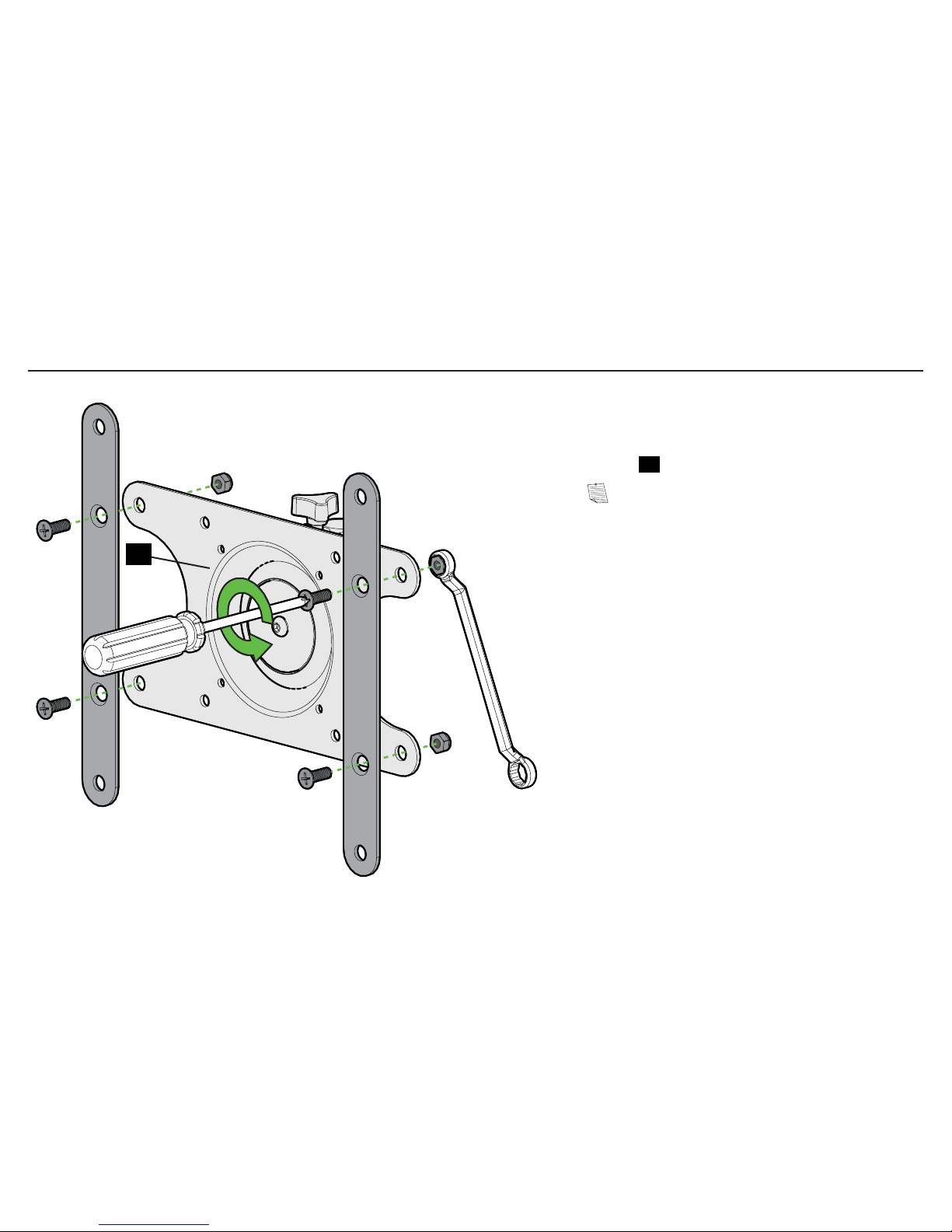

1.5 Remove Extensions [200 x 100 mm, 100 x 100 mm, and 75 mm x 75 mm]
If mounting to a TV with; 200 x 100 mm (7 ⅞ x 4 in.),
100 x 100 mm (4 x 4 in.), or 75 x 75 mm (3 x 3 in.) hole
patterns, remove the extension plates from the TV
bracket 01 using a screwdriver and wrench.
NOTE: Extension nuts are poly-locks and may
need a wrench to remove.
01
When finished,
200mm x 100mm
Go to PAGE 10
100mm x 100mm
Go to PAGE 11
75mm x 75mm
Go to PAGE 12
10
01
1.6 Attach TV Bracket [200 mm x 100 mm]
bM4 Round Back / Extra Space
aM4/M6/M8 Flat Back
bM6/M8 Round Back / Extra Space
11
06 09
06
12
13
10
10 11
02 04 05 07 08
When finished, go to PAGE 13
