Sanus SAN12 Manual de usuario

002752.eps

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA

Customer Service: 1-800-359-5520 • 651-484-7988

[email protected]om • www.accents.sanus.com

are registered trademarks, and Sanus Accents and the Sanus Accents logo are trademarks of Milestone.

All other brand names or marks are used for identification purposes and are trademarks of their respective owners.

SAN12

(6904-100142 <00>)

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

002772.eps

ML22/SAN22

MT25/SAN25

VMPL250/SAN55

VF2012/SAN12

Thank you for choosing Accents SAN12.The SAN12 is designed to support audio and video accessory equipment; it is

NOT designed to support a television. The weight capacity for each shelf is 50 lbs (22.5 kg), maximum capacity for the

entire unit is 100 lbs (45.5 kg).

Do not use this product for any purpose not explicitly specied by Accents. Improper assembly may cause

property damage or personal injury. If you do not understand these directions, or have doubts about the safety

of the assembly, contact Customer Service or call a qualied contractor. Accents is not responsible for damage or

injury caused by incorrect assembly or use.

CAUTION

This product contains small items that could be a choking hazard if swallowed. Keep these items away

from young children!

WARNING

This product is designed for use in wood frame walls only! The wall must be capable of supporting up to five times

the weight of the monitor and mount combined. If you have any doubts about the ability of the wall to support the

monitor, contact Customer Service, or a qualified contractor.

CAUTION

6904-100142 <00>

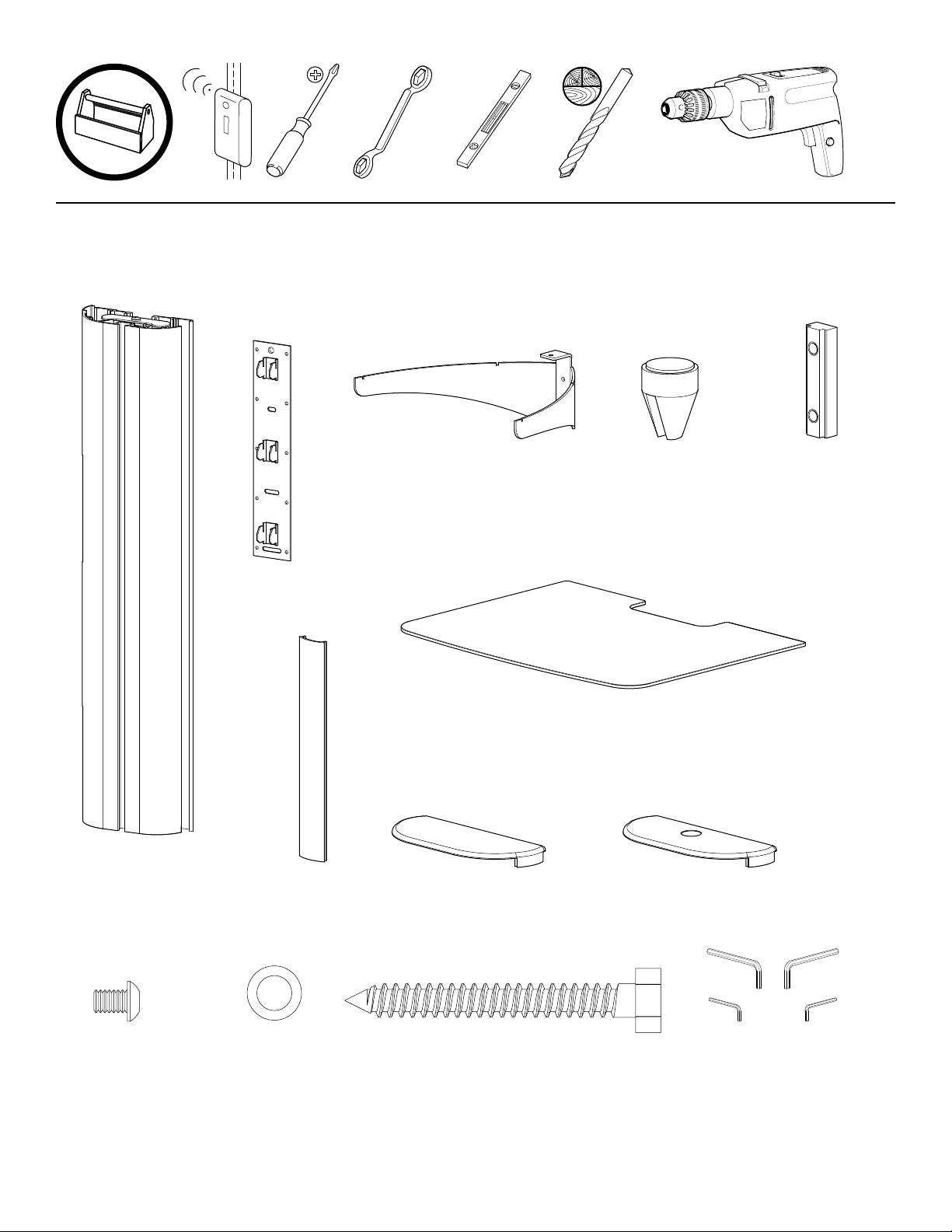

Supplied Parts and Hardware

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the item

to your dealer; contact Customer Service. Never use damaged parts!

3/16 in.

[01] x 1

[03] x 2

[02] x 1

[07] x 4

[06] x 2

1/4 x 2.5 in.1/4 in.

[11] x 4

[05] x 2[04] x 8

[13] x 2

[12] x 4

[09] x 1

1/4-20 x 3/8 in.

[10] x 4

[08] x 1

1/4 in.

5/32 in.

6904-100142 <00>

[02]

[01]

[02]

[01]

6904-100142 <00>

[02]

[12]

[11]

3/16 in.

002351.eps

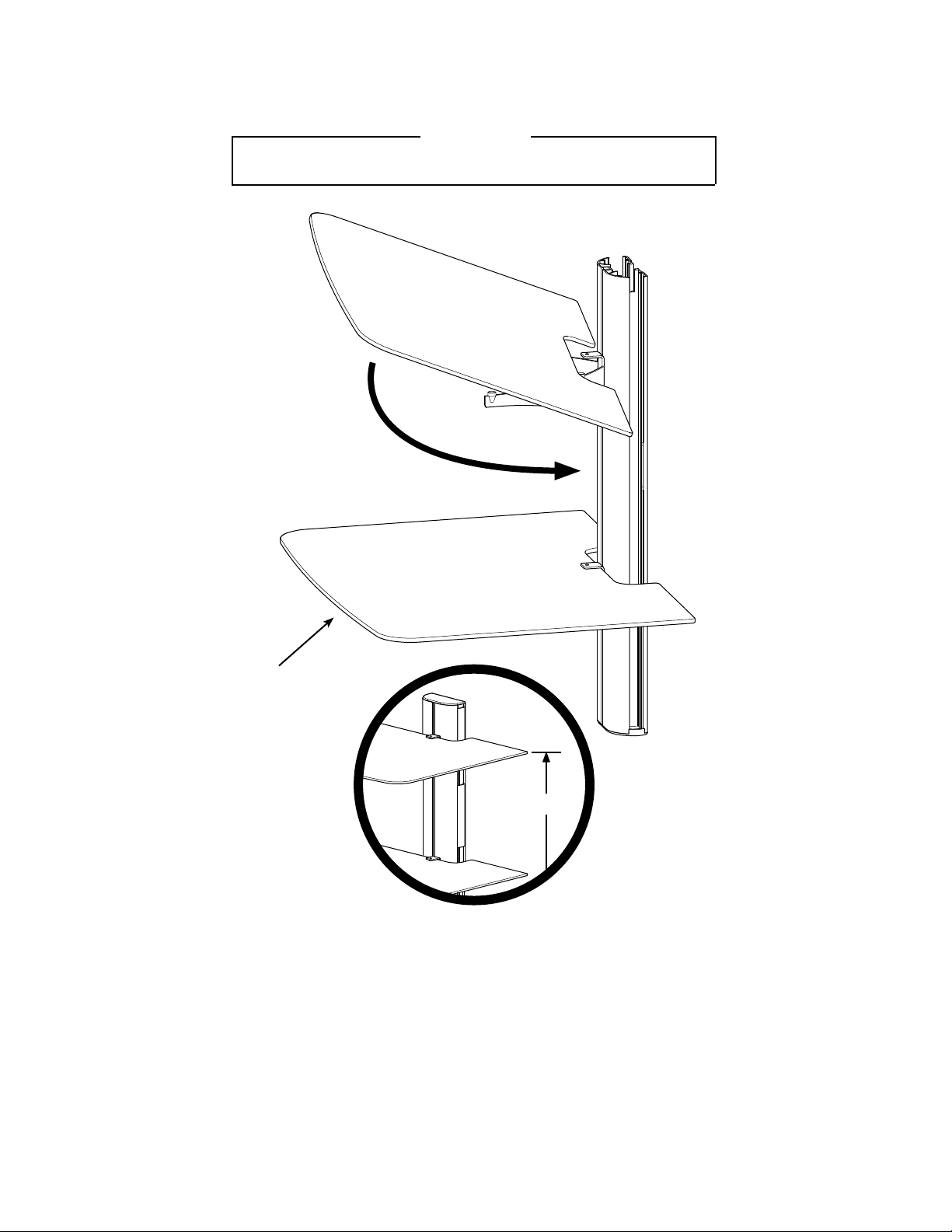

VF-series - Max Shelf Height

> 99 cm

(39 in.)

When installed, the top of the pillar [01] will be 6 - 32 mm (0.25 - 1.25 in.) higher than the top of the wall plate [02].

Adjust the placement of the mounting holes to suit your needs. Do NOT mount the top shelf higher than 99 cm (39

in.) above the floor.

NOTE

6904-100142 <00>

Avoid potential injuries or property damage! Be sure the

hooks on the wall plate [02] engage with the pillar [01].

The pillar must sit flush with the wall.

CAUTION

6904-100142 <00>

12 mm

(0.5 in.)

12 mm

(0.5 in.)

OPT

[13]

1/4 in.

6904-100142 <00>

[03]

[04]

6904-100142 <00>

[03]

[10]

[05]

[01]

1.5 mm

(1/16 in.)

[13]

5/32 in.

6904-100142 <00>

OPT

001420.eps

Arrows

[13]

5/32 in.

6904-100142 <00>

[06]

002351.eps

VF-series - Max Shelf Height

> 99 cm

(39 in.)

Do NOT mount the top shelf higher than 99 cm (39 in.) above the floor.

NOTE
