Sanus WSWM21 Manual de usuario
WE’RE HERE TO HELP
If you have any questions along the way, our US-based install experts are standing by to help.
Call us at: 800-359-5520 Or, chat at: SANUS.com/chatSP
WSWM
21
and WSWM
22
WIRELESS SPEAKER
WALL MOUNT
INSTRUCTION MANUAL
2
CAUTION: IMPORTANT SAFETY INSTRUCTIONS —PLEASE READ ENTIRE MANUAL PRIOR TO USE —SAVE THESE INSTRUCTIONS
This mount is designed to support Sonos®One™, PLAY:1™and PLAY:3™ speakers,
as well as other wireless speakers with similar mounting holes.
CAUTION: Avoid potential personal injuries and property damage!
•Check your speaker owner’s manual to see if there are any special requirements for mounting your speaker.
•Please read through these instructions completely to be sure you’re comfortable with this easy install process.
• Do not use this product for any purpose not explicitly specified by manufacturer.
• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
• The wall must be capable of supporting five times the weight of the speaker and mount combined.
• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,
contact Customer Service at 1-800-359-5520.
Before getting started, let’s make sure this product is perfect for you!
4 lbs.
(1.8 kg) 10 lbs.
(4.5 kg)
Speaker Weight Limit
DO NOT EXCEED
Tools
Needed
Wood Stud Install
Concrete Install
Awl
Pencil Level Stud Finder
Screwdriver Drill Bit
Electric
Drill Hammer Drill Bit
One™
PLAY:1™
PLAY:3™
[and other
speakers]
1/4 in.
(6.5 mm)
Masonry
1/4 in.
(6.5 mm)
1/8 in.
(3 mm)
Wood
Drywall Install
Hammer Drill Bit
3
66°
132°
9°
27° PLAY:1
18° SONOS One
9
224
9°
30°
35°
70°
0.45
11.5
3.83
97.2
2.10
53.3
1.99
50.6
2X
0.26
6.6
5.00°
3.00
76.1
0.20
5.1
THRU
0.20
5.1
3.50
88.9
1.73
44.0
0.25
6.4
2.43
61.6
2.77
70.3
PLAY 3
2.70
68.6
PLAY ONE
TV INTERFACE
WALL PLATE
FULLY ASSEMBLED MOUNT
TOP VIEW - SONOS®One™ / PLAY:1™
TOP VIEW - SONOS
®
PLAY:3
™
SIDE VIEW - SONOS
®
One
™
/ PLAY:1
™
SIDE VIEW - SONOS
®
PLAY:3
™
3-D
Dimensions
4
Supplied Parts and Hardware
a
b

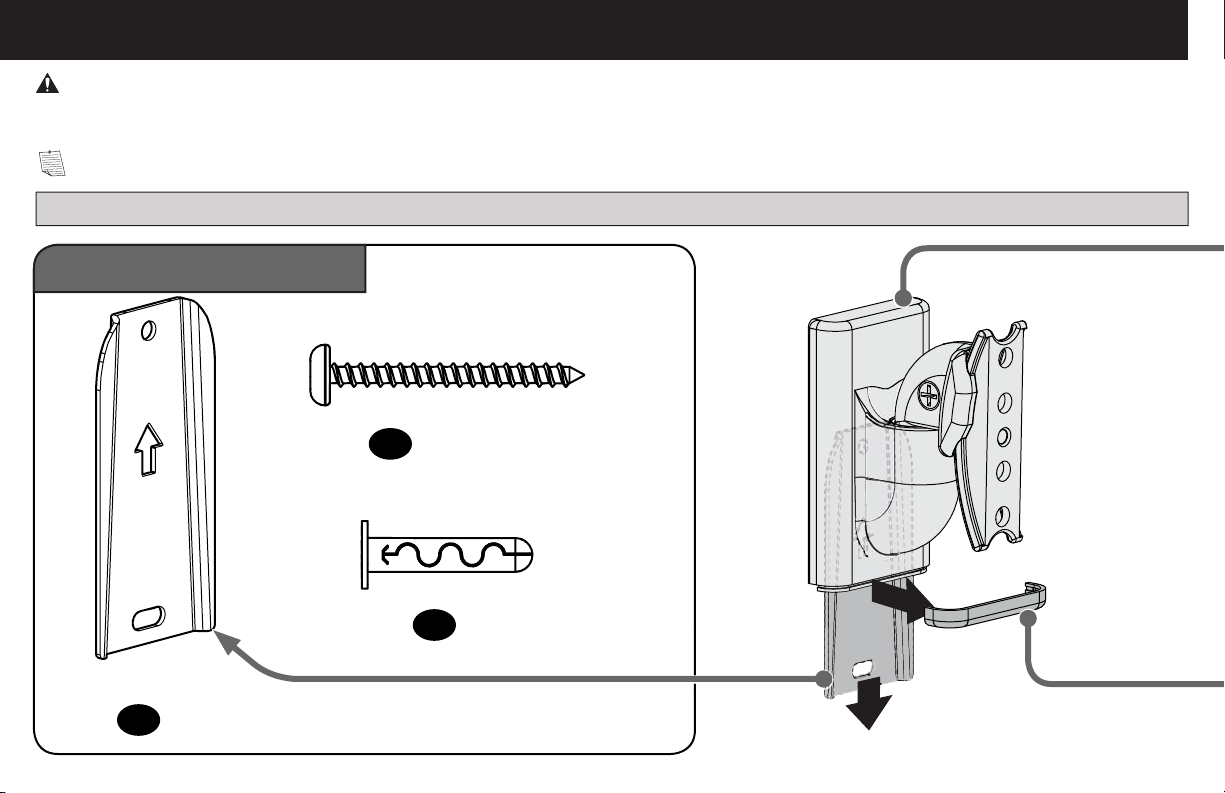

STEP 1 Parts and Hardware
Wall Plate Screw
Wall Plate
Anchor
#10 x 1¾ in.
AF6Toggler
02 x2
01 x1
03 x2
Quantities shown are for one speaker mount.
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to
your dealer; contact Customer Service. Never use damaged parts!
5
STEP 3 Part Adjustments
Mount
Play:3™Interface
Sonos One™Interface
Screw
(attached)
Sonos One™wire
Cap
Speaker Screw
(and Other Wireless Speakers)
Interface Screw
1/4-20 x 10mm
ResetTool
10-24 x 1/2 in.
STEP 2 Parts and Hardware
04 x1
05 x1
06 x1
07 x2
10 x1
08 x1
09 x1
11 x1
S
cr
ew
(
attached
)
S
6
CAUTION: Avoid potential personal injury or property damage!
●Drywall covering the wall, must not be less than 1/2 in. (12.7 mm)
Min. 1/2 in.
(12.7 mm)
UP
STEP 1A
Drywall Only InstallationAttach Wall Plate to Wall
1Mark hole locations BETWEEN studs. 2Drill two holes. 3Insert two Anchors, flush with drywall.
1/4 in.
(6.55 mm)
1 in. (25 mm)
03
01
7
4Secure wall plate to wall. 5Loosen lower screw for level adjustment - tighten when finished.
02
02
01 01
Both screws 02 MUST BE firmly tightened to prevent unwanted movement of the wall plate 01 .Ensure the wall plate is securely fastened to
the wall before continuing on to the next step.
CAUTION: Avoid potential personal injury or property damage!
Go to STEP 2, PAGE 12.
8
●Drywall covering the wall, must not exceed 5/8 in. (16 mm)
●Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm)
●Stud center must be verified
Max. 5/8 in. (16 mm)
CAUTION: Avoid potential personal injury or property damage!
UP
1Locate your stud CENTER. 2Mark two hole locations. 3Drill two holes.
1/8 in.
(3 mm)
1 ¾ in. (45 mm)
STEP 1B
Wood Stud InstallationAttach Wall Plate to Wall
01
9
4Secure wall plate to wall. 5Loosen lower screw for level adjustment - tighten when finished.
Both screws 02 MUST BE firmly tightened to prevent unwanted movement of the wall plate 01 .Ensure the wall plate is securely fastened to
the wall before continuing on to the next step.
CAUTION: Avoid potential personal injury or property damage!
Go to STEP 2, PAGE 12.
02
02
01
01
10
●Mount the wall plate 01 directly onto the concrete surface (no wall covering)
●Minimum solid concrete thickness: 8 in. (203 mm)
●Minimum concrete block size: 8 x 8x 16 in. (203 x 203 x 406 mm)
CAUTION: Avoid potential personal injury or property damage!
UP
1Mark two hole locations. 2Drill two holes. 3Insert two Anchors, flush with drywall.
1/4 in.
(6.5 mm)
2 in. (50 mm)
03
STEP 1C
Solid Concrete or Concrete Block Installation
Attach Wall Plate to Wall
01
