VSL4 INSTRUCTION MANUAL
2
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

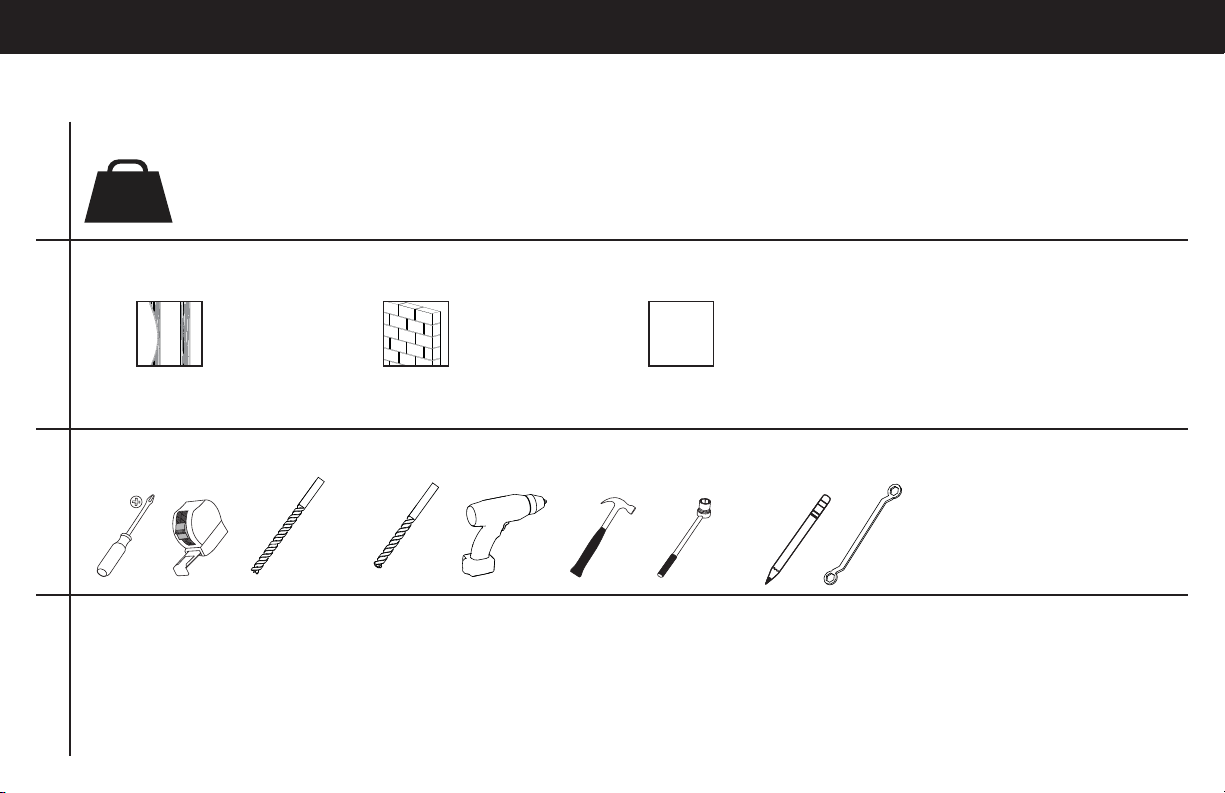

Before getting started, let’s make sure this mount is perfect for you!
2 What is your wall made of?
3 Do you have all of the tools needed?
4 Ready to begin?
Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV
owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact
Customer Service at 1-800-359-5520 (UK: 0800-056-2853).
1 Does your TV weigh more than 50 lb (22.7 kg) including accessories?
No — Perfect!
Yes — This mount is NOT compatible. Visit MountFinder.Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
?
Drywall with
wood studs
Perfect!
Solid concrete or
concrete block
Perfect!
Unsure?
Call 1-800-359-5520 (UK: 0800-056-2853)
50 lb
(22.7 kg)
1/2 in.
(13 mm)
7/32 in.
(5.5 mm)
Wood
3/8 in.
(10 mm)
Concrete
3/8 in.
(10 mm)
3
STEP 1 Attach Bracket to TV
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!

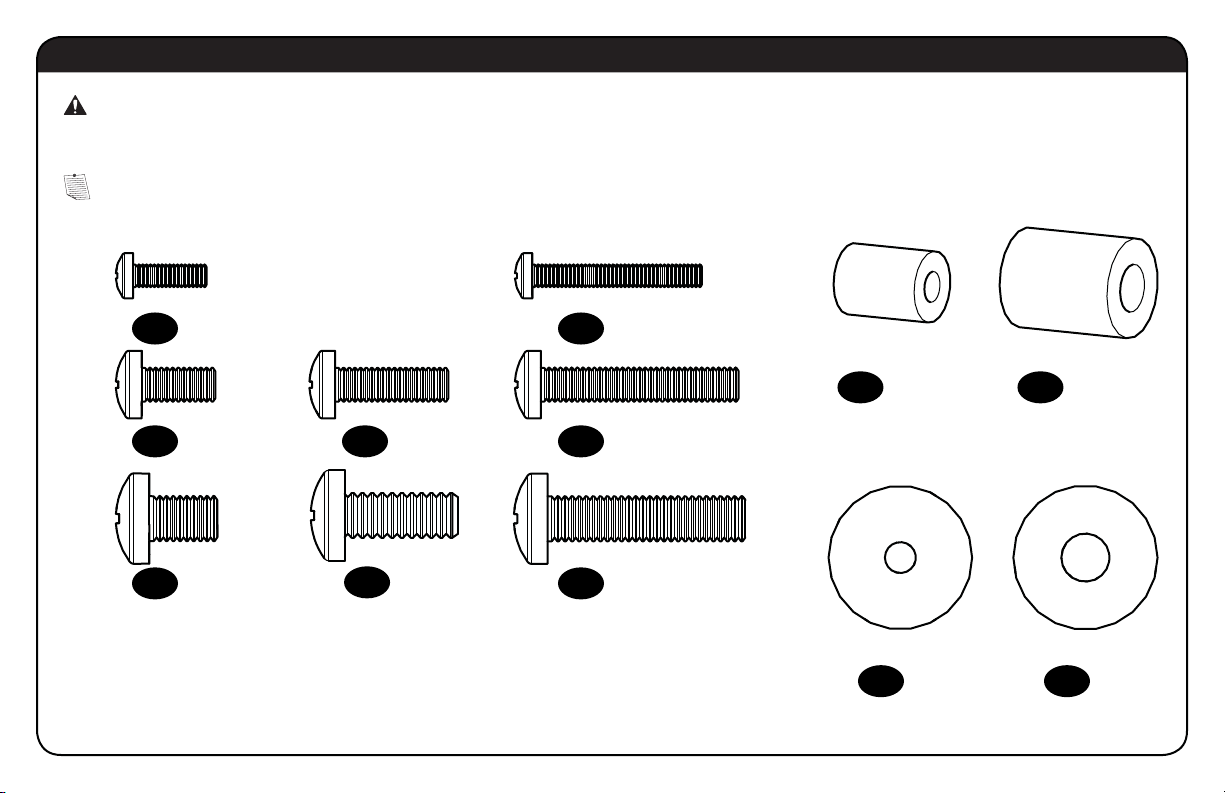

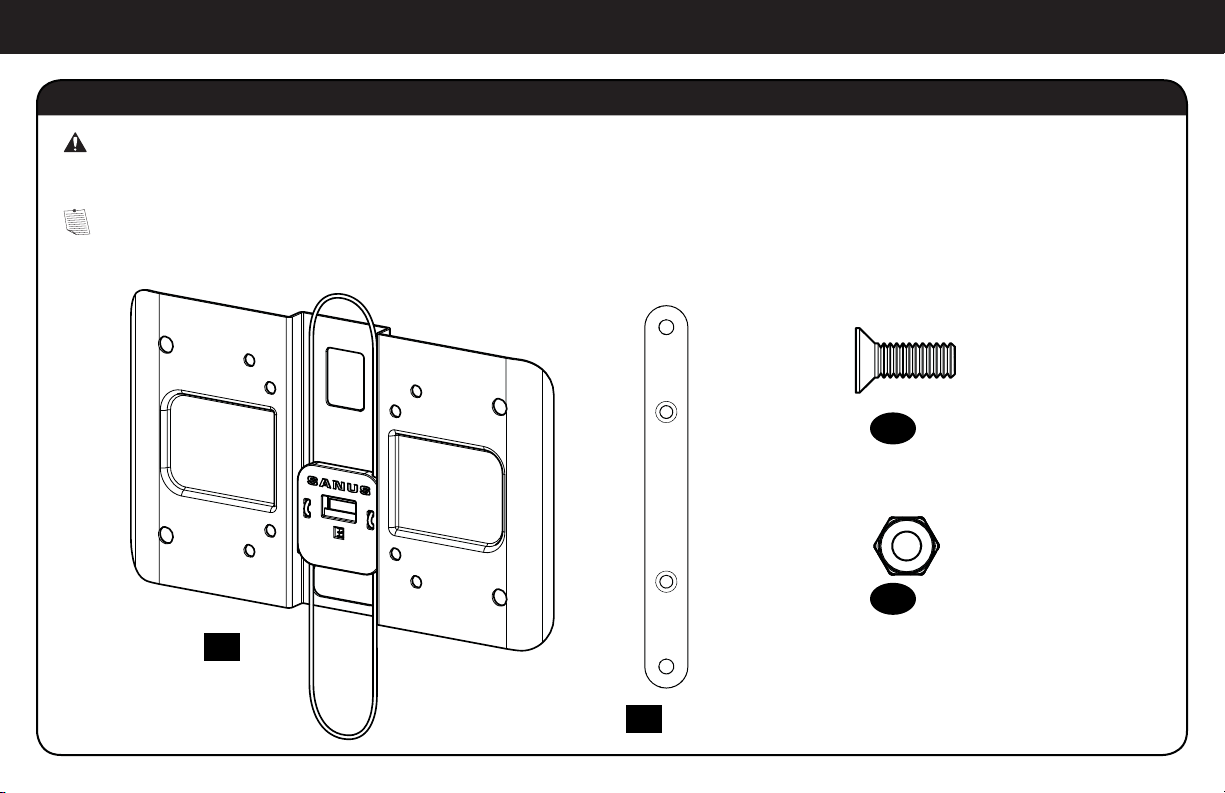

Parts and Hardware for STEP 1
NOTE: Not all hardware included will be used.
M6 x 14mm
TV Bracket 200 x 200 Extension 200 x 200 Extension Screw
200 x 200 Extension Nut
02 x2
01 x1
03 x4
04 x4
4
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Parts and Hardware for STEP 1
NOTE: Not all hardware included will be used.
M4 M6/M8
M4 x 12mm
M6 x 12mm
M8 x 12mm
M4 x 30mm
M6 x 20mm M6 x 35mm
M8 x 35mm
M8 x 20mm
M4 M6/M8
05 x4
07 x4
10 x4 12 x4
11 x4
15 x8 16 x4
13 x4 14 x4
08 x4 09 x4
06 x4
TV Screws
TV Washers
TV Spacers
5
1-1 Select TV Screws 1-2 Spacers
Hand thread screws into the threaded inserts on the back of your TV
to determine which screw diameter (M4, M6, or M8) to use.
CAUTION: Verify adequate thread engagement of the screw/
spacer combination on your TV.
Too short will not hold the TV and too long will damage the TV.
M4 M6 M8
Too Short Correct Too Long
TV Bracket
TV Bracket
06
Round Back CablesInset HolesFlat Back
TV Bracket
A
A
B
B
Your TV type will help you determine which hardware
configuration to use. Match your type of TV to the suggested
hardware configuration on the next page.
A. Installation option without spacers (TVs with flat backs).
B. Installation option using spacers (TVs with obstructed backs
or inset mounting holes).
6
1-4 Attach Extensions (200 x 200 mm ONLY)1-3 Measure Your TV Hole Pattern
If mounting to a TV with a 200 x 200 mm (7 ⅞ x 7 ⅞ in.) hole pattern, add the extension plates
02 to the TV bracket 01 using the extension plate screws 03 and nuts 04 .
NOTE: Nuts 04 are poly-locks and will need to be forcibly tightened.
Measure the width and height of your
TV hole pattern in mm.
Record your measurements:
cm
inches
xHeight
Width mm mm
75 mm = 7.5 cm = 3 in.
100 mm = 10 cm = 4 in.
200 mm = 20 cm = 7 7/8 in.
inch dimensions approximate
02
01
04
03
7

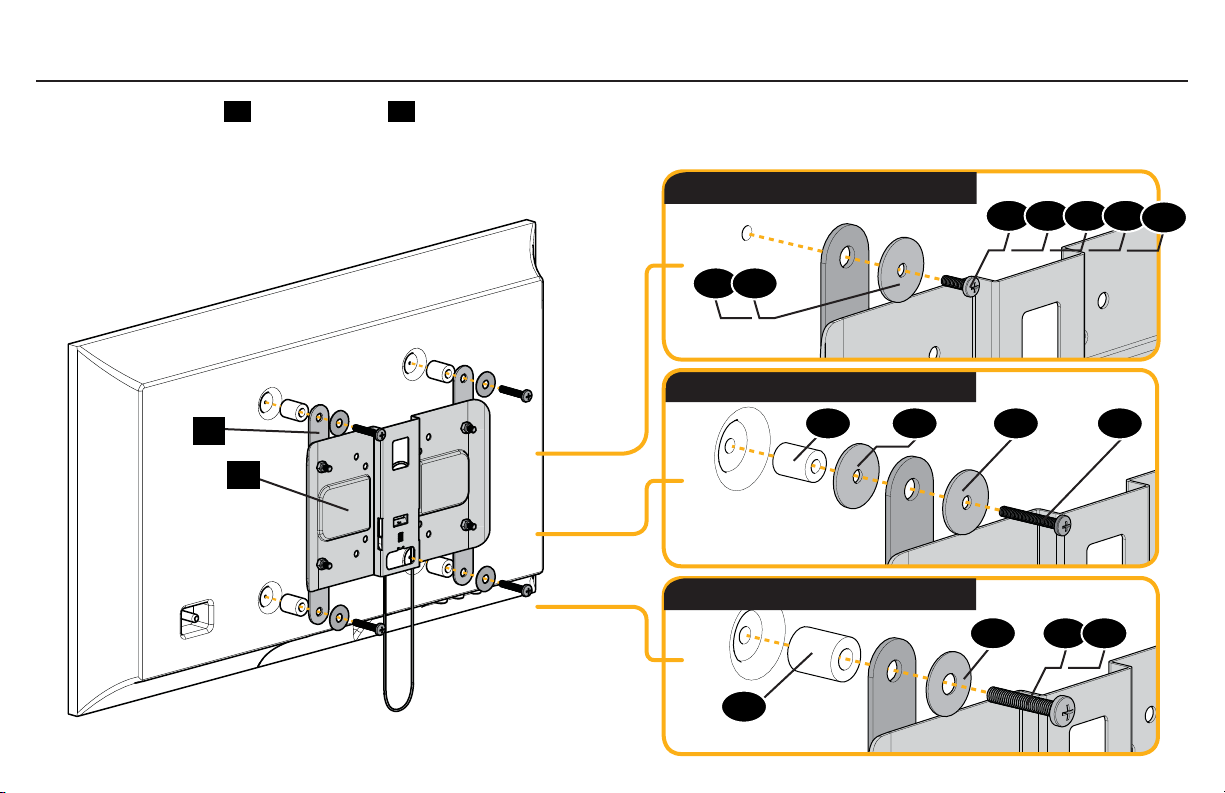

1-5 Attach TV Bracket with 200 x 200 mm Extensions
Position the TV bracket 01 with extensions 02 over your TV hole pattern and install using the screw, washer, and spacer (if needed)
combination you selected for your TV.
M6/M8 spacer, screw, and washer
M4/M6/M8 screw and washer
M4 spacer, screw, and washers
061513 15
05
15
07
16
08 10 11
16
14
09 12
01
02
8

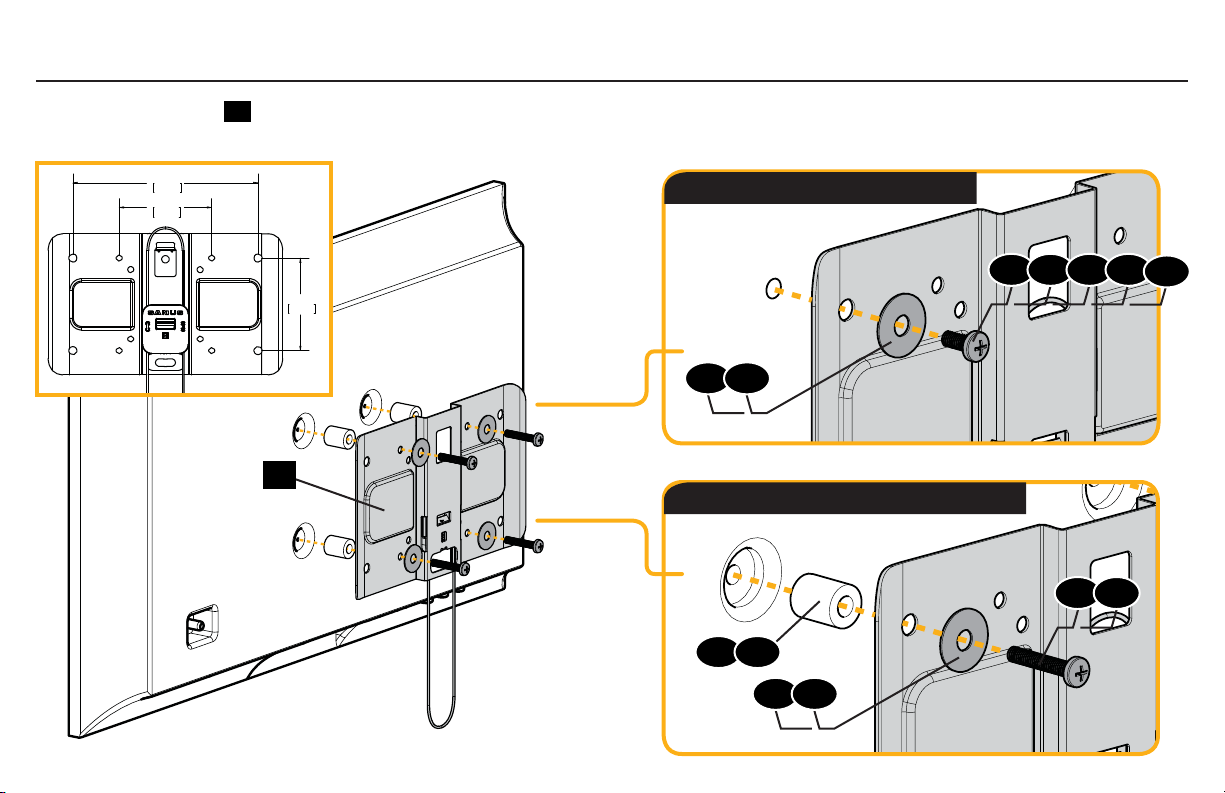

1-5 Attach TV Bracket 200 x 100 mm and 100 x 100 mm
Position the TV bracket 01 over your TV hole pattern and install using the screw, washer, and spacer (if needed) combination you selected for
your TV.
M4/M6/M8 spacer, screw, and washer
M4/M6/M8 screw and washer
01
7.87
200.0
3.94
100.0
3.94
100.0
05
15
15
07
16
16
08 10 11
09 12
13 14
9

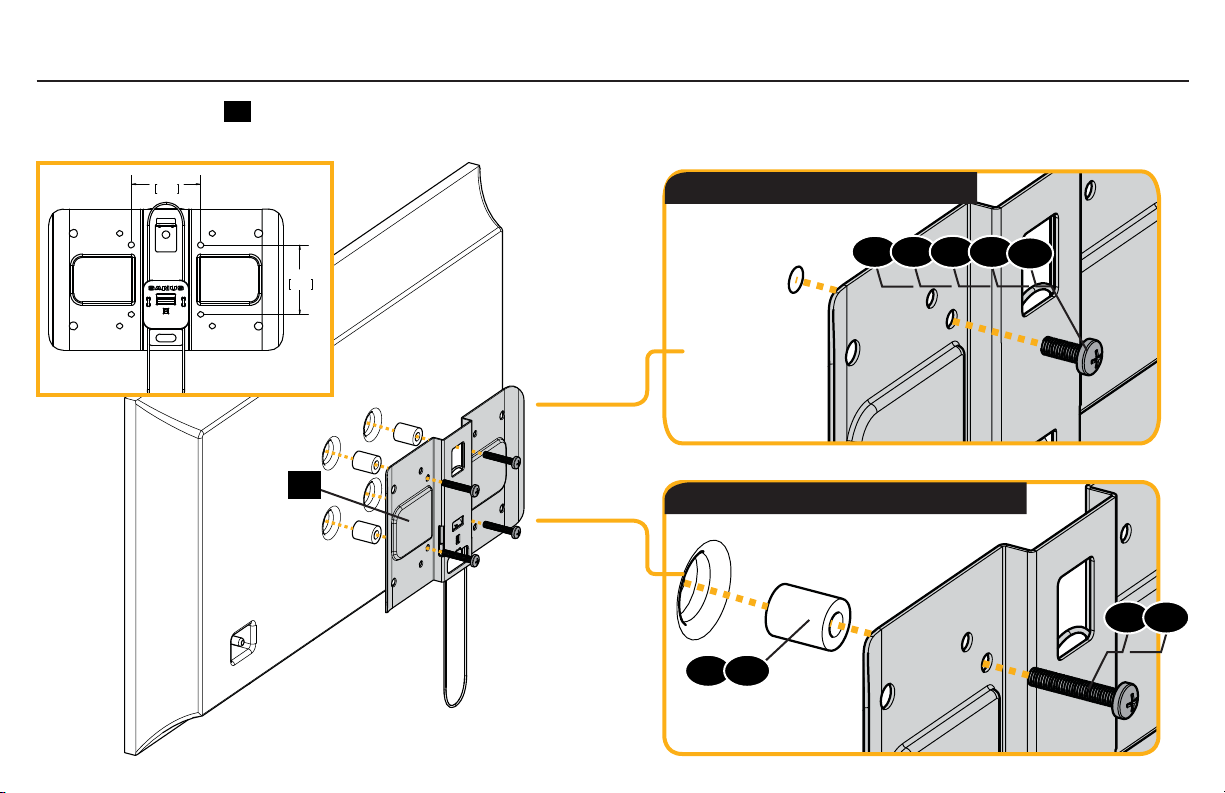

1-5 Attach TV Bracket 75 x 75 mm
Position the TV bracket 01 over your TV hole pattern and install using the screw and spacer (if needed) combination you selected for your TV.
M4/M6/M8 screw and spacer
M4/M6/M8 screw
01
2.95
75.0
2.95
75.0
05 07 08 10 11
09 12
13 14
10

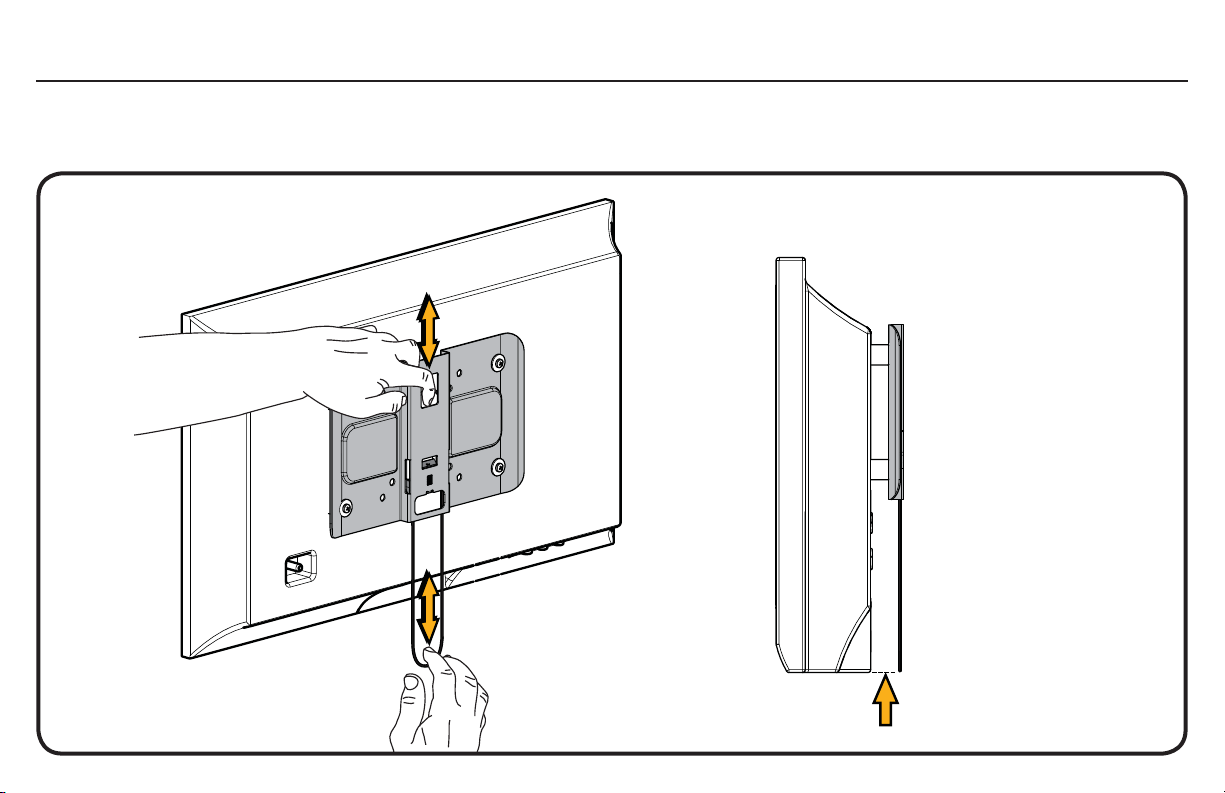

Adjust release cord until bottom of cord is level with the bottom of the TV.
1-6 Adjust Release Cord
