Sanus SLT2 Manual de usuario
SLT
2
INSTRUCTION MANUAL
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-888-333-1376 (UK: 0800-056-2853). We’re ready to help!
Scan for easy install video
http://san.us/937
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
No
—
Perfect!
Yes
—
This mount is NOT compatible. Visit Simplicity.Sanus.com or call
1-888-333-1376 (UK: 0800-056-2853) to find a compatible mount.
No
—
Perfect!
Yes
—
This mount is NOT compatible. Visit Simplicity.Sanus.com or call
1-888-333-1376 (UK: 0800-056-2853) to find a compatible mount.
Before getting started, let’s make sure this mount is perfect for you!
1
2What is your
wall made of? Drywall
with steel
studs?
Unsure?
Drywall
with wood
studs?
Solid concrete
or concrete
block?
180 lb
(81.6 kg)
130 lb
(59 kg)
Call Customer Service: 1-888-333-1376 (UK: 0800-056-2853)
Perfect! Perfect!
Steel Stud Kit required
For walls with
wood studs, solid
concrete, and
concrete block walls:
For walls with
steel studs:
CAUTION:
DO NOT
install into
drywall alone
Does your TV
(including accessories)
weigh MORE than?
Para Español ver página 24
2
?
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at 1-888-333-1376 (UK: 0800-056-2853).

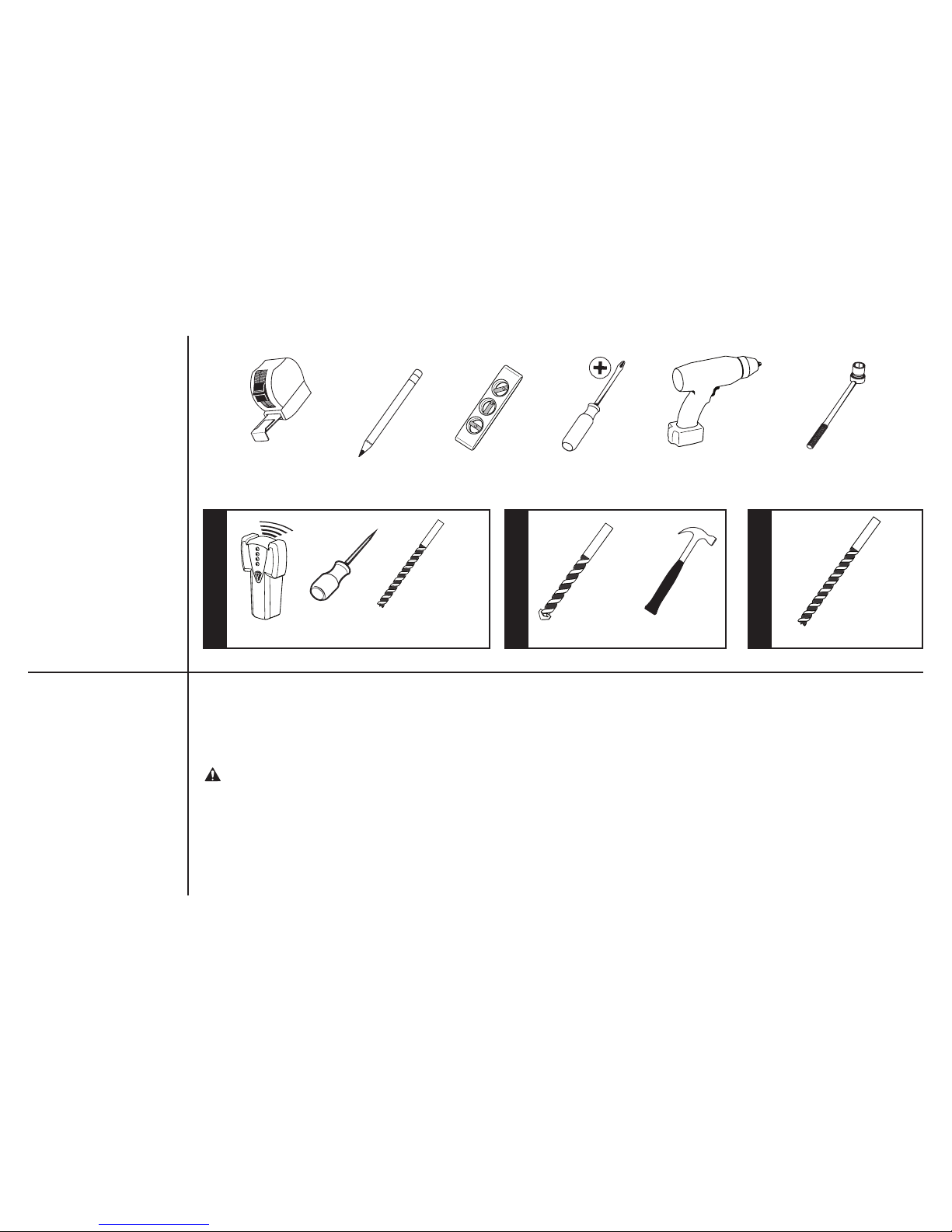

Do you have
all the tools
needed?
3
4
CAUTION: Avoid potential personal injuries and property damage!
●This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls –
DO NOT install into drywall alone. For information on how to use this product with steel stud walls contact Customer
Service and ask about the steel stud mounting kit
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Ready to
begin?
Awl
Pencil Level
Stud Finder
ScrewdriverTape Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric Drill
Hammer
1/2 in.
(13 mm)
Socket Wrench
Drill Bit
3/8 in.
(10 mm)
Concrete
1/2 in.
(13 mm)
Steel Stud
Drill Bit
3
Wood Stud Install
Concrete Install
Steel Stud Install
10º
7º
4
Features
TV brackets adjust to
fit TV hole patterns
from 100 x 100 mm up
to 625 x 420 mm
Adjustment knobs allow
fingertip control or to restrict
movement
TV brackets snap into place
on wall plate for added
safety
Level adjustment creates a
worry-free installation
TV tilts up
or down for
the perfect
viewing angle
5
Dimensions
16.5 in.
(420 mm)
Up to 24.6 in.
(625 mm)
4.7 in.
(120 mm)
27.0 in.
(686 mm)
7.1 in.
(180 mm)
17.5 in.
(445 mm)
1.8 in.
(46 mm)
2.8 in.
(72 mm)
25.0 in.
(635 mm)
2.0 in.
(51 mm)
10°
7°
6
M4 x 12mm
M4 x 35mm M4
M6 / M8
M6 x 12mm
M6 x 35mm
M6 x 20mm
M8 x 16mm
M8 x 35mm
M8 x 20mm
5/16 x 2¾ in.
.695 x .350 x .075 in.
UX 10 x 60
M8 x 25mm
2.5mm 22mm
M8 x 45mm
M8 x 50mm
Parts and Hardware for STEP 1
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to
your dealer; contact Customer Service. Never use damaged parts!
Supplied Parts and Hardware
03 x4 06 x4
04 x4 07 x4
05 x4 08 x4
01 x1 02 x1
TV Brackets TV Screws
7
M4 x 12mm
M4 x 35mm M4
M6 / M8
M6 x 12mm
M6 x 35mm
M6 x 20mm
M8 x 16mm
M8 x 35mm
M8 x 20mm
5/16 x 2¾ in.
.695 x .350 x .075 in.
UX 10 x 60
M8 x 25mm
2.5mm 22mm
M8 x 45mm
M8 x 50mm
09 x4
10 x4
11 x4
12 x4
13 x4
14 x4
TV Screws
15 x4
16 x4 17 x4
Washers
Spacers
M4 x 12mm
M4 x 35mm M4
M6 / M8
M6 x 12mm
M6 x 35mm
M6 x 20mm
M8 x 16mm
M8 x 35mm
M8 x 20mm
5/16 x 2¾ in.
.695 x .350 x .075 in.
UX 10 x 60
M8 x 25mm
2.5mm 22mm
M8 x 45mm
M8 x 50mm
Parts and Hardware for STEP 2
Wall Plate Template Lag Bolts
Lag Bolt Washer
Wall Plate
20 x4
21 x4
18 x1
19 x1 Concrete Anchors
For concrete installations ONLY
CAUTION: Do not use in drywall or wood
Fischer UX10 x 60R
22 x4
8
Parts and Hardware for STEP 2C
Steel Stud Anchor Kit (not included) - contact Customer Service at 1-888-333-1376 (UK: 0800-056-2853) t
o have the addtional
hardware shipped directly to you.
9
1/4-20 x 1¾ in.
1/4 in.
1/4-20 SnapToggle BB
S1 x4
S2 x4 S3 x4
FLAT BACK ROUND BACK CABLESINSET HOLES
ab16 17
M6 M8M4
1.1 Select TV
Screw Diameter
1.2 Select TV
Screw Length
Hand thread screws into the threaded
inserts on the back of your TV to
determine which screw diameter
(M4, M6, or M8) to use.
STEP 1 Attach Brackets to TV
a:If your TV has a
flat back AND you
want your TV closer
to the wall, use the
shorter screws.
b:Spacers and longer screws are
supplied to accommodate:
●Round (irregular) back TVs
●TVs with inset mounting holes
●Extra space needed for cables
Too Short
Too Long
CAUTION:
Verify adequate thread
engagement with the screw/
washer/spacer combination
AND TV Bracket (STEP 1.3).
-Too short will not hold the TV.
-Too long will damage the TV.
Correct
If your TV included
inset spacers or wall mount
adapters, see Troubleshooting
on PAGE 23.
