Sanus WSS2 Manual de usuario
WSS
2
SPEAKER STAND
INSTRUCTION MANUAL
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520. We’re ready to help!
Sonos®One™Sonos®PLAY:1™Sonos®PLAY:3™Sonos®PLAY:3™
2
This stand is designed to support only Sonos®One™, PLAY:1™and PLAY:3™ speakers.
IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
CAUTION: Avoid potential personal injuries and property damage!
•Check your speaker owner’s manual to see if there are any special requirements for mounting your speaker.
•Please read through these instructions completely to be sure you’re comfortable with this easy install process.
• Do not use this product for any purpose not explicitly specified by manufacturer.
• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,
contact Customer Service at 1-800-359-5520.
Before getting started, let’s make sure this product is perfect for you!
5.8 lbs.
(2.6 kg)
Speaker Weight Limit
DO NOT EXCEED
Tool Needed Screwdriver
3
34
866
10
254
13
322
34
866
10
254
13
322
Dimensions
34 in.
(866 mm)
10 in.
(254 mm)
13 in.
(322 mm)
Top View
Front View
M6 x 20 mm M6
1/4-20 x3/4 in.
1/4-20x5/8 in.
1/4-20x3/8 in.
STEP 4STEP 2
M6 x 20 mm M6
1/4-20 x3/4 in.
1/4-20x5/8 in.
1/4-20x3/8 in.
M6 x 20 mm M6
1/4-20 x3/4 in.
1/4-20x5/8 in.
1/4-20x3/8 in.
M6 x 20 mm M6
1/4-20 x3/4 in.
1/4-20x5/8 in.
1/4-20x3/8 in.
STEP 1
M6 x 20 mm M6
1/4-20 x3/4 in.
1/4-20x5/8 in.
1/4-20x3/8 in.
OPTIONAL
Base
Base Screw
Lock Washer
Carpet Spikes
Spike Nuts
Rubber Pads
Tube
Top Collar
Bottom Collar
02 x1
03 x1
07 x4
08 x4 09 x4
01 x1
05 x1
06 x1
04 x1
4
Quantities shown are for one speaker stand.
Parts and Hardware
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to
your dealer; contact Customer Service. Never use damaged parts!
M6 x 20 mm M6
1/4-20 x3/4 in.
1/4-20x5/8 in.
1/4-20x3/8 in.
STEP 5 STEP 6
5
M6 x 20 mm M6
1/4-20 x3/4 in.
1/4-20x5/8 in.
1/4-20x3/8 in.
12 x1
10 x1
11 x1
13 x1
14 x1
15 x1
16 x1
Sonos®One™
Bracket
Sonos®PLAY:1™
Bracket
Bracket Screw
Sonos®PLAY:3™
Horizontal Bracket
Sonos®PLAY:3™
Vertical Bracket
2.7 in. Felt Pad
Speaker Screw
Slide Collars onto Tube
STEP 1
M6 x 20 mm M6
1/4-20 x3/4 in.
1/4-20x5/8 in.
1/4-20x3/8 in.
M6 x 20 mm M6
1/4-20 x3/4 in.
1/4-20x5/8 in.
1/4-20x3/8 in.
03
02
6
Attach Base to Tube
STEP 2
04
01
M6 x 20 mm M6
1/4-20 x
3/4 in.
1/4-20x5/8 in.
1/4-20x3/8 in.
M6 x 20 mm M6
1/4-20 x3/4 in.
1/4-20x5/8 in.
1/4-20x3/8 in.
06
05
03
02
7
8

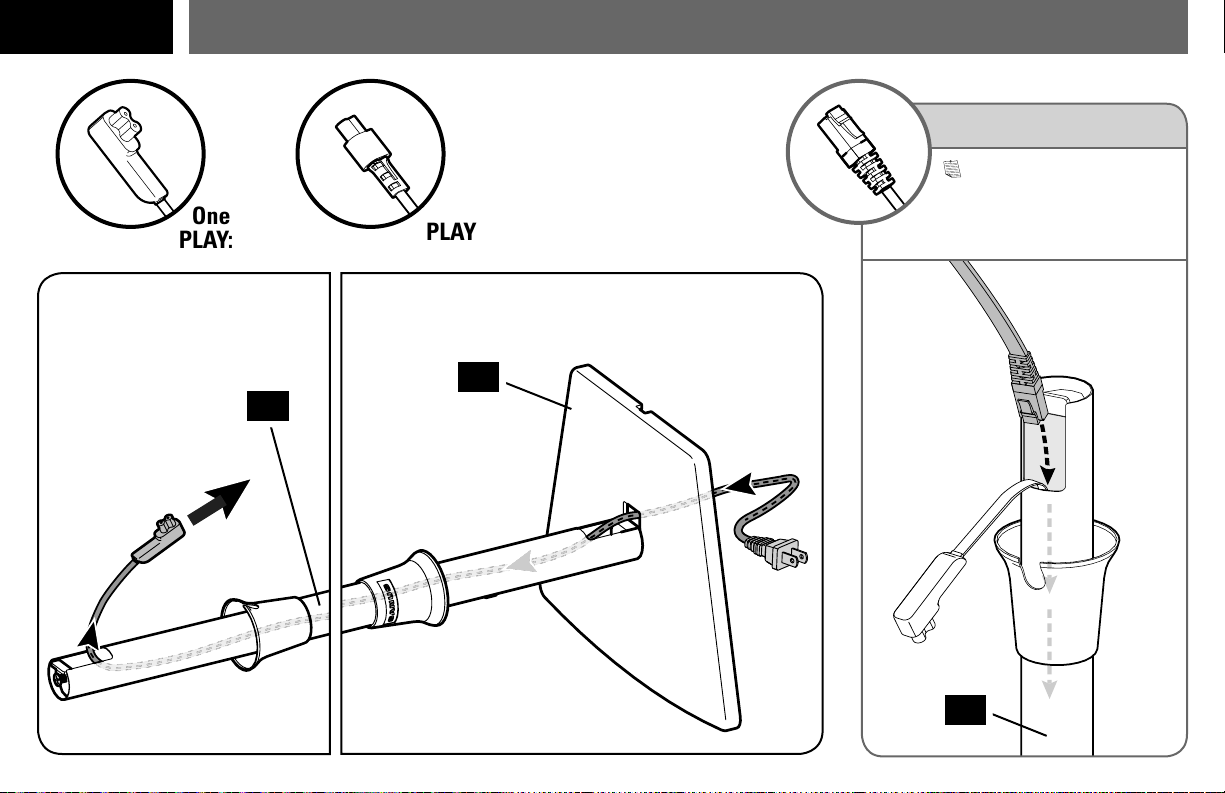

Route Speaker Power Cable
STEP 3
One™
PLAY:1™PLAY:3™
01
01
04
Ethernet [OPTIONAL]
NOTE: Ethernet cable, if
required (see your speaker
manual), installs easier
AFTER the power cable.
9
Optional Carpet Spikes
Rubber Pads

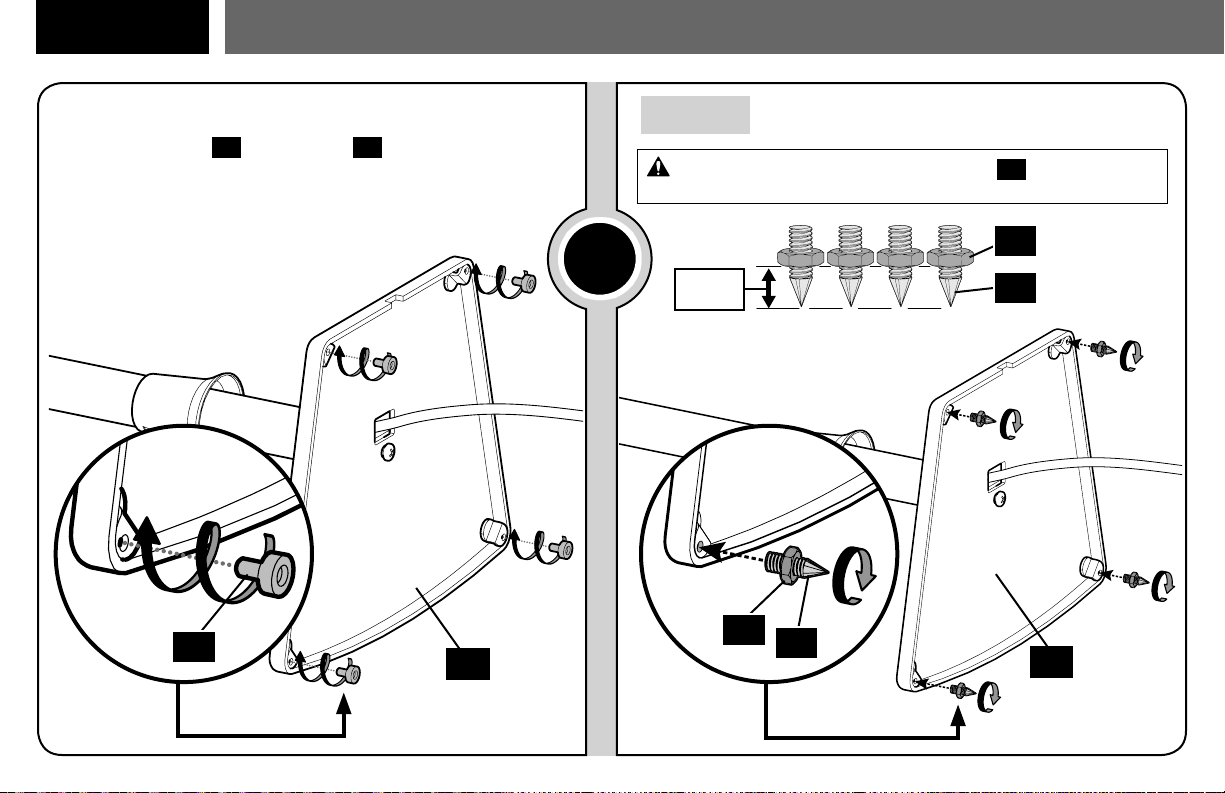

Install Rubber Pads -or- Carpet Spikes
STEP 4
Twist rubber pads 07 into the base 04 .WARNING: The ends of carpet spikes 08 are sharp and
may scratch flooring, damage wiring, or be hazardous to children.
07 04 04
OR
09 08
08
09
HEIGHT
ADJUST
10
Follow the next steps based on your speaker style.
STEP 5A
STEP 6A STEP 5B
STEP 6B STEP 5C
STEP 6C
PLAY:1™
One™PLAY:3™
Horizontal Installation Vertical Installation
