Sanus OLF24-B2 Manual de usuario
OLF
24-B2
INSTRUCTION MANUAL
FULL-MOTION
TV WALL MOUNT
2
150 lbs.
(68 kg)
IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,
contact Customer Service: U.S.: 800-359-5520 • EMEA: +31 (0) 495 580 852 •UK: 0800 056 2853
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed ONLY to be installed into wood studs, solid concrete or concrete block.
—DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.
●This product is designed for INDOOR USE ONLY.
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
TV Weight Limit
(including accessories)
DO NOT EXCEED
If your TV (plus accessories) weighs MORE, this
mount is NOT compatible.
Visit SANUS.com or call customer service to find a
compatible mount. U.S.: 800-359-5520
• EMEA: +31 (0) 495 580 852 •UK: 0800 056 2853
Texto en español, página 26 Deutscher Text Seiten 34 Svensk text sida 42
中文文字说明请参见第 50 页
Texte français page 30 Nederlandse tekst op pagina 38
Русский текст: стр. 54
日本語は46 ページ
3
Call Customer Service
U.S.: 800-359-5520
P: +31 (0) 495 580 852
UK: 0800 056 2853
Tools Needed
Wall
Construction
ONLY install on
these acceptable
wall types. Drywall alone will
NOT hold the weight
of your TV.
Unsure
Wood studs Solid concrete or
concrete block
ACCEPTABLE ACCEPTABLE
Wood Stud Install
Concrete Install
Awl
Pencil Level Tape
Stud
Finder
ScrewdriverTape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric
Drill
Hammer
1/2 in.
(13 mm)
Socket
Wrench
Drill Bit
3/8 in.
(10 mm)
Concrete
CAUTION:
DO NOT install
in drywall alone
4
24.0in
611mm
35deg35deg
SIMULATED 90"
FLAT SCREEN TV
4deg
UP
15deg
DOWN
3.5in
88mm
3.2in
81mm
8.7in
220mm
17.3in
440mm
21.6in
550mm
28.5in
724mm
5deg
ROLL
25.8in
655mm
13.7in
347mm
11.6in
294mm
24.0in
610mm
16.0in
406mm
15.7in
400mm
23.6in
600mm
15.7in
400mm
7.9in
200mm
3.0in
75mm
3.9in
100mm
7.9in
200mm
3.0in
75mm
3.9in
100mm
TV INTERFACE
WALL PLATE
TOP VIEW - EXTENDED
3-D
SIDE VIEW - EXTENDED
SIDE VIEW RETRACTED
TOP VIEW - RETRACTED
FULLY ASSEMBLED MOUNT
Dimensions
5
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are
included and undamaged. If any parts are missing or damaged, do not return the damaged item to Amazon; contact Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
STEP 1 Attach Bracket to TV
5/16 x 3 1/2 in.
M8 X 12 mm
5/16 in.
1/4 in.
1/4-20 x 3/8 in.
1/4-20 x 5/8 in.
3/16 in.
M6/M8
2.5mm
5mm
22mm
M8 x 50mm
M6 x 12mm
M6 x 35mmM6 x 20mm
M8 x 20mm M8 x 40mm
M8x30 mm
STEP 1 Parts and Hardware
TV Screws
(qty. 4 each)
[Only one size fits your TV]
M6
M8
Washer
(qty. 4 each) Spacers
(qty. 4 each)
[If necessary]
03
02
01
06
04 qty. 1
qty. 8
05 qty. 4
TV Bracket
TV Bracket
Extenders
Interface Screws
(TV Bracket)
6
1.1 Measure Your TV Hole Pattern
inch dimensions are approximate
75 mm =7.5 cm ≈ 3 in.
100 mm=10 cm ≈ 4 in.
200 mm=20 cm ≈ 7 7/8 in.
300 mm=30 cm ≈ 11 3/4 in.
400 mm=40 cm ≈ 15 3/4 in.
600 mm=60 cm ≈ 23 5/8 in.
Measure the width and height of your TV hole pattern in mm.
Record your measurements for STEP 1.2.
Width _____________ mm X Height _____________ mm
cm
inches
H
W
7
1.2 Assemble Your TV Bracket
Based on your TV hole pattern measurements
from STEP 1.1 (Wmm x Hmm), determine your
TV bracket configuration: A, B, C, D, E or F.
A
7.87
[200]
15.75
[400] 15.75
[400]
11.81
[300]
11.81
[300]
15.75
[400]
11.81
[300]
2.95
[75]
in.
[mm]
in.
[mm] in.
[mm]
300 x 300 mm
400 x 400 mm 400 x 300 mm
B C
75 x 75 mm
100 x 100 mm
200 X 200 mm
06
2.95
[75]
3.94
[100]
7.87
[200]
3.94
[100]
06
06 05
05
05
05
05
04
04
04
06
8
06
in.
[mm] in.
[mm] in.
[mm]
600 x 400 mm
D
400 x 200 mm 200 x 400 mm
E F
06 06
15.75
[400]
15.75
[400]
7.87
[200]
23.62
[600]
15.75
[400]
7.87
[200]
05 05 05 05
05
05
04 04
04
9
1.3 TV
Screw Diameter
1.4 TV
Screw Length
Inset Holes Cables Rounded Back
Only one screw size fits your TV.
M6 M8 • Flat Back TV
[TV brackets
lay flat on your TV]
NO SPACER SPACER NEEDED
• Flat Back TV with
Extra Space Needed
[for deep inset holes
or cable interference]
• Rounded or
Irregular Back TV
[TV brackets NOT
resting flat on your TV]
A B
Use short TV screws 01 .
Spacers 03 not needed. Use long TV screws 01 and spacers 03 to
create extra space between the TV and TV bracket.
01
CAUTION: Verify adequate thread engagement with your
screw 01 , washer 02 , spacer 03 combination AND TV bracket 04 or 05 .
—Too short will not hold your TV. —Too long will damage your TV.
Too Short
Too Long
Correct
10

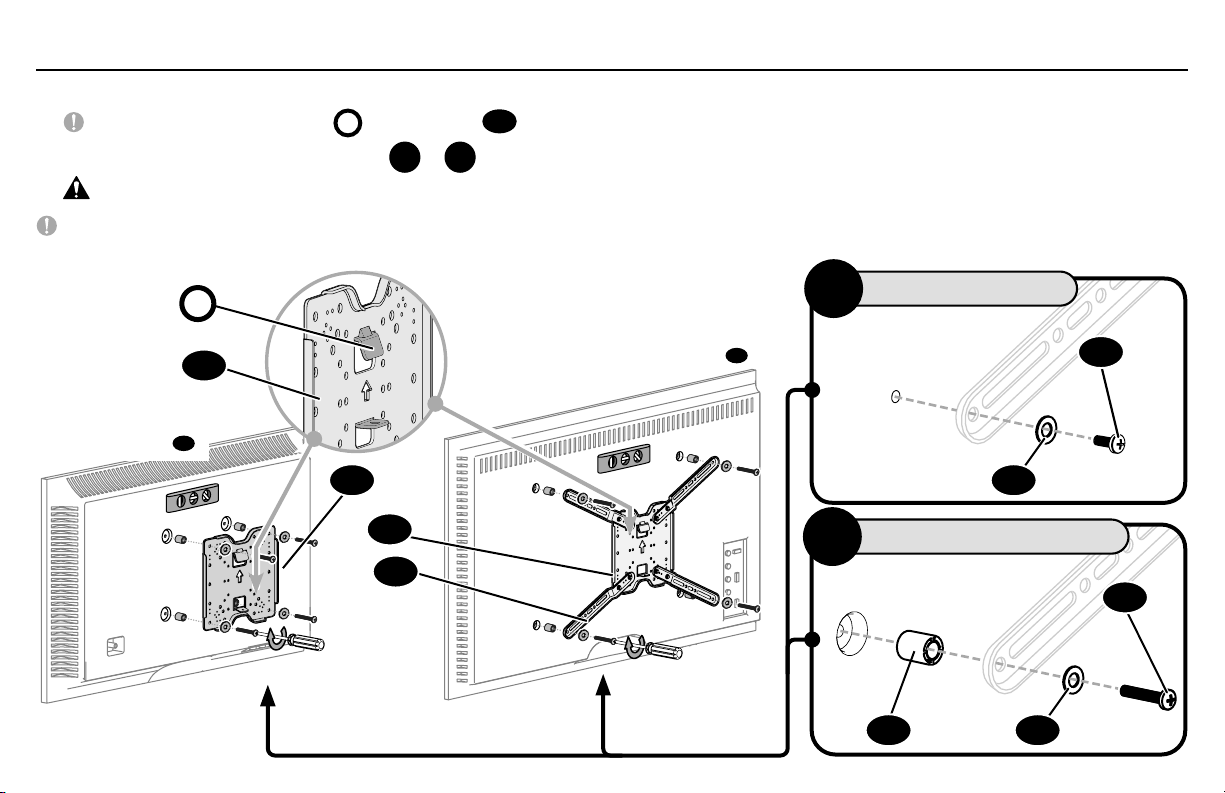

Position your TV bracket configuration (A, B, C, D, E or F) onto your TV, making sure the bracket is both centered and level over your TV hole pattern.
IMPORTANT: The hanging tab Hon TV bracket 04 must be oriented toward the top of the TV.
Secure the TV bracket using your selection: Aor B.
CAUTION: Avoid potential personal injuries and property damage! DO NOT use a power screwdriver for this step.
IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.
1.5 Attach TV Bracket
TV Bracket Configuration A
Illustrated (with spacers 18 )
TV Bracket Configuration D
Illustrated (with spacers 03 )
HNO SPACER
A
SPACER NEEDED
B
04
04
04
05
02
02
01
03
01
