Ruijie RG-WLAN Series Manual de usuario

RG-WLAN Series Access Point RGOS

Configuration Guide, Release 10.4(1b19)p2

RG-WLAN Series Access Point RGOS Configuration Guide, Release

10.4(1b19)p2

Revision No.: Version 10.4(1b19)p2

Without our written permission, this document may not be excerpted, reproduced, transmitted, or otherwise in all or in part

by any party in any means.

, , , , ,

,are all registered trademarks of Ruijie Networks Co., Ltd. and are protected

by law.

Exemption statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain

the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will

not shoulder any responsibility for losses and damages caused by content omissions, inaccuracies or errors.

Preface

Version Description

This manual matches the software version RGOS®10.4(1b19)p2.

Target Readers

This manual is intended for the following readers:

Network engineers

Technical salespersons

Network administrators

Obtaining Technical Assistance

Ruijie Networks website: http://www.ruijienetworks.com/

Online customer services: http://webchat.ruijie.com.cn

Customer service center: http://www.ruijie.com.cn/service.aspx

Customer services hotline: +86-4008-111-000

BBS: http://support.ruijie.com.cn

Customer services email: [email protected].cn

Related Documents

Documents Description

Configuration Guide Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Hardware Installation Guide

Describes functional and physical features of the product and provides

installation procedure, hardware troubleshooting, module technical

specifications, and specifications and guidelines of cables and connectors.

Conventions in this Document

1. Universal Format Convention

Arial: Arial with the point size 10 is used for the body.

Note: A line is added respectively above and below the prompts such as caution and note to separate them from the body.

Format of information displayed on the terminal: Courier New, point size 8, indicating the screen output. User's entries

among the information shall be indicated with bolded characters.

2. Command Line Format Convention

Arial is used as the font for the command line. The meanings of specific formats are described below:

Bold: Key words in the command line, which shall be entered exactly as they are displayed, shall be indicated with bolded

characters.

Italic: Parameters in the command line, which must be replaced with actual values, shall be indicated with italic

characters.

[ ]: The part enclosed with [ ] means optional in the command.

{ x | y | ... }: It means one shall be selected among two or more options.

[ x | y | ... ]: It means one or none shall be selected among two or more options.

//:Lines starting with an exclamation mark "//" are annotated.

3. Signs

Various striking identifiers are adopted in this manual to indicate the matters that special attention should be paid in the

operation, as detailed below:

Descript, prompt, tip or any other necessary supplement or explanation for the operation.

The port types mentioned in the examples of this manual may not be consistent with the actual ones. In real network

environments, you need configure port types according to the support on various products.

The display information of some examples in this manual may include the information on other series

products, like model and description. The details are subject to the used equipments.

Warning, danger or alert in the operation.

Configuration Guide Configuring Fat AP

Configuring Fat AP

Understanding Fat AP

Figure 1-1 Typical Application of Fat AP

Overview

A fat access point (AP) is a wireless device that controls and manages wireless clients. It serves as a bridge between

the client and the local area network and forwards frames between the wired and wireless interfaces.

Working Principle

Single BSS

The area covered by an AP is called a basic service set (BSS). Each BSS is identified by a basic service set identifier

(BSSID). The simplest WLAN comprises one BSS and all wireless clients reside in the same BSS. If these clients are

granted the same authority, they can communicate with each other. Figure 2 is the network of a single BSS. These clients

can communicate with each other and also can access hosts on the network. Clients within the same BSS communicate

with each other through a fat AP.

Figure 1-2 Single BSS Network

Configuration Guide Configuring Fat AP

Multiple ESS

Multiple extended service sets (ESS) topology is used in the case of multiple logical management domains or ESS. When

a mobile subscriber joins a fat AP, it can join an available ESS. Figure 3 is the network of multiple ESS.

Figure 1-3 Multiple ESS Network

Configuration Guide Configuring Fat AP

Normally, a fat AP can provide multiple logical ESS at the same time. The fat AP broadcasts the information of ESS by

beacon packets or probe responses and help clients choose an ESS to join according to the situation.

You can configure different ESS domains on the same fat AP and enable the fat AP to announce and accept users that

have passed authentication.

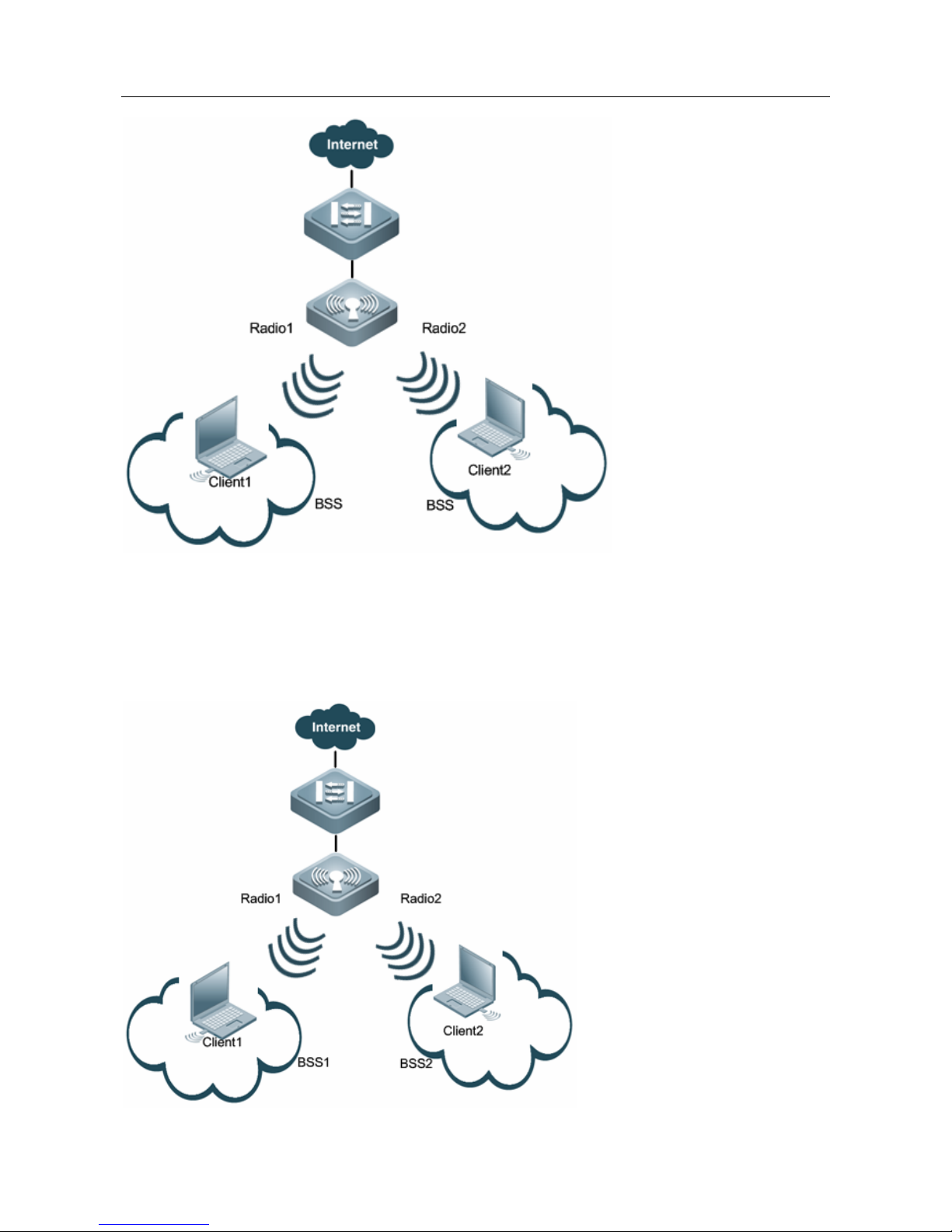

Single ESS, Multiple BSS (In Case of Multi-Radio)

Figure 4 shows application of more than one radio in a single ESS. All radios support the same service set (within one

ESS), but as they belong to different BSS, the logical coverage differs.

Figure 1-4 Single ESS, Multiple BSS Network

The network of single ESS and multiple BSS is also applicable when both 802.11a and 802.11b/g are supported. Figure 4

shows two clients connecting to two radios while in the same ESS but different BSS.

Protocol Specification

IEEE Std 802.11-2012

Default Configuration

Configuring WLAN

Command Function

Ruijie#config Enters global configuration mode.

Ruijie(config)#dot11 wlan 1 Enters WLAN configuration mode.

Configuration Guide Configuring Fat AP

Ruijie(dot11-wlan-config)# ssid fat_ap Configures SSID.

Ruijie(dot11-wlan-config)# vlan 1 Configures WLAN VLAN ID.

Ruijie(dot11-wlan-config)# broadcast-ssid Displays the configured SSID.

Configuring Dot11radio Sub-Interface

Command Function

Ruijie# config Enters global configuration mode.

Ruijie(config)# interface Dot11radio 1/0.1 Enters Dot11radio sub-interface configuration mode.

Ruijie(config-subif)# encapsulation dot1Q 2 Configures Dot11radio sub-interface VLAN ID 2

Configuring WLAN ID

Command Function

Ruijie# config Enters global configuration mode.

Ruijie(config)# interface Dot11radio 1/0 Enters Dot11radio main interface configuration mode.

Ruijie(config-if-Dot11radio 1/0)# wlan-id 1 Configures Dot11radio main interface to support WLAN

Configuring Wireless Parameters

Command Function

Ruijie# config Enters global configuration mode.

Ruijie(config)# interface Dot11radio 1/0 Enters Dot11radio interface configuration mode.

Ruijie(config-if-Dot11radio 1/0)#channel 11 Configures radio channels.

Ruijie(config-if-Dot11radio 1/0)# antenna transmit 7 Configures the transmitting antenna.

Ruijie(config-if-Dot11radio 1/0)# antenna receive 7 Configures the receiving antenna.

Ruijie(config-if-Dot11radio 1/0)# beacon dtim-period 10 Sets the delivery traffic indication message (DTIM)

period.

Ruijie(config-if-Dot11radio 1/0)#beacon period 100 Sets beacon period.

Ruijie(config-if-Dot11radio 1/0)#radio-type 802.11b Configures the RF mode of the radio

Ruijie(config-if-Dot11radio 1/0)#country-code CNI Sets a country code.

Ruijie(config-if-Dot11radio 1/0)# fragment-threshold

1500

Sets a fragmentation threshold.

Ruijie(config-if-Dot11radio 1/0)# rts threshold 1500 Sets an RTS threshold.

Ruijie(config-if-Dot11radio 1/0)# chan-width 40 Sets the channel width to 40 MHz.

Ruijie(config-if-Dot11radio 1/0)# slottime long Sets long slot time.

Ruijie(config-if-Dot11radio 1/0)# short-preamble Sets the short preamble.

Ruijie(config-if-Dot11radio 1/0)# short-gi enable

chan-width 20

Enables short guard interval (GI) in the channel width of

20 MHz.

Configuration Guide Configuring Fat AP

Ruijie(config-if-Dot11radio 1/0)#response-rssi 10 Sets the received signal strength indicator (RSSI).

Ruijie(config-if-Dot11radio 1/0)#power local 20 Sets the value of power.

Ruijie(config-if-Dot11radio 1/0)# coverage-area-control

Sets the coverage area of wireless signals.

Ruijie(config-if-Dot11radio 1/0)#restries long 2 Sets the long retry limit.

Ruijie(config-if-Dot11radio 1/0)#restries short 6 Sets the short retry limit.

Ruijie(config-if-Dot11radio 1/0)#sta-limit 12 Sets STA limit.

Ruijie(config-if-Dot11radio 1/0)#sta-idle-time 900 Sets the STA idle time.

Ruijie(config-if-Dot11radio 1/0)#mcast_rate 130 Sets multicast rate.

Ruijie(config-if-Dot11radio 1/0)# 11bsupport enable Enables the AP to support 802.11b.

Ruijie(config-if-Dot11radio 1/0)# 11gsupport enable Enables the AP to support 802.11g.

Ruijie(config-if-Dot11radio 1/0)# 11nsupport enable Enables the AP to support 802.11n.

Ruijie(config-if-Dot11radio 1/0)# rate-set 11n

mcs-mandatory 10

Sets the modulation and coding scheme (MCS) index of

10 to mandatory on the 802.11n radio.

Ruijie(config-if-Dot11radio 1/0)# rate-set 11a disable 6 Sets the rate set on 802.11a.

Ruijie(config-if-Dot11radio 1/0)# rate-set 11g mandatory

Sets the rate set on 802.11g.

Displaying the Configuration

Command Function

show run Shows the configuration of the fat AP.

show dot11 wireless 1/0 Shows the related wireless parameters and configuration

of the wireless LAN card.

Configuration Examples

Centralized Management of 802.11n

Networking Requirements

The 2.4 GHz (802.11g, Radio1) network operates in Channel 6. The SSID is RUIJIE-2G. Parameter configuration is

required;

The 5 GHz (802.11a, Radio2) network operates in Channel 149. The SSID is RUIJIE-5G. Parameter configuration is

required.

Networking Topology

Figure 1-5 Network Topology of Fat AP

Configuration Guide Configuring Fat AP

Configuration Tips

N/A

Configuration Steps

Step 1: Configure WLAN

Ruijie#config

Ruijie(config)# dot11 wlan 1

Ruijie(dot11-wlan-config)# ssid RUIJIE-2G

Ruijie(dot11-wlan-config)# vlan 2

Ruijie#config

Ruijie(config)# dot11 wlan 2

Ruijie(dot11-wlan-config)# ssid RUIJIE-5G

Ruijie(dot11-wlan-config)# vlan 3

Step 2: Configure Dot11radio sub-interface

Ruijie(config)#interface vlan 1

Ruijie(config-subif)# encapsulation dot1Q 2

Ruijie(config)#interface vlan 2

Ruijie(config-subif)# encapsulation dot1Q 3
