Rosewill FBM-01 Manual de usuario

User’s Manual

FBM-01CASE

Contents

Opening Chassis P. 4

Installing Motherboard P. 5

Installing Power Supply P. 4

Disassemble Chart P. 2

Accessory Box P. 3

Installing 3.5” HDD

Installing External 5.25" Device P. 7

Installing External 3.5" Device P. 8

P. 8

P. 2

Installation Guide

Information P.9

P. 6

Product Overview

Installing Add On Card

User’s Manual

FBM-01CASE

Front I/O Pin Define

USB 2.0 CONNECTOR HD CONNECTORAC97 CONNECTOR

PinPin

MIC

AUD GND

RET~R

RET~L

MIC

MIC~BIAA

FPOUT~R

+5V

FPOUT~L

AUD GND

PRESENCE#

SENSE1_RETURN

SENSE2_RETURN

PORT1L

PORT1R

PORT2R

SENSE_SEND

PORT2L

Disassemble Chart

Front Panel

Left Side Panel

Right Side Panel Rear 80mm Fan

Front 120mm Fan

User’s Manual

FBM-01CASE

Accessory Box

6 x M/B standoff Motherboard

8 x Screw A Power Supply

Add-on Card

18 x Screw C

Motherboard

5.25” Device

Floppy

8 x Screw B 3.5” HDD

1 x PC SPEAKER Motherboard

User’s Manual

FBM-01CASE

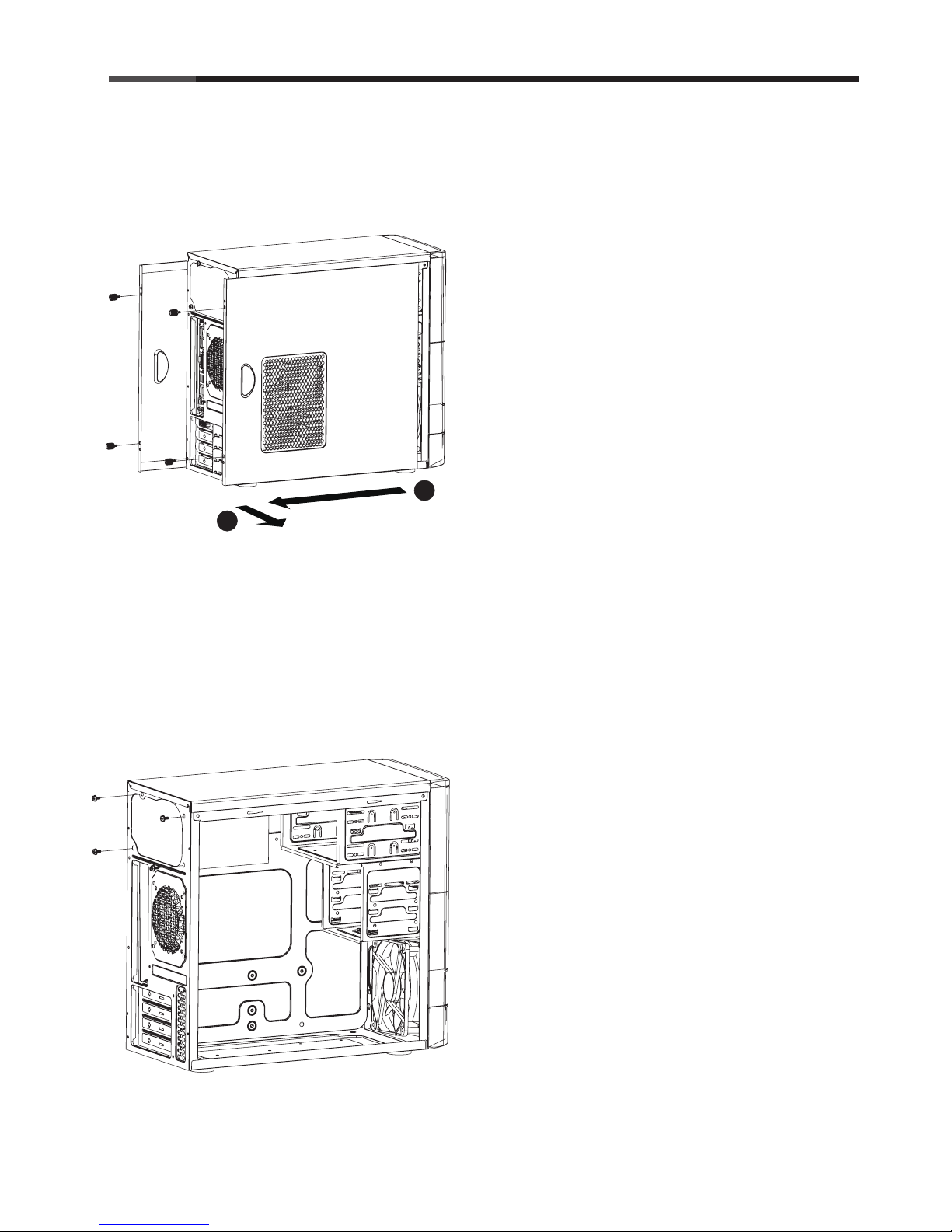

Unscrew to remove left and right panel.

Place the power supply from the left side into the

chassis and secure with screws.

Installation Guide

User’s Manual

FBM-01CASE

Installation Guide

-Place the motherboard onto stand-offs and secure with screws.

-Install motherboard stand-offs according to your motherboard’s screw holes.

User’s Manual

FBM-01CASE

Installation Guide

-Install the add-on card and secure with screws.

-Confirm which slot you want to install an add-on card

then fracture the slot cover with your screwdriver.

User’s Manual

FBM-01CASE

Installation Guide

-Pull to remove the front panel.

-Confirm which bay you want to install device(S) then

remove the bay cover.

-Reinstall the front panel.

-Insert the 5.25” device from the front apnel into the

chassis then secure with screws.

User’s Manual

FBM-01CASE

Installation Guide

Insert the external 3.5” device into its position from front

panel and secure with screws.

Insert the 3.5” HDD into its position from inside and secure

with screws.

User’s Manual

FBM-01CASE

Installation Guide

Make sure all necessary cables and wires are

connected, then

reinstall side panels and secure with screws.

Thank you for purchasing a High-Quality Rosewill Product.

Please register your product at : http://www.rosewill.com

for complete warranty information and future support for your product.

If you have any question while using our products, please visit our website : www.rosewill.com

for latest driver & user manual or feel free to contact us.

Support Phone Number: 800-575-9885

Support Email: [email protected]
