Rosewill StrykerM Manual de usuario

Stryker M

Product Diagram

Front I/O Diagram

Accessory Kit

Install the Power Supply

Install the Motherboard

Install the Add-in Card

Install an External 5.25” Device

Install a 3.5”/2.5” Drive

Care

Options

Specifications

10

12

Stryker M

Panel L

HDD Tray HDD Cage

Panel R

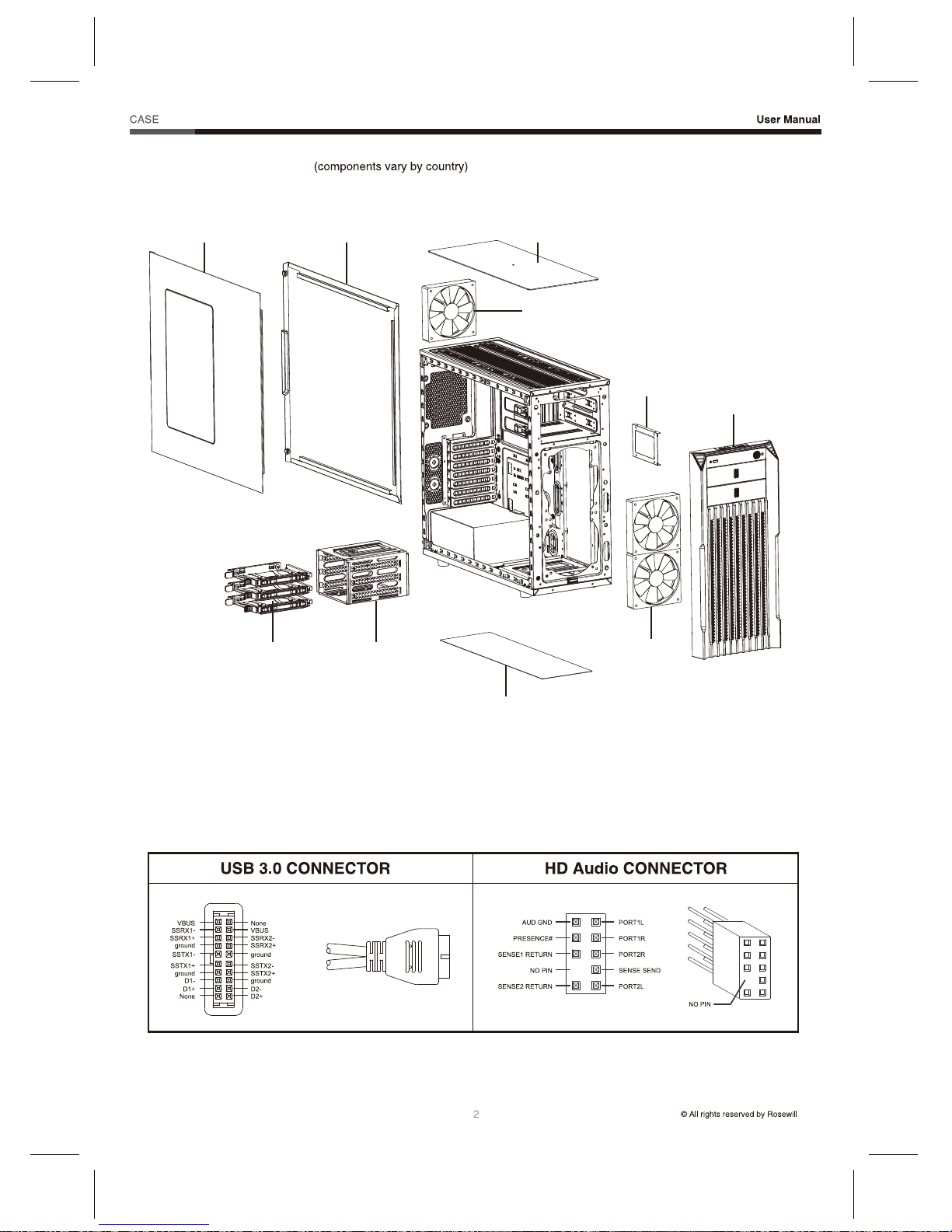

Product Diagram

Front I/O Pinout

Top Dust Filter

120 mm Fan

Bottom Dust Filter

120 mm Fan x 2

2.5” SSD TrayFront Panel

Stryker M

Front I/O Diagram

Accessory Kit

Figure Part’s Name Used ForQty

Screw-A Motherboard

Motherboard

10

10

Screw-C

Screw-D

Cable Tie

Nut Setter

Buzzer

Standoff

ODD / HDD / SSD

Power Supply Unit

Fan

Cables / Wires

Standoff Installation

Motherboard Alarm

Screw-B 16

4

4

3

1

1

Stryker M

Open the Unit

1-1. Untwist the thumbscrews and slide out panels R and L (Figure 1).

Install the Power Supply

2-1. Seat the power supply unit (PSU) to the bottom of the case and secure with Screw-C (Figure 2).

1

2

Stryker M

Install the Motherboard

3-1. Line up the standoffs with the screw holes

on the motherboard (Figure 3a). 3-2. Screw the motherboard down with Screw-A

(Figure 3b).

Install the Add-in Card

4-1. Untwist the screws and remove the

slot cover (Figure 4a). 4-2. Install the add-in card and secure with the

Screws (Figure 4b).

3b

3a

4a 4b

Stryker M

5. Install an External 5.25” Device

5-1. Pull the front panel out and remove it

(Figure 5a). 5-2. Remove the slot cover (Figure 5b).

5-3. Insert the 5.25” drive and push it back into the case. Make sure it’s secured. (Figure 5c).

5a

5b

5c

Stryker M

6-1. 3.5” Drive: Install the 3.5” HDD onto the

tray (secure with screws if desired)

(Figure 6a).

6-3. Insert the tray into the HDD Cage (Figure 6c) and secure the cage with screws (Figure 6d).

6. Install a 3.5” or 2.5” Drive

Use Screw-B on drive trays and cages. Refer to the Accessory Kit for reference.

6-2. 2.5” Drive: Screw the 2.5” SSD/HDD onto

the tray with Screw-B (Figure 6b).

6a

6c 6d

6b

Stryker M

6-4. An additional 2.5” tray is located in the back of motherboard tray. Unscrew and remove the 2.5”

tray (Figure 6e).

6.5. Secure the 2.5” HDD / SSD onto the tray

with Screw-B (Figure 6f). 6-6. Screw the tray back onto the motherboard

tray (Figure 6g).

6e

6f 6g
