Rosewill PRISM S Manual de instrucciones

Quick User Guide

Gaming Case

Table of Contents

Thank you for purchasing a Rosewill Computer Case.

Please read the instruction manual before use and

retain for future reference.

1

• Product Overview

Disassembly ...................................................... 02

Accessory Box ................................................... 03

• Installation Guide

1. Open the Unit ................................................ 04

2. Install the Power Supply ................................ 05

3. Install Motherboard ........................................ 05

4. Install Add-on Card ........................................ 06

5. Install 3.5”/2.5” HDD/SDD ............................. 07

6. Care ............................................................... 08

7. Options .......................................................... 09

• Specications Table ........................................... 12

Front I/O Cable Pinout ....................................... 13

Front I/O ............................................................. 13

2

PRISM S / PRISM S-LITE

Gaming Case

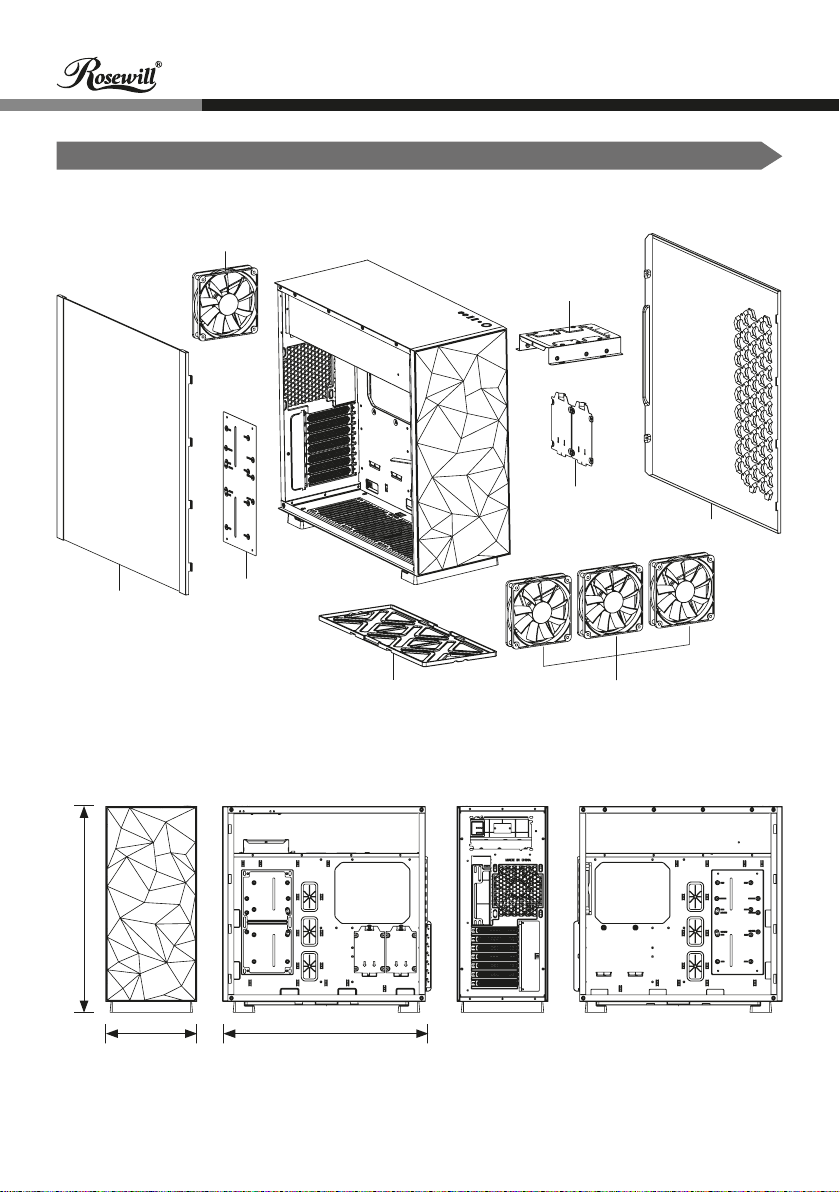

Product Overview

Disassembly (components vary by country)

Cooling Fan

HDD Cage

SSD

Plates Side Panel

Cooling Fan

(PRISM S-LITE provides one cooling fan)

Dust Filter

Front View Right Side View Rear View Left Side View

210 mm

477 mm

475 mm

SSD/HDD

Plate

Glass Panel

3

Gaming Case PRISM S / PRISM S-LITE

Accessory Box

Image Part Name Qty Function/Component

Screw-A (6-32 x 6mm) 5 PSU

Screw-B (6-32 x 5mm) 22 Motherboard

3.5” HDD

Screw-C (M3 x 5mm) 20 2.5” SSD

Standoff 9 Motherboard

(Pre-Installed)

Nut Setter 1

Standoff Installation

(Optional: Standoffs are

Pre-Installed)

Cable Tie 10 Cable Management

Velcro Strap 4 Cable Management

Micro Fiber Towel 1 Tempered Glass Cleaning

4

PRISM S / PRISM S-LITE

Gaming Case

Installation Guide

1. Open the Unit

1-1. Loosen the thumbscrews and take off panel R and L (Figure 1).

1

•Simply loosen screws to

remove side panel

5

Gaming Case PRISM S / PRISM S-LITE

2. Install the Power Supply

2-1. Set the power supply unit (PSU) at the top of the case and secure with Screw-A (Figure 2).

2

3. Install Motherboard

3-1. Secure the motherboard down onto the pre-installed standoff with Screw-B (Figure 3).

3

6

PRISM S / PRISM S-LITE

Gaming Case

4. Install Add-on Card

4-1. Loosen the screws to open the cover panel/slot cover (Figure 4a).

4-2. Install the add-on card and secure with screws (Figure 4b).

4a

4b

7

Gaming Case PRISM S / PRISM S-LITE

5a

5d

5f 5g 5h

5e

5c

5-2. Secure the 3.5" drive onto the tray/plate with Screw-B (Figure 5d/5e).

5-3. Secure the 2.5” drive onto the tray with Screw-C (Figure 5f/5g/5h).

* If drive is installed on 5e or 5g, water cooling radiator cannot be added.

5-4. Put the tray/plate back onto the chassis and secure with screws.

5. Install 3.5”/2.5” HDD/SDD

5-1. Take out the 3.5”/2.5” HDD/SDD trays/plates from the chassis (Figure 5a/5b/5c).

5b

8

PRISM S / PRISM S-LITE

Gaming Case

6a

6-2. Clean the dust lters on the bottom regularly to ensure adequate airow (Figure 6b).

6. Care

To prevent damage, keep all panels closed and secured.

6-1. Put the side panels back in place and secure with thumbscrews (Figure 6a).

6b
