Rosewill RX200R-APU3-25B Manual de usuario

1

Foreword

Congratulations on your purchase of our product ! Before using the

product, please read this manual carefully for further recognizing of

the product.

I. System Requirement

Basic enviroment for using this device:

Hardware requirement : A PC, Notebook with free USB and port

Operation system : windows XP/Vista/7/8

II. Feature :

Supports Raid0, Raid1, JBOD, 2LUN mode

Enhanced data protection and high-performances storage USB 3.0

interface transfer rate up to 5Gbp/s

Backward compliant with USB2.0 transfer rate up to 480Mb/s

Supports Plug-play and Hot-plug and virtualization capabilities.

Support model select for hardware and one button backup function.

Power Supply : Self-Power

Driver enclosure made of aluminum alloy good for heat dissipation

III. Package Content

Check accessories

Before using the product, please check the accessories in the

package compliant with the below. If not, please contact the local

dealer timely.

2

◇One 2.5" two bay USB3.0 Enclosure

◇One USB3.0 Connecting cable

◇One User’s Manual

◇One 5V Adapter

◇One CD driver

◇One Stand

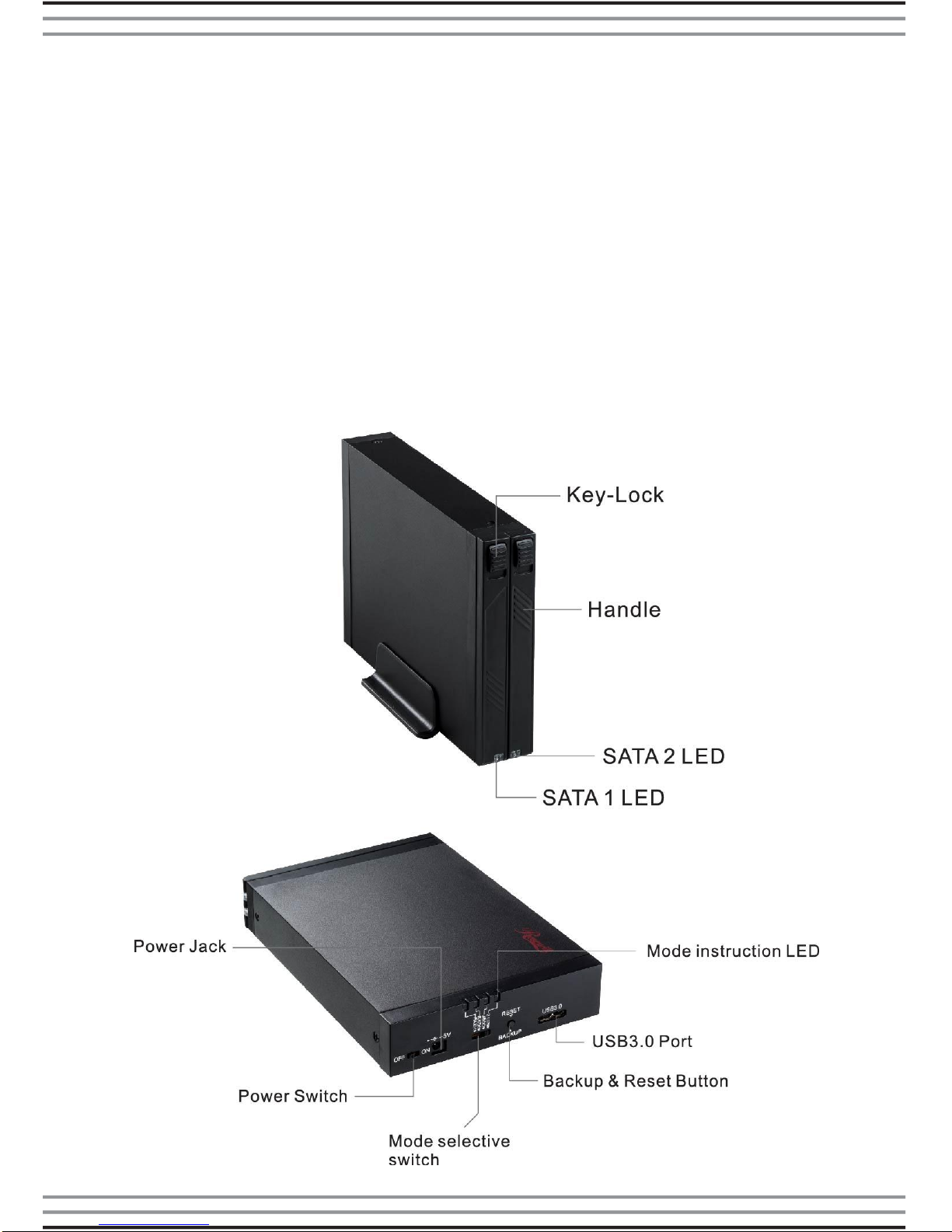

IV. Hardware Installation

3

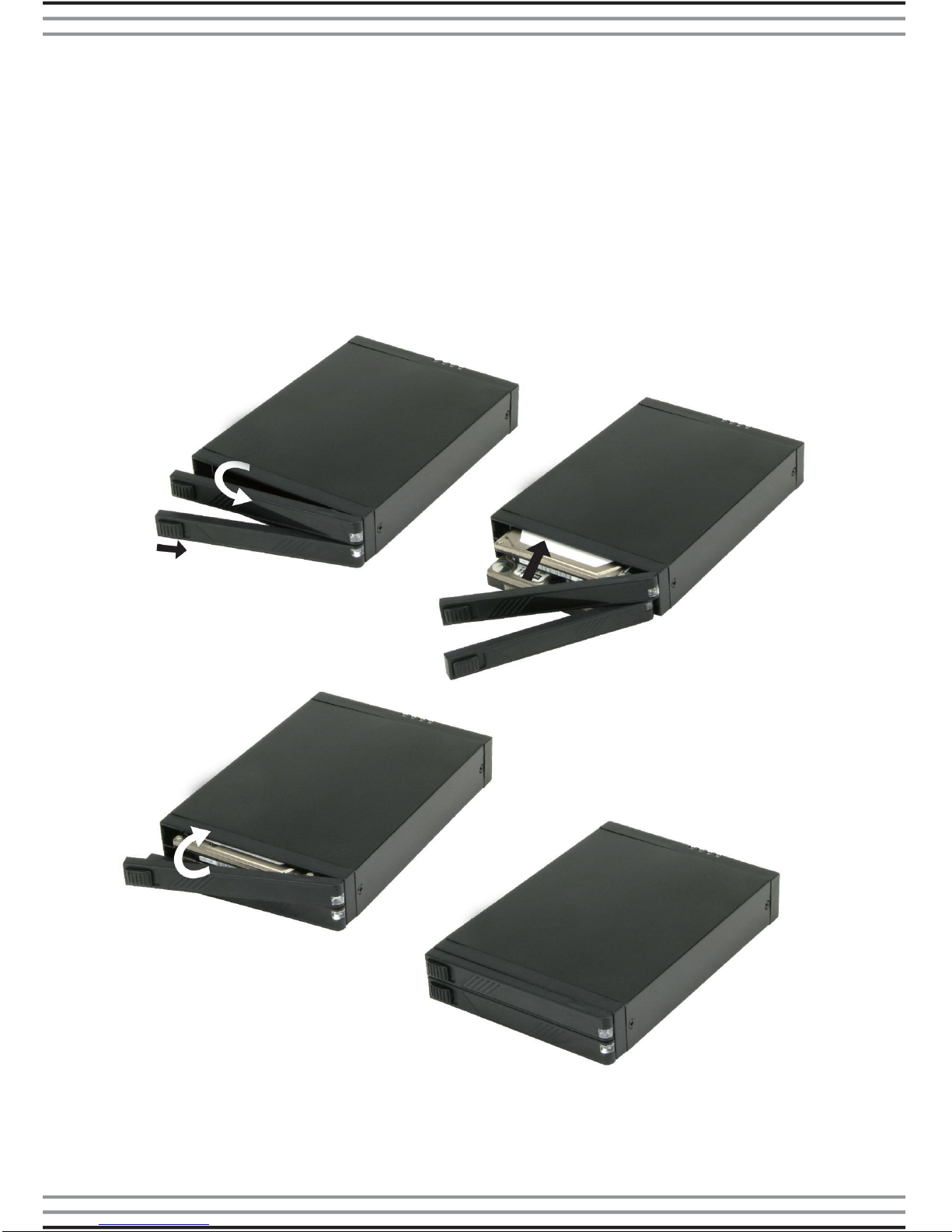

1. Push switch on the handle toward the right to open the door

2. Put SATA HDD into enclosure (HDD’s SATA connector toward the

inside of the product)

3. Close the door, handle will be locked automatically

4. HDD installation finished

4

V. Hardware setup and under WIN XP/VISTA/7/8 use :

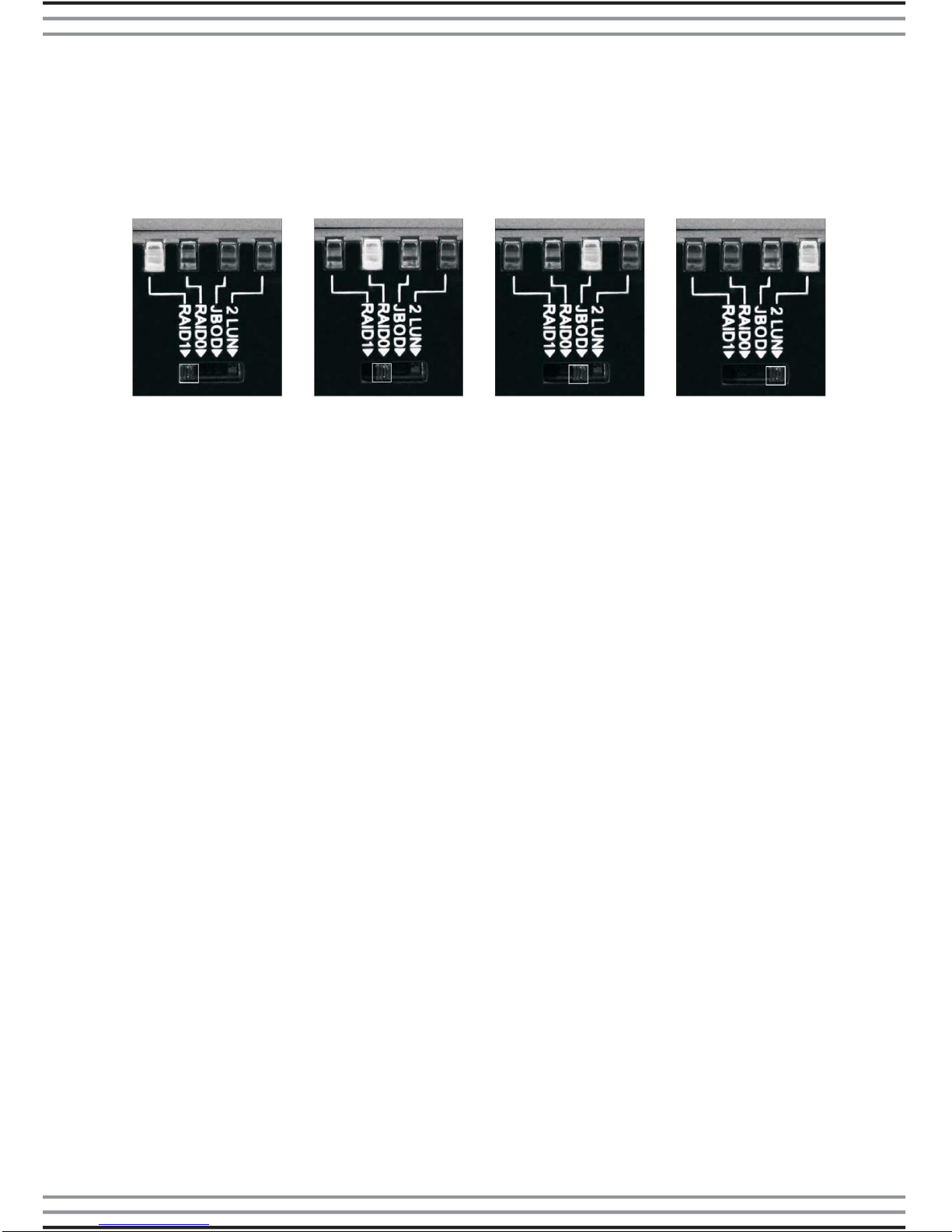

There have mode which in the rear back of the product, it can

form 4 kinds of different ways through mode switch, it can realize 4

kinds of different functions as below :

RAID1 RAID0 JBOD 2LUN

1. JBOD function Mode

Pleasee move Mode Selective Switch till the position that just

under JBOD mark. Connect power supply with product

properly(Not Allowed to connect USB3.0 Cable at the same

time)Hold Reset button, And power on product, After holding

button with cotinuous 5 seconds, Product will switch to JBOD,

Connect USB 3.0 cable, Product will work well under JBOD

mode.

The JBOD storage policy concatenates a series of physical hard

drives as a single large volume ; resulting in a seamless expansion

or virtual volumes beyond the physical limitations of singurlarly

connected hard drives.

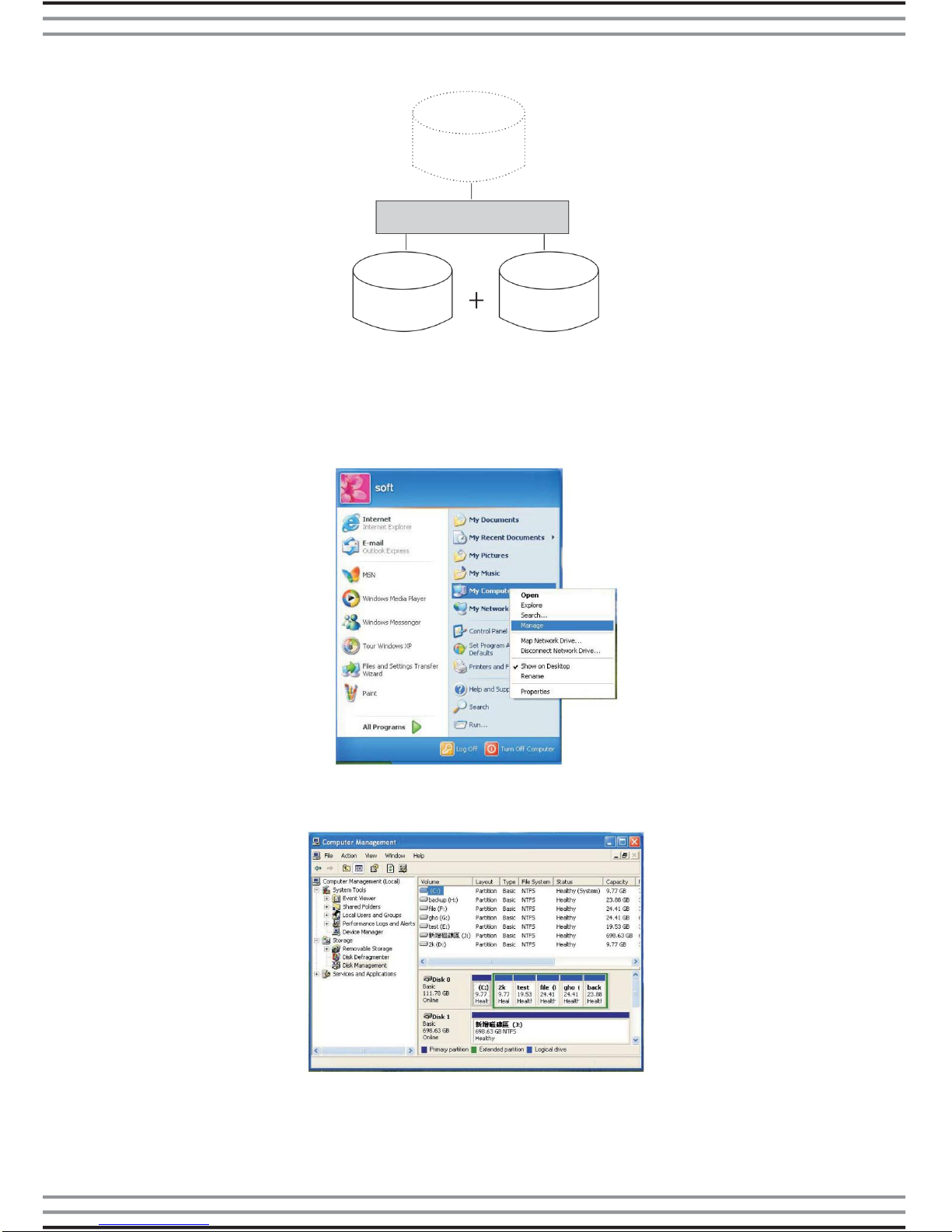

Hard drive A and B are concatenated into a single virtual volume in

the Figure below with a storage capacituy that is equal to the sum of

each of the physical hard drives A and B.

5

Connect the USB cable to PC and enclosure USB host, then open

the power

Select[Start]-[My Computer]-[Manager] as below :

In the left window, select [System Tools] –[Device Manager] as

below :

Virtual JBOD volume

Capacity is Drive A plus

Drive B

Port 0

Port 1

Drive B

Drive A

6

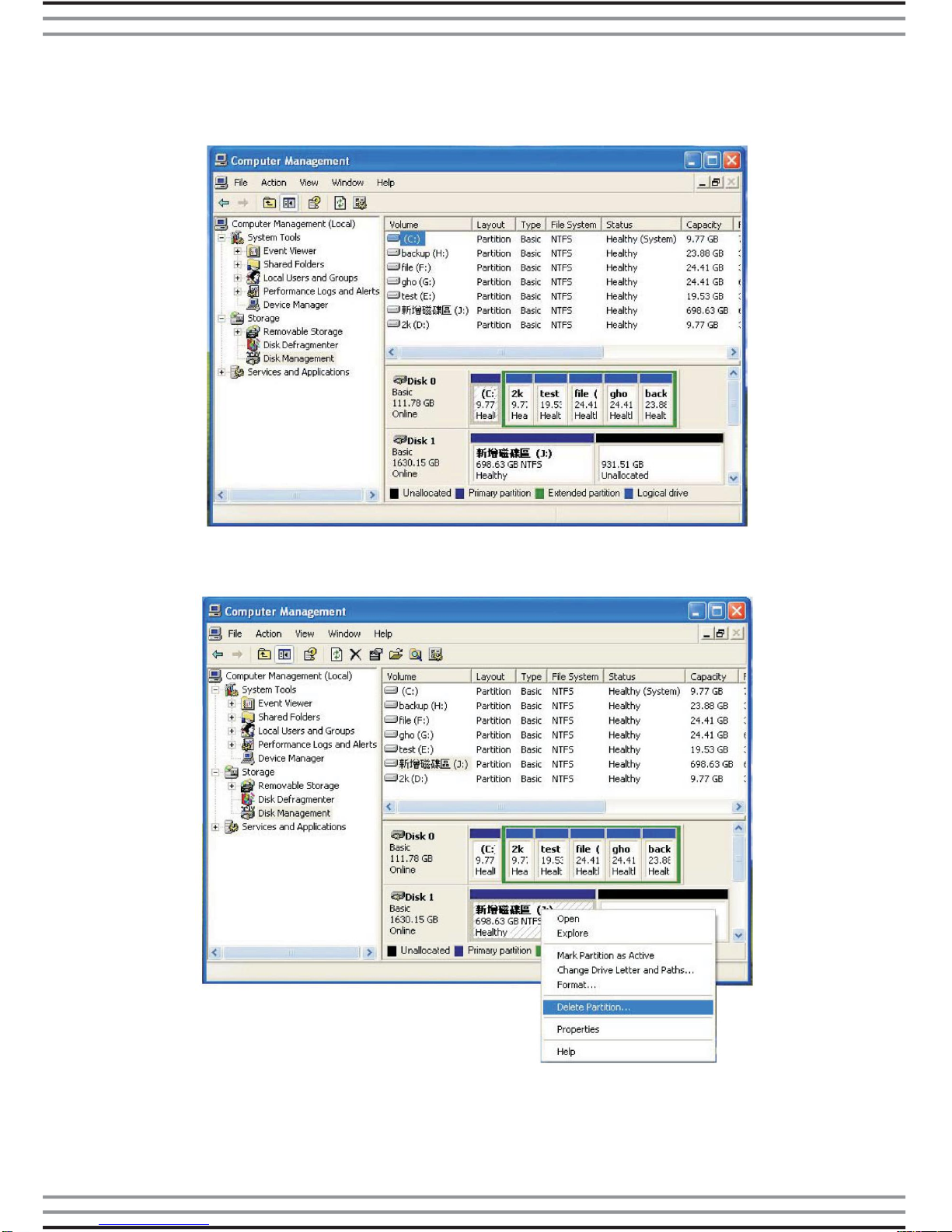

The two External hard disk oicon will appear at the window under

the system hard disk icon

Right click the two icon of the two external hard disk, delete all disk

partition, make this two disk become one JBOD disk.

7

Display one disk and others system disk capacity as below :

Right click the new hard disk icon, make based new partition display

as below :

8

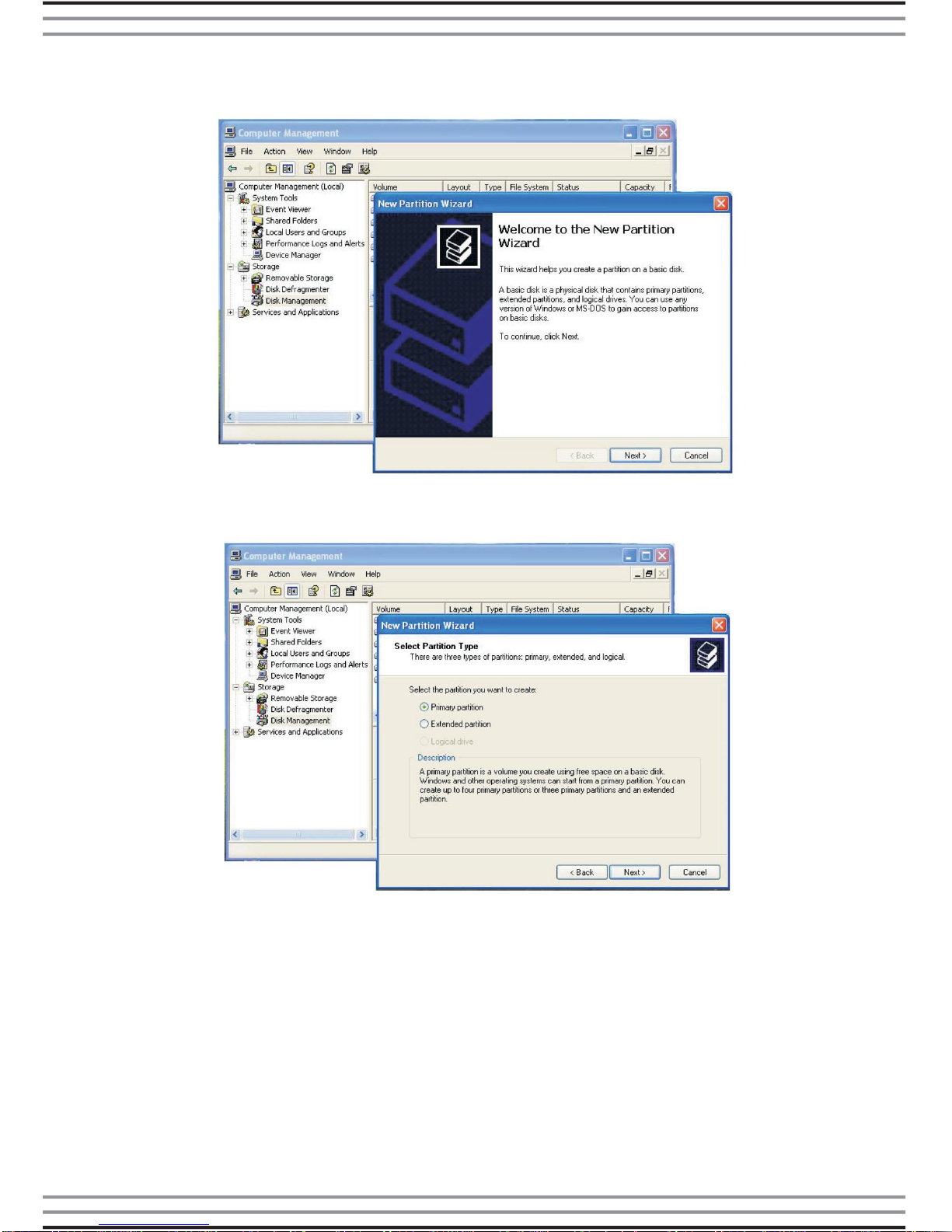

Next new partition wizard :

A window will disappear and ask to select partition type [primary

partition] or [Extended partition] as below.

9

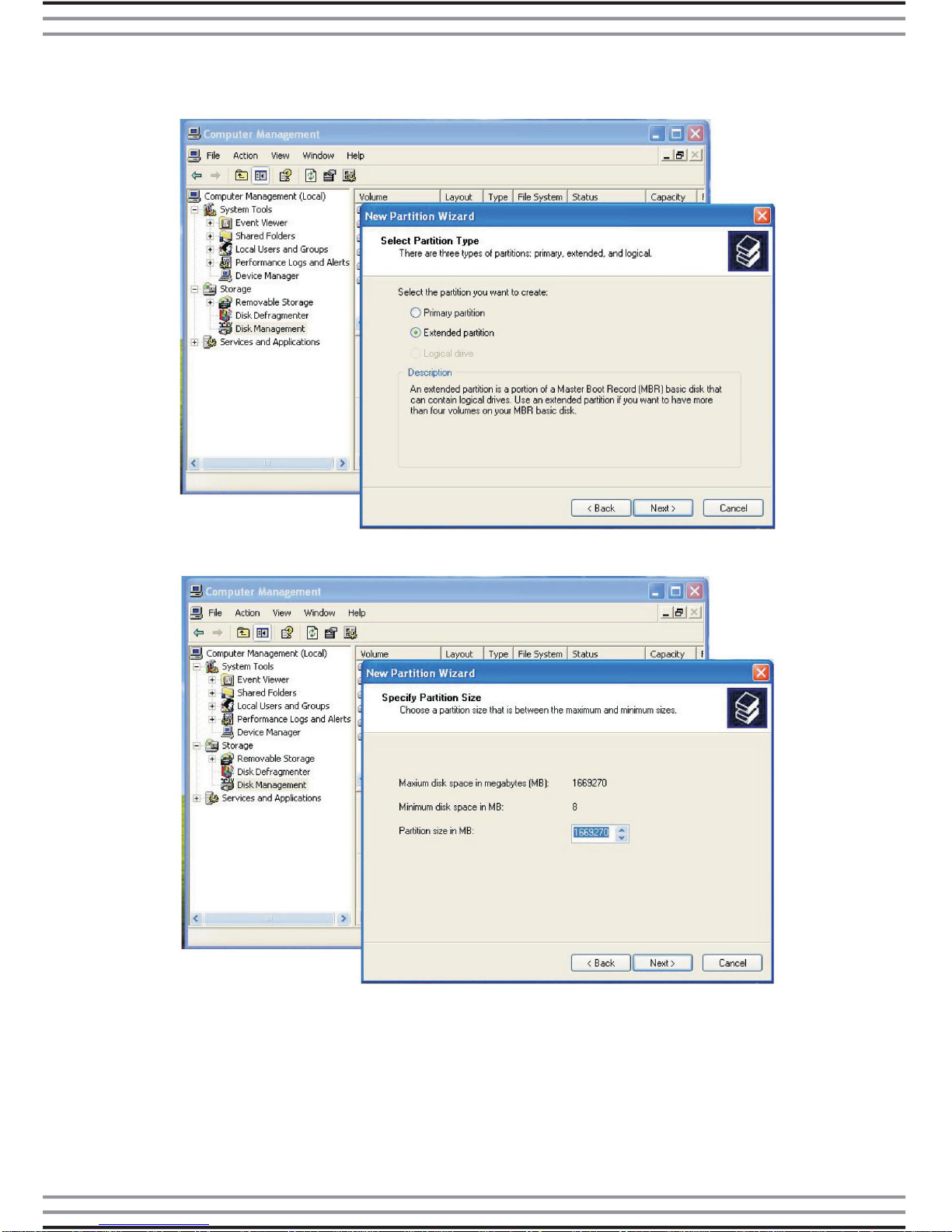

Select [Extended partition] to continue

Display the hard disk partition size, click [Next] to continue
