Rose electronics CrystalView DVI Mini Manual de usuario

CrystalView DVI Mini

DVI Cat5 Video Extender

10707 Stancliff Road

Houston, Texas 77099 Phone: (281) 933-7673

WWW.ROSE.COM

Installation and

Operations Manual

LIMITED WARRANTY

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any

means, electronic or mechanical, including photocopying and recording, without the prior written

permission of Rose Electronics.

Rose Electronics Part # MAN-CRVDVIMINI

Printed In the United States of America - Revision

Rose Electronics warrants the CrystalView DVI Mini to be in good working order for one

year from the date of purchase from Rose Electronics or an authorized dealer. Should this

product fail to be in good working order at any time during this one-year warranty period,

Rose Electronics will, at its option, repair or replace the Unit as set forth below. Repair

parts and replacement units will be either reconditioned or new. All replaced parts become

the property of Rose Electronics. This limited warranty does not include service to repair

damage to the Unit resulting from accident, disaster, abuse, or unauthorized modification of

the Unit, including static discharge and power surges.

Limited Warranty service may be obtained by delivering this unit during the one-year

warranty period to Rose Electronics or an authorized repair center providing a proof of

purchase date. If this Unit is delivered by mail, you agree to insure the Unit or assume the

risk of loss or damage in transit, to prepay shipping charges to the warranty service

location, and to use the original shipping container or its equivalent. You must call for a

return authorization number first. Under no circumstances will a unit be accepted without a

return authorization number. Contact an authorized repair center or Rose Electronics for

further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

ARE LIMITED IN DURATION TO A PERIOD OF ONE YEAR FROM THE DATE OF

PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY

AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG

AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO

YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE,

YOUR SOLE REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE.

IN NO EVENT WILL ROSE ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES

INCLUDING ANY LOST PROFITS, LOST SAVINGS OR OTHER INCIDENTAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR THE INABILITY TO

USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM

BY ANY OTHER PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL

OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY

NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND

YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

NOTE: This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to correct

the interference at his own expense.

IBM, AT, and PS/2 are trademarks of International Business Machines Corp. Microsoft and

Microsoft Windows are registered trademarks of Microsoft Corp. Any other trademarks

mentioned in this manual are acknowledged to be the property of the trademark owner

FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY

FEDERAL COMMUNICATIONS COMMISSION

AND INDUSTRY CANADA

RADIO-FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses and can radiate radio frequency energy

and if not installed and used properly, that is in strict accordance with the

manufacturer’s instructions may cause interference to radio

communication. It has been tested and found to comply with the limits

for a Class A digital device in accordance with the specifications of Part

15 of FCC rules, which are designed to provide reasonable protection

against such interference when the equipment is operated in a

commercial environment. Operation of this equipment in a residential

area is likely to cause interference, in which case the user at his own

expense will be required to take whatever measures may be necessary

to correct the interference.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

This digital apparatus does not exceed the Class A limits for radio noise

emission from digital apparatus set out in the Radio Interference

Regulation of Industry Canada.

This is to certify that, when installed and used according to the

instructions in this manual, together with the specified transmit cables

and the maximum connection cable length <3m, the Units:

CRK-M1DTXUD1D / CRK-M1DTXUD2D

are shielded against the generation of radio interferences in accordance

with the application of Council Directive 89/336/EEC as well as these

standards:

EN 55022: 1999 Class A

EN 55024: 1999

IEC 61000-4-2: 2001

IEC 61000-4-3: 2001

IEC 61000-4-4: 2001

EN 61000-3-2 2001

EN 61000-3-3 2002

The device was tested in a typical configuration with PC.

TABLE of CONTENTS

Contents Page #

System Introduction..................................................................................1

Disclaimer.................................................................................................1

About This Manual....................................................................................2

Product Registration .................................................................................2

Rose Electronics Web Site.......................................................................2

Features................................................................................................3

Package Contents.................................................................................3

CrystalView DVI Mini Models....................................................................4

Single-Head Installation............................................................................6

Dual-Head Installation ..............................................................................7

Dip Switch Settings ...............................................................................8

DDC Information .................................................................................10

Compatibility Information.....................................................................10

System Troubleshooting.........................................................................11

Product Safety ........................................................................................12

Service Information.................................................................................13

Maintenance and Repair.....................................................................13

Technical Support ...............................................................................13

Figures Page #

Figure 1. Single Access Model..................................................................4

Figure 2. Dual Access Model.....................................................................5

Figure 3. Single-Head Installation .............................................................6

Figure 4. Dual-Head Installation................................................................7

Figure 5. Transmitter Dip-switch settings ..................................................8

Figure 6. Receiver Dip-switch settings ......................................................9

Appendices Page #

Appendix A – General Specifications .....................................................14

Appendix B – Parts and Cables..............................................................15

Appendix C – Tested USB devices ........................................................15

INTRODUCTION

CrystalView DVI Mini Installation and Operations Manual 1

System Introduction

Thank you for choosing the Rose Electronics



CrystalViewDVI Mini

KVM station extender. The CrystalView DVI Mini is the result of Rose

Electronics commitment to providing state-of-the-art solutions for today’s

demanding workplace. The CrystalView DVI Mini has proven to be a

valuable investment for any business, big or small, that has a need to

access their computer from a remote location. Using the CrystalView DVI

Mini, you can locate the remote user station up to 165ft. (50m) away and

have full control of the computer.

The CrystalView DVI Mini is available in two models; single and dual

head. The dual head model allows a second video input to be connected

to the transmitter unit.

The CrystalView DVI Mini system consists of two Units, a transmitter and

a receiver unit. The transmitter connects to your computer’s DVI-D

Singlelink graphic card and a USB Type A port. The receiver unit

connects to a USB keyboard, DVI video monitor and a USB mouse. The

transmitter and receiver units are connected together with industry

standard CATx S/UTP cable terminated with RJ45 connectors. All

models can extend the distance from the CPU up to 165 feet. CAT-x

cable can be ordered from Rose Electronics in 25-1,000 foot lengths.

Using the CrystalView DVI Mini to remotely access your computer has

several applications that make it convenient for the users. You can

locate your computer in a secure area and access them from other

unsecured areas. Computers used in hazardous industrial environments

can be accessed remotely, keeping the users safe and unexposed to any

hazards.

Disclaimer

While every precaution has been taken in the preparation of this manual,

the manufacturer assumes no responsibility for errors or omissions.

Neither does the manufacturer assume any liability for damages resulting

from the use of the information contained herein. The manufacturer

reserves the right to change the specifications, functions, or circuitry of

the product without notice.

The manufacturer cannot accept liability for damages due to misuse of

the product or other circumstances outside the manufacturer’s control.

The manufacturer will not be responsible for any loss, damage, or injury

arising directly or indirectly from the use of this product.

2 CrystalView DVI Mini Installation and Operations Manual

About This Manual

This manual covers the installation, configuration, and the operation of

the CrystalView DVI Mini extender system. The system consists of a

transmitter and receiver units, a computer to remotely access, and a

remote KVM user station for remote access to the computer. The

“Model” section describes the front and rear panel of the transmitter and

receiver units. The “Installation” section describes how all components

are interconnected and configured.

Product Registration

Rose Electronics Web Site

Visit our web site at www.rose.com for additional information on the

CrystalView DVI Mini and other products designed for data center

applications, classroom environments, and many other applications.

www.rose.com/htm/online-registrationform.htm

CrystalView DVI Mini Installation and Operations Manual 3

Features



Single-Link - single or dual head models available



Single supports 1 DVI-D graphic card and 2 USB HID devices



Dual supports 2 DVI-D graphic cards and 4 USB HID devices.



Supports all operating systems and computers with a DVI-D graphic

interface (uncompressed)



Video resolutions up to:



1920 x 1200 @ 130 feet (40 meters)



1920 x 1080 @ 130 feet (40 meters)



1600 x 1200 @ 130 feet (40 meters)



1280 x 1024 @ 165 feet (50 meters)



No video quality degradation at all resolutions



Use the internal EDID configuration or DDC information from the

remote monitor



Supports USB keyboards, mice and other HID devices like touch

screens and graphic tablets



Selectable CATx cable length settings provides for the best, clearest




Automatic or manual resolution configuration



Firmware upgradeable



Rackmount kits available

Package Contents



Transmitter and Receiver units as ordered

- - - ALL MODELS - - -



5VDC universal power adapter



Power cord



1-DVI-D male-to-male video cable (6ft / 1.8m)



1-USB Type A to Type B cable (6ft / 1.8m)

- - - DUAL HEAD MODEL ONLY - - -



1 Additional DVI-D male-to-male video cable (6ft / 1.8m)



1 Additional USB Type A to Type B cable (6ft / 1.8m)

CATx and other cables are usually ordered separately. If the package

contents are not correct, contact Rose Electronics or your reseller so the

problem can be quickly resolved.

MODELS

4 CrystalView DVI Mini Installation and Operations Manual

CrystalView DVI Mini Models

The CrystalView DVI Mini is available in the following models:

Single head – part number CRK-M1DVI

Transmitter - Front View

Power +5VDC

Programming port

RJ45 Link

Configuration Dip switches

Transmitter - Rear View

DVI-I video input

USB Type B

Receiver – Front View

Power +5VDC

Programming port

RJ45 Link

Configuration Dip switches

Receiver – Rear View

DVI-I video output

2 – USB HID Type A

Figure 1. Single Head Model

CrystalView DVI Mini Installation and Operations Manual 5

Dual head – part number CRK-M2DVI

Transmitter - Front View

Power +5VDC Option

2-Programming ports

2-RJ45 Link ports

2-Configuration Dip

switches

Transmitter - Rear View

2- DVI-I video input

2- USB Type B

Receiver – Front View

Power +5VDC

2-Programming ports

2-RJ45 Link

2-Configuration Dip

switches

Receiver – Rear View

2-DVI-I video outputs

4-USB HID Type A

Figure 2. Dual Head Model

INSTALLATION

6 CrystalView DVI Mini Installation and Operations Manual

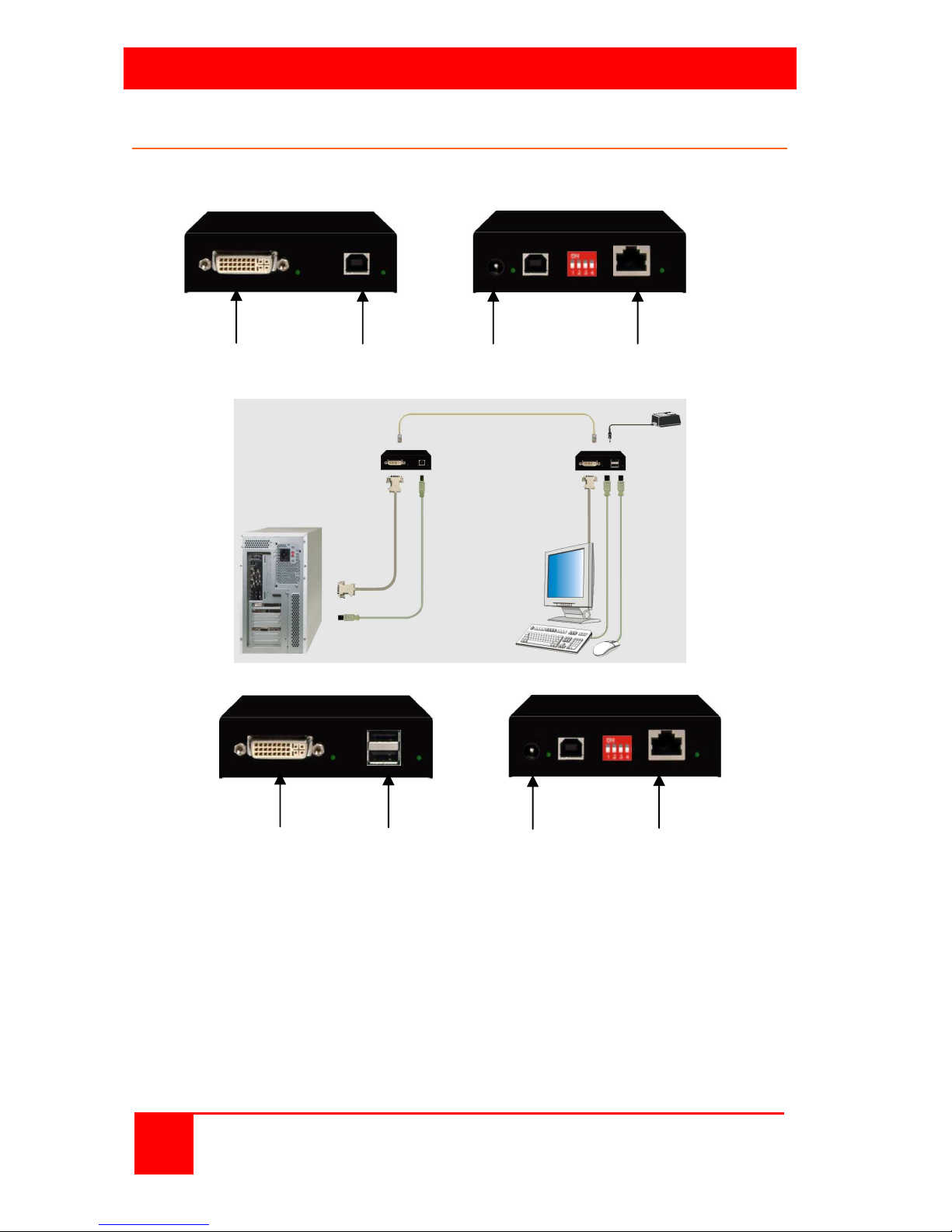

Single-Head Installation

Transmitter-Rear

To CPU To CPU

DVI-D port USB port

Transmitter-Front

To optional CATx

power adapter cable

Receiver-Rear

To DVI To USB

monitor HID devices

Receiver-Front

To power CATx

adapter cable

Figure 3. Single-Head Installation

Transmitter

Receiver

Otros manuales para CrystalView DVI Mini

Tabla de contenidos

Otros manuales de Extensor de Rose electronics

Rose electronics

Rose electronics CrystalView DVI Multi Manual de usuario

Rose electronics

Rose electronics CrystalLink USB3.1 Fiber Dual Port Manual de usuario

Rose electronics

Rose electronics CrystalLink USB2.0 CATx Manual de usuario

Rose electronics

Rose electronics RJ45 Manual de usuario

Rose electronics

Rose electronics CrystalLink USB3.1 Fiber Dual Port Manual de usuario

Rose electronics

Rose electronics Xcion XCK-2DTXUD1D Manual de usuario

Rose electronics

Rose electronics CRK-2DTPPDVI Manual de usuario

Rose electronics

Rose electronics VideoSplitter CAT5 Manual de usuario

Rose electronics

Rose electronics CrystalView EX HDMI Multi CRV-SRDTXT2D-2T-HD6... Manual de usuario

Rose electronics

Rose electronics CrystalView DVI Fiber CRK-2DFMPD1D Manual de usuario

Rose electronics

Rose electronics CLK-4U2TP-100M Manual de usuario

Rose electronics

Rose electronics CrystalLink USB Fiber Manual de usuario

Rose electronics

Rose electronics CrystalLink CLK-4U2FMB-500M Manual de usuario

Rose electronics

Rose electronics CRK-1P1V Manual de usuario

Rose electronics

Rose electronics CrystalView CAT5 Rack CRV-12SLP Manual de usuario

Rose electronics

Rose electronics CrystalView Manual de usuario

Rose electronics

Rose electronics CrystalView DVI Quad Guía de configuración

Rose electronics

Rose electronics CrystalView Extreme Manual de usuario

Rose electronics

Rose electronics CrystalLink CLK-1U4TP-100M/PE Manual de usuario

Rose electronics

Rose electronics CrystalView HDMI 4K60 Manual de usuario

Rose electronics

Rose electronics CrystalView DVI EX Manual de usuario

Rose electronics

Rose electronics CrystalView DVI CATx CRK-2DTXPD1D Manual de usuario

Rose electronics

Rose electronics ViewLink CATx Manual de usuario

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Manual del propietario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
