Rointe D SERIES Manual de usuario
User Manual
D Series radiator
Models
0330RAD | 0550RAD | 0770RAD | 0990RAD | 1210RAD | 1430RAD | 1600RAD
Please read this manual carefully before installation and operation. Please keep this manual for future
reference and your product guarantee conditions.
2
CONTENTS
1. Introduction .............................................................................................................. 2
2. Features & functions ................................................................................................ 4
3. Installation ................................................................................................................ 5
4. Control panel ............................................................................................................ 8
5. Operation & programming ....................................................................................... 9
6. Quick start guide .................................................................................................... 16
7. Maintenance and cleaning ..................................................................................... 18
8. European Directive (WEEE) 2012/19/UE ............................................................... 18
9. Guarantee ............................................................................................................... 18
9.1 Terms and conditions ...................................................................................... 19
9.2 How to register ................................................................................................ 21
10. ERP Directive Commission Regulation (EU) 2015/1188 ...................................... 22
11. Technical specication & data .............................................................................. 23
1. INTRODUCTION
Thank you for choosing this product. Please read this manual carefully before operation
and retain for further use.
ROINTE digital electric radiators are designed for all types of environments and to meet any
thermal need. The careful choice of components and materials ensures efciency, without
affecting comfort.
Using a unique design, ROINTE radiators utilise natural air convection with an air-speed of
>0.1 m/s. Cold air is introduced at the bottom of the radiator and raises its temperature by
passing through the interior of the heating element and expelling at the top as warm air. This
allows a constant room temperature with a small variation of only +/- 0.25ºC.
To ensure maximum energy efciency, ROINTE products must be correctly sized. Please
check with your installer or supplier, before installation, that the product you have purchased
is the correct size for the room requirements. ROINTE will not be held responsible for
incorrectly sized products, unless an official ROINTE Technical Study has been
completed and followed. We recommend mounting the product on the wall at a height
between 10 and 15 cm from the oor. This guarantees optimal natural convection throughout
the room.
3
D SERIES DIGITAL WIFI RADIATOR
IMPORTANT: When using electrical appliances, precautions should be taken to reduce
the risk of re, electrical shock and injury to persons.
IMPORTANT: This product is lled with a precise amount of thermal oil that does not require
maintenance. Any repairs that require opening the oil tank must be done by ROINTE or
authorized personnel, who should also be notied if an oil leak is noticed. Please observe
regulations when disposing of this product and its thermal oil.
IMPORTANT: To disconnect the product from the main power supply, remove the plug
from the socket. Do not pull the cable.
WARNING: If the power cable is damaged, it must be replaced by ROINTE or its authorized
personnel in order to avoid any damage.
WARNING: Servicing and product repairs should only be undertaken by ROINTE or its
authorized personnel using only exact manufacturer-approved spare parts.
WARNING: The product is IP24 rated and may be used in bathrooms, however not in the
immediate vicinity of baths, showers, water connections, basins, swimming pools or other
bodies of water. The product must never be installed where itself or the switches/control
panel is within the reach of persons in water. Never use the product with wet hands. Do
not place any water containers (glasses, vases etc.) on or near the product.

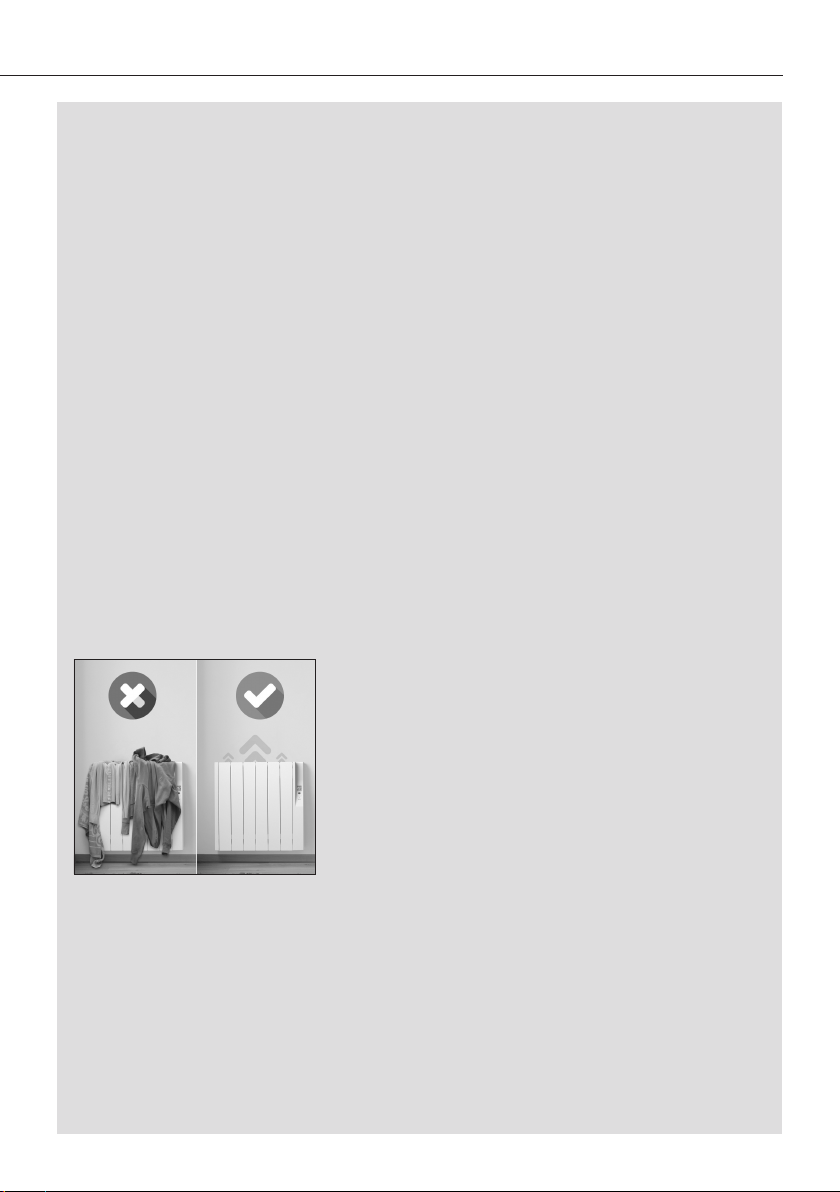

WARNING: To avoid overheating or the interruption of
the natural convection cycle, do not cover the product.
This includes furniture, curtains, clothes and any other
items. Do not insert any kind of object in the product
or obstruct its air circulation. Obstructions should not
be placed in front, above or directly next to the product.
Do not use insecticides, paints, chemicals or aerosols
on or near the product. Do not sit on the product.
Failure to comply with the above will render your
guarantee invalid.
WARNING: This product can be used by children aged over 8 years
and by persons with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge if they have been given supervision or
instruction concerning use of the product in a safe way and understand
the hazards involved. Children should not plug in, regulate, clean, play
with or perform maintenance on this product. Children aged less than 3
years should be kept away from the product unless supervised.
4
2. FEATURES & FUNCTIONS
Not only are our radiators Lot20 compliant, we also include functions to help manage
efciency more effectively.
• Open Windows
This function is activated when a 4ºC temperature decrease happens within a 30 minute
time period. This normally occurs when a window is left open, letting warm air escape and
wasting consumption. If this happens, your product will automatically activate the Anti-frost
mode for 2 hours. If needed, push the on / off button to switch your product off, leave for 5
seconds and press again to turn the product on without the active Open Windows.
• Temperature set indicator
The temperature set indicator shows on the product display screen to indicate what level of
temperature has been set in programming. A green indicator means the temperature is set
between 7 - 18.5 ºC. A yellow indicator is between 19 - 24.5 ºC. A red indicator is between
25 - 30 ºC. This indicator appears automatically and cannot be altered manually. You can
see the product consumption and usage statistics in the Rointe Connect app.
• User mode
This allows you to set custom limits for Comfort and Eco mode with a minimum and
maximum temperature, locked by a PIN. It prevents temperature selections above a certain
range by anyone who interacts with the product. You can avoid incorrect use, which could
cause an increase in consumption and energy bills.
• Built-in WiFi & e·life technology
The high powered WiFi module and e·life technology, built into your Rointe product,
allow real-time synchronization with the Rointe Connect app. Any change made via the
Rointe Connect app will update your product instantly for easier energy management. You
won’t need intermediate or additional devices. Please note your WiFi network must only
be 2.4 GHz in order for the app and WiFi module in your product to work.
• Fuzzy Logic Energy Control
This patented technology improves the energy management required to maintain a
stable temperature, analysing thermal variations with an accuracy of ± 0.25ºC. It predicts
the amount of energy needed at each moment until the set temperature is reached. It then
proportionally reduces the energy demand required, smoothing the initial curve by lowering
the peak temperature. Once the set temperature is reached, Fuzzy Logic Energy Control
generates micro-cuts to keep the temperature stable. When active the symbol will be
replaced with the symbol on the product control panel display.
5
D SERIES DIGITAL WIFI RADIATOR
3. INSTALLATION
We recommend using a Rointe Trusted Supplier. Find your nearest one by calling us on
0203 321 5928 or using the locator at www.rointe.co.uk.
IMPORTANT: Before installation, please locate the metal tag situated on the back
of the product and note the product reference and serial number. You will need this
information to register your guarantee.
WARNING: Do not install the product directly below a xed socket outlet or
connection box. Do not install or use outdoors. Do not install directly underneath a
shelf. This product is designed for internal wall-mounted installation using the ROINTE
template, installation kit and xing items provided.
The product should be wall-mounted in an
upright position according to the minimum
clearances shown opposite, using the brackets
and xings supplied.
Our products transfer heat through natural air
convection. If the product is covered, this will
interrupt air-ow and could cause overheating.
Please do not cover the products or place any
object (including furniture) directly in front of it.
WARNING: The product is IP 24 rated and may be used in bathrooms, but not near
baths, showers, water connections, basins etc. It can only be installed outside of zone
1 and 2. The product must not be installed where itself or the control panel is within the
reach of persons in water.
6
Inside the product packaging, you will nd an installation kit. You will need a drill, rubber
mallet, spirit level and a pencil to complete the installation.
IMPORTANT: Please follow these instructions carefully.
1.
Remove packaging and check installation kit
contains brackets, screws, rawl plugs and
cardboard template.
2.
Place template on the wall and mark holes
for brackets and screws. Observe minimum
distance requirements on the previous page.
Use the oor as a base for the template, not
the skirting board.
3.
Remove the template and carefully drill the
marked holes.
4.
Fix upper brackets using the plugs and screws
provided. Then x the lower bracket.
NOTE: The lower bracket has a different design
to the upper ones, so you can tell them apart.
5. Slide product into xed brackets, using a top
to bottom method. Lift the product higher than
the bracket and slide downwards into position.
6. Check the straightness with a spirit level and
adjust brackets accordingly if needed.
7.
Connect your product to the electric supply
and switch on.
8. See section 5 for operation instructions.
7
D SERIES DIGITAL WIFI RADIATOR
IMPORTANT: Template measurements per model
0330RAD - 3 elements 0550RAD - 5 elements
0770RAD - 7 elements 0990RAD - 9 elements
1210RAD - 11 elements 1430RAD - 13 elements
1600RAD - 15 elements
8
4. CONTROL PANEL
1 Hourly programming 11 Pilot Wire* with User
mode
2 Day of the week 12 Comfort mode
3 Current time 13 Eco mode
4 Set temperature 14 Anti-Frost mode
5Control panel locked /
unlocked 15 WiFi status indicator
6 Manual mode 16 Heating element active
7 Automatic mode 17 Fuzzy Logic Energy
Control active
8 Pilot Wire* mode 18 Temperature set indicator
9 Manual with User mode 19 Open window active and
detected
10 Automatic with User
mode 20 Open window active, not
detected
* Pilot Wire not available in UK or Ireland. Only on request.
9
D SERIES DIGITAL WIFI RADIATOR
On / Off button
Decrease temperature /
Move left button
Increase temperature
/ Move right button
Programming button
TFT screen
Main menu button
5. OPERATION & PROGRAMMING
5.1 Switch on / off
To turn the product on, press once. To turn off press the button again.
When you turn the product on for the rst time, it will ask you to set the date and time. Use
the and buttons to select the correct time and press to conrm. Then use and
again to select the correct minutes and press . Use and to select the correct
day and press to conrm.
5.2 Lock / unlock keypad
The keypad can be locked using the control panel or the Rointe Connect app. You must
unlock the keypad via the method used to lock it. To lock / unlock the keypad using the
product control panel, press and hold and together for 3 seconds.
5.3 Adjust day / time
The day / time will automatically update when product is paired with the Rointe Connect
app. To manually adjust using the control panel, press once. Use and to high-
light for settings and press . Highlight for day/time and press .
Use and to set hour and press . Use and to set minutes and press .
Use and to set day (1 for Mon etc.) and press .
10
5.4 Heating elements
If the room temperature is lower than the product set temperature, an icon will show
in the top right of the screen. This means that the heating elements are active to increase
the room temperature.
When Fuzzy Logic Energy Control technology is active, this symbol will change to in
the top right of the screen.
5.5 Menus
Press the button to access the main menu. Use and to select a menu from
the 4 options and press . The available options are: Settings, Features, Balance and
Programming.
Settings Screen brightness
WiFi
Language
Day / Time
Features Open Windows
Presence Detect
Effective power
Information
Balance Reset product temperature & mode
Programming Manual / Automatic mode
Programming
User mode
Pilot wire (only available on request)
5.5.1 Settings menu
Press the button to access the main menu. Use the button to navigate to
SETTINGS and press . Then choose a submenu using the button and press .
The available submenus are:
• Screen brightness
Adjust the brightness of display.
Use and to choose back-light or stand-by screen
brightness and then use & to increase or decrease
brightness. Press to save.
Otros manuales para D SERIES
7
Este manual sirve para los siguientes modelos
7
Tabla de contenidos
Otros manuales de Calentador de Rointe
Rointe
Rointe SYGMA Manual de usuario
Rointe
Rointe Belize 1100RADC Manual de usuario
Rointe
Rointe ecodeisgn KYROS 0330RAD3 Manual de usuario
Rointe
Rointe Torino AQUA Manual de usuario
Rointe
Rointe ecodesign BELIZE Manual de usuario
Rointe
Rointe ecodeisgn SYGMA SRF0500RAD2 Manual de usuario
Rointe
Rointe D SERIES Manual de usuario
Rointe
Rointe TN030SEB Manual de usuario
Rointe
Rointe Tovare aqua Manual de usuario
Rointe
Rointe KYROS SHORT Manual de usuario
Rointe
Rointe KYROS KRI0330RAD3 Manual de usuario
Rointe
Rointe KYROS SHORT KRI1100RADC3 Manual de usuario
Rointe
Rointe Elba OVAL 400 Manual de usuario
Rointe
Rointe Palaos 1000RAD Hoja de datos
Rointe
Rointe Belize 0330RAD Manual de usuario
Rointe
Rointe DIW0990RAD Manual de usuario
Rointe
Rointe K series Manual de usuario
Rointe
Rointe Sygma SRI0330RAD2 Manual de usuario
Rointe
Rointe Sygma SRI0330RAD2 Manual de usuario
Rointe
Rointe SYGMA STN030SEB2 Guía de configuración
Manuales populares de Calentador de otras marcas
Empire Heating Systems
Empire Heating Systems WCC65 Manual de usuario
Wetekom
Wetekom 92 86 43 Manual de usuario
Desa
Desa SPC170-F Manual de usuario
Watlow
Watlow Watrod Electric Tubular Heaters Manual de usuario
Haverland
Haverland ECO-DRY GPS Series Manual de lista de piezas
Stelpro
Stelpro ASILVC2060 Series Manual de usuario
