Rointe Belize 0330RAD Manual de usuario

User Manual

Belize radiator

Models

0330RAD | 0550RAD | 0770RAD | 0990RAD | 1210RAD | 1430RAD | 1600RAD

Please read this manual carefully before installation and operation. Please keep this manual for future

reference and your product guarantee conditions.

CONTENTS

1. Introduction .............................................................................................................. 2

2. Features & functions ................................................................................................ 4

3. Installation ................................................................................................................ 4

4. Control panel ............................................................................................................ 8

5. Operation & programming ....................................................................................... 9

6. WiFi pairing .............................................................................................................17

7. Maintenance and cleaning ......................................................................................18

8. European Directive (WEEE) 2012/19/UE ................................................................18

9. Guarantee ................................................................................................................18

9.1 Terms and conditions .......................................................................................19

9.2 How to register ................................................................................................ 21

10. ERP Directive Commission Regulation (EU) 2015/1188 ...................................... 22

11. Technical specication & data .............................................................................. 23

1. INTRODUCTION

Thank you for choosing this product. Please read this manual carefully before operation

and retain for further use.

ROINTE digital electric radiators are designed for all types of environments and to meet any

thermal need. The careful choice of components and materials ensures efficiency, without

affecting comfort.

Using a unique design, ROINTE radiators utilise natural air convection with an air-speed of

>0.1 m/s. Cold air is introduced at the bottom of the radiator and raises its temperature by

passing through the interior of the heating element and expelling at the top as warm air. This

allows a constant room temperature with a small variation of only +/- 0.25ºC.

To ensure maximum energy efficiency, ROINTE products must be correctly sized. Please

check with your installer or supplier, before installation, that the product you have purchased

is the correct size for the room requirements. ROINTE will not be held responsible for

incorrectly sized products, unless an official ROINTE Technical Study has been

completed and followed. We recommend mounting the product on the wall at a height

between 10 and 15 cm from the floor. This guarantees optimal natural convection throughout

the room.

BELIZE DIGITAL WIFI RADIATOR

IMPORTANT: When using electrical appliances, precautions should be taken to reduce

the risk of re, electrical shock and injury to persons.

IMPORTANT: This product is lled with a precise amount of thermal oil that does not require

maintenance. Any repairs that require opening the oil tank must be done by ROINTE or

authorized personnel, who should also be notied if an oil leak is noticed. Please observe

regulations when disposing of this product and its thermal oil.

IMPORTANT: To disconnect the product from the main power supply, remove the plug

from the socket. Do not pull the cable.

WARNING: If the power cable is damaged, it must be replaced by ROINTE or its authorized

personnel in order to avoid any damage.

WARNING: Servicing and product repairs should only be undertaken by ROINTE or its

authorized personnel using only exact manufacturer-approved spare parts.

WARNING: The product is IP24 rated and may be used in bathrooms, however not in the

immediate vicinity of baths, showers, water connections, basins, swimming pools or other

bodies of water. The product must never be installed where itself or the switches/control

panel is within the reach of persons in water. Never use the product with wet hands. Do

not place any water containers (glasses, vases etc.) on or near the product.

WARNING: To avoid overheating or the interruption of

the natural convection cycle, do not cover the product.

This includes furniture, curtains, clothes and any other

items. Do not insert any kind of object in the product

or obstruct its air circulation. Obstructions should not

be placed in front, above or directly next to the product.

Do not use insecticides, paints, chemicals or aerosols

on or near the product. Do not sit on the product.

Failure to comply with the above will render your

guarantee invalid.

WARNING: This product can be used by children aged over 8 years

and by persons with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge if they have been given supervision or

instruction concerning use of the product in a safe way and understand

the hazards involved. Children should not plug in, regulate, clean, play

with or perform maintenance on this product. Children aged less than 3

years should be kept away from the product unless supervised.

2. FEATURES & FUNCTIONS

Not only are our radiators Lot20 compliant, we also include functions to help manage

efciency more effectively.

• Open Windows

This function is activated when a 4ºC temperature decrease happens within a 30 minute

time period. This normally occurs when a window is left open, letting warm air escape and

wasting consumption. If this happens, your product will automatically activate the Anti-frost

mode for 2 hours. If needed, push the on / off button to switch your product off, leave for 5

seconds and press again to turn the product on without the active Open Windows.

• Temperature set indicator

The temperature set indicator shows on the product display screen to indicate what level of

temperature has been set in programming. A green indicator means the temperature is set

between 7 - 18.5 ºC. A yellow indicator is between 19 - 24.5 ºC. A red indicator is between

25 - 30 ºC. This indicator appears automatically and cannot be altered manually. You can

see the product consumption and usage statistics in the Rointe Connect Lite app.

• Built-in WiFi & e·life technology

The high powered Wi-Fi module and e·life technology, built into your Rointe product,

allows real-time synchronization with the Rointe Connect Lite app. Any change made via the

Rointe Connect Lite app will update your product instantly for easier energy management.

You won’t need intermediate or additional devices. Please note your Wi-Fi network must

only be 2.4 GHz in order for the app and WiFi module in your product to work.

3. INSTALLATION

We recommend using a Rointe Trusted Supplier. Find your nearest one by calling us on

0203 321 5928 or using the locator at www.rointe.co.uk.

IMPORTANT: Before installation, please locate the metal tag situated on the back

of the product and note the product reference and serial number. You will need this

information to register your guarantee.

WARNING: Do not install the product directly below a xed socket outlet or

connection box. Do not install or use outdoors. Do not install directly underneath a

shelf. This product is designed for internal wall-mounted installation using the ROINTE

template, installation kit and xing items provided.

BELIZE DIGITAL WIFI RADIATOR

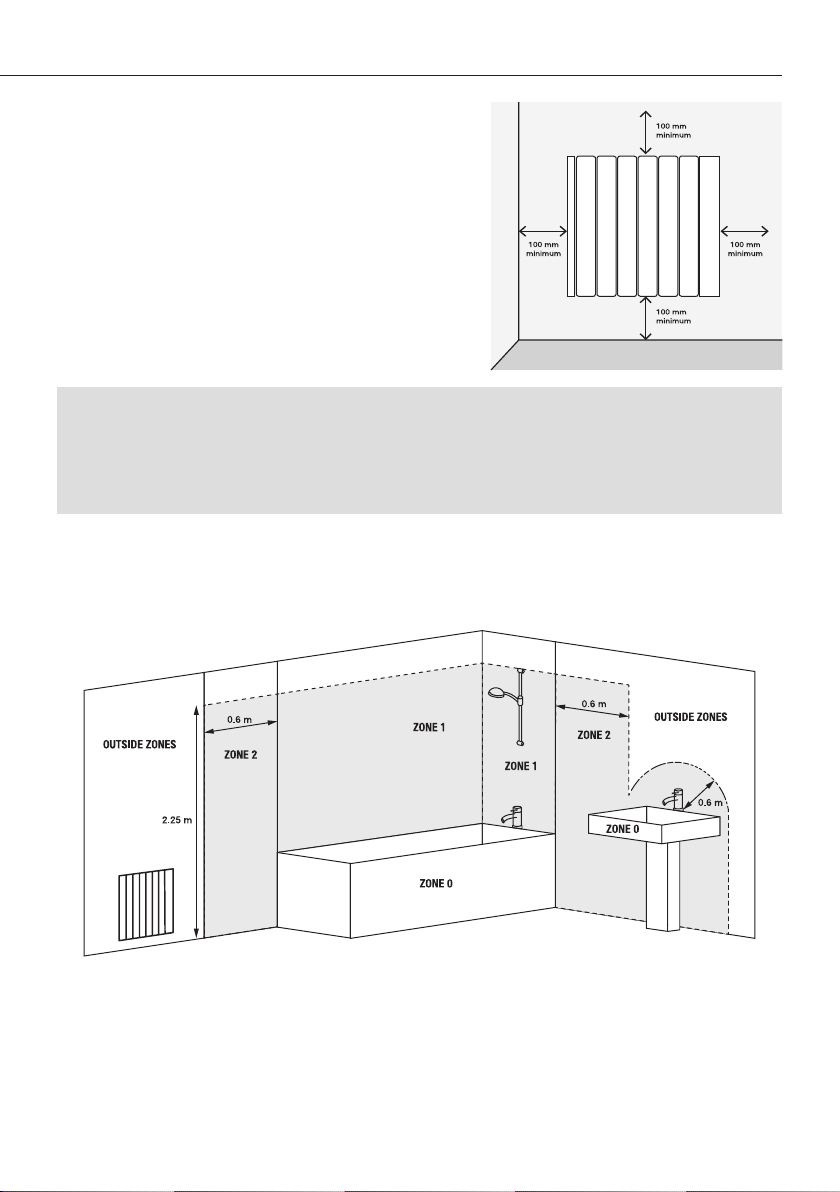

The product should be wall-mounted in an

upright position according to the minimum

clearances shown opposite, using the brackets

and fixings supplied.

Our products transfer heat through natural air

convection. If the product is covered, this will

interrupt air-flow and could cause overheating.

Please do not cover the products or place any

object (including furniture) directly in front of it.

WARNING: The product is IP 24 rated and may be used in bathrooms, but not near

baths, showers, water connections, basins etc. It can only be installed outside of zone

1 and 2. The product must not be installed where itself or the control panel is within the

reach of persons in water.

Inside the product packaging, you will nd an installation kit. You will need a drill, rubber

mallet, spirit level and a pencil to complete the installation.

IMPORTANT: Please follow these instructions carefully.

Remove packaging and check installation kit

contains brackets, screws, rawl plugs and

cardboard template.

Place template on the wall and mark holes

for brackets and screws. Observe minimum

distance requirements on the previous page.

Use the oor as a base for the template, not

the skirting board.

Remove the template and carefully drill the

marked holes.

Fix upper brackets using the plugs and screws

provided. Then x the lower bracket.

NOTE: The lower bracket has a different design

to the upper ones, so you can tell them apart.

5. Slide product into xed brackets, using a top

to bottom method. Lift the product higher than

the bracket and slide downwards into position.

6. Check the straightness with a spirit level and

adjust brackets accordingly if needed.

Connect your product to the electric supply

and switch on.

8. See section 5 for operation instructions.

BELIZE DIGITAL WIFI RADIATOR

IMPORTANT: Template measurements per model

0330RAD - 3 elements 0550RAD - 5 elements

80 mm

661 mm

206 mm

240 mm

80 mm

661 mm

206 mm

0770RAD - 7 elements 0990RAD - 9 elements

400 mm

160 mm

661 mm

206 mm

560 mm

240 mm

661 mm

206 mm

1210RAD - 11 elements 1430RAD - 13 elements &

1600RAD - 15 elements

720 mm

320 mm

661 mm

206 mm

880 mm

400 mm

661 mm

206 mm

4. CONTROL PANEL

On / Off button

Decrease temperature /

Move left button

Increase temperature

/ Move right button

Main menu button

TFT screen

Programming button

1Selected temperature

2Current time and day

3Heating element on

4Comfort mode

5Eco mode

6Anti-Frost mode

7Locked buttonpad

8Manual mode

9Automatic mode

10 Preset programs mode

11 Hourly programming

12 WiFi connection

indicator

13 Open Windows indicator

14 Energy consumption

indicator

BELIZE DIGITAL WIFI RADIATOR

713

5. OPERATION & PROGRAMMING

5.1. Switch on / off

To turn the product on press the button once. To turn off press the button again. When

you turn the product on for the rst time, it will ask you to set the date and time. Use the

buttons to select the correct time and press the button to conrm. Then use the

buttons to select the correct minutes and press . Use the buttons again to

select the correct day and press the button to conrm.

5.2. Select the set temperature

You can regulate the set temperature of the radiator by using the buttons. Press the

button to increase the product temperature by 0.5 ºC or the button to decrease the

temperature by 0.5 ºC. The temperature ranges for each mode are as follows:

COMFORT 19 - 30 ºC

ECO 7.5 – 18.5 ºC

ANTI-FROST 7 ºC

5.3. Temperature control

When the temperature in the room is lower than the selected one, the heating element is

activated and the symbol appears. The temperature control will perform an intelligently

to activate and deactivate the electric current through the heating element to heat the uid

in the radiator.

5.4. Lock / unlock buttonpad

The buttonpad can be locked using the control panel or the Rointe Lite App. When the

buttonpad is locked, you must unlock it via the method used to lock it.

To lock / unlock the buttonpad using the product control panel, press and hold the and

buttons together for 3 seconds.

The On/Off button will still work, even if the control panel is locked. Press the button for

3 seconds to switch the product on or off.

5.5. Conﬁguration menu

Press the button to access the conguration menu. The available options are: Settings,

Energy, WiFi and Programming mode.

Settings Set time

Backlight

Language

Firmware

Energy Open windows function

Balance mode

Adaptative mode

WiFi On / Off

Link device

WiFi info

Prog. mode On / Off

Preset programs

User mode

Pilot wire (only available on request)

Use the buttons to move between the menu options. A box will appear around the

option you have selected. Press the button to enter the submenu.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Calentador de Rointe

Rointe

Rointe Giza PRO 400 Manual de usuario

Rointe

Rointe Loira electric OVAL 432 Manual de usuario

Rointe

Rointe OLYMPIA ORI0500RAD Manual de usuario

Rointe

Rointe Tovare electric OVAL 500 Manual de usuario

Rointe

Rointe D SERIES Manual de usuario

Rointe

Rointe Tovare aqua Manual de usuario

Rointe

Rointe Elba PRO 400 Manual de usuario

Rointe

Rointe KYROS SHORT Manual de usuario

Rointe

Rointe SYGMA SRI1100RADC2 Manual de usuario

Rointe

Rointe Kyros Manual de usuario

Rointe

Rointe K series Manual de usuario

Rointe

Rointe KYROS KTI030SE 3 Series Manual de usuario

Rointe

Rointe KYROS SHORT KRI1100RADC3 Manual de usuario

Rointe

Rointe ecodesign BELIZE SHORT Manual de usuario

Rointe

Rointe SYGMA Manual de usuario

Rointe

Rointe SYGMA STI030SE 2 Series Manual de usuario

Rointe

Rointe Palaos 1000RAD Hoja de datos

Rointe

Rointe KYROS KRI0330RAD3 Manual de usuario

Rointe

Rointe D SERIES Manual de usuario

Rointe

Rointe DELTA ULTIMATE Manual de usuario

Rointe

Rointe D SERIES Manual de uso y cuidado

Rointe

Rointe Kyros Manual

Rointe

Rointe Lyon electric OVAL 500 Manual de usuario

Rointe

Rointe DIW0990RAD Manual de usuario

Manuales populares de Calentador de otras marcas

oventrop

oventrop Regucor Series Manual de usuario

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manual de usuario

ELMEKO

ELMEKO ML 150 Manual de usuario

BN Thermic

BN Thermic 830T Manual de usuario

KING

KING K Series Guía

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guía de inicio rápido

Well Straler

Well Straler RC-16B Manual de usuario

EUROM

EUROM 333299 Manual de usuario

Heylo

Heylo K 170 Manual de usuario

Eterna

Eterna TR70W Manual de usuario

Clarke

Clarke GRH15 Manual de instrucciones

IRSAP

IRSAP The Radiator Company Ovali Manual de usuario

Empire Heating Systems

Empire Heating Systems WCC65 Manual de usuario

Wetekom

Wetekom 92 86 43 Manual de usuario

Desa

Desa SPC170-F Manual de usuario

Watlow

Watlow Watrod Electric Tubular Heaters Manual de usuario

Haverland

Haverland ECO-DRY GPS Series Manual de lista de piezas

Stelpro

Stelpro ASILVC2060 Series Manual de usuario
