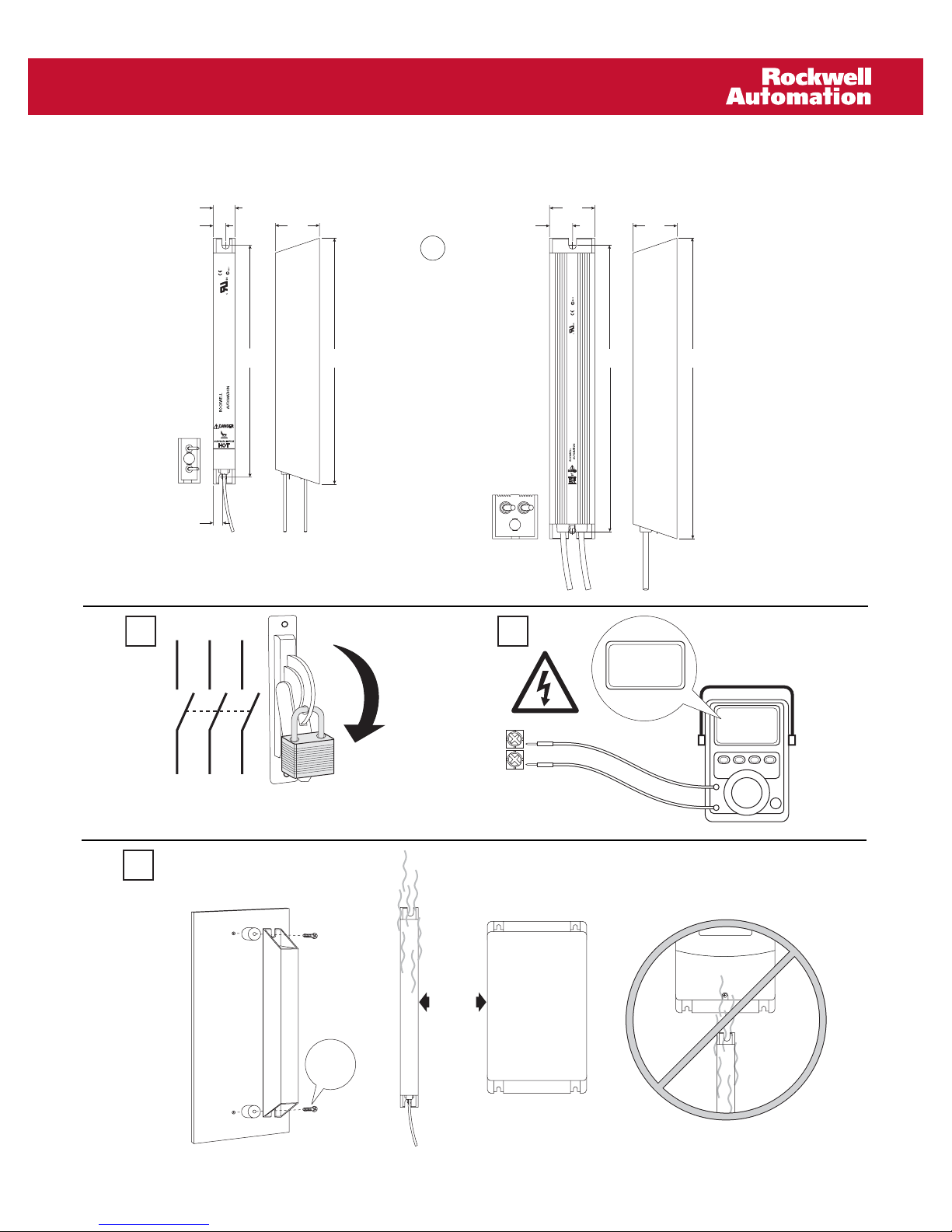

External Dynamic Brake Kit Installation Instructions

335.0

(13.19)

60.0

(2.36)

30.0

(1.18)

17.0

(0.67) 59.0

(2.32)

13.0

(0.51)

405.0

(15.94)

386.0

(15.20)

316.0

(12.44)

61.0

(2.40)

31.0

(1.22)

AK-R2-091P500

AK-R2-047P500

AK-R2-360P500

AK-R2-030P1K2

AK-R2-120P1K2

(in.)

1L1 L2 L3

DC+

DC–

M5 x 0.8

(#10-24)

50.8 mm

(2.0 in.)

AC Drive

www.rockwellautomation.com

Amer

cas:

Rockwell

Automation, 1201 South

Second

Street,

Milwaukee,

WI 53204

2496

USA,

Tel:

(1)

414.382.2000, Fax: (1)

414.382.4444

Europe

Middle East

Africa:

Rockwell

Automati

on,

Pegasus

Park,

De Kleetlaan 12a,

1831 Diegem, Belgium,

Tel: (32) 2 663

0600, Fax: (32) 2 663

0640

Asia Pacific: Rockwell Automation, Level 14,

Core F,

Cyberport

3, 100

Cyberport Road,

Hong Kong,

Tel: (852) 2887 4788, Fax:

(852) 2508

1846

Power,

Control

and

Information Solutions

Headquarters

Publication RA-IN004B-EN-P – April 2011

Thermostat Contact Rating: 125 VAC, 15 A, Opens at 227 °C (440 °F) Closes at 182 °C (359 °F)

Application Cross-Reference

Note 1: Always check resistor ohms against minimum resistance for drive being used.

Note 2: Duty cycle listed is based on full speed to zero speed deceleration.

For constant regen at full speed, duty cycle capability is half of what is listed.

Application Type 1 represents maximum capability up to 100% braking torque where possible.

Application Type 2 represents more than 100% braking torque where possible, up to a maximum of 150%.

DriveandMotor

Size

kW (HP) Part Number

Resistance

Ohms ±5%

Continuous Power

Max Energy

Max Braking

Torque

% of Motor

Application Type 1 Application Type 2

Braking Torque

% of Motor

Duty Cycle

Braking Torque

% of Motor

Duty Cycle

100…120 Volt AC Input Drives

0.75 (1) AK-R2-091P500 91 0.08617218% 100% 23% 150% 31%

1.1 (1.5) AK-R2-091P500 91 0.086 17 164% 100% 16% 148% 11%

200…240 Volt AC Input Drives

0.37 (0.5) AK-R2-091P500 91 0.086 17 293% 100% 46% 150% 31%

0.75 (1) AK-R2-091P500 91 0.08617218% 100% 23% 150% 15%

1.5 (2) AK-R2-091P500 91 0.086 17 109% 100% 11% 109% 11%

2.2 (3) AK-R2-047P500 47 0.166 33 144% 100% 15% 144% 11%

4 (5) AK-R2-047P500 47 0.166 33 79% 79% 11% N/A N/A

5.5 (7.5) AK-R2-030P1K2 30 0.26 52 90% 90% 10% N/A N/A

7.5 (10) AK-R2-030P1K2 30 0.26 52 66% 66% 10% N/A N/A

11 (15) See Note 3 15 0.52 104 90% 90% 10% N/A N/A

15 (20) See Note 3 15 0.52 104 66% 66% 10% N/A N/A

400…480 Volt AC Input Drives

0.37 (0.5) AK-R2-360P500 360 0.086 17 305% 100% 47% 150% 31%

0.75 (1) AK-R2-360P500 360 0.086 17 220% 100% 23% 150% 15%

1.5 (2) AK-R2-360P500 360 0.086 17 110% 100% 12% 110% 11%

2.2 (3) AK-R2-120P1K2 120 0.26 52 197% 100% 24% 150% 16%

4 (5) AK-R2-120P1K2 120 0.26 52 124% 100% 13% 124% 10%

5.5 (7.5) AK-R2-120P1K2 120 0.26 52 90% 90% 10% N/A N/A

7.5 (10) AK-R2-120P1K2 120 0.26 52 66% 66% 10% N/A N/A

11 (15) See Note 3 60 0.52 104 90% 90% 10% N/A N/A

15 (20) See Note 3 60 0.52 104 66% 66% 10% N/A N/A

600 Volt AC Input Drives

0.37 (0.5) AK-R2-360P500 360 0.086 17 274% 100% 46% 150% 31%

0.75 (1) AK-R2-360P500 360 0.086 17 251% 100% 23% 150% 15%

1.5 (2) AK-R2-360P500 360 0.086 17 172% 100% 11% 150% 8%

2.2 (3) AK-R2-120P1K2 120 0.26 52 193% 100% 24% 150% 16%

4 (5) AK-R2-120P1K2 120 0.26 52 185% 100% 13% 150% 9%

5.5 (7.5) AK-R2-120P1K2 120 0.26 52 141% 100% 9% 141% 7%

7.5 (10) AK-R2-120P1K2 120 0.26 52 103% 100% 7% 103% 7%

11 (15) See Note 3 60 0.52 104 141% 100% 9% 141% 7%

15 (20) See Note 3 60 0.52 104 103% 100% 7% 103% 7%

AC Drive

BR1

BR+

BR2

BR-

ATTENTION: AC drives do not offer protection for externally mounted brake resistors,

especially in the case of brake IGBT failure. A risk of fire exists if external braking

resistors are not protected. External resistor packages must be protected from over

temperature or the protective circuit shown, or equivalent, must be supplied.

AC Drive

Thermostat

Connectors

Power On

R (L1)

S (L2)

T (L3)

Power Source DB ResistorThermostat

Power O

(Input Contactor) M

Three-Phase

AC Input

ATTENTION:

Resistor temperature may exceed 200

degrees C.

Note 3: For 11 and 15 kW (15 and 20 HP) normal duty external resistor applications, use two

7.5 kW (10 HP) size resistors wired in parallel.
