Riva RC3502HD-5211 Manual de usuario
1
www.rivatech.de
Quick Installation Guide
This manual provides instructions for quick installation and basic configuration of your IP device.
2
www.rivatech.de
Step1. Connect cables to IP device
Connect required cables to the device including the power cable, LAN cable, and other
optional cables. To see the correct positions of all connectors, refer to the following image
below.
Make sure the polarity is correct. Incorrect connection may
cause malfunction or damage to the IP device.
Caution
!
Power Adaptor Connector (DC
12V)
* Models herein and their appearance are subject to change without any prior notice.
LAN Cable
Reset Button
Power Cable
Clamping Core
This uses to prevent
electromagnetic
interference
Clamping Core
*This button is
located under PCB.
PAL, NTSC button
Pressing the button cycles
through PAL, NTSC, and no video
output mode:
No video output ->
PAL->NTSC
.Video out is used only
for installation and works for 3
minutes when PAL/NTSC button
is pushed.
3
www.rivatech.de
Step2. Install IP device
Caution
!
1) Place the installation template
that is provided in the package on
the desired position of installation.
2) Attach the waterproof protection
pad on the bottom plate of the
device.
3) Drill three holes on the template
and insert anchor blocks into the
holes. Fasten the camera with
screws.
4) Make sure the cables are properly
connected.
5) Adjust the lens position by referring
to the Step 3.
6) Put the dome cover on the main
body of the camera. Make sure the
main body and the cover fit each
other into place.
7) Fasten the cover with screws.
When assembling the main body of the camera and its dome cover, make sure
they fit each other into place.
The camera may fall off the ceiling even after the proper installation and
mounting. To prevent any accident, make sure the ceiling is firm and stable
enough to support the camera. If any reinforcement is needed, consult with your
safety personnel and proceed with the installation.
4
www.rivatech.de

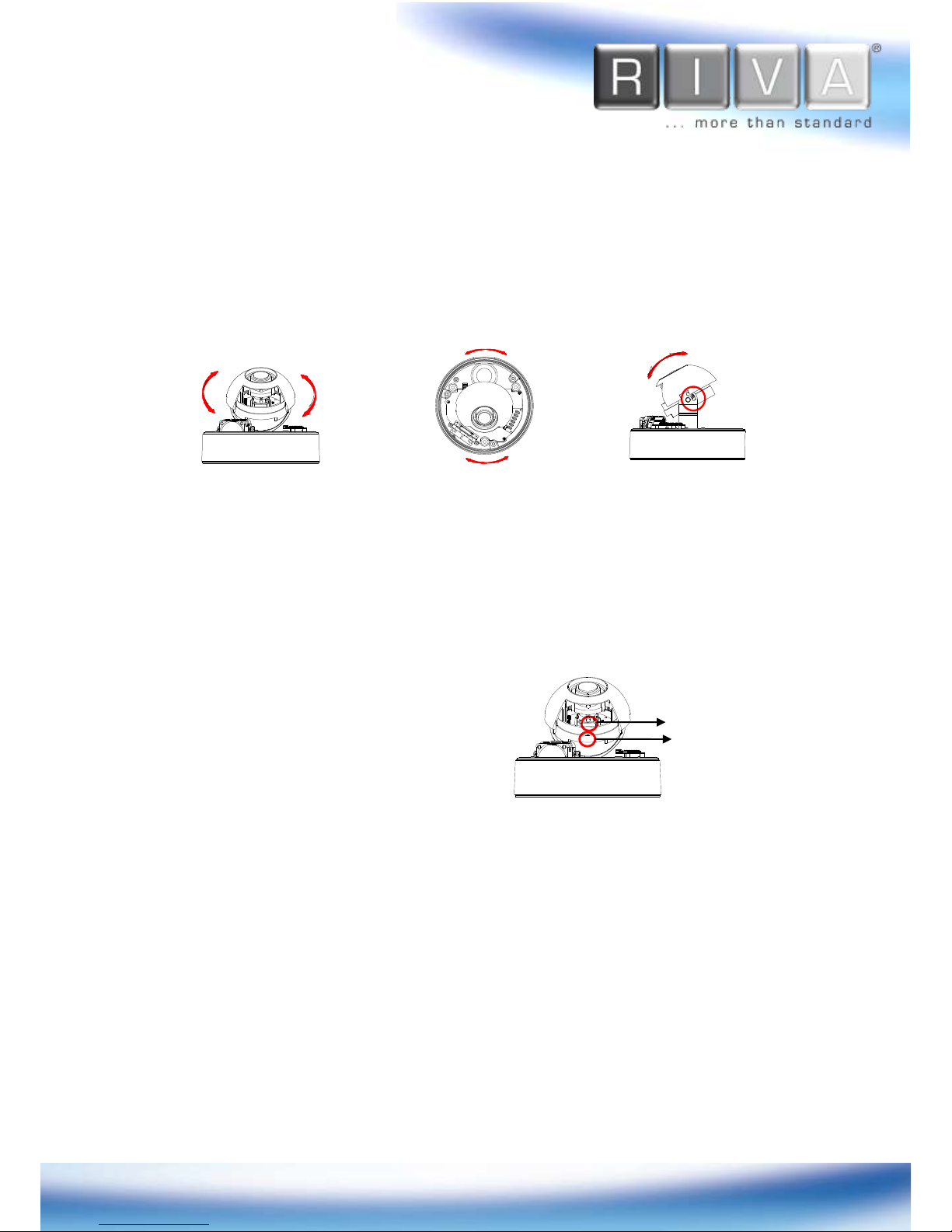

Step3. Set the lens position
1) Remove the dome cover.
2) Adjust the lens to the desired position by manually moving its body in the following
directions. After adjustment, fasten the screw of the rotation axis.
Connect to the web page of the device to see its real-time image. Refer to
step
6.
Configuration
for details about using its web page.
4) Unscrew the focus puller by turning it counterclockwise. Move it left or right and
adjust the image focus. After the setting, tighten the focus puller again by turning it
clockwise.
Zoom puller
Focus puller
B. Pan the lens bottom
holder
C. Tilt the lens
A. Rotate the lens
3) Unscrew the zoom puller by turning it
counterclockwise. Move it left or right
and set the lens to the desired zoom
position. After the setting, tighten the
zoom puller again by turning it
clockwise.
5
www.rivatech.de
Step4. Set up network environment
The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP
address of the device from converting the MAC address’s hexadecimal numbers,
which is attached to the device. Be sure that the device and PC are on a same area
network before running the installation.
Generic IP Environment
In case of generic private network environment where IP address 192.168.XXX.XXX
are used, users may view the live streaming images on a web page using the device’s
default IP address:
1. Convert the device’s MAC address to the IP address. Refer to the Hexadecimal-
Decimal Conversion Chart at the end of the manual.
(The MAC address of the device is attached on the side or bottom of the
device.)
2. Start the Microsoft® Internet Explorer web browser and enter the IP address of
the device.
3. Web streaming and device configurations are supported through ActiveX
program. When the ActiveX installation pop-up window appears, authorize and
install the ActiveX setup.exe.
MAC address = 00-13-23-01-14-B1 →IP address = 192.168.20.177
Convert the Hexadecimal number to Decimal number.
6
www.rivatech.de
Custom IP Environment
IPAdminTool and the manual are provided on USB stick or can download from www.rivatech.de
homepage.
IPAdminTool is a management tool, which automatically scans all of the network products for
users to perform administrative tasks, which includes network configurations, firmware update,
device reboot, and device organizations.
To modify the device’s default IP address for customized network area;
1. Find the device from the IPAdminTool’s list and highlight the device’s name.
2. Right-click the mouse and select “IP Address”; IP Setup window appears.
7
www.rivatech.de
3. In the IP Setup’s window, information under ‘Local Network information’ displays the
user/PC’s network area information. Those information need to be incorporated to the
IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP
Address, which are to be the unique numbers for the device. Refer to the image above
for the setting
4. Click ‘Setup’ to complete the modification. When the dialog box appears to request user
name and password, enter the default value for the administrator account (case-
sensitive) as below:
ID:
root
Password:
pass
Step5. View video on web page
PC environment Info
Give new unique IP address in
last two sets and mirror other
information in other boxes
8
www.rivatech.de
Once the device has the proper IP address, users can view the live streaming images
through a web browser.
The default username and password is
root / pass
.
1. When the device’s web address is accessed, the browser asks to install the ActiveX.
Click Allow.
2. Setup.exe installation link or pop-up window appears, depends on Microsoft® Internet
Explorer version. Proceed with rest of setup installation.
9
www.rivatech.de
Caution
!
3. Follow the instructions of the dialog boxes and complete the installation. Once the
installation is complete, start the web browser again and check if video stream is
displayed in the main view frame.
If “
This software requires the Microsoft XML Parser V6 or higher.
Please download MSXML6 from the Microsoft website to continue.
Error code: Cannot create XMLDOMDocument.
” message appears,
download and install the Microsoft Core XML Services (MSXML)
6.0.
10
www.rivatech.de
Rebooting
Perform the following procedures to reset your device:
1. While the device is on, press the reset button for 1~2 seconds.
2. Wait for the system to reboot.
Resetting to the Factory Default Settings
When reset the device to the factory default setting, all parameters including the IP address
will be initialized.
To proceed back to the Factory Default reset:
1. While the device is on, press reset button and hold.
2. Release the Reset button after about 5 seconds when green LED blinks at rate of 200ms.
3. Wait for the system to reboot.
More Information
To learn more about using other features of your devices, refer to the manuals as “Web
Interface Manual” or “VCAsys_Online_Help”, which is available on USB stick or on
www.rivatech.de homepage.
