REED TV200 Manual de usuario

Instruction

Manual

Model

Vibration Pen

TV200

reedinstruments

www com

Pantone 485 & 123

485 = (0/100/100/10)

123 = (0/18/100/0)

reedinstruments

www com

Pantone 485 & 123

485 = (0/100/100/10)

123 = (0/18/100/0)

Content

1.STRUCTURE......................................................3

2.OPERATION ......................................................3

3.FEATURES........................................................4

4.WARNINGS.......................................................5

5.REPAIR ..........................................................5

6.NON-WARRANTYPARTS............................................5

7.NOTES...........................................................6

8.APPENDIX........................................................6

ISO2372 MACHINE VIBRATION GRADES

reedinstruments

www com

Pantone 485 & 123

485 = (0/100/100/10)

123 = (0/18/100/0)

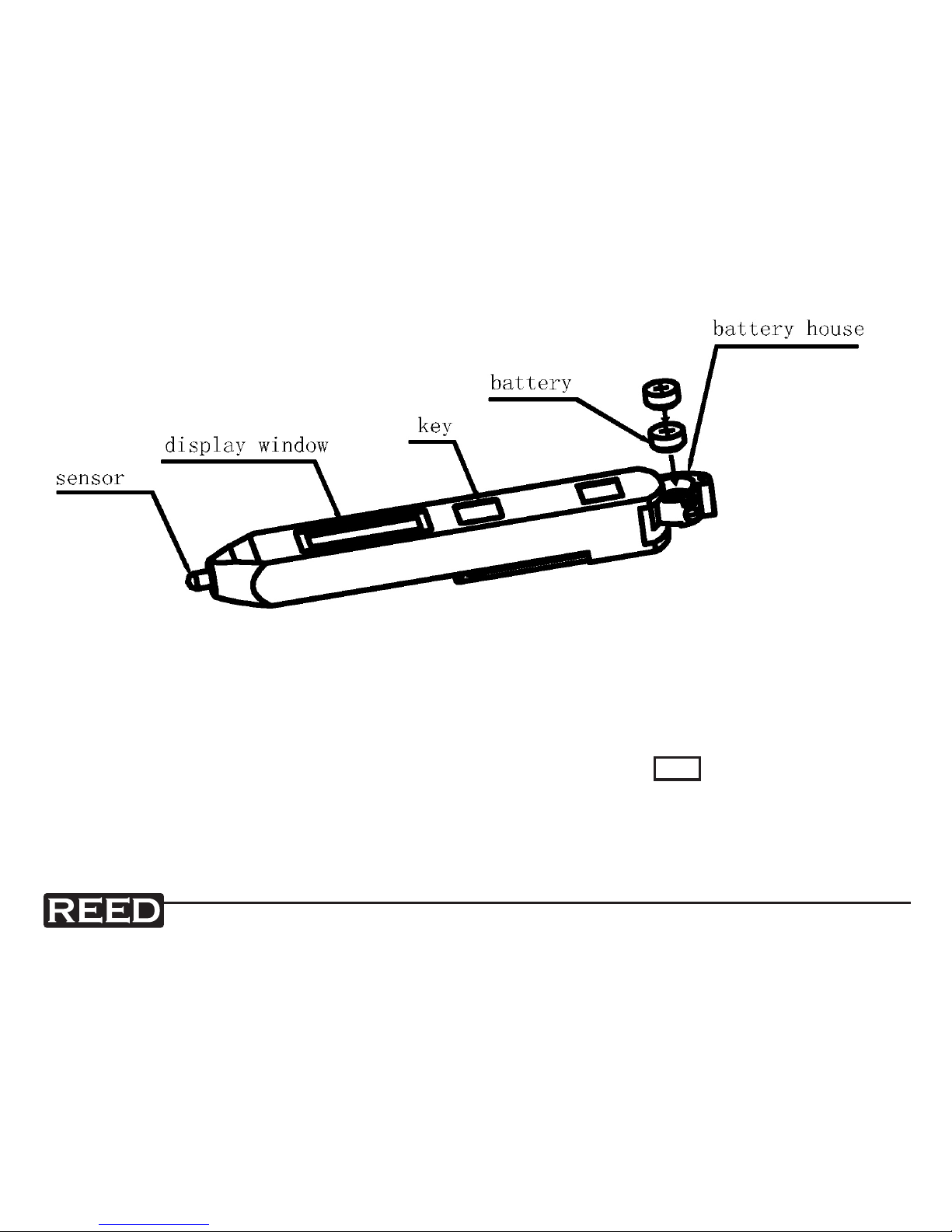

1. Structure

2. Operation

• Push the sensor on the plane being tested while keeping TV200 perpendicular to it. Start the test

by pressing the key.

• After releasing the key, the LCD will show “HOLD”. The result of the release time will be held for

about 40 seconds, and then the TV200 will turn off automatically.

• The upper limit of the TV200 is 199.9mm/s (rms). The LCD will show if vibration exceeds the

upper limit.

• When the LCD shows “BATT”, that means you should change batteries, or an error result may be

given out. Additionally, both batteries must be changed simultaneously.

1 .

1. Structure

reedinstruments

www com

Pantone 485 & 123

485 = (0/100/100/10)

123 = (0/18/100/0)

3. Features

Tested parameter RMS of vibration velocity (mm/s)

Range 0.1mm/s ~199.9mm/s

Transmission band 10Hz~1kHz

Accuracy ±5% ±2

Relative error 20Hz≤f≤1000Hz, ±10%

of transmission 10Hz≤f<20Hz,

Display 3 1/2 digits LCD refresh interval about 0.5 second

Power supply two button batteries (LR44 or SR44)

Battery capacity 10 hours continuously or 400 times testing

Operation environment Temperature: 0ºC~40ºC;

Relative humidity <85%

Dimensions 150mm × 22mm × 18mm (W×D×H)

Weight 55g (includes the two batteries)

+10%

-20%

reedinstruments

www com

Pantone 485 & 123

485 = (0/100/100/10)

123 = (0/18/100/0)

4. Warning

• While changing batteries, with the anode towards “ ”

• TV200 has no memory function. To keep the record, please write it down.

• Test points should be chosen at the bearing, bearing support or other structure components that

show the vibration characteristics explicitly.

• If it is possible, the best choice to know the vibration characteristic is measuring in three

perpendicular directions.

• To keep the sensor in contact with the plane being tested close, pressure should between 5N and

20N. Also, the pen should be perpendicular to the plane.

5. Repair

If any trouble occurs, user should not try to dismantle and repair it. REED Instruments can repair

this instrument for you. For information contact us at [email protected]. When shipping

this product include the warranty card and the specimen provided and a statement explaining the

problem (Excluding the non-warranty parts (see below).

Please keep in touch with the marketing department of our company or our sales agents.

6. Non-warranty parts

• Sheath

• Transducer

• Battery

• Accessories

reedinstruments

www com

Pantone 485 & 123

485 = (0/100/100/10)

123 = (0/18/100/0)

7. Notes:

• Class Iis a small motor (less than 15Kw), class II is a medium motor (15Kw~75Kw), class III is a

big motor (hard base), class IV is a big motor (soft base).

• The result should be taken from three perpendicular directions of the bearing shell.

8. Appendix

ISO2372 Machine vibration grades (See table on next page)

reedinstruments

www com

Pantone 485 & 123

485 = (0/100/100/10)

123 = (0/18/100/0)

0.28

0.45

0.71

1.12

1.8

2.8

4.5

7.1

11.2

Velocity (RMS) mm/s Class I Class II Class II Class IV

excellent

good

bad

forbidden

excellent

good

bad

forbidden

excellent

good

bad

forbidden

excellent

good

bad

forbidden

reedinstruments

www com

Pantone 485 & 123

485 = (0/100/100/10)

123 = (0/18/100/0)

Notes ___________________________________

__________________________________________
