Model R8050
Sound Level Meter
Instruction
Manual
INSTRUMENTS
INSTRUMENTS
REED Instruments
reedinstruments
www com
2
INSTRUMENTS
INSTRUMENTS
Table of Contents
Safety ............................................................................................ 2
Specications................................................................................ 3
Instrument Description...............................................................4-6
Operating Instructions................................................................6-7
Battery Replacement..................................................................... 7
Calibration Procedure.................................................................... 8
Safety
Read the following safety information carefully before attempting to
operate or service this meter. Use this meter only as specied in this
manual; otherwise, its proper operation may be impaired.
• Altitude up to 2000 meters
• Relatively humidity up to 90% R.H. max.
• Ambient temperature: 0 to 40°C
• Repairs or servicing not covered in this manual should only be
performed by qualied personnel
• Periodically wipe the case with a dry cloth
• Do not use abrasives or solvents on this instrument
REED Instruments
reedinstruments
www com
3
INSTRUMENTS
INSTRUMENTS
Specifications
Standard Applied: IEC 61672-1 CLASS 2
Frequency Range: 31.5Hz~8KHz
Measuring Level Range: 30~130 dB
Resolution: 0.1 dB
Accuracy: ±1.4 dB (under reference conditions)
Frequency Weighting: A & C
Time Weighting: Fast: 125mS: Slow: 1 sec.
Level Ranges: Lo: 30~100 dB; Hi: 60~130 dB
Display: 4-digit LCD
Display Update: 0.5 sec.
Alarm Function: “OVER” is show when input is out of range
Maximum Hold: Hold readings the Maximum Value, with decay
< 1dB/3minutes
Microphone: 1/2 inch electret condenser microphone
Calibration: Electrical calibration with the internal
oscillator (1kHz sine wave)
Auto Power Off: Meter automatically shuts down after approx.
15 minutes of inactivity
Operating Temperature: 0 to 40°C (32 to 104°F)
Operating Humidity: 10 to 90% RH
Storage Temperature: -10 to 60°C (14 to 140°F)
Storage Humidity: 10 to 75% RH
Power Supply: One 9V battery, 006P or IEC 6F22 or NEDA
1604 (included)
Battery Life: About 50 hrs. (alkaline battery)
Dimensions: 210 x 55 x 32mm (8.26 x 2.16 x 1.25”)
Weight: 230g (8.11oz) (including battery)
IIncludes: Batteries and carrying case
Optional Accessories: Tripod (model BS-6)
REED Instruments
reedinstruments
www com
4
INSTRUMENTS
INSTRUMENTS

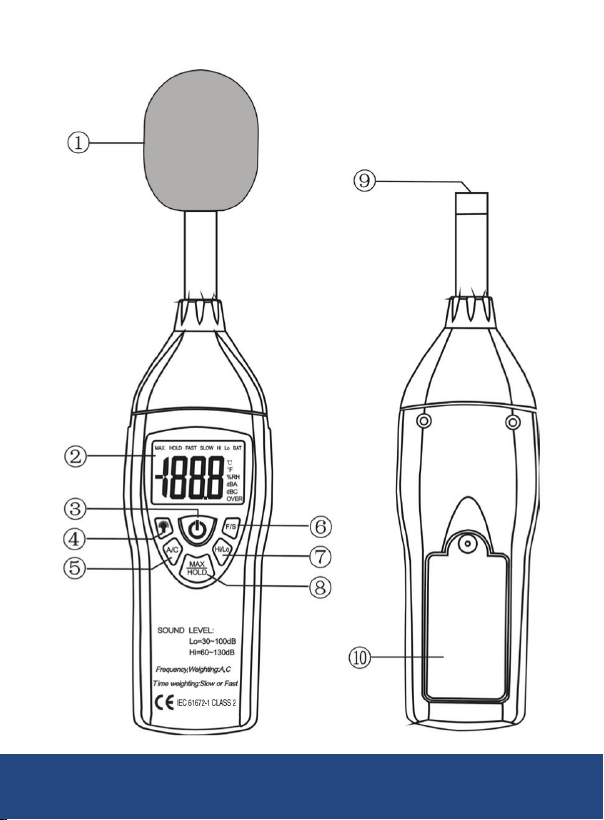

Instrument Description
REED Instruments
reedinstruments
www com
5
INSTRUMENTS
INSTRUMENTS
1. Windscreen
If you operate at wind speeds over 10m/sec, please put protective
accessories in front of the microphone.
2. Display
3. Power ON/OFF Button
Turn the meter power ON/OFF
4. Backlight Button
Turn the display backlight ON/OFF
5. A-Weighting/C-Weighting Select Button A/C
A: A-Weighting. For general sound level measurements.
C: C-Weighting. For checking the low frequency content of noise.
(If the C-Weighted level is much higher than the A-Weighted level,
then there is a large amount of low-frequency noise)
6. Time Weighting Select Button F/S
F(Fast Response): For normal measurements (fast varying noise)
S(Slow Response): For checking average level of uctuating noise
7. Level Range Select Button
Lo/Hi
LO: 30~100dB; HI: 60~130dB
When “OVER” is indicated, the meter automatically switches to the
other measurement range.
SYMBOL FUNCTION
LCD 4-digits
MAX Max. value hold
OVER Over range
F Fast response
S Slow response
A A-weighting
C C-weighting
LO Low range
HI High range
BAT Low battery
REED Instruments
reedinstruments
www com
6
INSTRUMENTS
INSTRUMENTS
8. MAX/HOLD Button
MAX/HOLD
The MAX Hold position is used to measure the maximum level of
sounds. The maximum measured level is updated continuously.
Pressing the button a second time will release the maximum hold
function and allow another measurement.
The Data HOLD function freezes the reading on the display.
Data HOLD Button: Press and hold the button for 2 seconds to turn
the Data HOLD function on or off.
9. Microphone
1/2-inch electret condenser microphone
10. Battery Cover
Operating Instructions
Notes
• Wind blowing across the microphone will bring additional
extraneous noise. If using the instrument in the presence of wind, it is
recommended to put the windscreen on the microphone so as not to
pick up undesirable signals.
• To achieve more accurate measurements, use an extension cable
to separate the microphone from the main body so that the effect of
unexpected sound reection can be eliminated.
• Calibrate the instrument before operation if the instrument has not
been in use for a long period of time or was last operated under
extreme conditions.
• Do not store or operate the instrument in high temperature and high
humidity environments.
• Keep microphone dry and avoid severe vibrations.
• When not in use, please take the battery out and keep the instrument
in a low humidity environment.
REED Instruments
reedinstruments
www com
7
INSTRUMENTS
INSTRUMENTS
Measurement Procedures
1. Turn on power and select the desired response time and
weighting. If the sound source consists of short bursts or only
catching sound peak, set response to FAST. To measure
average sound, use the SLOW setting. Select A-weighting for
general noise sound level and C-weighting for measuring sound
level of acoustic material.
2. Select desired level.
3. Hold the instrument comfortably in hand or x on a tripod and
point the microphone at the suspected noise source, the sound
pressure level will be displayed.
4. When MAX (maximum hold) mode is chosen. The instrument
captures and holds the maximum noise level for a long period
using any of the time weightings and ranges.
5. When HOLD (data hold) mode is chosen.The hold function freezes
the reading in the display. Press the HOLD button momentarily to
activate or to exit the HOLD function.
6. Turn OFF the instrument and remove and remove battery when
not in use.
Battery Replacement
1. Battery Loading: Open the battery cover and install a 9-Volt
battery in the battery compartment.
2. Battery Replacement: When the battery voltage drops below the
operating voltage, “BAT” appears in the display and the existing
battery should be replaced with a new one.
REED Instruments
reedinstruments
www com
8
INSTRUMENTS
INSTRUMENTS
Calibration Procedure
To calibrate the REED R8050, an external calibrator that can provide a
94.0dB signal at 1 kHz is required (REED R8090) in addition to a small
screw-driver.
1. Open the battery compartment and locate
the two calibration potentiometers behind the
9V battery (see diagram)
2. Turn the meter ON
3. Put the meter in the ‘C’ weighting mode
4. Put the meter in the ‘FAST’ response mode
5. Place the REED R8050 microphone into the
calibrator. Set the calibrator to output a 1kHz
sine wave @ 94dB
6. Put the meter in the LOW range
7. Adjust the ‘C (Lo)’ potentiometer for a display
of 94.0 dB
8. Put the meter in the HIGH range
9. Adjust the ‘C (HI)’ potentiometer for a display of 94.0 dB
For service on this or any other REED product or information on other
REED products, contact REED Instruments at info@reedinstruments.com
