Quantum PX506 Manual de usuario

Document 81-81338-01 D01, June 2005 1

Quantum PX506 and

PX510 Unpacking and

Installation Instructions

Introduction 3

Selecting an Installation Location 4

Rack Space Requirements.........................................................................................5

Environmental Conditions.......................................................................................6

Preparing for the Installation 7

Providing Necessary Tools and Equipment..........................................................7

Taking ESD Precautions ...........................................................................................7

Unpacking the Library 8

Removing the Remaining Packing Materials 11

Installing the Library 15

Locating the Mounting Position............................................................................15

Installing the Library...............................................................................................19

Loading the Tape Cartridges .................................................................................32

Initial Configuration................................................................................................32

Installing Additional Libraries 35

Removing the FlexLink Covers .............................................................................36

Installing the Alignment Hardware......................................................................38

Installing the Libraries ............................................................................................39

Configuring the Libraries in a Multiple Stack.....................................................39

Quantum PX506 and PX510 Unpacking and Installation Instructions

Document 81-81338-01 D01

June 2005

Quantum PX506 and PX510 Unpacking and Installation Instructions

Document 81-81338-01 D01

June 2005

Introduction 3

Introduction 0

This document explains how to unpack the Quantum PX506 and PX510

libraries and install them in a standard 19 in. rack. Once the library is

unpacked and installed, set up the library using the instructions in the

Quantum PX500 Series User’s Guide PN 81-81290.

The Quantum PX506 and PX510 are automated storage and retrieval libraries

consisting of:

• up to six tape drives and up to 88 SDLT cartridges or 100 LTO tape

cartridges for the PX506 (see figure 1).

• up to ten tape drives and up to 171 SDLT or 201 LTO tape cartridges for

the PX510 (see figure 2).

Figure 1 Quantum PX506

Library

Caution: Do NOT unpack the Quantum PX506 or PX510 unless you are

a qualified Quantum field service engineer.

Quantum PX506 and PX510 Unpacking and Installation Instructions

Document 81-81338-01 D01

June 2005

4 Selecting an Installation Location

Figure 2 Quantum PX510

Library

Selecting an Installation Location 0

When choosing an installation site for the PX506 and PX510, consider the

following requirements:

•Rack Space Requirements

•Environmental Conditions

Quantum PX506 and PX510 Unpacking and Installation Instructions

Document 81-81338-01 D01

June 2005

Selecting an Installation Location 5

Rack Space

Requirements 0Figure 3 shows the minimum rack space required by both the PX506 and

PX510.

• Depth - 31 in (76.2 cm)

• Width - 19 in (48.3 cm)

•Height:

• PX506 - 17.25 in (44 cm) - 10U per library

• PX510 - 31.5 in (80 cm) - 18U per library

•Weight:

• PX506 - 202 lbs. (92 kg) with 6 drives, 4 magazines, and 0 cartridges

installed

• PX510 - 334 lbs. (152 kg) with 10 drives, 10 magazines, and 0

cartridges installed

• Clearance behind library, inside rack - 6 in (15 cm) for serviceability

• Door swing - 3 ft (.91 m)

Quantum PX506 and PX510 Unpacking and Installation Instructions

Document 81-81338-01 D01

June 2005

6 Selecting an Installation Location

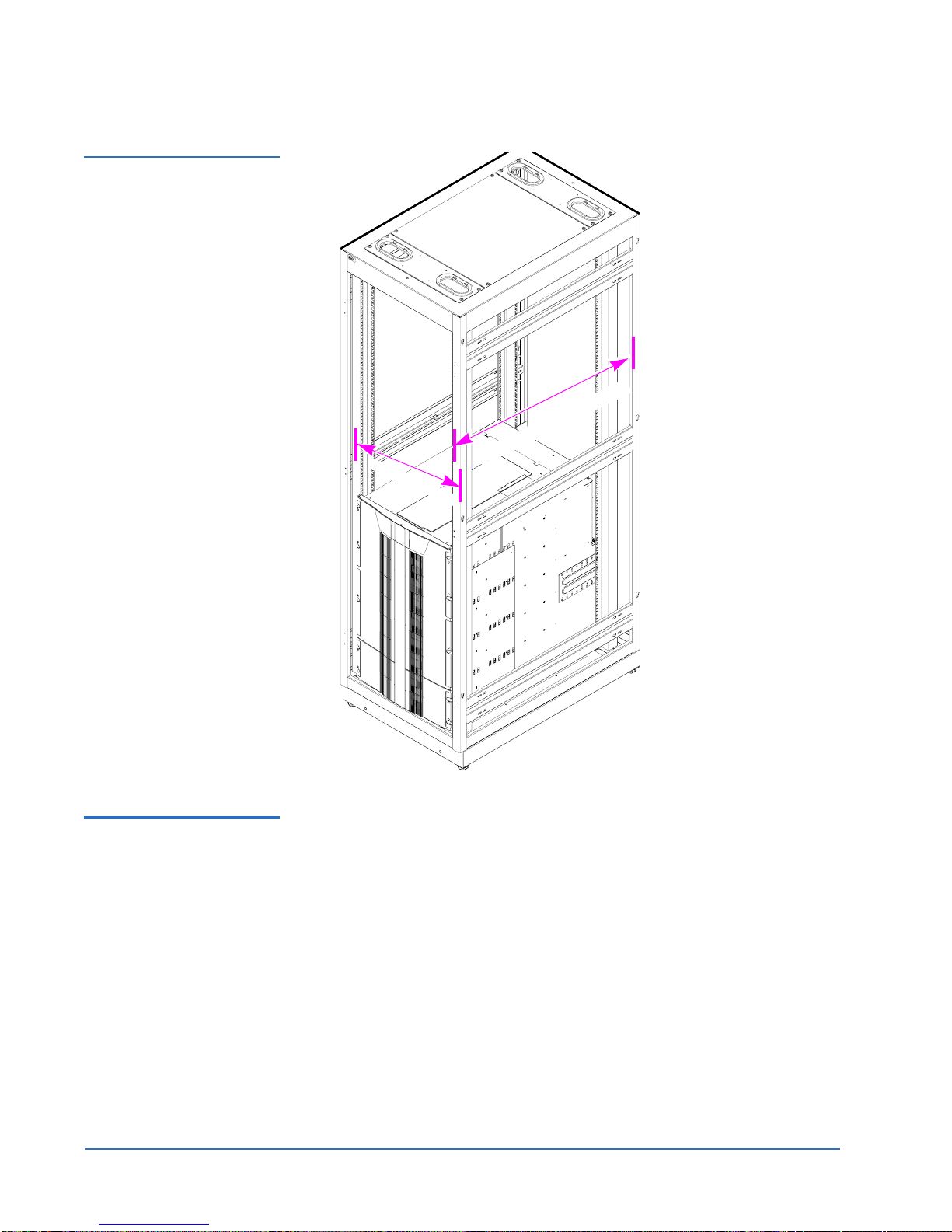

Figure 3 Rack Space

Requirements

Environmental

Conditions 0The installation site must have the following environmental conditions:

• Humidity: 20%-80% non-condensing

• Temperature: 15°C-35°C (59°F-95°F)

• Altitude: -984 to 10,000 feet (-300 to 3048 meters)

• PX506 power requirements:

• Voltage - 88-264 VAC, 47-63 Hz

• Watts - 325

• PX510 power requirements:

• Voltage - 88-264 VAC, 47-63 Hz

• Watts - 500

PX510 shown

31into36in(78.8to91cm

19in(48.3cm)

Quantum PX506 and PX510 Unpacking and Installation Instructions

Document 81-81338-01 D01

June 2005

Preparing for the Installation 7

• Service clearance - 15 in (38 cm) in the front of the library and 12 in (30

cm) in the back of the library

These environmental conditions apply when the PX506 and PX510 libraries

are in operation.

Preparing for the Installation 0

Before you begin the installation procedure in this section, make the

following preparations as described in this section:

•Providing Necessary Tools and Equipment

•Taking ESD Precautions

Providing Necessary

Tools and Equipment 0Provide the following tools for unpacking and installing the PX506 and PX510

libraries:

• #2 PHILLIPS® screwdriver

• Metal pick included in accessory kit

• Wood dowel included in accessory kit

• #1 flat blade screwdriver

• Allen wrench (2.5mm and 3mm) included in accessory kit

• Antistatic wrist strap

Taking ESD

Precautions 0Some components within the PX506 and PX510 libraries contain static-

sensitive parts. To avoid damaging these parts while performing installation

procedures, always observe the following precautions:

• Keep the library turned off during all installation procedures.

• Use an antistatic wrist strap (included in the accessory kit).

• Keep static-sensitive parts in their original shipping containers until

ready for installation. Look for the ESD sticker to identify static sensitive

parts.

Note: For additional PX500 Series specifications (including

environmental requirements during shipping and storage), see the

Quantum PX500 Series User’s Guide (PN 81-81290).

Quantum PX506 and PX510 Unpacking and Installation Instructions

Document 81-81338-01 D01

June 2005

8 Unpacking the Library

• Do not place static-sensitive parts on a metal surface. Place them inside

their protective shipping bag or on an antistatic mat.

• Avoid touching connectors and other components.

Unpacking the Library 0

This section explains how to unpack both the PX506 and PX510 library

components and move them to their final installation location. By following

these instructions, you help ensure that the system will continue to be

safeguarded after it arrives at the installation site.

Unpack and remove the following components from the packing materials

(see figure 4 for PX506 and figure 5 for PX510):

1Remove the accessories kit and set it aside.

2With the help of a second person, lift the library chassis up and out of the

shipping carton.

3Place the library on a table approximately waist high.

Note: Dry climates and cold-weather heating environments have lower

relative humidity and are more likely to produce static electricity.

Note: Inspect the outer library packaging for damage. If there is any

damage evident on the library packaging, to not continue with the

installation and contact Quantum customer support.

Note: Unpack the library as close to the installation location as possible.

Warning: At least two people are required to move the library

chassis.

Caution: Lift the library chassis at the sides. Avoid putting the

weight of the library chassis on the front bezel.

Quantum PX506 and PX510 Unpacking and Installation Instructions

Document 81-81338-01 D01

June 2005

Unpacking the Library 9

Figure 4 Unpacking the

Libraries (PX506)

Metal bands

Front bezel

Accessories kit

Lift point

Cover

Pallet

Metal bands

Quantum PX506 and PX510 Unpacking and Installation Instructions

Document 81-81338-01 D01

June 2005

10 Unpacking the Library

Figure 5 Unpacking the

Libraries (PX510)

Metal bands

Front bezel

Accessories kit

Lift point

Sleeve

Pallet

Metal bands

Lid
