Quantum ATL M1500 Manual de usuario

Document 6421002-06 A01, July 2003 1

Quantum ATL M1500

Unpacking Instructions

Introduction 3

Removing the Library from the Shipping Carton 3

Removing the Remaining Packing Materials 5

Checking the Contents 10

Quantum ATL M1500 Unpacking Instructions

Document 6421002-06 A01

July 2003

2 6207947-04fN 5

Quantum ATL M1500 Unpacking Instructions

Document 6421002-06 A01

July 2003

Introduction 3

Introduction 0

This document explains how to unpack a Quantum ATL M1500. The

unpacking procedure consists of the following major steps:

• Removing the library from the shipping carton

• Removing the remaining packing materials

• Checking the contents

Removing the Library from the Shipping Carton 0

To unpack the library:

1The following tools are required for this operation:

•Scissors

•No.2POZIDRIV

®screwdriver, long (10 in. or 250 mm

minimum)

• Antistatic wrist strap

2Place the shipping carton and pallet as close to the installation site

as possible.

3Using the scissors, carefully cut the two plastic straps securing the

shipping carton to the pallet (see figure 1).

4Lift the lid off of the shipping carton.

Note: Be careful not to damage the packaging materials while

unpacking the library. Save all packaging materials for

possible future use.

Warning: The shipping carton is secured to the pallet by two

plastic straps. The straps are under tension and snap

away when cut.

Quantum ATL M1500 Unpacking Instructions

Document 6421002-06 A01

July 2003

4 Removing the Library from the Shipping Carton

Figure 1 Removing the

Library from the Shipping

Carton

5Remove the accessories kit and set it aside.

6With the help of a second person, lift the library up and out of the

shipping carton.

7Place the wrapped library on a table or desk.

Warning: The library weighs 54 lbs (24.5 kg). At least two

people are required to move the library.

Caution: Lift the library by its sides, not by the front bezel.

Lid

Accessories kit

Library

Shipping carton

Pallet

Plastic straps

Quantum ATL M1500 Unpacking Instructions

Document 6421002-06 A01

July 2003

Removing the Remaining Packing Materials 5

Removing the Remaining Packing Materials 0

Now that you have removed the library from its shipping carton,

remove the remaining packing materials from the library:

1Remove the antistatic sheet from the library as follows:

aCut the tape strips securing the sheet.

bFold the sheet down.

cWith the help of a second person, lift the library up off of the

antistatic sheet.

dPlace the library on the table or desk next to the antistatic sheet.

Save the antistatic sheet for possible future use.

2At the back of the library, remove the handle protection pad.

3If the library will be installed in a rack with a StackLink

mechanism, remove the StackLink cover plate from the back of the

library using a no. 2 POZIDRIV screwdriver (10 in. or 250 mm

long) (see figure 2).

Figure 2 Removing the

Cover Plate

4Put on an antistatic wrist strap and clip it to the antistatic stud on

the back of the library (near the power supply).

Caution: The library is equipped with a StackLink cover plate.

Do not remove the StackLink cover plate if the

library is a stand-alone unit.

Quantum ATL M1500 Unpacking Instructions

Document 6421002-06 A01

July 2003

6 Removing the Remaining Packing Materials

5Push the button next to the right magazine access door (see

figure 3).

The right magazine access door opens.

Figure 3 Opening the

Right Magazine Access

Door

6Grasping the handle at the front of the magazine, slide it forward

and out of the library (see figure 4).

Figure 4 Removing the

Magazine

7Push the button next to the left magazine access door (see figure 5).

The left magazine access door opens.

Right magazine

access door

Button

Magazine

Quantum ATL M1500 Unpacking Instructions

Document 6421002-06 A01

July 2003

Removing the Remaining Packing Materials 7

Figure 5 Opening the Left

Magazine Access Door

8Using a slender object such as a pen, press and hold the magazine

release button (see figure 6).

Figure 6 Magazine

Release Button, Left Side

Only

9Grasping the handle at the front of the left magazine, slide it

forward and out of the library.

10 Use the following steps to remove the two foam pads that stabilize

and support the X-Y tray inside the library (see figure 7):

aGrasp the tape that secures each foam pad.

bLift the tape and foam pad up and pull towards the door.

Caution: Avoid touching the printed circuit board and its

ribbon cable connector. Do not move or remove the

foam pad on the robotic hand until instructed to do

so (this occurs during step 13).

Button

Left magazine access door

Quantum ATL M1500 Unpacking Instructions

Document 6421002-06 A01

July 2003

8 Removing the Remaining Packing Materials

Figure 7 Removing the

Foam Pads that Support

the X-Y Tray

11 Move the robotic hand to the back of the library by reaching

through the right magazine access door. Grip the steel flange on

the “Y” slide (see figure 8) and push the robotic hand to the back of

the library.

Caution: Avoid touching the printed circuit board and its

ribbon cable connector.

Right foam pad

Left foam pad

Quantum ATL M1500 Unpacking Instructions

Document 6421002-06 A01

July 2003

Removing the Remaining Packing Materials 9

Figure 8 Pushing the

Robotic Hand toward the

Back of the Library

12 Being careful to touch only the foam pad on the robotic hand,

gently rotate the robotic hand 90° counterclockwise until it reaches

its limit.

13 Gripping the lower edge of the foam pad, pull to the right and

remove it off the robotic hand and out from the library (see

figure 9).

Figure 9 Removing the

Foam Pad from the

Robotic Hand

Steel flange

Pull right and out of the library

Quantum ATL M1500 Unpacking Instructions

Document 6421002-06 A01

July 2003

10 Checking the Contents

14 Replace the left and right magazines.

15 Close the magazine access doors.

The library is now unpacked and ready to be installed in its final

location. Refer to the Quantum ATL M-Series Installation Guide

(6423001) for installation instructions.

Checking the Contents 0

Compare the contents of the shipping carton and the accessories kit

with the items listed on the label on the outside of the shipping carton.

If any items are missing or damaged, contact your authorized reseller.

Note: The tape drives and media are sent separately from the

library.

Otros manuales para ATL M1500

Tabla de contenidos

Otros manuales de Almacenamiento de Quantum

Quantum

Quantum DXi6902 Guía de inicio rápido

Quantum

Quantum Scalar i500 Manual de usuario

Quantum

Quantum StorNext QD7000 Manual de usuario

Quantum

Quantum DLT Series Instrucciones de instalación

Quantum

Quantum ValueLoader DLT VS80 Manual del propietario

Quantum

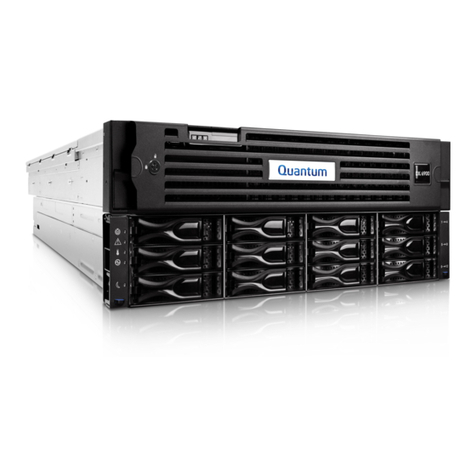

Quantum DXi6900 Guía de inicio rápido
