LTO-3 Half-Height Tape Drive

Quick Start Guide

Introduction

Quantum LTO Ultrium tape drives leverage LTO technology and

Quantum-exclusive features to provide the most reliable and affordable

tape data protection to medium and large businesses.

Quantum LTO-3 Half-Height Tape Drives, models TC-L32AX and TC-

L32AN (internal), TC-L32BX and TC-L32BN (tabletop), and TC-L33CX and

TC-L33CN (rackmount), are the most reliable Ultrium drives on the market,

delivering reliability features only available from Quantum to extend

media life, Variable-speed Transfer to automatically match the host's data

transfer rate, and Dynamic Powerdown to protect the drive and media in

the event of power loss. Combined with SmartVerify to concurrently verify

all data written to the tape, these features make Quantum LTO drives a

sound investment and a complete data protection solution.

Figure 1 Internal Drive

Contents 0

This document is provided in the

following languages:

•English

•French

•German

• Japanese

•Korean

• Simplified Chinese

•Spanish

• Traditional Chinese

Each language includes the following

sections:

•Introduction

•Before Installing the LTO-3 Half-

Height Tape Drive

•Installing the Internal LTO-3 Half-

Height Tape Drive

•Installing the Tabletop LTO-3 Half-

Height Tape Drive

•Installing the LTO Driver Software

•Registering the LTO-3 Half-Height

Tape Drive

•Safety Compliances

•Electromagnetic Compatibility

(EMC) Compliances

2Before Installing the LTO-3 Half-Height Tape Drive

LTO-3 Half-Height Tape Drive Quick Start Guide

Before Installing the LTO-3 Half-Height Tape Drive

Handling Precautions and

Installation Guidelines 0Always observe the following precautions and guidelines when handling and installing

LTO-3 Half-Height Tape Drives:

• Internal, at all times

• Tabletop, when removed from its free-standing enclosure

Handling Precautions • Internal drives have exposed components that are

sensitive to static electricity. To reduce the possibility of

damage from static discharge, the drives are packaged

in a protective antistatic bag. Do not remove the drive

from the antistatic bag until you are ready to install it.

• Wear an ESD-preventive grounding wrist strap or

observe similar ESD precautions when working with the

drive. Be sure the wrist strap makes good skin contact.

Do not remove the wrist strap until you finish working

with the drive.

Also, avoid contact between the drive, other equipment,

and clothing. The wrist strap only protects the

equipment from ESD voltages on the body; ESD

voltages on clothing can still cause damage.

• Before removing the drive from the antistatic bag, touch

a grounded metal surface to discharge any static

electricity buildup from your body.

• Handle the drive by its sides rather than by the top

cover to reduce the risk of dropping the drive or

damaging it during installation.

• Either lay the drive on a nonconductive surface or put it

back inside the protective antistatic bag to reduce the

chance of damage from static discharge

Installation Guidelines • LTO-3 Half-Height Tape Drives with the parallel SCSI

interface are low voltage differential (LVD) SCSI

devices. Install LVD drives only in LVD environments.

Do not mix LVD and HVD devices on the same parallel

SCSI bus.

• Due to the high speed of the LTO-3 Half-Height Tape

Drive, do not connect more than one LTO-3 drive to the

same host bus adapter (HBA).

Installing the Internal LTO-3 Half-Height Tape Drive 3

LTO-3 Half-Height Tape Drive

Preinstallation

Requirements 0Before installing the LTO-3 Half-Height Tape Drive, make sure you have:

• A host bus adapter (HBA) installed and properly configured in the host computer:

• Parallel SCSI HBA for a parallel SCSI drive

• Serial SCSI HBA for a SAS drive

• Interface components:

• For a parallel SCSI drive, either internal or tabletop, a 68-pin parallel SCSI cable

and terminator

• For a SAS drive, either:

• 7-pin 1x SATA-style interface cable for an internal drive

• 26-pin SFF-8088 mini-SAS style interface cable for a tabletop drive

• Backup application software that supports the tape drive. For a list of the backup

software applications that have been tested with the LTO-3 Half-Height Tape Drive,

please visit our website at:

www.quantum.com/support

Unpacking and Inspecting

the Drive 0Although each LTO-3 Half-Height Tape Drive is inspected and carefully packaged at the

factory, damage can occur in shipment or when the drive is being unpacked.

Observe the handling precautions in Handling Precautions and Installation Guidelines,

and carefully unpack and inspect the LTO-3 Half-Height Tape Drive as follows:

1Visually inspect the shipping container and notify your carrier immediately of any

damage.

2Place the shipping container on a flat, clean, stable surface and carefully remove the

contents.

3Visually inspect the LTO-3 Half-Height Tape Drive and notify your Quantum

representative immediately of any damage.

4Always save the shipping container and packing materials for any future reshipment.

Installing the Internal LTO-3 Half-Height Tape Drive

To install the internal LTO-3 Half-Height Tape Drive, complete the following procedures

in the order presented:

1Depending on the interface configuration of the drive:

IF the drive interface is . . . THEN . . .

parallel Small Computer

System Interface (SCSI),

proceed to Configuring the Internal Parallel SCSI

Tape Drive in the following subsection to configure

the parallel SCSI ID and bus terminator power.

4Installing the Internal LTO-3 Half-Height Tape Drive

LTO-3 Half-Height Tape Drive Quick Start Guide

2Connecting the Internal Drive Interface and DC Power Cables on page 8

3Restarting the Internal Tape Drive System on page 9

4Installing the LTO Driver Software on page 13, if required

5Registering the LTO-3 Half-Height Tape Drive on page 13

Configuring the Internal

Parallel SCSI Tape Drive 0The factory-set default configuration of the internal parallel SCSI LTO-3 Half-Height Tape

Drive is:

• SCSI ID: 6

• Terminator power: enabled

Configuring the Internal Drive Parallel SCSI ID 0

Each device on the parallel SCSI bus must have its own unique SCSI ID. Use SCSI

configuration jumper pins 1–2, 3–4, 5–6, and 7–8 on the drive back panel to change the

SCSI ID of the LTO-3 Half-Height Tape Drive (see figure 2).

serial-attached SCSI (SAS), there is no need to configure the SCSI ID or bus

termination, as SAS is a point-to-point architecture.

Skip to Mounting the Internal Tape Drive on page 6

IF the default parallel SCSI ID

configuration is . . .

THEN you can . . .

compatible with your system

SCSI bus,

skip the following subsection and proceed to

Configuring the Internal Parallel SCSI Terminator

Power on page 5.

already assigned to another

device,

change the configuration of either the other

device, or the LTO-3 Half-Height Tape Drive, as

described in the following subsection.

IF the drive interface is . . . THEN . . .

Installing the Internal LTO-3 Half-Height Tape Drive 5

LTO-3 Half-Height Tape Drive

Figure 2 Internal Parallel SCSI

ID Configuration Jumper Pins

Configuring the Internal Parallel SCSI Terminator Power 0

By default, terminator power is enabled on the internal parallel SCSI LTO-3 Half-Height

Tape Drive. If you use this default setting, then the last device at the end of the parallel

SCSI bus must have either:

• A parallel SCSI bus terminator

• Terminator power enabled

See figure 3 for examples of internal parallel SCSI bus termination.

To disable terminator power, remove the jumper across pins 11 and 12 (see figure 2).

Note: Parallel SCSI controllers and host adapters generally use ID 7. In some systems,

the boot drive uses ID 0 or ID 1. Avoid configuring the LTO-3 Half-Height

Tape Drive to these SCSI IDs.

SCSI ID configuration jumper pins

Terminator power

Reserved

SCSI ID bit 3

SCSI ID bit 2

SCSI ID bit 1

SCSI ID bit 0

6Installing the Internal LTO-3 Half-Height Tape Drive

LTO-3 Half-Height Tape Drive Quick Start Guide

Figure 3 Internal Parallel SCSI

Bus Termination Examples

After configuring the parallel SCSI ID and bus termination power, proceed to Mounting

the Internal Tape Drive in the following subsection.

Mounting the Internal

Tape Drive 0You can mount the internal LTO-3 Half-Height Tape Drive either horizontally or

vertically, but not upside down (see figure 4).

Figure 4 Acceptable Mounting

Orientations

Note: The internal parallel SCSI LTO-3 Half-Height Tape Drive does not provide

SCSI termination. The last device at the end of the parallel SCSI bus chain must

have a SCSI bus terminator.

IF you mount the drive . . . THEN the . . .

horizontally, base of the drive must be within 15 degrees of

horizontal.

vertically, side of the drive must be within 5 degrees of

horizontal.

Tape drive

(no termination)

SCSI device

(termination

disabled)

SCSI controller

(termination

enabled)

SCSI device

(termination enabled)

Tape drive

(no termination)

SCSI controller

(termination enabled)

SCSI terminator

YES YES YES NO

Installing the Internal LTO-3 Half-Height Tape Drive 7

LTO-3 Half-Height Tape Drive

Mount the internal drive in a 5.25-inch, half-height drive bay as follows:

1As required:

aSave and close your open files and terminate all running applications.

bShut down the workstation or server system.

cDisconnect the system AC power cord from the facility AC power receptacle.

2Remove the cover from the workstation or server system.

3Select an available 5.25-inch half-height bay and, if required, remove the bay cover.

4Position the drive in the bay and align either the upper or lower mounting holes—

whichever is appropriate—with the holes in the chassis (see figure 5).

5Secure the drive using two M3.0 X 4 metric screws on each side

After mounting the internal LTO-3 Half-Height Tape Drive, proceed to Connecting the

Internal Drive Interface and DC Power Cables in the following subsection.

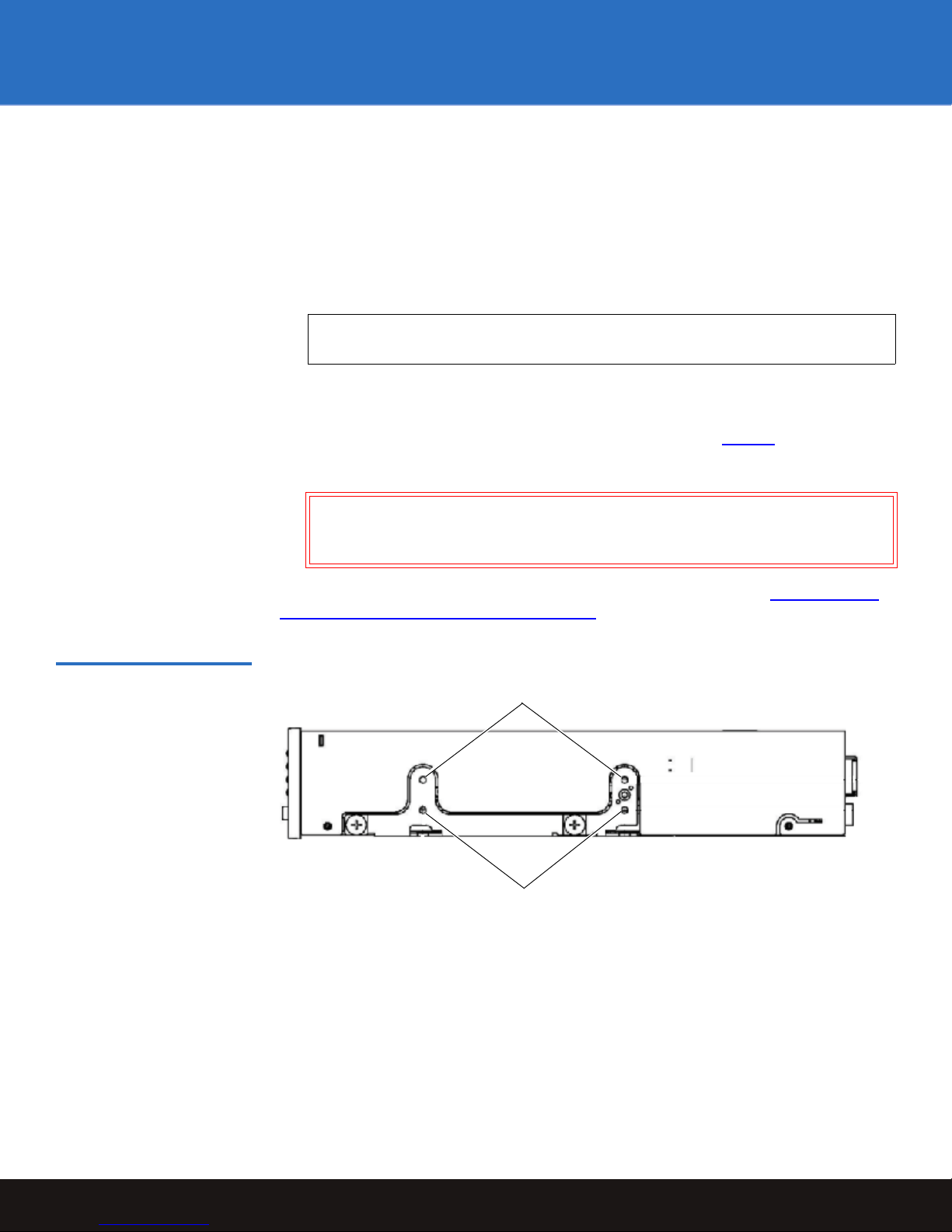

Figure 5 Internal Tape Drive

Mounting Hole Locations

Note: See your computer manufacturer’s instructions for the proper procedures

to remove the cover.

Caution: Using screws longer than 4 mm can damage the drive.

Do not use screws longer than 4 mm to secure the internal LTO-3 Half-

Height Tape Drive.

Lower mounting holes

Upper mounting holes

8Installing the Internal LTO-3 Half-Height Tape Drive

LTO-3 Half-Height Tape Drive Quick Start Guide

Connecting the Internal

Drive Interface and DC

Power Cables 0

As shown in figure 6 and figure 7, the rear panels of the internal LTO-3 Half-Height Tape

Drives have connectors for:

• Either a 68-pin parallel SCSI or a 7-pin 1x SATA-style serial-attached SCSI (SAS)

interface cable

• A serial library interface cable

• The internal drive DC power cable

Figure 6 Internal SCSI Drive

Interface and DC Power

Connectors

Figure 7 Internal SAS Drive

Interface and DC Power

Connectors

Connect the interface and DC power cables to the internal drive as follows:

1Verify that the system is shut down and the AC power cord is disconnected from the

facility AC power receptacle.

2Depending on the interface configuration of your internal drive:

aFor the parallel SCSI internal drive:

• Attach the internal SCSI interface cable to the 68-pin parallel SCSI connector

on the back of the drive.

Caution: The LTO-3 Half-Height Tape Drive with the parallel SCSI

interface is a low voltage differential (LVD) SCSI device.

Install it only in LVD environments. Plugging an LVD drive

into a high voltage differential (HVD) bus makes the entire bus

nonfunctional and may permanently damage the drive or

other SCSI devices on the bus.

Serial library port

68-pin parallel SCSI connector DC power connector

Serial library port

DC power connector 7-pin 1x SATA-style SAS connector

Installing the Tabletop LTO-3 Half-Height Tape Drive 9

LTO-3 Half-Height Tape Drive

• See the internal parallel SCSI bus termination examples in figure 3 on page 6

to check/verify the system SCSI bus configuration and install a 68-pin LVD

SCSI bus terminator, as required.

bFor the SAS internal drive, attach the internal SAS interface cable to the 7-pin 1x

SATA-style SAS connector on the back of the drive.

3If you are installing the internal LTO-3 Half-Height Tape Drive in a tape library

system, connect the RS-422 serial interface cable to the serial library port on the back

of the drive. (The serial library port is not used on workstation or server systems.)

4Connect the internal drive DC power cable to the DC power connector on the back of

the drive.

5Reinstall the system cover.

6Reconnect the system AC power cord to the facility AC power receptacle.

After connecting the internal drive interface and DC power cables, proceed to Restarting

the Internal Tape Drive System in the following subsection.

Restarting the Internal

Tape Drive System 0After connecting the internal drive interface and DC power cables:

1Restart the workstation or server system.

2Verify that the internal LTO-3 Half-Height Tape Drive comes on and completes the

Power On Self Test (POST) functions.

3As required, proceed to either:

•Installing the LTO Driver Software on page 13

•Registering the LTO-3 Half-Height Tape Drive on page 13

Installing the Tabletop LTO-3 Half-Height Tape Drive

To install the tabletop LTO-3 Half-Height Tape Drive, complete the following procedures

in the order presented:

1Depending on the interface configuration of the drive:

IF the drive interface is . . . THEN . . .

parallel Small Computer

System Interface (SCSI),

proceed to Configuring the Tabletop Parallel SCSI

Tape Drive in the following subsection to configure

the SCSI ID.

serial-attached SCSI (SAS), there is no need to configure the SCSI ID, as SAS

is a point-to-point architecture. Skip to Connecting

the Tabletop Drive Interface and AC Power Cables

on page 11.

10 Installing the Tabletop LTO-3 Half-Height Tape Drive

LTO-3 Half-Height Tape Drive Quick Start Guide

2Connecting the Tabletop Drive Interface and AC Power Cables

3Restarting the Tabletop Tape Drive System on page 13

4Installing the LTO Driver Software on page 13, if required

5Registering the LTO-3 Half-Height Tape Drive on page 13

Configuring the Tabletop

Parallel SCSI Tape Drive 0The factory-set default configuration of the tabletop parallel SCSI LTO-3 Half-Height

Tape Drive is:

• SCSI ID: 6

• Terminator power: enabled

Configuring the Tabletop Drive Parallel SCSI ID 0

Each device on the parallel SCSI bus must have its own unique SCSI ID. Use the push-

button SCSI ID selector switch on the drive back panel to change the SCSI ID of the

tabletop LTO-3 Half-Height Tape Drive (see figure 8).

Figure 8 Tabletop Parallel

SCSI ID Selector Switch

IF the default parallel SCSI ID

configuration is . . .

THEN you can . . .

compatible with your system

SCSI bus,

skip the following subsection and proceed to

Connecting the Tabletop Drive Interface and AC

Power Cableson page 11.

already assigned to another

device,

change the configuration of either the other

device, or the LTO-3 Half-Height Tape Drive, as

described in the following subsection.

Note: You cannot disable terminator power on a tabletop parallel SCSI drive.

Note: Parallel SCSI controllers and host adapters generally use ID 7. In some systems,

the boot drive uses ID 0 or ID 1. Avoid configuring the LTO-3 Half-Height

Tape Drive to these SCSI IDs.

Parallel SCSI ID selector switch

Otros manuales para LTO3 A-Series

Tabla de contenidos

Otros manuales de Almacenamiento de Quantum

Quantum

Quantum DLT-V4 Manual de usuario

Quantum

Quantum P4000 Series Manual de usuario

Quantum

Quantum PX720 Manual de usuario

Quantum

Quantum Scalar i500 Manual de usuario

Quantum

Quantum Scalar i6000 Manual de usuario

Quantum

Quantum Scalar i40 Instrucciones de funcionamiento y seguridad

Quantum

Quantum DPM 5500 Manual de usuario

Quantum

Quantum StorNext M660 Instrucciones de instalación

Quantum

Quantum SNC 4000 Manual de instrucciones

Quantum

Quantum LTO 2U Hoja de instrucciones

Quantum

Quantum ACL 4/52 Manual de usuario

Quantum

Quantum StorNext QD7000 Manual

Quantum

Quantum StorNext QD6000 Manual de usuario

Quantum

Quantum ATL M1500 Manual de usuario

Quantum

Quantum Atlas III Manual de instrucciones

Quantum

Quantum SuperLoader DLT Manual de usuario

Quantum

Quantum StorNext QD6000 Manual de usuario

Quantum

Quantum StorNext QD7000 Manual de usuario

Quantum

Quantum ValueLoader DLT VS160 Manual del propietario

Quantum

Quantum ValueLoader DLT VS80 Instrucciones de funcionamiento

Quantum

Quantum LTO-4 (Model B) Manual de usuario

Quantum

Quantum DXi6700 series Manual técnico

Quantum

Quantum StorNext QM1200 Manual de usuario

Quantum

Quantum DXi9000 Manual de usuario

Manuales populares de Almacenamiento de otras marcas

QNAP

QNAP TS 32PXU Series Manual de usuario

LaCie

LaCie RUGGED RAID Manual de usuario

Freecom

Freecom CLS DOCK Manual de usuario

PNY

PNY Attache P-FD64MBATT3 Manual de usuario

HP StorageWorks MSL2024 Manual de usuario

OLT

OLT 6x6 Maximizer Manual de usuario

Transcend

Transcend JetFlash 160 Manual de usuario

LaCie

LaCie RUGGED MINI Manual de usuario

Thunderbolt

Thunderbolt 600 Manual de usuario

Panasonic

Panasonic LB-DH8 series Manual

Intel

Intel RAID High Availability Manual de usuario

LaCie

LaCie 12big Thunderbolt 3 Manual de usuario

Spectra Logic

Spectra Logic T-Series Spectra T50e Manual de usuario

Panasonic

Panasonic LKM-F931-1 Manual de usuario

Tabernus

Tabernus Enterprise Erase E2400 Manual de usuario

Rocstor

Rocstor COMMANDER 3F series Manual de usuario

HP P9000 Manual de usuario

Western Digital

Western Digital Ultrastar Data60 Manual de usuario
