SDLT 600A Tape Drive

Quick Start Guide

TABLE OF CONTENTS

Identifying the Proper Tape Drive

Installation Procedure ........................... 1

Checking the Tabletop Tape Drive ........ 2

Connecting the Tabletop Tape Drive .... 2

Checking the Rackmount Tape Drive.... 3

Connecting the Rackmount Tape Drive 3

Configuring the SDLT 600A Tape Drive . 4

The Java Plug-in ..............................4

Configuration Options....................4

For Windows....................................4

Using the FTP Client .............................. 5

SDLT 600A Tab .................................5

File Panes.........................................5

File Transfers ...................................6

File Transfer Stopped......................6

Duplicate File Name........................6

Formatting Media Cartridges............7

This quick start guide provides basic installation and configuration instructions for

the Quantum SDLT 600A Tape Drive.

For more information, see the

Quantum SDLT 600A Product Manual

(PN 81-81487)

on the documentation CD provided with your tape drive.

1Inspect the shipping box and contents of the box for damage.

If you find any damage, report it to the shipping company or contact

Quantum immediately.

2Verify that the Ethernet cables are compatible with the connectors on the host

computer.

Identifying the Proper Tape Drive Installation

Procedure 0

The SDLT 600A is available in two configurations, tabletop and rackmount.

Follow the installation procedures appropriate to your tape drive.

SDLT 600A Tape Drive Quick Start Guide

Checking the Tabletop Tape Drive 0

To check that the tabletop tape drive works and is not

damaged:

1Connect one end of the power cord to the tape drive

power cord connector and plug the other end of the

power cord into an AC outlet.

2Power on the tape drive using the switch on the rear panel

(see figure 1).

Figure 1 Check the Tabletop

Ta p e D r i v e

The tape drive performs a self-diagnostic test, called a Power-

on Self-Test (POST), each time you power it on. During POST,

each LED lights in sequence. When POST has completed

successfully, the middle LED stops flashing and remains

illuminated and the left and right LEDs remain off.

Connecting the Tabletop Tape Drive 0

Connect the tabletop tape drive to the host computer through

the network port:

1Connect one end of the Ethernet cable to the network port

located on the rear of the tape drive.

2Connect the other end to a network switch or router (see

figure 2).

3Proceed to Configuring the SDLT 600A Tape Drive.

Power cord

connector

On/off switch

NOTE:The GigE network port is backward compatible

with 100BaseT and 10BaseT networks. To get the full

performance of the SDLT 600A, it is advisable to use

a GigE network.

Figure 2 Connect to the Network

Port

Network port

Ethernet cables

Router

Note:

Optionally, the tape drive may be

directly connected to the host

network port.

Host network port

SDLT 600A Tape Drive Quick Start Guide

Checking the Rackmount Tape Drive 0

To check that the rackmount tape drive works and is not

damaged:

1Connect one end of the power cord to the tape drive

power cord connector and plug the other end of the

power cord into an AC outlet.

2Power on the tape drive using the switch on the front

panel (see figure 3).

Figure 3 Check the

Rackmount Tape Drive

The tape drive performs a self-diagnostic test, called a Power-

On Self-Test (POST), each time you power it on. During POST,

each LED lights in sequence. When POST has completed

successfully, the middle LED stops flashing and remains

illuminated and the left and right LEDs remain off.

Disconnect the power cord from the power cord connector.

Connecting the Rackmount Tape Drive 0

Install the rackmount tape drive in a rack and then connect the

drive to a network though the network (GigE) port located on

the rear of the drive:

1Slide the rackmount tape drive into the equipment rack

(see figure 4).

Figure 4 Install the

Rackmount Tape Drive

2Secure the unit to the rack with the thumbscrews.

3Connect the power cable to the rear of the rackmount

SDLT 600A tape drive (see figure 5).

Figure 5 Connect the Power

and Network Cables

4Connect one end of the Ethernet cable to the network port

located on the rear of the SDLT 600A tape drive and

connect the other end to a network switch or router.

5Power on the tape drive using the switch on the front

panel of the rackmount unit.

6Proceed to Configuring the SDLT 600A Tape Drive.

Power cord

connector

On/off switch

Thumbscrews

Power button

Power cord

connector

To router or switch

Network port To power

SDLT 600A Tape Drive Quick Start Guide

Configuring the SDLT 600A Tape Drive 0

The only software required on your system is the Java Plug-in.

The Java Plug-in is the virtual machine software that allows

the execution of Java applets.

The Java Plug-in 0

The Java FTP client needs the Java Virtual Machine to run. This

Java Plug-in is provided by Sun Microsystems.

The Java FTP client will install immediately. When you load the

Java FTP client for the first time, a display window may ask you

to download and install the Java plug-in. If you need that plug-

in you can just follow the instructions on the screen or go to

www.java.com to download it.

If you have Java Plug-in version 1.5 or later or the Java

Runtime Environment version 1.5 or later installed on your

computer, you should not need to download new software.

The plug-in should activate on your Web browser automatically

once installed. For Mac OSX, the supported JRE version is 1.4.2.

Configuration Options 0

There are several options available when configuring the

SDLT 600A within your network. Select the best solution based

on the diagram presented in figure 6.

A sample Windows configuration is provided as follows.

For Windows 0

The host IP configuration may have to be modified to

communicate with the drive.

1Go to Network Connections and click the LAN icon.

2Go to Internet Protocol (TCP/IP) connection and click

Properties (see figure 7).

Figure 6 IP Configuration

Options

Figure 7 Local Area

Connection Properties

3In the General dialogue box (see figure 8), select the radio

button Use the following IP address.

•IntheIP address box, enter 10.10.10.1

•IntheSubnet mask box, enter 255.255.255.0

4Click OK.

NOTE:Detailed configuration instructions for Macintosh

and Linux operating systems are available in the

Quantum

SDLT 600A Product Manual

NOTE:The factory default IP address for the SDLT 600A is

set to 10.10.10.10.

conﬁgure

SDLT 600A

on it's own

network?

Open PC's

network

properties

Leave SDLT 600A

on 10.10.10.10

yes

Conﬁgure PC to IP

10.10.10.1

Is PC

conﬁgured

for DHCP?

yes

Conﬁgure

SDLT 600A for

DHCP

Obtain valid IP and

netmask for

SDLT 600A

from network admin

Conﬁgure

SDLT 600A as

advised

done

Select the TCP/IP

connection

SDLT 600A Tape Drive Quick Start Guide

Figure 8 Internet Protocol

(TCP/IP) Properties

5Launch a Web browser (Internet Explorer or Firefox).

6Type in the IP address of the drive (http://10.10.10.10) in

the address line of the browser.

Using the FTP Client 0

The SDLT 600A Client/FTP client allows you to transfer files to

and from the tape drive, partially restore MXF files, and view

the MXF metadata.

In the SDLT 600A main page, click SDLT 600A Client, then FTP

client.

SDLT 600A Tab 0

SDLT 600A is the main tab view with a standard FTP client

interface, providing two file panes. The left pane displays your

local disk directory and the right pane shows the SDLT 600A

directory.

When loaded, the FTP client connects you to the SDLT 600A

server when the login name (root) and password (password)

are correctly entered. You can rename or reset the login and

password from the Configuration tab menu.

Once connected, you can choose Local instead of the SDLT

600A server to disconnect the FTP client.

Figure 9 SDLT 600A/FTP Client

File Panes 0

There are three text zones on the top of each pane:

• The first zone allows you to select the system or

server.

• The second zone allows you to select the drive (only

available on Local).

• The third zone displays the currently navigated path

and allows you to type the path within the address

bar.

The panes can be local or remote views and you can interact

with the system as follows:

• Double-click a folder to expand it to view the enclosed

folders and files

• Double-click a folder at the top followed by leader

dots that lead toward the parent folder

• Click an item (file or folder) to select it

•Use<Ctrl>for non-continuous and <Shift>for

continuous item selection

•Use<Ctrl + A> to select all files and folders

NOTE:If you require additional assistance when changing

IP settings, you may need to consult either your

network administrator or an authority on IP policies

and standards.

CAUTION:Any change of the IP address could result in the

loss of the device; always double-check that the IP

number is entered correctly

Enter the IP address

and Subnet mask

SDLT 600A Tape Drive Quick Start Guide

•UseF2 is supported (allows you to edit the name

of the selected file)

• Right-click to see the Contextual menu

(<Ctrl>+right-click under Mac OSX)

• Click the column headings to change the sorting

order

File Transfers 0

The SDLT 600A FTP client allows you to transfer files from a:

• Local PC to/from a SDLT 600A server

• Local PC to/from a non-SDLT 600A server (e.g.

Filezilla)

• SDLT 600A server to/from a non-SDLT 600A server

• SDLT 600A server to/from another SDLT 600A server

(FXP transfer)

To transfer files, select one or more items in one pane, then

drag and drop them to the other pane. You can also transfer

files within folders of the same pane, local or remote (e.g.

into the SDLT 600A FTP server or into another FTP server).

When transferring files of 4 MB and larger, transfer rates up

to 36 MB/sec native may be achieved. When transferring

files of less than 4 MB, you may see degraded drive transfer

rates.

Once a transfer is initiated, the bars show the transfer

progress—when the indicator is moving back and forth, the

tape is seeking, and once data copying actually begins the

bar shows the progress.

The queue lists the files to transfer as well as the status of

the transfer. By selecting a file from the list and then right-

clicking it, you can:

• Start the transfer queue

• Stop the file transfer

• Remove the file from the list

• Retry the operation

• Display the file transfer properties

NOTE:The maximum storage capacity of the

SuperDLTtape II data cartridge is 300GB.

NOTE:Canceling a transfer aborts it. Skipping a transfer

cancels the current file transfer. The sequence of file

transfers continues if there are other files in the

transfer queue.

File Transfer Stopped 0

A sequence of file transfers using the built-in FTP client

stops when a file is reserved by the FTP client file system or

the file name contains characters not supported.

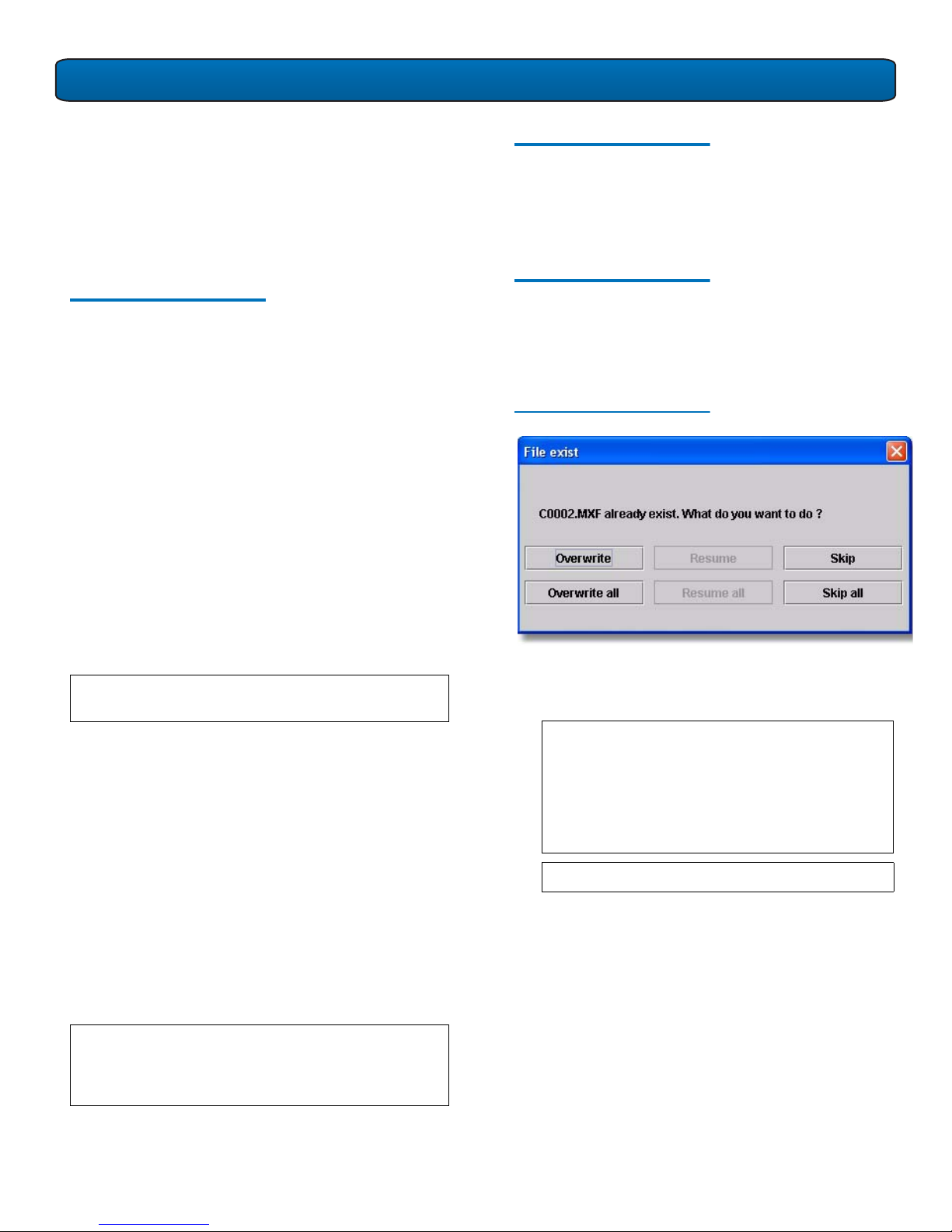

Duplicate File Name 0

When you transfer a file and there is already a file with the

same name in the destination, there is a conflict and the

following window displays:

Figure 10 File Exist

•Overwrite/Overwrite all — Erases the file already on

the target and copies the new file in its place.

•Skip/Skip all— Continues the transfer for other

selected files without overwriting the specified file(s).

NOTE:When you overwrite a file, it is not erased

from the tape, because the tape drive appends

data only (unless the file to overwrite is the last

file stored on the tape). However it is not

possible to access the overwritten file (unless the

file to overwrite is the last file stored on the

tape).

NOTE:The SDLT 600A does not support Resume.

SDLT 600A Tape Drive Quick Start Guide

Formatting Media Cartridges 0

1Insert the media cartridge into the tape drive.

When the tape drive recognizes an unformatted or new

media cartridge, a prompt appears (see figure 11)

when connected to the FTP client.

2Click Yes.

Figure 11 Media Formatting

CAUTION:When formatting with the SDLT 600A

tape drive, all existing data on the media

cartridge will be overwritten.

NOTE:The initial formatting of a media cartridge

takes approximately 30 – 40 seconds.

Quantum Corporation. Other trademarks may be mentioned herein which belong to other companies. )

81-81488-02 A01 December 2006

*81-81488-02 A01*

81-81488-02 A01

SDLT 600A Tape Drive Quick Start GuideSDLT 600A Tape Drive Quick Start Guide

United States of America

Quantum Corporation

141 Innovation Drive

Irvine, CA 92612

U.S.A.

phone 949.856.7800

fax 949.856.7799

European Headquarters

Quantum Corporaton

3 Bracknell Beeches

Old Bracknell Lane West

Bracknell

Berkshire RG12 7BW

United Kingdom

phone +44 1344 353500

fax +44 1344 353510

Asia Pacific

Quantum Corporaton

9 Temasek Boulevard, #08-03

Suntec Tower Two

Singapore 038989

phone +65 6334 0660

fax +65 6432 2830

Otros manuales para Tape Drive SDLT 600A

Tabla de contenidos

Otros manuales de Almacenamiento de Quantum

Quantum

Quantum LTO 4 Manual de usuario

Quantum

Quantum SuperLoader 3A Series Manual del propietario

Quantum

Quantum DAT 72 Manual de usuario

Quantum

Quantum Scalar 50 Guía

Quantum

Quantum Scalar i6000 Manual técnico

Quantum

Quantum Scalar i40 Instrucciones de funcionamiento y seguridad

Quantum

Quantum SuperLoader DLT Manual de usuario

Quantum

Quantum DXi V-Series Manual de usuario

Quantum

Quantum DLT-V4 Manual de usuario

Quantum

Quantum QXS-312 Manual técnico

Quantum

Quantum DLTtape DLT 4000 Manual de usuario

Quantum

Quantum DLTtape DLT 2000 Manual de usuario

Quantum

Quantum Superloader 3 Manual de usuario

Quantum

Quantum Maxtor Fireball CR Manual de usuario

Quantum

Quantum Scalar i40 Manual de usuario

Quantum

Quantum Scalar i40 Instrucciones de funcionamiento y seguridad

Quantum

Quantum StorNext QS1200 Manual de usuario

Quantum

Quantum Atlas 10K II Manual de usuario

Quantum

Quantum ValueLoader DLT VS160 Manual de usuario

Quantum

Quantum Scalar i500 Cómo utilizar

Quantum

Quantum DXi6900 Guía de inicio rápido

Quantum

Quantum Superloader 3 Manual de instrucciones

Quantum

Quantum DXi6701 Manual técnico

Quantum

Quantum Scalar 24 Instrucciones de funcionamiento

Manuales populares de Almacenamiento de otras marcas

QNAP

QNAP TS 32PXU Series Manual de usuario

LaCie

LaCie RUGGED RAID Manual de usuario

Freecom

Freecom CLS DOCK Manual de usuario

PNY

PNY Attache P-FD64MBATT3 Manual de usuario

HP StorageWorks MSL2024 Manual de usuario

OLT

OLT 6x6 Maximizer Manual de usuario

Transcend

Transcend JetFlash 160 Manual de usuario

LaCie

LaCie RUGGED MINI Manual de usuario

Thunderbolt

Thunderbolt 600 Manual de usuario

Panasonic

Panasonic LB-DH8 series Manual

Intel

Intel RAID High Availability Manual de usuario

LaCie

LaCie 12big Thunderbolt 3 Manual de usuario

Spectra Logic

Spectra Logic T-Series Spectra T50e Manual de usuario

Panasonic

Panasonic LKM-F931-1 Manual de usuario

Tabernus

Tabernus Enterprise Erase E2400 Manual de usuario

Rocstor

Rocstor COMMANDER 3F series Manual de usuario

HP P9000 Manual de usuario

Western Digital

Western Digital Ultrastar Data60 Manual de usuario
