Quantum DXi6902 Manual del operador

READ THIS FIRST

THIS DOCUMENT PROVIDES INSTALLATION

INSTRUCTIONS FOR THE DXi6902 SYSTEM.

IMPORTANT - BEFORE YOU BEGIN:

1. Read this entire document before your

start to unpack or install the system.

2. Make sure that you have all boxes that

shipped with the system.

3. Install and cable all elements of the

complete system in a rack before following

the power on sequence.

www.quantum.com

DXi6902

DXi6902 Installation and

Configuration Guide

This guide provides hardware installation and initial system configuration

instructions for the Quantum DXi6902 disk backup system (see Figure 1).

For more information, see the

Quantum DXi6902 User’s Guide

(6-68159).

Note: Make sure to take the online training for the DXi6902 in order to

make the best use of your product. The online training is available

at: www.quantum.com/ServiceandSupport/StorageCareLearning/

Index.aspx

Figure 1 DXi6902 Components

Note: This

Installation and Configuration Guide

is for DXi6902 with DXi

3.0.2_69 Software.

DXi6902 Node

DXi6902 Array Module (RBOD) and Expansion Module (EBOD)

Contents

DXi6902 Configurations......................... 2

Choosing a Location .............................. 4

Installation Requirements.................. 4

Rack Space Requirements .................. 4

Environmental Conditions ................. 4

Preparing for the Installation ................ 5

Necessary Tools .................................. 5

Taking ESD Precautions ...................... 5

DXi6902 Installation Overview .............. 6

Unpacking the DXi6902 ......................... 7

Unpacking the DXi6902 Node............ 7

Unpacking the Additional Node

Components....................................... 9

Unpacking the DXi6902 Array Module

or Expansion Module ....................... 10

Installing Components in the DXi6902

Node..................................................... 12

Opening the Node Cover ................. 12

Installing the Memory Modules....... 15

Installing the Optional i350 or X520

Network Card................................... 18

Closing the Node Cover ................... 21

Installing the DXi6902 System in the

Rack...................................................... 22

Determining the Order of the

Components in the Rack.................. 22

Locating the Mounting Position ...... 24

Installing the DXi6902 Array Module

or Expansion Module ....................... 24

Installing the DXi6902 Node............ 26

Cabling the DXi6902 ........................ 29

Initializing the Storage Arrays and

Software............................................... 35

Performing Initial Configuration ......... 45

Completing the Getting Started

Wizard .............................................. 45

Connecting the Ethernet Cables ...... 54

Installing the Capacity License ........ 56

Taking Next Steps............................. 58

Troubleshooting ................................... 61

2DXi6902 Configurations

DXi6902 Installation and Configuration Guide

DXi6902 Configurations

The Quantum DXi6902 can be ordered in the following configurations (see Table 1).

Table 1 DXi6902

Configurations

Configuration

Licensed

Usable

Capacity**

Nominal

Capacity*

System

Memory

Array

Modules

(RBODs)

Expansion

Modules

(EBODs)

To t a l R a c k

Space

Required

DXi6902

•1Node(2U)

•8x6GbSASports(4

usable)

• 4 x 8 Gb Fibre Channel ports

(ingest and read)

• 2 x 8 Gb Fibre Channel ports

(path to tape, or ingest and

read)

• 2 x 10 GbE (SFP+) Ethernet

ports

• 3 x 1 GbE Ethernet ports

• (Optional) Additional

network adapter providing

2 x 10 GbE (SFP+) Ethernet

ports or 4 x 1 GbE Ethernet

ports

17 TB /

34 TB

48 TB 128 GB 104U

51 TB /

68 TB

96 TB 128 GB 116U

85 TB /

102 TB

144 TB 128 GB 128U

119 TB /

136 TB

192 TB 256 GB 1310U

153 TB /

170 TB

240 TB 256 GB 1412U

187 TB /

204 TB

288 TB 256 GB 1514U

221 TB /

238 TB

336 TB 256 GB 1616U

255 TB /

272 TB

384 TB 256 GB 1718U

289 TB /

306 TB

432 TB 256 GB 2720U

323 TB /

340 TB

480 TB 256 GB 2822U

357 TB /

374 TB

528 TB 256 GB 2924U

391 TB /

408 TB

576 TB 256 GB 210 26U

425 TB /

442 TB

624 TB 256 GB 211 28U

DXi6902 Configurations 3

DXi6902

459 TB /

476 TB

672 TB 256 GB 212 30U

493 TB /

510 TB

720 TB 256 GB 213 32U

* 1 TB = 1,000,000,000,000 bytes

** Usable storage capacity for installed Array or Expansion modules can be upgraded at any time after purchase in increments of

17 TB, up to a total of 34 TB per module. Storage capacity upgrades are enabled simply by adding a license key. To purchase a

storage capacity upgrade license, contact your Quantum sales representative. After you obtain the storage capacity license,

refer to the section “Adding a License Key” in the

DXi6902 User’s Guide (6-68159)

for instructions on completing the capacity

upgrade.

Configuration

Licensed

Usable

Capacity**

Nominal

Capacity*

System

Memory

Array

Modules

(RBODs)

Expansion

Modules

(EBODs)

To t a l R a c k

Space

Required

4Choosing a Location

DXi6902 Installation and Configuration Guide

Choosing a Location

Quantum recommends installing the DXi6902 system in a controlled or restricted area

to prevent access by untrained personnel. In addition, Quantum recommends that

system installation be performed only by qualified IT personnel.

When choosing an installation site for the DXi6902 system, consider the following

requirements:

•Installation Requirements

•Rack Space Requirements

•Environmental Conditions

Installation

Requirements

Review the

DXi6902 Site Planning Guide

(6-68161) to ensure that your site meets the

installation requirements for the DXi6902.

Rack Space

Requirements

Tabl e 2 contains the rack requirements for the DXi6902 components.

Table 2 DXi6902 Rack

Requirements

Environmental

Conditions

The installation site must have the following environmental conditions:

•Humidity: 20% to 80% (non-condensing) with a maximum humidity gradient of

10% per hour

•Temperature: 10° to 35°C (50° to 95°F) with a maximum temperature gradient of

10°C per hour

•Altitude: –16m to 3048 m (–50 to 10,000 ft)

DXi6902 Node Array Module (RBOD)

Expansion Module

(EBOD)

Height 2U, 3.4 inches (8.7 cm) 2U, 3.4 inches (8.7 cm) 2U, 3.4 inches (8.7 cm)

Width (side to side) 17.5 inches (44.4 cm) 17.8 inches (45.1 cm) 17.8 inches (45.1 cm)

Depth (front to back) 28.6 Inches (72.6 cm) 21.8 inches (55.2 cm) 21.8 inches (55.2 cm)

Weight (stand alone) 53.0 pounds (24.0 kg) 59.0 pounds (26.8 kg) 57.0 pounds (25.9 kg)

Air Clearance Open 4 inches (10.2 cm) behind unit for proper air flow

Preparing for the Installation 5

DXi6902

These environmental conditions apply when the DXi6902 system is in operation. For

additional specifications, refer to the

DXi6902 Site Planning Guide

(6-68161).

Preparing for the Installation

Before you begin the installation procedure, make the preparations described in the

following sections:

•Necessary Tools

•Taking ESD Precautions

Necessary Tools The following tools are required for unpacking and installing the DXi6902 system:

• #2 Phillips screwdriver

• Small flat head screwdriver

• Notebook computer and Ethernet cable (for initial system configuration)

Note: The service password is required to perform initial system configuration.

(Contact Quantum ASPS for the service password.)

Taking ESD Precautions Some components within the DXi6902 system contain static-sensitive parts. To avoid

damaging these parts while performing installation procedures, always observe the

following precautions:

• Keep the DXi6902 system turned off during all installation procedures.

• Keep static-sensitive parts in their original shipping containers until ready for

installation.

• Do not place static-sensitive parts on a metal surface. Place them inside their

protective shipping bag or on an antistatic mat.

• Wear anti-static wrist bands when unpacking and handling the units, and avoid

touching connectors and other components.

Note: Dry climates and cold-weather heating environments have lower relative

humidity and are more likely to produce static electricity.

6DXi6902 Installation Overview

DXi6902 Installation and Configuration Guide

DXi6902 Installation Overview

Depending on the configuration, the DXi6902 system components ship in one or more

boxes. Each box includes a label that notes the number of the box and the total number

of boxes in the shipment (for example, box 1 of 3). MAKE SURE THAT YOU HAVE ALL

BOXES IN THE SHIPMENT BEFORE YOU BEGIN THE INSTALLATION.

Tabl e 3 provides an overview of the installation process for each DXi6902 configuration.

Locate your configuration in the table to see the components you need to install and the

procedures to follow. YOU MUST INSTALL ALL NODE COMPONENTS, INSTALL THE

NODE, ARRAY MODULES, AND EXPANSION MODULES IN THE RACK, AND CONNECT

ALL CABLES BEFORE FOLLOWING THE POWER UP SEQUENCE.

Table 3 DXi6902 Component

Installation Overview

DXi6902

Configuration Components to Install Procedures to Complete

17–34 TB 1 DXi6902 Node

• (Optional) Dual Port X520 10 GbE

Card

Quad Port i350 1 GbE Card

1 Array Module (RBOD)

1Unpacking the DXi6902 on page 7

2(Optional) Installing Components in the DXi6902 Node

on page 12

aOpening the Node Cover on page 12

bInstalling the Optional i350 or X520 Network Card

on page 18

cClosing the Node Cover on page 21

3Installing the DXi6902 System in the Rack on page 22

51–102 TB 1 DXi6902 Node

• (Optional) Dual Port X520 10 GbE

Card

Quad Port i350 1 GbE Card

1 Array Module (RBOD)

1 or 2 Expansion Modules (EBODs)

1Unpacking the DXi6902 on page 7

2(Optional) Installing Components in the DXi6902 Node

on page 12

aOpening the Node Cover on page 12

bInstalling the Optional i350 or X520 Network Card

on page 18

cClosing the Node Cover on page 21

3Installing the DXi6902 System in the Rack on page 22

119–510 TB 1 DXi6902 Node

• 16 GB Memory Module x 8

• (Optional) Dual Port X520 10 GbE

Card

Quad Port i350 1 GbE Card

1 or 2 Array Modules (RBODs)

3 to 13 Expansion Modules (EBODs)

1Unpacking the DXi6902 on page 7

2Installing Components in the DXi6902 Node on

page 12

aOpening the Node Cover on page 12

bInstalling the Memory Modules on page 15

cInstalling the Optional i350 or X520 Network Card

on page 18

dClosing the Node Cover on page 21

3Installing the DXi6902 System in the Rack on page 22

Unpacking the DXi6902 7

DXi6902

Unpacking the DXi6902

By following these unpacking instructions, you help ensure that the system will continue

to be safeguarded after it arrives at the installation site:

•Unpacking the DXi6902 Node

•Unpacking the DXi6902 Array Module or Expansion Module

Caution: Make sure to retain all packing materials, as well as the documentation and

other items included in the shipping box. The packaging materials

must

used if the system is relocated.

WARNING: The DXi6902 Node, Array module (RBOD), and Expansion module (EBOD)

weigh 53.0 pounds (24.0 kg), 59.0 pounds (26.8 kg), and 57.0 pounds

(25.9 kg) respectively. A minimum of two people are required to lift either

chassis.

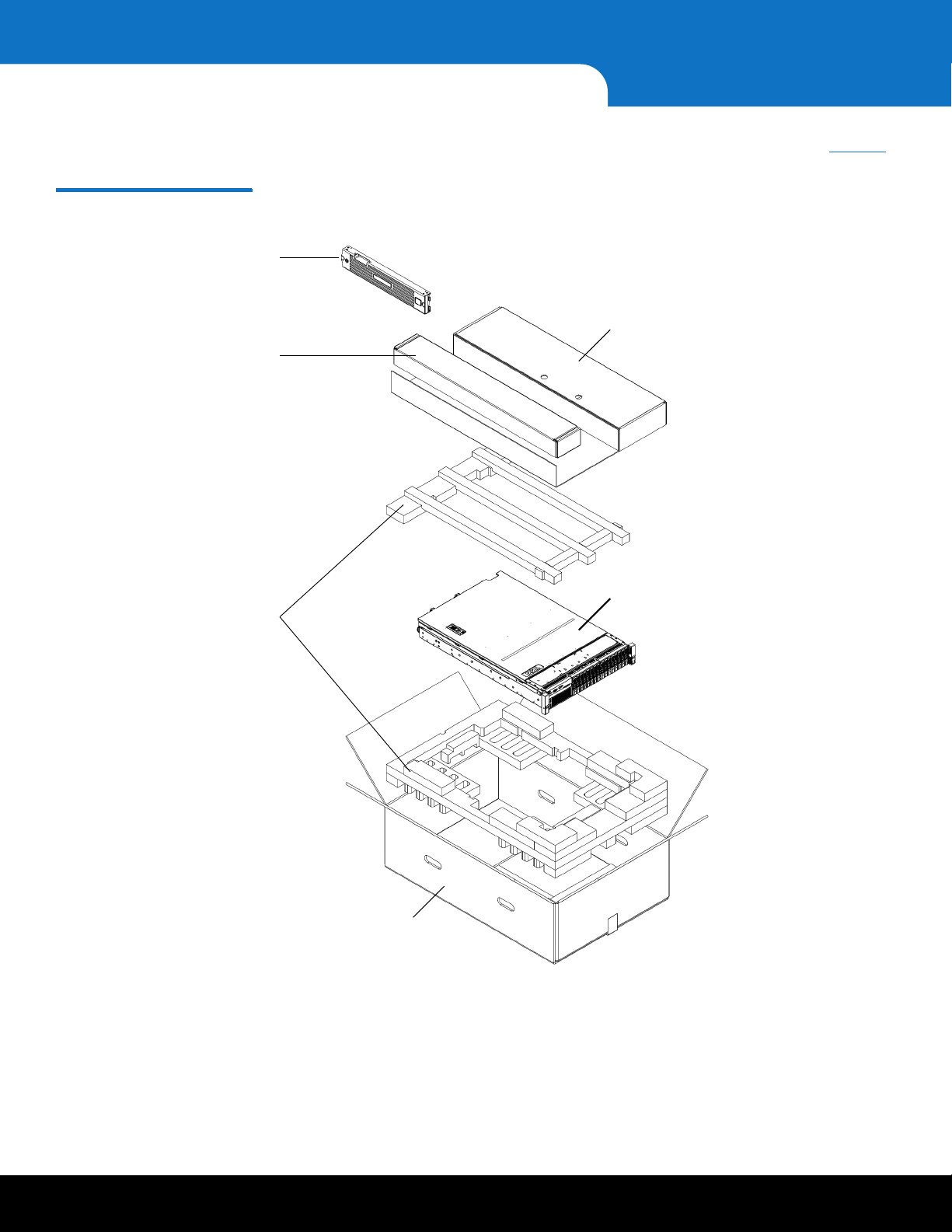

Unpacking the DXi6902

Node

The box containing the DXi6902 Node contains the following items:

• Rack mount rails

• Cable management straps

• Accessory kit, which includes the following:

• Documentation kit:

• Installation Guide

• DXi6902 User Essentials

• Quantum Products Regulatory Documentation CD

• Registration (Warranty) card

•BaseNodekit:

• C13 to C14 power cord (2)

• North American power cord (2)

• Cable, CAT6, RJ45, non-plenum, blue solid, 25 feet (3)

• Cable kit Fibre Channel HBA (1):

• Cable, 10 GB, 6 meter (6)

• Node bezel and bezel keys

One of the following 10 GbE network cable kits ships with the Node in a separate box,

depending on configuration:

• Cable kit dual 10 GbE NIC (Optical) - Cable, 10 GbE, 10 meter, with SFP+ (2)

• Cable kit dual 10 GbE NIC (Twinax) - Cable, 10 GbE, 5 meter (2)

8Unpacking the DXi6902

DXi6902 Installation and Configuration Guide

Carefully unpack and remove the components from the packing materials (see Figure 2).

Figure 2 Unpacking the

DXi6902 Node

Box

Bezel (key taped to back)=

Rack mount rails

Accessory kit

Foam

Otros manuales para DXi6902

Tabla de contenidos

Otros manuales de Almacenamiento de Quantum

Quantum

Quantum Tape Drive A-Series Manual de usuario

Quantum

Quantum DLTtape DLT 7000 Manual de usuario

Quantum

Quantum QXS 12G Series Manual técnico

Quantum

Quantum Internal Storage System Travan 40 GB Manual de usuario

Quantum

Quantum Bigfoot 1.2AT Manual de usuario

Quantum

Quantum Scalar i500 Manual de usuario

Quantum

Quantum DXi4700 Manual de usuario

Quantum

Quantum PowerStor L200 Manual de usuario

Quantum

Quantum PX500 Series Guía de inicio rápido

Quantum

Quantum Scalar 24 Manual de instrucciones

Quantum

Quantum PX720 Manual de usuario

Quantum

Quantum StorNext AEL500 Manual de usuario

Quantum

Quantum FastStor 1 Manual de usuario

Quantum

Quantum LTO3 A-Series Manual de usuario

Quantum

Quantum Scalar i500 Manual de usuario

Quantum

Quantum P4000 Series Manual de usuario

Quantum

Quantum Scalar i500 Manual de usuario

Quantum

Quantum FastStor 1 Manual de usuario

Quantum

Quantum Scalar i6 Manual de usuario

Quantum

Quantum LTO3 A-Series Manual de usuario

Quantum

Quantum LTO-6 Manual de usuario

Quantum

Quantum DXi3500 Manual técnico

Quantum

Quantum DLTtape DLT 8000 Manual de usuario

Quantum

Quantum Scalar i40 Instrucciones de funcionamiento y seguridad

Manuales populares de Almacenamiento de otras marcas

QNAP

QNAP TS 32PXU Series Manual de usuario

LaCie

LaCie RUGGED RAID Manual de usuario

Freecom

Freecom CLS DOCK Manual de usuario

PNY

PNY Attache P-FD64MBATT3 Manual de usuario

HP StorageWorks MSL2024 Manual de usuario

OLT

OLT 6x6 Maximizer Manual de usuario

Transcend

Transcend JetFlash 160 Manual de usuario

LaCie

LaCie RUGGED MINI Manual de usuario

Thunderbolt

Thunderbolt 600 Manual de usuario

Panasonic

Panasonic LB-DH8 series Manual

Intel

Intel RAID High Availability Manual de usuario

LaCie

LaCie 12big Thunderbolt 3 Manual de usuario

Spectra Logic

Spectra Logic T-Series Spectra T50e Manual de usuario

Panasonic

Panasonic LKM-F931-1 Manual de usuario

Tabernus

Tabernus Enterprise Erase E2400 Manual de usuario

Rocstor

Rocstor COMMANDER 3F series Manual de usuario

HP P9000 Manual de usuario

Western Digital

Western Digital Ultrastar Data60 Manual de usuario
