Pro-Form PFEL57916.1 Manual de usuario

USER’S MANUAL

CAUTION

Read all precautions and

instructions in this manual before

using this equipment. Keep this

manual for future reference.

Model No. PFEL57916.1

Serial No.

Write the serial number in the space

above for reference.

www.proform.com

To register your product and

activate your warranty today,

go to www.proformservice.com/

registration.

For service at any time, go to

www.proformservice.com.

Or call 1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

ACTIVATE YOUR

WARRANTY

CUSTOMER CARE

Serial Number

Decal

TABLE OF CONTENTS

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

258871

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO USE THE ELLIPTICAL ..............................................................17

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

MAINTENANCE AND TROUBLESHOOTING.....................................................27

EXERCISE GUIDELINES ....................................................................30

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

ORDERING REPLACEMENT PARTS .................................................. Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple

Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The

BLUETOOTH®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.

IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your elliptical before

using your elliptical. ICON assumes no responsibility for personal injury or property damage sus-

tained by or through the use of this product.

1. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or persons

with pre-existing health problems.

3. The elliptical is not intended for use by

persons with reduced physical, sensory, or

mental capabilities or lack of experience and

knowledge, unless they are given supervi-

sion or instruction about use of the elliptical

by someone responsible for their safety.

4. Use the elliptical only as described in this

manual.

5. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

6. Keep the elliptical indoors, away from mois-

ture and dust. Do not put the elliptical in a

garage or covered patio, or near water.

7. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side. To protect the floor or carpet from dam-

age, place a mat under the elliptical.

8. Inspect and properly tighten all parts each

time the elliptical is used. Replace any worn

parts immediately.

9. When connecting the power cord, plug the

power cord into a grounded circuit.

10. Do not modify the power cord or use an

adapter to connect the power cord to an

improper receptacle. Keep the power cord

away from heated surfaces. Do not use an

extension cord.

11. Do not operate the elliptical if the power cord

or plug is damaged, or if the elliptical is not

working properly.

12. DANGER: Always unplug the power

cord and switch the power switch to the off

position when the elliptical is not in use and

before cleaning the elliptical. Servicing other

than the procedures in this manual should be

performed by an authorized service repre-

sentative only.

13. Keep children under age 13 and pets away

from the elliptical at all times.

14. The elliptical should not be used by persons

weighing more than 325 lbs. (147 kg).

15. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

16. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

17. The heart rate monitor is not a medical

device. Various factors may affect the accu-

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid in

determining heart rate trends in general.

IMPORTANT PRECAUTIONS

SAVE THESE INSTRUCTIONS

18. The elliptical does not have a freewheel; the

pedals will continue to move until the fly-

wheel stops. Reduce your pedaling speed in

a controlled way.

19. Keep your back straight while using the

elliptical; do not arch your back.

20. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

all

STANDARD SERVICE PLANS

Thank you for selecting the revolutionary PROFORM®

ENDURANCE 720 E elliptical. The ENDURANCE 720 E

elliptical provides an impressive selection of features

designed to make your workouts at home more effec-

tive and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

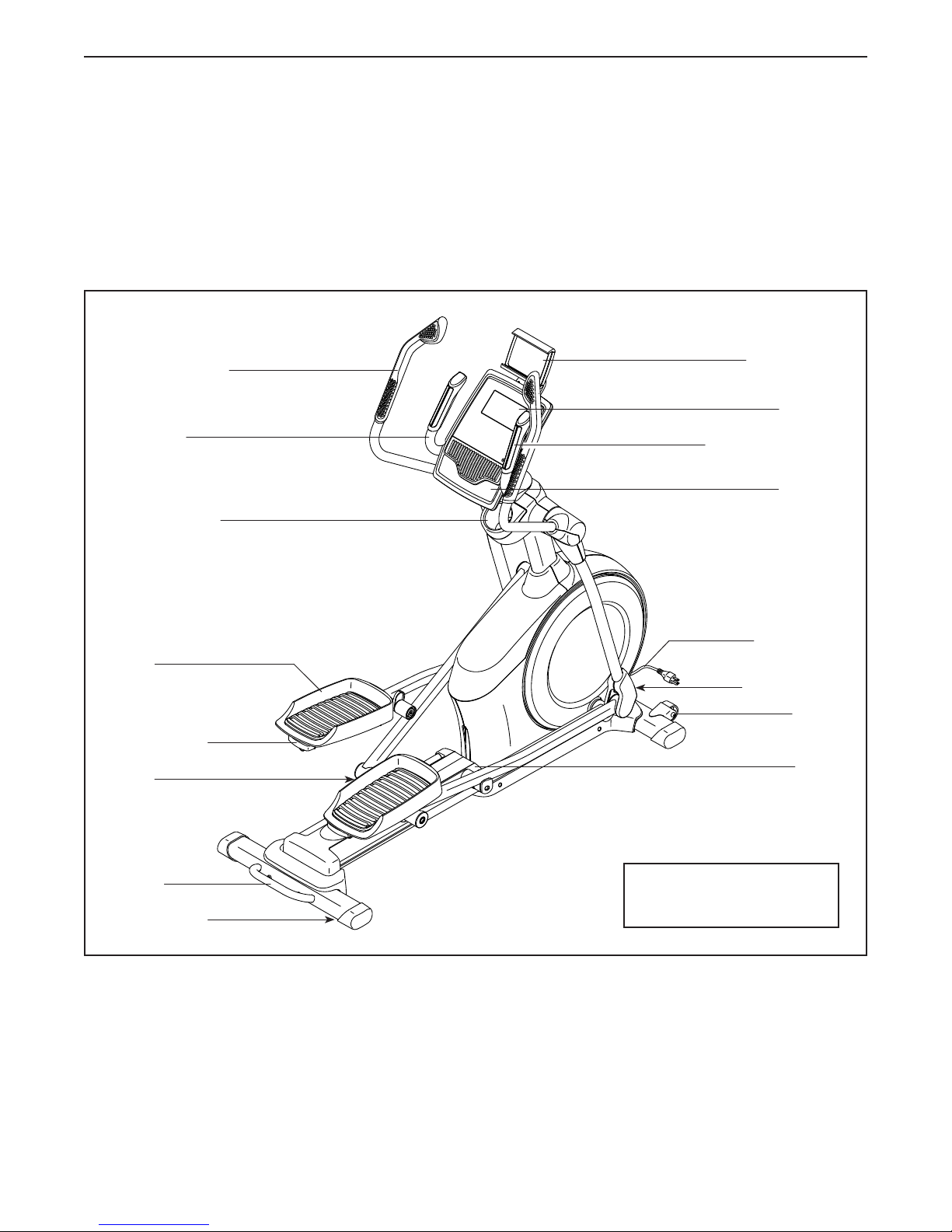

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Heart Rate Monitor

Accessory Tray

Speaker

Handlebar

Upper Body Arm

Pedal

Roller

Handle

Ramp

Console

Tablet Holder

BEFORE YOU BEGIN

Wheel

Power Cord

Power Switch

Leveling Foot

Length: 5 ft. 8 in. (173 cm)

Width: 2 ft. 10 in. (86 cm)

Pedal Handle

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included.

M8 x 20mm

Screw (126)–2

M10 x 122mm

Screw (104)–4

M8 Locknut

(102)–4

M10 Split

Washer (105)–8

M4 x 16mm

Screw (101)–16

M8 Washer

(97)–4

M5 Washer

(94)–2

M10 x 25mm

Screw (99)–4

M4 x 16mm

Machine

Screw (111)–4

M8 x 13mm

Screw (82)–6

M8 x 28mm

Washer (140)–2

M8 x 38mm Bolt

(96)–4

• To hire an authorized service technician to

assemble this product, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 7.

• In addition to the included tool(s), assembly

requires the following tools:

one Phillips screwdriver

two adjustable wrenches

one rubber mallet

Assembly may be easier if you have your own set

of wrenches. To avoid damaging parts, do not use

power tools.

ASSEMBLY

2. With the help of a second person, place some of

the packing materials (not shown) under the rear

of the Frame (1). Have the second person hold

the Frame to prevent it from tipping while you

complete this step.

Attach the Rear Stabilizer (2) to the Frame (1)

with two M10 x 122mm Screws (104) and two

M10 Split Washers (105).

Then, remove the packing materials from under

the rear of the Frame (1).

104

105

1. Go to www.proformservice.com/registration

on your computer and register your product.

• activates your warranty

• saves you time if you ever need to contact

Customer Care

• allows us to notify you of upgrades and offers

Note: If you do not have internet access, call

Customer Care (see the front cover of this

manual) and register your product.

106

3. Press the Cover Mounts (106) on the underside

of the Rear Stabilizer Cover (15) into the Rear

Stabilizer (2).

4. With the help of a second person, place some

of the packing materials (not shown) under the

front of the Frame (1). Have the second per-

son hold the Frame to prevent it from tipping

while you complete this step.

Attach the Front Stabilizer (6) to the Frame (1)

with two M10 x 122mm Screws (104) and two

M10 Split Washers (105).

Then, remove the packing materials from under

the front of the Frame (1).

6104

105

6. See the inset drawing. Locate the wire tie (B)

in the lower end of the Upright (4). Tie the wire

tie to the Main Wire (110). Then, pull the upper

end of the wire tie until the Main Wire is routed

through the Upright.

Tip: To prevent the Main Wire (110) from

falling into the Upright (4), secure the Main

Wire with the wire tie (B).

110

5. Tip: Avoid pinching the Main Wire (110).

Avoid damaging the indicated plastic tabs

(A). Have a second person hold the Upright (4)

on the Frame (1).

Attach the Upright (4) with four M10 x 25mm

Screws (99) and four M10 Split Washers (105);

start all the Screws, and then tighten them.

Avoid pinching

the Main Wire

(110) and avoid

damaging the

tabs (A)

105

110

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Entrenador elíptico de Pro-Form

Pro-Form

Pro-Form 764hr Bike Manual de usuario

Pro-Form

Pro-Form 595 HR Manual de operación y mantenimiento

Pro-Form

Pro-Form PFEL29221 Manual de usuario

Pro-Form

Pro-Form HSE700 Manual de usuario

Pro-Form

Pro-Form 14.0 CE Manual de usuario

Pro-Form

Pro-Form 380 Razor Elliptical Manual de usuario

Pro-Form

Pro-Form 425 CSE Manual de usuario

Pro-Form

Pro-Form 850 PFEL77807.0 Manual de usuario

Pro-Form

Pro-Form 820 Pr Elliptical Manual del sistema

Pro-Form

Pro-Form PFCCEL1305.0 Manual de usuario

Pro-Form

Pro-Form 520 Razor Manual de usuario

Pro-Form

Pro-Form 1100 E Elliptical Manual de usuario

Pro-Form

Pro-Form 595 HR Manual del sistema

Pro-Form

Pro-Form Sport E5.0 Manual de usuario

Pro-Form

Pro-Form RAZOR 400 ES Manual de usuario

Pro-Form

Pro-Form PFEL28010 Manual de usuario

Pro-Form

Pro-Form PFEL75907.0 Manual de usuario

Pro-Form

Pro-Form 500 Zle Elliptical Guía de inicio rápido

Pro-Form

Pro-Form Hybrid Trainer PFEL03812.2 Manual de usuario

Pro-Form

Pro-Form PFEVEL12716.0 Manual de usuario

Pro-Form

Pro-Form 831.285870 Manual de usuario

Pro-Form

Pro-Form PFEL08011.2 Manual de usuario

Pro-Form

Pro-Form PFEVEL95910.0 Manual de usuario

Pro-Form

Pro-Form 1200 E Elliptical Guía del usuario

Manuales populares de Entrenador elíptico de otras marcas

Weslo

Weslo Momentum 4.0 Elliptical Manual de operación y mantenimiento

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manual de usuario

Torque Fitness

Torque Fitness XPLLP Manual de usuario

Octane Fitness

Octane Fitness PRO3700C Manual de usuario

Xterra

Xterra FS5.8e Manual de usuario

Bodyguard

Bodyguard E-40 Manual de usuario

Bonn Germany

Bonn Germany Concept 2.2 Manual de usuario

Precor

Precor Resolute RSL 620 Manual de usuario

NordicTrack

NordicTrack E 9.2 Elliptical Manual de usuario

Vision Fitness

Vision Fitness X6600iNetTV Manual de usuario

Matrix

Matrix MX-A5x Manual de usuario

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manual de usuario

Sears

Sears FREE SPIRIT C249 30737 0 Manual de usuario

True

True FS-64 Manual de usuario

Sport-thieme

Sport-thieme ST 310 Manual de usuario

VIRTUFIT

VIRTUFIT CTR 1.1 Manual de usuario

Kettler

Kettler GIRO C 1 Manual de usuario

CIRCLE FITNESS

CIRCLE FITNESS E7 Manual de usuario
