POSIFLEX XT-6015C Manual de usuario

Package Contents

Terminal with base stand………x1

60W power adaptor……………x1

Power cord……………………..x1

Screw for IO cable cover………x2

User manual……………………x1

Recovery or information CD......x1

XT-6015C

Fanless POS Terminal

User Manual

16760905030 Ver. C0

http://www.posiflex.com

SOME IMPORTANT NOTES

FCC NOTES

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

CE CLASS A WARNING

This equipment is compliant with Class A of CISPR 32. In a residential

environment this equipment may cause radio interference.

WARRANTY LIMITS

Warranty will terminate automatically when the machine is opened by any

person other than the authorized technicians. The user should consult his/her

dealer for the problem happening. Warranty voids if the user does not follow

the instructions in application of this merchandise. The manufacturer is by no

means responsible for any damage or hazard caused by improper application.

警告使用者

此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，

在此種情況下，使用者會被要求採取某些適當的對策。

SAFETY INSTRUCTIONS

This equipment is not suitable for use in locations where children are likely to

be present.

CONSIGNES DE SÉCURITÉ

Cet équipement ne convient pas à une utilisation dans des lieux pouvant

accueillir des enfants.

BATTERY CAUTION NOTES

Dispose of used batteries according to the instructions.

Replacement of a battery with an incorrect type that can defeat a

safeguard (for example, in the case of some lithium battery types)

Disposal of a battery into fire or a hot oven, or mechanically crushing

or cutting of a battery that can result in an explosion.

Leaving a battery in an extremely high temperature surrounding

environment that can result in an explosion or the leakage of flammable

liquid or gas.

A battery subjected to extremely low air pressure that may result in an

explosion or the leakage of flammable liquid or gas.

BATTERIE ATTENTION NOTES

Jetez les piles usagées conformément aux instructions.

Remplacement d'une batterie avec un type incorrect qui peut annuler

une sauvegarde (par exemple, dans le cas de certains types de batterie

au lithium)

Mise au rebut d'une batterie dans le feu ou dans un four chaud, ou

écrasement ou coupure mécanique d'une batterie pouvant entraîner une

explosion.

Laisser une batterie dans un environnement environnant à des

températures extrêmement élevées pouvant entraîner une explosion ou

la fuite de liquide ou de gaz inflammable.

Une batterie soumise à une pression atmosphérique extrêmement basse

pouvant provoquer une explosion ou une fuite de liquide ou de gaz

inflammable.

警告

本電池如果更換不正確會有爆炸的危險，請依製造商說明書處理用過之

電池。

Product Features

Standard Features

System

Intel Kaby Lake-U Core i5-7360U Processor

Mechanical Structure

Fanless structure with Aluminum die-cast main unit casing

Water resistant structure allowing easy cleaning

Foldable base

Display

High-quality 15” TFT active matrix LCD monitor provided with true-flat

Projected Capacitive touch panel supporting 10-point multi-touch

Optional Items

System

1 x DDR4 SO-DIMM slot memory

Windows 10 IoT 64-bit

Wireless Communication

WiFi + BT module, through M.2 Interface

Connection Cable

RJ50-to-DB9 serial port conversion cable

Split cable for 2 cash drawer control

Base

GEN 8E base including poweredUSB board, and supporting

60W/80W/150W power adaptor

Integration Kit

Integrated side mount upgrade kits, such as SA-105 provided with

optional MSR, SA-205 provided with iButton, SA-305, and SA-405

1 x M.2 2280 + 1 x SATA for storage. SATA port is reserved for 2.5”

HDD/SSD accessible from service window. Storage device is located in

the base.

PoweredUSB kit in GEN 8E base stand, such as PU-480 or PU-490

Power adapter kits for 80W/150W power adapters

Back mount displays, such as LM/TM or PD series models.

Views of the XT-6015C

Front and Rear Views of Terminal with Gen 7E Base Stand

Left Side View of Terminal with Gen 7E Base Stand

Bottom View of Terminal with GEN 7E Base Stand

Neck Cover

DDR4 Memory Cover

LCD Touch Panel

Power Indicator

Base Stand

Hinge

for main unit

Cable Exit

Cable Cover

Bottom Plate

Rubber Cushion

Wrapping Screw

Power Button

Brightness Adjustment

Button “+”

Brightness Adjustment

Button “-”

USB 2.0 Port

Locking Hook

Front and Rear Views of Terminal with GEN 8E Base Stand

Left Side View of Terminal with GEN 8E Base Stand

Bottom View of Terminal with GEN 8E Base Stand

Power Button

Brightness Adjustment

Button “+”

Brightness Adjustment

Button “-”

USB 2.0 Port

Locking Hook

DDR4 Memory Cover

LCD Touch Panel

Power Indicator

Base Stand

Hinge

for main unit

Cable Exit

Neck Cover

Cable Cover

Rubber Cushion

Wrapping Screw

PoweredUSB Board Cover

Bottom Plate

Power Adaptor Chamber

Views of I/O Interfaces of Terminal

DC-IN Power Jack

USB 2.0 Port

CR Port

USB 3.0 Port

RJ50 COM Port

LAN Port

VGA Port

Positioning your POS for a Perfect Viewing Angle

The adjustable bases designed for XT-6015C come in two models, Gen 7E/8E,

and allow you to determine an ideal position for your terminal by using its

unique tilt adjustment mechanism. As the below figures suggest, both bases

provide three standard positioning solutions for your terminal: Flat Folded

mode, Low Profile mode, and Full Extended mode.

XT-6015C with Gen 7E Base

Flat Folded mode

Low Profile mode

Full Extended mode

XT-6015C with Gen 8E Base

Flat Folded mode

Low Profile mode

Full Extended mode

In general, XT-6015C will be set up beforehand in Flat Folded mode and then

packaged into the box for shipping. After it is unpacked, you may re-adjust the

terminal in either Low Profile mode or Full Extended mode according to

your situation. Below will provide instructions on how to adjust the specific

base connected to the POS system. As a reminder, please be careful not to

touch the LCD panel while setting up the tilt angle.

XT-6015E with Gen 7E Base

Please refer to the following instructions on how to switch among different

positioning modes to find an ideal viewing angle for XT-6015C with Gen 7E

base.

1. Unpack XT-6015C, which is supposed to be

set in flat folded mode, out of the package

box and then lay your POS system on a flat

surface.

2. Steady the base with one hand, and then tilt

the screen downwards.

3. Position your terminal in Full Extended mode

3.1 After grabbing the bottom edge of the screen with your hand, gently

move the screen upward until the screen is locked into place with a

click sound.

3.2 Support the screen with one hand holding onto its bottom edge.

Then, while pulling the lever backwards, move the display upwards

until the lever is snapped into the lower hook to raise the screen as

shown in the below figure.

3.3 With the screen facing toward you, tilt the

screen up or down to your desired angle.

Please do not press on the LCD panel while

setting up the tilt angle.

3.4 Remove the cable cover from the base.

3.5 Fix the base with two #/6/32-14L screws.

Lever

Lower

hook

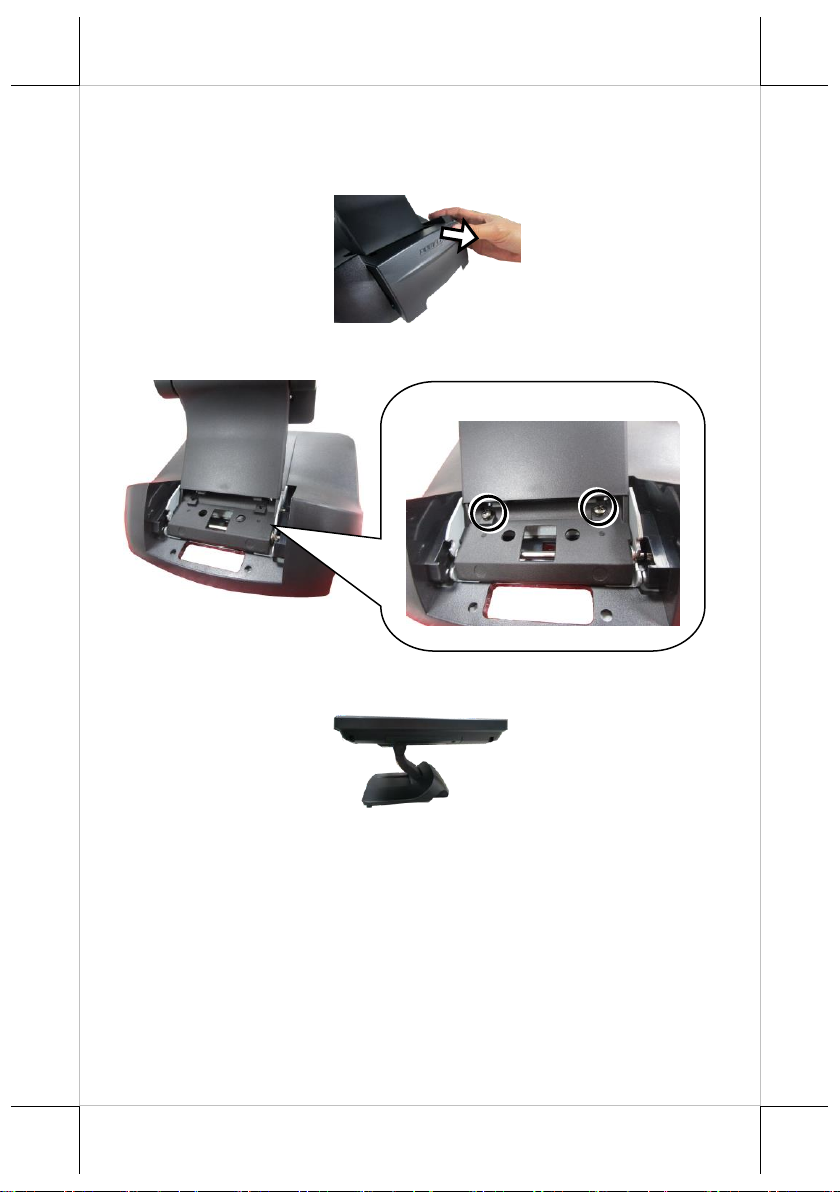

4. Return your terminal back to Flat Folded mode from Full Extended

mode.

4.1 Remove the cable cover from the base.

4.2 Remove the two screws from the base.

4.3 Tilt your screen in a horizontal position.

Remove the two screws.
