Package Contents

15” P-CAP touch terminal with Gen 7E or

Gen 8E base (x 1)

Power adapter (x 1)

Power cord (x 1)

User manual (x 1)

Product Features

Fanless Design

Intel 4th generation Haswell CPU

New Gen 7E foldable base that allows JIVA XT Series to be configured

into different configurations.

New Gen 8E foldable base that integrates internal power adaptor and

Powered USB port into the base.

Mini-PCIe expansion slot

16760900020 Ver. A0

http://www.posiflex.com

XT-5315/5515/5515Pro

P-CAP Touch Terminal

User Manual

Views of XT-5315/5515/5515Pro with Gen 7E Base

Front View

Rear View

Side View

Cable Cover

Neck Cover

HDD Cover

Cable Exit

XT-5315/5515/5515Pro

P-CAP Touch Panel

LED indicator

Power Button

Brightness Adjustment Button

＋

Brightness Adjustment Button －

Gen 7E Base

Bottom View

Views of XT-5315/5515/5515Pro with Gen 8E Base

Front View

Rear View

Cable Holder

Cable Exit

XT-5315/5515 /5515Pro

P-CAP Touch Panel

HDD Cover

Cable Cover

Neck Cover

Cable Exit

LED indicator

Rubber Feet with Fixing Screw

Gen 8E Base

Side View

Bottom View

View of I/O Interface of XT-5315/5515

Rubber Feet with Fixing Screw

Line Out/MIC-In

Combo Jack

USB 2.0

Ports

USB 3.0

Ports

DB9 COM Ports

VGA Port

CR Port

LAN Ports

12V BAT Port

DC IN

Power

Connector

Rubber Feet with Fixing Screw

RJ-50 COM Ports

UPS Battery

Compartment

Power Adapter

Compartment

PoweredUSB

Compartment

HD Compartment

Power Button

Brightness Adjustment Button

＋

Brightness Adjustment Button －

View of I/O Interface of XT-5515Pro

Positioning your POS for a Perfect Viewing Angle

The adjustable bases designed for XT-5315/5515/5515Pro come in two models,

Gen 7E/8E, and allow you to determine an ideal position for your terminal

using its unique tilt adjustment mechanism. As the below figures suggest, both

bases provide three standard positioning solutions for your terminal: Flat

Folded mode, Low Profile mode, and Full Extended mode.

XT-3515/5515/5515Pro with Gen 7E Base

Flat Folded mode

Low Profile mode

Full Extended mode

XT-3515/5515/5515Pro with Gen 8E Base

Flat Folded mode

Low Profile mode

Full Extended mode

Line Out/MIC-In

Combo Jack

USB 3.0

Ports

DB9 COM Ports

VGA Port

CR Port

LAN Port

12V BAT Port

DC IN

Power

Connector

RJ-50 COM Ports

HDMI Port

In general, XT-5315/5515/5515Pro will be set up beforehand in Flat Folded

mode and then packaged into the box for shipping. After it is unpacked, you

may re-adjust the terminal in either Low Profile mode or Full Extended mode

according to your situation. Below will provide instructions on how to adjust

the specific base connected to the POS system. As a reminder, please be

careful not to touch the LCD panel while setting up the tilt angle.

XT-3515/5515/5515Pro with Gen 7E Base

Please refer to the following instructions on how to switch among different

positioning modes to find an ideal viewing angle for XT-5315/5515/5515Pro

with Gen 7E base.

1. Unpack XT-5315/5515/5515Pro, which is

supposed to be set in flat folded mode, out of

the package box and then lay your POS

system on a flat surface.

2. Steady the base with one hand, and then tilt

the screen downwards.

3. Position your terminal in Full Extended mode

3.1 After grabbing the bottom edge of the screen with your hand, gently

move the screen upward until the screen is locked into place with a

click sound.

3.2 With the screen facing toward you, tilt the

screen up or down to your desired angle.

Please do not press on the LCD panel while

setting up the tilt angle.

4. Return your terminal back to Flat Folded mode from Full Extended

mode.

4.1 Tilt your screen in a horizontal position. Then, remove the cable

cover from the base.

4.2 Support the screen with one hand holding onto its bottom edge.

While pulling the lever backwards, move the display downwards

until the lever is lifted off the hook as shown in the figure

4.3 Push the cable cover back.

4.4 Tilt the screen again to the horizontal

position.

Hook

Lever

5. Position the terminal in Low Profile mode.

5.1 Follow Step 4 to set up the termimal in Flat

Folded mode.

5.2 Tilt the screen all the way down

5.3 To tilt screen up or down to your desired

angle, please be advised to keep the base

steady with one hand to do so. Do NOT

press on the LCD panel while setting up the

tilt angle.

XT-5315/5515/5515Pro with Gen 8E Base

Please refer to the following instructions on how to switch among different

positioning modes to find an ideal viewing angle for XT-5315/5515/5515Pro

with Gen 8E base.

1. Unpack XT-5315/5515/5515Pro, which is

supposed to be set in flat folded mode, out

of the package box and then lay your POS

system on a flat surface.

2. While steadying the terminal with your

hand holding onto the base, tilt the screen

down.

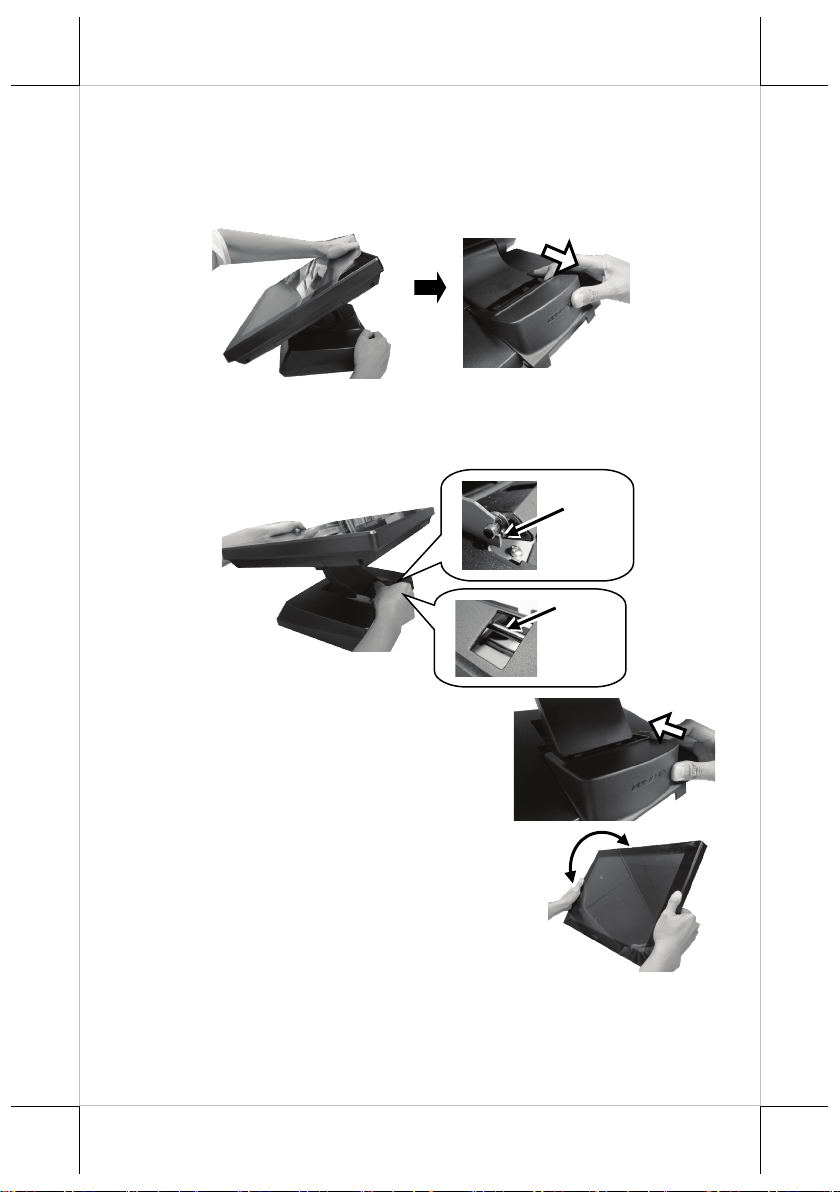

3. Push the cable cover outwards to remove

it from the base.

4. Position your terminal in Full Extended mode.

4.1 Support the screen with one hand holding onto its bottom edge.

Then, while pulling the lever backwards, move the display upwards

until the lever is snapped into the lower hook to raise the screen as

shown in the below figure.

4.2 Push the cable cover back.

4.3 Tilt the screen up or down to your

desired angle. Please do not press on

the LCD panel while setting up the tilt

angle.

Lower

hook

Lever

5. Position the terminal in Low Profile mode.

5.1 While keeping your terminal steady with your hand holding on to

the base, tilt your terminal down. Then, remove the cable cover

from the base.

5.2 Support the screen with one hand holding onto its bottom edge.

Then, while pulling the lever backwards, move the display

upwards or downwards until the lever is snapped into the upper

hook to lower the screen as shown in the below figure.

5.3 Push the cable cover back.

5.4 Tilt the screen up or down to your

desired angle. Please do not press on

the LCD panel while setting up the

tilt angle.

Lever

Upper

hook
