PNI IP52 2MP Manual de usuario

PNI IP52 2MP

Video surveillance IP camera/Videoüberwachung IP-Kamera

Cámara IP de videovigilancia/Caméra IP de vidéosurveillance/

Videomegﬁgyelő IP kamera/Telecamera IP di videosorveglianza/

Kamera IP do nadzoru wideo/Camera supraveghere video

EN User manual ............................................. 3

BG Ръководство за употреба ................... 13

DE Benutzerhandbuch ................................... 

ES Manual de usuario .................................... 33

FR Manuel utilisateur ..................................... 43

HU Használati utasítás ................................... 53

IT Manuale utente ........................................ 63

NL Handleiding .............................................. 73

PL Instrukcja obsługi ..................................... 83

RO Manual de utilizare ................................... 93

3User manual

English

Main features

• WiFi and AP connection modes

• Recording on micro SD card, max. 128GB (card not included)

• Two-way audio (built-in microphone and speaker)

• Outdoor mounting, water protection class IP66, metal housing

• 18 IR LEDs for night vision to a distance of up to 30 m

• P2P connection for remote monitoring

• Remote control via CamHi application (Android/iOS) and via HiP2P

application (Windows PC)

Package contents

• Surveillance camera

• WiFi antenna

• Power adapter 230V - 12V/2A

• Ethernet cable (1 m)

• CD with software

Connections

• 12V power connector - insert the power adapter included in the package

(230V - 12V/2A)

• RJ45 connector - insert the Ethernet cable included in the package in

order to connect the camera to the router

• Reset - long press to reset the camera

User manual 4

English

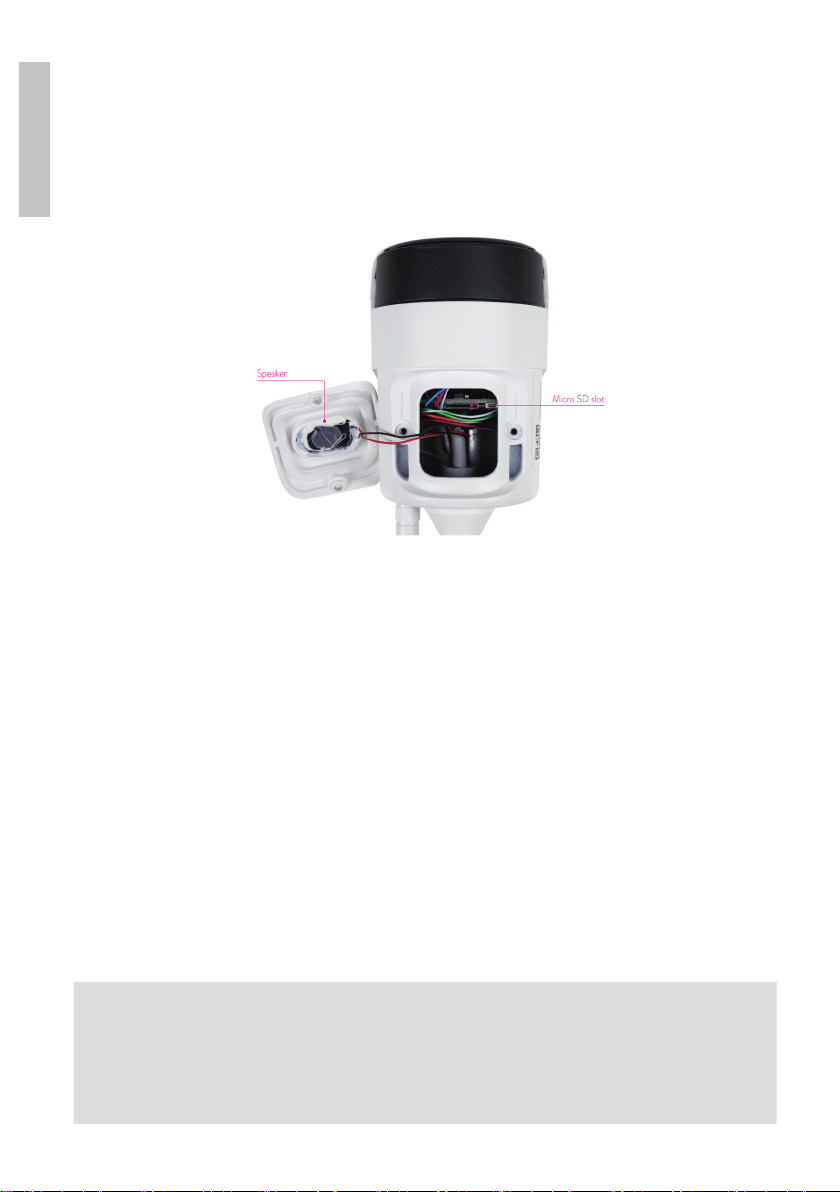

Camera installation and connection

1. Install the WiFi antenna on the camera.

2. Install the micro SD card (max. 128Gb) in the camera.

3. Connect the power adapter to the camera and to a 230V outlet.

Note: We recommend that you use the power adapter included in the package

(12V/2A).

4. Connect the network cable to the RJ45 connector of the camera and to

the router.

Warnings:

• Make sure the router is connected to the internet.

• Check if the LAN port in the router where the camera will be connected to

has internet access. Use a laptop or PC connected to this port. Green network

indicator - means that the transmission of network data is normal.

The camera will start in AP mode when connected to the power supply only.

You can connect directly to the camera via AP mode. For additional details,

see the documentation “How to use the camera’s AP mode” on the CD

included in the package.

5User manual

English

Conﬁgure and view the camera on the mobile phone

Notes:

To add and conﬁgure the camera through the application, the camera and

the mobile phone must be connected to the same router (the phone via

WiFi and the camera via LAN cable, as described above).

The default username of the camera is admin, and the default password is

admin.

Add the camera to the application

1. Download and install the application CamHi.

Android iOS

2. Open the application, create an account and log in.

3. Press Add Camera

4. In the next interface, you have several options to add the camera:

• Manually enter the camera UID, user and password (you can ﬁnd this

data on the label pasted on the camera). Default username and password

are admin, admin.

• Scan the QR code on the label pasted on the camera (Scan QR code,

add UID)

User manual 6

English

• Search for the camera in the network (Search Camera from LAN)

Note: If the procedure Search camera from LAN fails, make sure you have

internet on the LAN port where the camera is connected.

• After successfully adding the camera, tap the camera in the list to view

the images taken by it in real time. Note: The status of the camera must be

Online.

Connect the camera to the WiFi network

1. Click the icon next to the camera you want to conﬁgure. Note: The

status of the camera must be Online.

2. From the settings menu displayed, select Wi-Fi Setting.

3. Select the WiFi network you want to connect to and input the password.

7User manual

English

Conﬁgure recording on micro SD card

1. Purchaseseparatelyandinstallinthecamera amicroSDcardofmaximum

128Gb. The card installation location is shown on page 4.

2. Launch the mobile application, click on the icon next to the camera

you want to conﬁgure. Note: The status of the camera must be Online.

3. From the settings menu displayed, select Action with alarm.

4. Enable the option Alarm SD REC.

5. Return to the main menu and select the option SD Card setting to check

the space available on the card.

6. Make sure that in the menu Recording Schedule the option Enable

Record is enabled.

Note: When the micro SD card installed in the camera has a reduced capacity, we

recommend activating the recording function only at motion detection. To do this,

access the menu Alarm Setting - Motion Detection.

User manual 8

English

7. To view the recordings on the micro SD card installed in the camera, press

the video option from the bottom of the application main interface.

Select the camera and the ﬁle you want to play or download.

Note: Detailed instructions about the CamHi application can be found on the CD

included in the package and on the camera’s website.

9User manual

English

Conﬁgure and view camera on the computer

Your camera can be accessed from your computer in two ways: through the

browser Internet Explorer or through the application HiP2P.

Access the camera via Internet Explorer

1. Install the application Search Tool (the installation ﬁle can be found on

the CD included in the package)

2. Connect your computer and your camera to the same router.

3. Launch the application Search Tool and click on Refresh to ﬁnd the

cameras in the same network.

4. From the list displayed, identify your camera by UID.

5. Click Next to conﬁgure network parameters. You can enter the network

parameters manually or you can check the DHCP option. Click Next.

User manual 10

English

6. Open Internet Explorer and input in the address bar your camera’s IP or

return to the list of cameras in the application Serach Tool and double-

click on the camera you want to view. It will open automatically Internet

Explorer.

7. From Internet Explorer you can view live images taken by the camera,

you can play the recordings saved on the micro SD card installed in the

camera and you can make various settings related to network, video,

audio and alarm.
