PNI PT942I Manual de usuario
PNI PT942I 1080P
Wifi H264 MicroSD slot
Night vision Tuya app P2P
indoor surveillance camera
Quick Start Guide / Ghid rapid de congurare
EN User manual ............................................. 2
RO Manual de utilizare ................................... 9
EN
2
1. ABOUT PNI PT942I 1080P CAMERA
Product introduction and main features:
PNI PT942I product is a 2MP IP camera intended for video/audio surveillance and remote monitoring
of desired locations. It connects to the Internet by Wireless in order to remotely transmit realtime video to
dedicated app on your smartphone anytime and anywhere. It can save surveillance videos on local microSD
card. The camera also supports Motion Tracking , White light at motion detection, alarm functions such as
smartphone notications push and much more other functions.
● High denition recording ● Remote audio monitoring
● Schedule Recording ● Wireless conection
● Motion detection Recording ● MicroSD TF card slot max 64 GB
● Motion detection alarm push notication ● Infrared Night Vision
● Tuya Smart iOS & Android App ● Video streaming
● Two way audio communication ● Cloud storage ( optional for monthly fee)
2. CAMERA INSTALLATION
Important conditions:
- Connect camera to a 230V power supply , using power adapter from package;
- First configuration of camera should be made with camera close to the Internet source / Router device;
- If you need local recording, install a maximum 64GB TF microSD card ( sold separately) in camera’s side
card socket.
Search for “Tuya Smart” app for iOS/Android Smartphones in App Store/Google Play store, or
scan the below QR code to download and install dedicated app:
3. REGISTER / LOG IN WITH EXISTING ACCOUNT

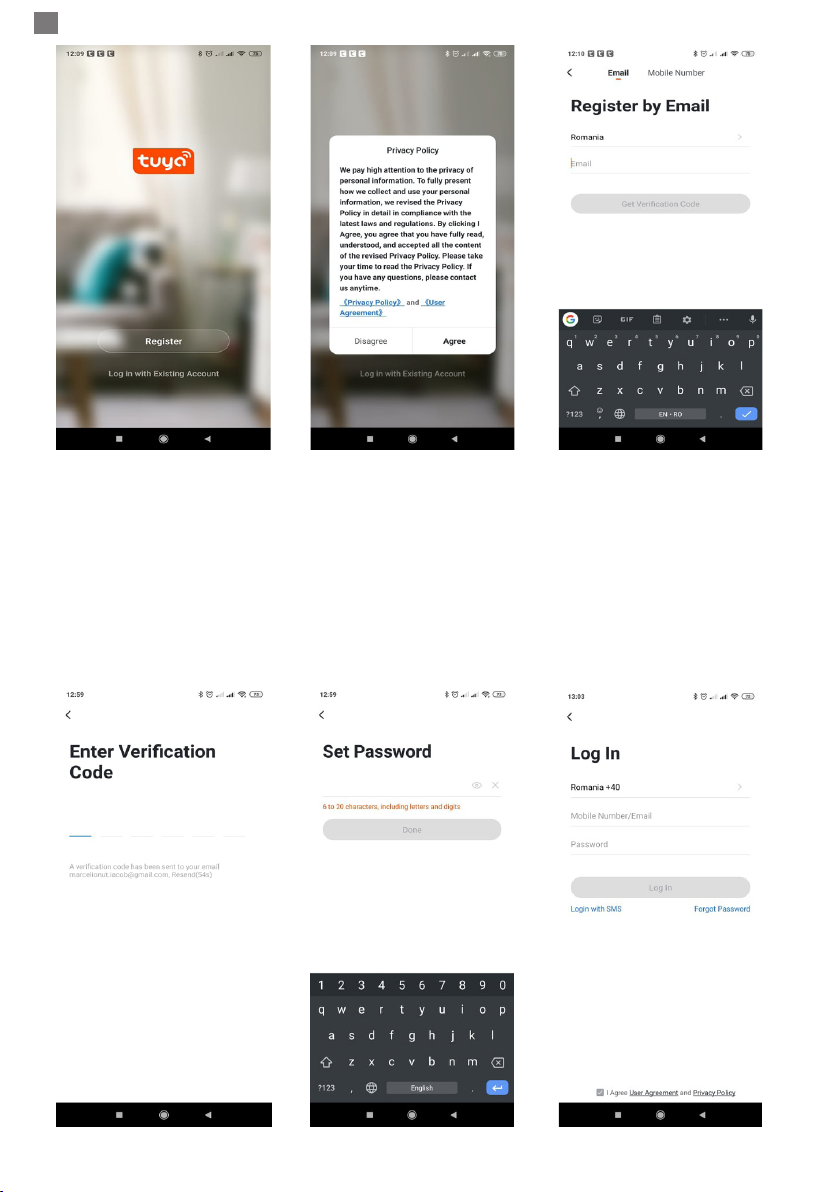

3.1 Register
If you don not have a Tuya App account yet, you can register an account or log in via personal e-mail
or personal phone number using a verication code procedure. Please read and follow next steps for the
description of registration process:
EN
3
3.2 Register
If you have already registered an account, you can skip the creating a new account,click “Log in with
existing account”, enter the log in page.
(1) The system automatically select the current Country/Region, or you can manually select the Country/
Region.
(2) Enter your registered e-mail address or mobile number enter your password to log in the system.
If your phone has installed WeChat App or QQ App, click WeChat/QQ icon in the log in with social media
acount area. After accessing the authorization page, and lled in received code from your e-mail/phone log in
the system.
EN
4
4. ADD DEVICE
4.1 QR code net-pairing (Recommended)
The product only support 2.4GHz Wi-Fi network. It does not support 5GHz Wi-Fi network. Before
conguring Wi-Fi, please check and conrm you have a 2.4 GHz network, and activate GPS Location on
your phone. The Wi-Fi password should not contain special characters of ~!@#$%^&*(). When conguring
Wi-Fi, make sure your router, mobile and device are as close as possible for a quick conguration of the
device.
Connect smartphone to this Wi-Fi 2.4 GHz router with internet access. Activate GPS location from phone.
If any of this condition are not met conguration will fail.
● App supports QR code net-pairing and Wi-Fi connection. You can choose to add device by other options.
● Power On the camera, and you can hear the broadcast “Beep, Beep, Beep. . . .”, (if you heard nothing at
all, please click and hold “reset” button on back of camera for 20 seconds to restore factory settings).
● When the mobile phone connecting to Wi-Fi, click “Add Device” or “+“ icon (gure 1) on the Home screen
of the App, select “Security & Sensor”(gure 2)→ “Smart Camera”, click “next step” (gure 3).
Enter Wi-Fi account and password, click “Conrm” (gure 4).
Figure 1 Figure 2
Figure 3 Figure 4
EN
5

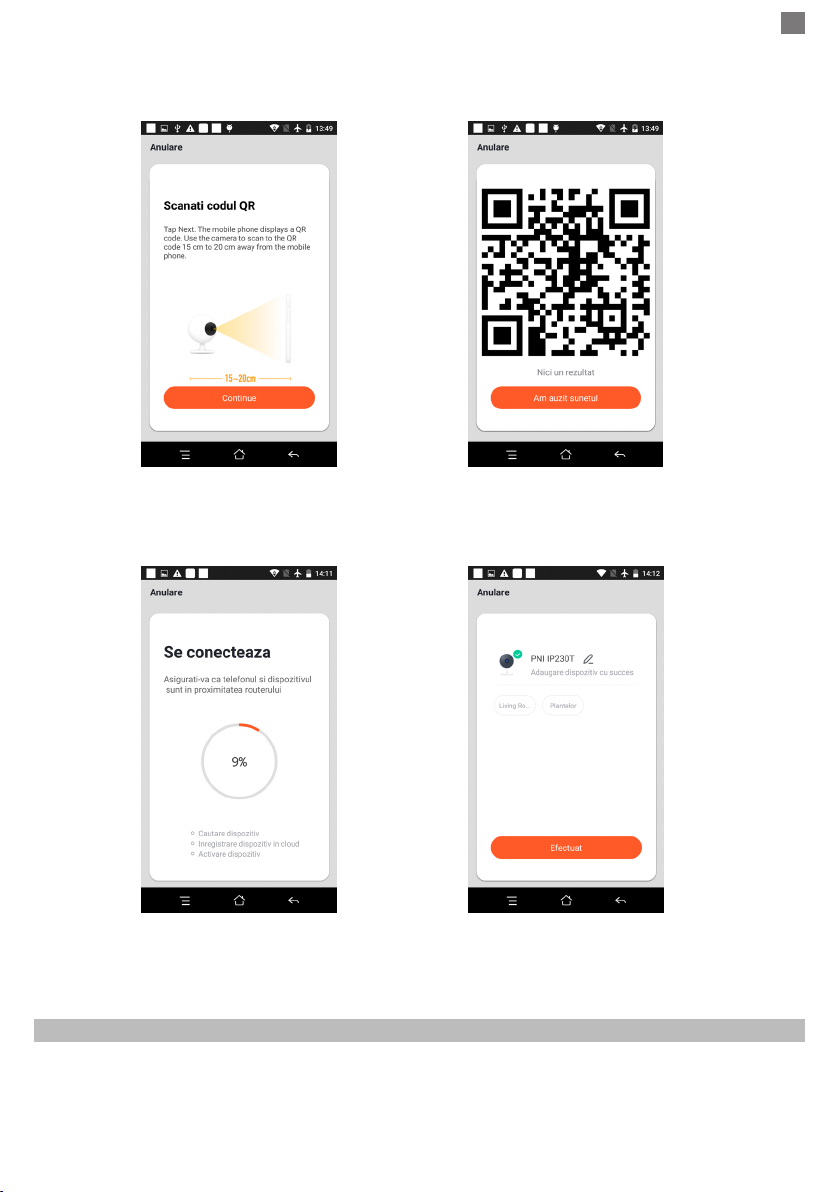

● Hold the mobile phone screen in the front of the camera (gure 5), the distance between the two should be
15 to 20 cm. (gure 6) Try not to shake the mobile phone during the scanning.
Figure 5 Figure 6
● When you hear a conrmation “ Beeeeeeeeeep”, click “Connect Internet”, and wait for connecting (gure
7).
● Device added successfully (gure 8), you can choose the device name and room scene.
Figure 7 Figure 8
4.2 AP mode Connection is an alternative that can be selected from Figure 3 Step from Right
Corner. After selecting this procedure follow On-screen steps.
5. FUNCTION DESCRIPTION
Real-time preview interface
1. Setting & Management 2. Wi-Fi signal strength
3. Sound switch 4. SD/HD
5. Full screen 6. Screenshot
7. Voice chat 8. Record live view
EN
6
9. Playback of video
10. PTZ control (The camera can be arbitrarily rotated to give you a different perspective. You can move it up
and down, capture any corner you want to view)
11. Motion detection alarm (abnormal report notication through intelligent detection of anomaly in home. You
can go out to work and play condently. To set the alarm level according to the camera’s led of view can
make the alarm more accurate)

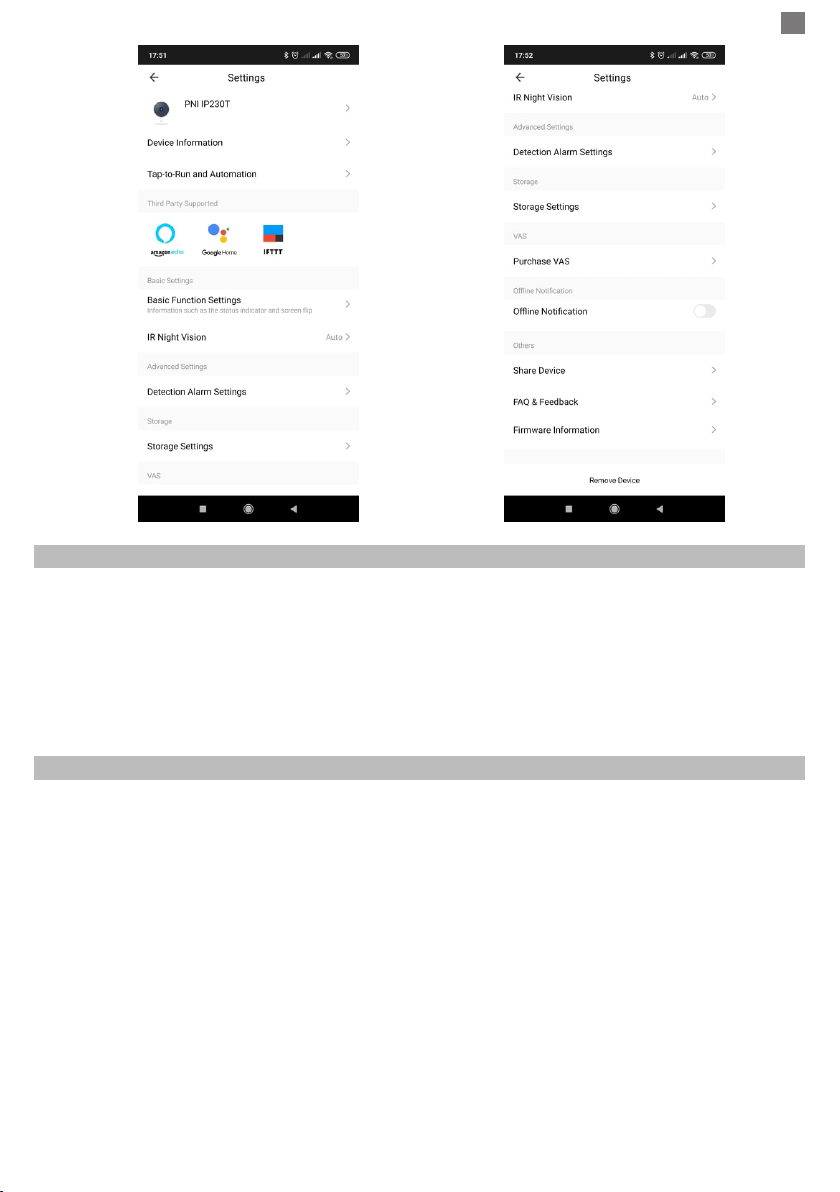

6. CLICK “ 1 “ IN THE UPPER RIGHT CORNER OF THE CONTROL PAGE FOR THE MANAGEMENT
AND SETTING OF THE DEVICE.
● Device Name - can modify the device name and device location;
● Device Information - to view: Device ID, Wi-Fi signal strength, IP address, Mac address, Device time zone.
● Tap-to-Run and Automation - View automations and scenaries created for this device
● Third Party Supported - Compatible smart services
● Basic Settings - Basic settings of camera
● Advanced Settings - Detection Alarm Settings - can set the motion detection switch, motion detection
alarm sensitivity and motion tracking function
● Storage settings - Shows microSD card informations, and settings for Local Recording mode.
● VAS - Value-added service : you can purchase separately video cloud storage service for this camera for
monthly fee (optional according to customer needs)
● Offline Notification - Activates an alarm is camera goes Offline
● Share Device - can share this device to other people, enter the people’s e-mail or mobile phone number;
(Note: the entered e-mail / mobile phone number should be registered with a Tuya App account).
● FAQ & Feedback - Questions and solutions for any problems with product behaviour.
● Firmware Information - Support OTA Remote Upgrade (Do not disconnect during upgrading).
EN
7
7. CLICK “ME” ON THE HOME SCREEEN OF TUYA APP FOR MORE SERVICES
1. Home Management
2. Message Center
3. FAQ & Feedback
4. More Services
- Free Services: IFTTT , Google Assistant, Alexa, etc;
- Value-added Services : you can check the purchasing record of purchased value-added services: Cloud
Storage for Cameras, AI Filtered Notications etc;
5. Settings and informations for your Tuya app account: Sound, Notications, Network, Cache
8. FREQUENTLY ASKED QUESTIONS
Q:Fail to add device during net-pairing?
A:Please make sure the mobile phone and device are connected to 2.4GHz router. Make sure the correct
Wi-Fi password is entered. Make shure you have activated GPS Location from your Phone.
Q:Still fail to add device after re-scanning?
A:If fail to add device, it is recommended to restart the device or power off the device, and try again.
Q: The device cannot preview?
A:Check for weak Wi-Fi signal. You can place the camera closer to the router. If it still doesn’t work, reset the
device, and add it again.
Q:Why the device is still on the list after resetting the device?
A:The device resetting only resets the camera’s network conguration and cannot change the conguration
on the App. You must log in the App to delete the camera from the list.
Q:How to connect the camera to another router?
A:First log in the App to delete and reset the device, and congure the device again through the App.
Q:Why the device cannot identify SD card?
A:It is recommended to power Off and On the device after inserting the SD card. Check if the SD card is
under normal service conditions and the format is FAT32. The App shall suggest “”could not nd SD card””
under unstable network of the mobile phone or the device.
Q:The device is online and has an alarm event, but the mobile phone cannot receive the information?
A:First conrm that App allows notication in the settings of your mobile phone.
EN
8
Under normal circumstances, when an anomaly is detected, a message will appear in the notication bar of
your mobile phone. You should set a notication sound or vibration in your mobile phone.
In addition, when viewing real-time video in the App you cannot receive alarm from the camera being viewed.
Because the device default function the camera being viewed indicating that the user is focusing on the
monitoring video, and there is no need for an alarm.
Using the advanced intelligent alarm push algorithm to ensure that the alarm message will not be frequently,
but the camera will record all the alarm messages and videos.
9. PRODUCT SPECIFICATIONS
system
CHIP Realtek3903+2235
image sensor 1/2.7" CMOS 2235 HD
Operation System Embedded LINUX OS system
Application TUYA Smart / Smart Life
Video
High Denition 1080P
Video Compression Smart H.264
low illumination 0.1LUX
picture Capture Support
Video Flip Support
Lens
Illumination
Camera lens 3.6MM xed lens
Lamp board 6 pcs IR
Audio Coding standard G.711
Two-way Speech Support
Record
management
Video le size 2.5GB-4.5GB/Day
Record Mode Manual record, motion detection record, scheduled record, alarm
record
Video storage TF Card/Cloud
playback, back up Support
Alarm trigger Alarm recording, screen shot capture
WIFI 802.11b/g/n
Bitstream Dual Stream
Network Protocol Support TCP/IP
transmission mode P2P, Smart Cloud Sever
WIFI connection Sweep QR code, AP Hotspot Addition
extend
TF Card Maximum support 64GB TF card
Reset key Support
power supply Power DC 5V 1A
Power consumption 5 W
work environment
Instalation Inside
Installation mode Table, wall installation
Working Temperature -20˚C ~+60˚C
Working humidity 10% - 90%
General Material ABS for indoor use
Product weight 150 g
RO
9
1. DESPRE CAMERA PNI PT942I 1080P
Introducere si functii principale:
Produsul Camera PNI PT942I este o camera IP de 2MP destinata supravegherii si monitorizarii video/
audio de la distanta a locatiilor dorite. Camera se conecteaza la internet prin wireless pentru a transmite
imagini video in timp real catre aplicatia dedicata de pe smartphone-ul dvs. oricand si oriunde. Poate
salva videoclipuri local pe cardul microSD sau pe telefonul conectat la camera. Camera este echipata de
asemenea cu functiile de alarma la detectie miscare si noticari pe smartphone.
● Inregistrare HD ● Monitorizare audio de la distanta
● Inregistrare programata ● conexiune WiFi
● Inregistrare la detectie miscare ● slot pentru card microSD TF max 64 GB
● Noticari la alarma de detectie miscare ● Vizualizare de noapte in infrarosu IR
● Aplicatie dedicata Tuya Smart iOS si Android ● Transmitere video stream
● Comunicare audio bidirectionala ● stocare in cloud (optional pentru taxa lunara)
2. INSTALAREA CAMEREI
Conditii importante:
- Conectati camera la o sursa de alimentare de 230 V, folosind adaptorul din pachet;
- Prima configurare trebuie facuta in apropierea sursei de internet / router wireless;
- Daca aveti nevoie de inregistrari locale, instalati in camera un card TF microSD de maxim 64 GB (nu este
inclus ) in slotul lateral.
Cautati aplicatia „Tuya Smart” pentru smartphone iOS / Android in App Store / Google Play Store
sau scanati codul QR de mai jos pentru a descarca si instala aplicatia dedicata:
3. INREGISTRARE / CONECTATI-VA CU UN CONT EXISTENT
3.1 Inregistrare
Daca nu aveti inca un cont in aplicatia Tuya, puteti sa va inregistrati/creati un cont sau sa va autenticati
prin e-mail personal sau prin numarul de telefon personal, folosind o procedura cu cod de vericare. Cititi si
urmati pasii urmatori in care este descris procesul de inregistrare:
RO
10
3.2 Inregistrare
Daca aveti deja un cont in aplicatia Tuya, puteti sari peste crearea unui cont nou si faceti clic pe „Log in
with existing account” pentru a accesa pagina de autenticare.
(1) Sistemul selecteaza automat Tara / Regiunea curenta sau puteti selecta manual Tara / Regiunea.
(2) Introduceti adresa dvs. de e-mail inregistrata sau numarul mobil si o parola pentru a va autentica in
sistem.
Daca telefonul dvs. are instalata aplicatia WeChat sau QQ App, faceti clic pe pictograma WeChat / QQ in
zona de logare cu un cont de social media. Dupa ce ati accesat pagina de autorizare si ati completat codul
primit pe e-mail / telefon puteti sa accesati contul dumneavoastra.
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Idiomas:
Otros manuales de Cámara de seguridad de PNI
PNI
PNI IP550MP Manual de usuario
PNI
PNI House AHD25 Manual de usuario
PNI
PNI IP52 2MP Manual de usuario
PNI
PNI IP230T Manual de usuario
PNI
PNI IP649 Manual de usuario
PNI
PNI IP930W Manual de usuario
PNI
PNI IP4MP Instrucciones de funcionamiento
PNI
PNI IP5POE Manual de usuario
PNI
PNI IP20MP Manual de usuario
PNI
PNI IP12MP Manual de usuario
PNI
PNI PTZ943I Manual de usuario
PNI
PNI IP801W Manual de usuario
PNI
PNI House AHD32LR Manual de usuario
PNI
PNI IP720LR Manual de usuario
PNI
PNI IP735 Manual de usuario
PNI
PNI HOUSE AHD40 Manual de usuario
PNI
PNI IP65 live Manual de usuario
PNI
PNI IP125 Manual de usuario
PNI
PNI IP52 2MP Manual de usuario
PNI
PNI House PTZ1200 Manual de usuario
