Planet Networking & Communication SGS-6310 Series Manual de usuario
Layer 3 Gigabit/10 Gigabit Stackable Managed Switch
SGS-6310 Series
Quick Installation Guide
Table of Contents
1. Package Contents ....................................................................................... 3
2. Switch Management.................................................................................... 4
3. Requirements ............................................................................................. 5
4. Terminal Setup ........................................................................................... 6
4.1 Logging on to the Console.................................................................... 7
4.2 ConguringIPAddress......................................................................... 7
4.3 Setting1000BASE-Xfor10GSFP+Port................................................. 9
4.4 ChangingPassword.............................................................................. 9
4.5 SavingtheConguration ...................................................................... 9
5. Starting Web Management .........................................................................10
5.1 LoggingintotheManagedSwitchfromcopperports ............................11
5.2 SavingCongurationviatheWeb ........................................................12
6. LEDIndicators...........................................................................................13
6.1 SGS-6310-24T4X................................................................................13
6.2 SGS-6310-24P4X................................................................................14
6.3 SGS-6310-16S8C4XR..........................................................................15
7. Customer Support .....................................................................................16
3
1. Package Contents
Thank you for purchasing Layer 3 Gigabit/10 Gigabit Stackable Managed
Switch,SGS-6310-16S8C4XR/SGS-6310-24T4X/SGS-6310-24P4X
Unless specied, “Managed Switch” mentioned in this Quick Installation Guide
referstotheSGS-6310-16S8C4XR/SGS-6310-24T4X/SGS-6310-24P4X.
Model Description
SGS-6310-16S8C4XR
Layer316-Port100/1000XSFP+8-PortGigabitTP/SFP+
4-Port10GSFP+StackableManagedSwitch
(Dual100~240VAC)
SGS-6310-24T4X Layer324-Port10/100/1000T+4-Port10GSFP+
StackableManagedSwitch
SGS-6310-24P4X. Layer324-Port10/100/1000T802.3atPoE+4-Port10G
SFP+StackableManagedSwitch
Open the box of the Managed Switch and carefully unpack it. The box should
containthefollowingitems:
SGS-6310-16S8C4XR SGS-6310-24T4X SGS-631024P4X
QuickInstallation
Guide
DB9toRJ45Interface
RS232 Console Cable
Rack-mountAccessory
Kit
ACPowerCord 2 1 1
SFPDustCap 28 4 4
If any item is found missing or damaged, please contact your local reseller for
replacement.
4
2. Switch Management
To set up the Managed Switch, the user needs to congure the Managed Switch
fornetwork management.The ManagedSwitch providestwo managementoptions:
Out-of-Band ManagementandIn-Band Management.
Out-of-Band Management
Out-of-band management is the management through console interface.
Generally, the user will use out-of-band management for the initial switch
conguration,orwhenin-bandmanagementisnotavailable.
In-Band Management
In-band management refers to the management by logging in to the Managed
Switchusing Telnetor HTTP,orusing SNMPmanagement softwaretocongure the
Managed Switch. In-band management enables the management of the Managed
SwitchtoattachsomedevicestotheSwitch.Thefollowingproceduresarerequired
toenablein-bandmanagement:
1. Log on to console
2.Assign/CongureIPaddress
3. Create a remote login account
4.EnableHTTPorTelnetserverontheManagedSwitch
In case in-band management fails due to Managed Switch conguration changes,
out-of-band management can be used for conguring and managing the Managed
Switch.
The Managed Switch is shipped with VLAN1 interface IP address
192.168.0.254/24 assigned by default. User can assign another
IP address to the Managed Switch via the console interface to be
able to remotely access the Managed Switch through Telnet or
HTTP.
5
3. Requirements
zWorkstations running Windows XP/2003/Vista/2008/7/8/10, MAC OS X or later,
Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.
zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)
zSerial Port Connection(Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
The above Workstations have been installed with terminal emulator, such as
Tera Term or PuTTY.
Serial cable -- one end is attached to the RS232 serial port, while the other
endtotheconsoleportoftheManagedSwitch.
zManagement Port Connection
Networkcables--Usestandardnetwork(UTP)cableswithRJ45connectors.
TheabovePCisinstalledwithWebbrowser
Note
Itis recommended touse InternetExplorer8.0 orabovetoaccess
the Managed Switch. If the Web interface of the Managed Switch
is not accessible, please turn off the anti-virus software or firewall
andthentryitagain.
6
4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebook computer and to serial (console) port of the Managed Switch. The
console port of the Managed Switch is DCE already, so that you can connect the
consoleportdirectlythroughPCwithouttheneedofNullModem.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45
Figure 4-1 Managed Switch Console Connectivity
A terminal program is required to make the software connection to the Managed
Switch. Tera Term program may be a good choice. The Tera Term can be accessed
fromtheStart menu.
1. Click START menu, then Programs,andthenTera Term.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud:9600
Parity:None
Databits:8
Stopbits:1
Flowcontrol:None
Figure 4-2 Tera Term COM Port Conguration
7
4.1 Logging on to the Console
Once the terminal is connected to the device, power on the Managed Switch, and
theterminalwilldisplay“running testing procedures”.
Then, the following message asks for the login user name and password. The
factory default user name and password are as follows as the login screen in
Figure4-3appears.
Username:admin
Password:admin
Figure 4-3 Managed Switch Console Login Screen
The user can now enter commands to manage the Switch. For a detailed
descriptionofthecommands,pleaserefertothefollowingchapters.
Note
1.For security reason, please change and memorize the new pass-
wordafterthisfirstsetup.
2.Accept command in lowercase or uppercase letter under console
interface.
4.2 ConguringIPAddress
The IP address conguration commands for VLAN1 interface are listed below.
Before using in-band management, the Managed Switch must be congured with
an IP address by out-of-band management (i.e. console mode). The conguration
commandsareasfollows:
Switch#cong
Switch_cong#interface vlan 1
Switch_cong_v1)#ip address 192.168.1.254 255.255.255.0
8

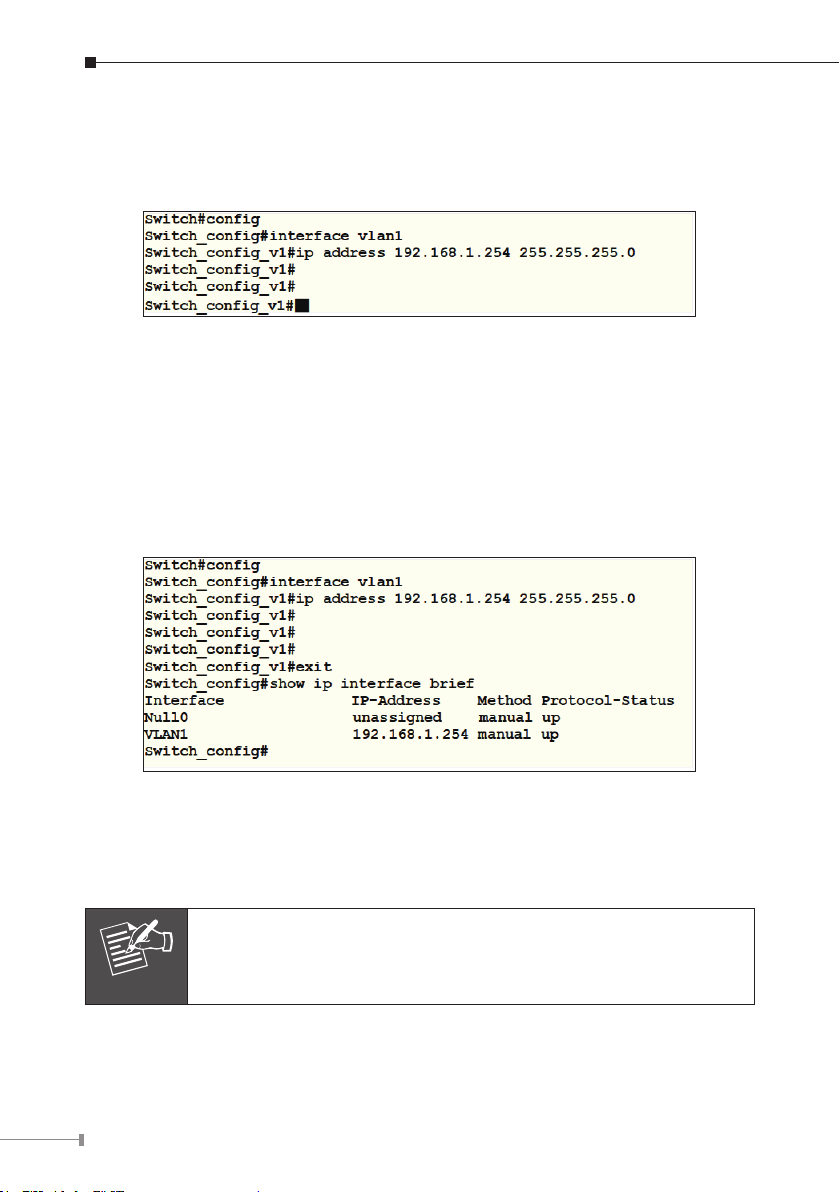

ThepreviouscommandwouldapplythefollowingsettingsfortheManagedSwitch.
IPv4 Address: 192.168.1.254
Subnet Mask: 255.255.255.0
Figure 4-4 Conguring IPv4 Address Screen
To check the current IP address or modify a new IP address for the Managed
Switch,pleaseusetheproceduresasfollows:
ShowthecurrentIPaddress
1. On “Switch#” prompt, enter “show ip interface brief”.
2.The screen displays the current IP address, subnet mask and gateway as shown
inFigure4-5.
Figure 4-5 Showing IP Information Screen
If the IP is successfully congured, the Managed Switch will apply the new IP
address setting immediately. You can access the Web interface of Managed Switch
throughthenewIPaddress.
Note
Ifyouarenotfamiliarwithconsolecommandortherelatedparam-
eter, enter “help”anytimeinconsoletogetthehelpdescription.
9
4.3 Setting1000BASE-Xfor10GSFP+Port
The Managed Switch supports both 1000BASE-X and 10GBASE-X SFP
transceivers by manual setting and the default SFP+ port speed is set in the ber
auto mode,sotheend-usercanplugthetransceiverdirectly.
In another example, the end-user has to force the ber connection with
1000BASE-X SFP transceiver in the tgigaethernet 0/1. The following command
congurationisrequired:
Switch#cong
Switch_cong#interface TGigaEthernet0/1
Switch_cong_tg0/1#no ber-auto-cong
Switch_cong_tg0/1#speed 1000
Switch_cong_tg0/1#exit
Figure 4-6 Setting 1000BASE-FX Screen
4.4 ChangingPassword
The default password of the switch is “admin”. For security reason, it is
recommended to change password and the following command conguration is
required:
Switch#cong
Switch_cong#username admin password planet2022
Switch_cong#
Figure 4-7 Changing Password Interface Screen
4.5 SavingtheConguration
InManagedSwitch, therunningcongurationle storesinthe RAM.Inthe current
version, the running conguration sequence running-cong can be saved from the
RAM to FLASH by write command, so that the running conguration sequence
becomesthestart-upcongurationle,whichiscalledcongurationsave.
Switch#write
Switch#write
Saving current conguration.
OK!
Switch#Jan 2 00:56:04 /startup-cong is wrote, TID:85bd29c0
Figure 4-8 Write Screen
10
5. Starting Web Management
The Managed Switch provides a built-in browser interface. You can manage it
remotely by having a remote host with Web browser, such as Microsoft Internet
Explorer,MozillaFirefox,GoogleChromeorAppleSafari.
PC/Workstation with
Web Browser
192.168.0.X
Managed Switch
IP Address:
192.168.0.254
RJ45/UTP Cable
Figure 5-1 IP Management Diagram
The following shows how to start up the Web Management of the Managed
Switch. Please note the Managed Switch is congured through an Ethernet
connection. Please make sure the manager PC must be set to the same IP subnet
address.
For example, the IP address of the Managed Switch is congured with
192.168.0.254 on Interface VLAN 1, then the manager PC should be set to
192.168.0.x(wherex isanumberbetween 2and253,except1 or254),andthe
defaultsubnetmaskis255.255.255.0.
Thefactorydefaultusernameandpasswordareasfollows:
DefaultIPofInterfaceVLAN1:192.168.0.254
Username:admin
Password:admin
Este manual sirve para los siguientes modelos
3
Tabla de contenidos
Otros manuales de Cambiar de Planet Networking & Communication
Planet Networking & Communication
Planet Networking & Communication GS-6320 Series Manual de usuario
Planet Networking & Communication
Planet Networking & Communication BSP-360 Manual de usuario
Planet Networking & Communication
Planet Networking & Communication WGS-4215-8P2S Manual de usuario
Planet Networking & Communication
Planet Networking & Communication GS-4210-16P4C Manual de usuario
Planet Networking & Communication
Planet Networking & Communication MGSW-28240F Instrucciones de instalación
Planet Networking & Communication
Planet Networking & Communication WGSW-24010 Manual de usuario
Planet Networking & Communication
Planet Networking & Communication WGSD-10020HP Manual de usuario
Planet Networking & Communication
Planet Networking & Communication GS-4210 Series Manual de usuario
Planet Networking & Communication
Planet Networking & Communication UPOE-800G Manual de usuario
Planet Networking & Communication
Planet Networking & Communication WGSW-50040 Manual de usuario
Planet Networking & Communication
Planet Networking & Communication WGSW-48040HP Instrucciones de instalación
Planet Networking & Communication
Planet Networking & Communication PL-420 Manual de usuario
Planet Networking & Communication
Planet Networking & Communication WGSW-24040 Manual de usuario
Planet Networking & Communication
Planet Networking & Communication GS-5220 Series Manual de usuario
Planet Networking & Communication
Planet Networking & Communication XGS-6320 Series Manual de usuario
Planet Networking & Communication
Planet Networking & Communication BSP-360 Manual de usuario
Planet Networking & Communication
Planet Networking & Communication GSW-1601 Manual de usuario
Planet Networking & Communication
Planet Networking & Communication IPM-4220 Manual de usuario
Planet Networking & Communication
Planet Networking & Communication IGS-5225-8T2S2X Manual de usuario
Planet Networking & Communication
Planet Networking & Communication WGS-804HP Manual de usuario
Planet Networking & Communication
Planet Networking & Communication WLS-1280 Manual de usuario
Planet Networking & Communication
Planet Networking & Communication IGS-10020HPT Manual de usuario
Planet Networking & Communication
Planet Networking & Communication GS-2240-48T4X Instrucciones de instalación
Planet Networking & Communication
Planet Networking & Communication POE-173 Manual de usuario
