Planet Networking & Communication UPOE-800G Manual de usuario

User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G

Trademarks

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and

makes no warranty and representation, either implied or expressed, with respect to the quality, performance,

merchantability, or fitness for a particular purpose. PLANET has made every effort to ensure that this User's Manual is

accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.

Information in this User's Manual is subject to change without notice and does not represent a commitment on the part of

PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User's Manual. PLANET

makes no commitment to update or keep current the information in this User's Manual, and reserves the right to make

improvements to this User's Manual and/or to the products described in this User's Manual, at any time without notice.

If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and

suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed toprovide reasonable protectionagainstharmfulinterference when the equipment is

operated in a commercial environment. This equipment generates,uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the Instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

CE Mark Warning

This device is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio

interference.

Energy Saving Note of the Device

This power required device does not support Standby mode operation. For energy saving, please remove the power cable

to disconnect the device from the power circuit. In view of saving the energy and reducing the unnecessary power

consumption, it is strongly suggested to remove the power connection for the device if this device is not intended to be

active.

WEEE Warning

To avoid the potential effects on the environment and human health as a result of the presence of

hazardous substances in electrical and electronic equipment, end users of electrical and electronic

equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of

WEEE as unsorted municipal waste and have to collect such WEEE separately.

Revision

PLANET 8-/16-/24-Port Gigabit 802.3bt PoE++ Managed Injector Hub User's Manual

FOR MODELS:UPOE-800G, UPOE-1600G, UPOE-2400G

REVISION: 3.0 (MAY, 2023)

Part No.: EM-UPOE-800G_1600G_2400G_v3.0

User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G

TABLE OF CONTENTS

1. INTRODUCTION....................................................................................... 6

1.1 PACKAGE CONTENTS.....................................................................................................6

1.2 PRODUCT DESCRIPTION .................................................................................................7

1.3 HOW TO USE THIS MANUAL..........................................................................................13

1.4 PRODUCT FEATURES ...................................................................................................14

1.5 PRODUCT SPECIFICATIONS...........................................................................................16

2. INSTALLATION ...................................................................................... 19

2.1 HARDWARE DESCRIPTION ............................................................................................19

2.1.1 Injector Front Panel ..................................................................... 19

2.1.2 LED Indicators............................................................................. 20

2.1.3 Injector Rear Panel...................................................................... 22

2.2 INSTALLING THE 802.3BT POE++ MANAGED INJECTOR HUB ..........................................23

2.2.1 Desktop Installation ..................................................................... 23

2.2.2 Rack Mounting............................................................................. 24

2.2.3 Network Application Installation................................................... 25

2.2.4 Power over Ethernet Powered Device ......................................... 26

3 Management............................................................................................ 27

3.1 OVERVIEW ..................................................................................................................27

3.2 REQUIREMENTS...........................................................................................................27

3.3 MANAGEMENT METHOD ...............................................................................................28

3.3.1 Web Management ....................................................................... 28

3.3.2 PLANET Smart Discovery Utility.................................................. 29

4 WEB CONFIGURATION.......................................................................... 31

4.1 MAIN MENU.................................................................................................................31

4.2 SYSTEM ......................................................................................................................33

4.2.1 System Information...................................................................... 34

4.2.2 System Service............................................................................ 35

4.2.3 Connection Status ....................................................................... 36

4.2.4 SNMP.......................................................................................... 37

User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G

4.2.5 NMS ............................................................................................ 39

4.2.6 Remote Syslog............................................................................ 39

4.2.7 Event Log .................................................................................... 40

4.3 NETWORK ...................................................................................................................41

4.3.1 LAN ............................................................................................. 41

4.3.2 IPv6............................................................................................. 42

4.3.3 DDNS.......................................................................................... 43

4.4 SECURITY ...................................................................................................................44

4.4.1 Firewall........................................................................................ 45

4.4.2 MAC Filtering............................................................................... 47

4.4.3 Certificates................................................................................... 47

4.5 POE ...........................................................................................................................48

4.5.1 PoE Configuration........................................................................ 49

4.5.2 PoE Status................................................................................... 51

4.5.3 PoE Schedule.............................................................................. 52

4.5.4 PoE Alive Check.......................................................................... 54

4.6 MAINTENANCE.............................................................................................................56

4.6.1 Administrator............................................................................. 57

4.6.2 Date and Time........................................................................... 58

4.6.3 Saving/Restoring Configuration................................................. 59

4.6.4 Reboot/Reset ............................................................................ 60

4.6.5 Auto Reboot .............................................................................. 60

4.6.6 Diagnostics................................................................................ 61

5. Power OVER Ethernet Overview........................................................... 63

6. The PoE Provision Process .................................................................. 65

6.1 LINE DETECTION..........................................................................................................65

6.2 CLASSIFICATION ..........................................................................................................65

6.3 START-UP ...................................................................................................................66

6.4 OPERATION.................................................................................................................66

6.5 POWER DISCONNECTION SCENARIOS............................................................................66

User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G

APPENDIX A............................................................................................... 67

A.1 MDI SETTINGS............................................................................................................67

A.2 POWER DEVICE CLASSIFICATION VALUES.....................................................................67

A.3 DATA OUT POEINJECTOR RJ45 PORT PIN ASSIGNMENTS..........................................68

User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G

1. INTRODUCTION

Thank you for purchasing PLANET 8-/16-/24-Port Gigabit 802.3bt PoE++ Managed Injector Hub,

UPOE-800G/UPOE-1600G/UPOE-2400G.

The description of this series is shown below:

UPOE-800G 8-Port Gigabit 802.3bt PoE++ Managed Injector Hub (400 watts)

UPOE-1600G 16-Port Gigabit 802.3bt PoE++ Managed Injector Hub (600 watts)

UPOE-2400G 24-Port Gigabit 802.3bt PoE++ Managed Injector Hub (800 watts)

1.1 Package Contents

Open the box of the 802.3bt PoE++ Managed Injector Hub and carefully unpack it. The box should contain the following

items:

The UPOE-800G, UPOE-1600G or UPOE-2400G x 1

QR Code Sheet x 1

Power Cord x 1

Rubber Feet x 4

19” Rack-mounting Brackets x 2

If any of these are missing or damaged, please contact your dealer immediately; if possible, retain the carton including the

original packing material, and use them again to repack the product in case there is a need to return it to us for repair.

In the following sections, the term “802.3bt PoE++ Managed Injector Hub”mentioned in this user’s manual refers to the

UPOE-800G/UPOE-1600G/UPOE-2400G.

User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G

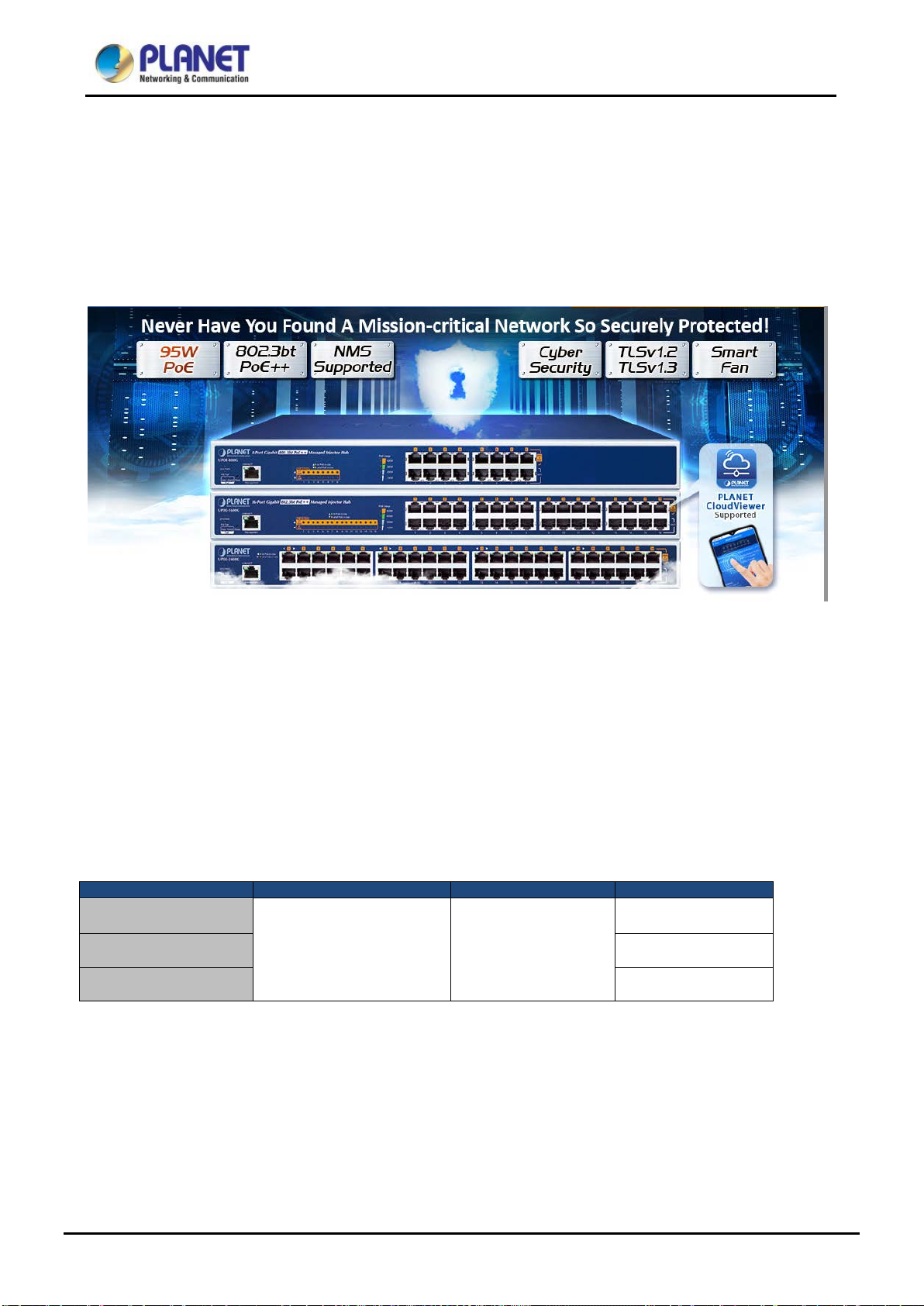

1.2 Product Description

PLANET’s UPOE Managed PoE++ Injector Hub series, a high-density, rack-mountable managed and quick PoE++

solution, is designed to perfectly upgrade an existing network infrastructure to IEEE 802.3bt Power over Ethernet Plus

Plus network system without replacing the existing Ethernet Switch. The UPOE Managed PoE++ Injector Hub series’

management functions have been enhanced to the brand-newWeb style thatincludes strengthens TLSv1.2 and TLSv1.3

protocols to improve cybersecurity, PLANET NMS system, PLANET CloudViewer app, PLANET DDNS/Easy DDNS

service, and more.

A Perfect Managed PoE++ Injector Hub with Full Power Budget

The UPOE Managed PoE++ Injector Hub series, a high-density, rack-mountable managed IEEE 802.3bt PoE++ injector

hub, features PLANET intelligent PoE functions through web user interface for remote management. It provides

8/16/24 10/100/1000BASE-T Ethernet ports featuring 802.3bt type-4 PoE++ injector with a total PoE budget of

400/600/800 watts. Each PoE port can deliver up to 95-watt power over Cat.5/5e/6 Ethernet UTP cables which allowdata

and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).

The UPOE Managed PoE++ Injector Hub series enables centralization of the power supply and optimizes the installation

and power management of remote network devices, and provides a quick, safe and effective Power over Ethernet

network solution for small businesses and enterprises.

Model

Per PoE Power Output

PoE Standard

Total PoE Budget

UPOE-800G

95 watts IEEE 802.3bt PoE++

IEEE 802.3at PoE+

400 watts

UPOE-1600G 600 watts

UPOE-2400G 800 watts

User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G

802.3bt PoE++ 95-watt Power over 4-pair UTP Solution

As the UPOE Managed PoE++ Injector Hub series adopts the IEEE 802.bt PoE++ standard technology, it is capable to

source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and

full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of

the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:

PoE PTZ speed dome cameras

Network devices

Thin clients

AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks

Remote digital signage displays

PoE lightings

User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G

802.3bt PoE++ and Advanced PoE Power Output Mode Management

To meet the demand of various powered devices consuming stable PoE power, the UPOE Managed PoE++ Injector Hub

series supports multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode, and 4-pair legacy and force

modes to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

95W 802.3bt PoE++ Power Output Mode

36W End-span 802.3at PoE+ Power Output Mode

36W Mid-span 802.3at PoE+ Power Output Mode

PoE Watts

PoE Operation Mode

Power Output Mode

95W 802.3bt PoE++ (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)

36W End-span 802.3at PoE (Pins 1, 2, 3, 6)

36W Mid-span 802.3at PoE (Pins 4, 5, 7, 8)

Quick and Easy 802.3bt/at PoE Network Deployment

The UPOE Managed PoE++ Injector Hub series is installed between a regular Ethernet Switch and the PDs. There are

totally 16/32/48 RJ45 STP ports on the front panel of the UPOE Managed PoE++ Injector Hub series, of which the 8/16/24

ports are on the lower stack functioned as "Data input" while the other 8/16/24 ports are on the upper stack functioned as

"PoE (Data and Power) output". Both power and data are transferred simultaneously over the UTP cables to PDs

without affecting the existing network performance and functions.

With dataand Power over Ethernet from one unit, theUPOE Managed PoE++ Injector Hub series can reduce power cable

deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G

Built-in Unique PoE Functions for Powered Device Management

As it is the Managed PoE++ Injector Hub for surveillance, wireless and VoIP networks, the UPOE Managed PoE++

Injector Hub series features the following special PoE management functions:

PoE schedule

PD alive check

Scheduled power recycling

PoE usage monitoring

Intelligent Powered Device Alive Check

The UPOE Managed PoE++ Injector Hub series can be configured to monitor connected PD status in real time via ping

action. Once the PD stops working and responding, the UPOE Managed PoE++ Injector Hub series will resume the PoE

port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the

PD’s power source and reducing administrator management burden.

Otros manuales para UPOE-800G

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Planet Networking & Communication
