Issue 5.2 January 2020

60-820 User Manual

LXI 75Ω Microwave Multiplexer

Page (II) LXI 75Ω MICROWAVE MULTIPLEXER 60-820

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

LXI 75Ω MICROWAVE MULTIPLEXER 60-820

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) LXI 75Ω MICROWAVE MULTIPLEXER 60-820

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

LXI 75Ω MICROWAVE MULTIPLEXER 60-820

pickering

Technical Support and Warranty..................................................III

Product Safety .............................................................................. IV

Contents (this page)...................................................................... V

Warnings and Cautions .............................................................. VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description ....................................................2.1

Conguration as a Matrix................................................2.2

Section 3

Installation....................................................................................3.1

Pre Operation Checks .....................................................3.1

Hardware Installation.......................................................3.1

Setting The IP Address....................................................3.2

Installing The Software....................................................3.3

Soft Front Panel Operation .............................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options for LXI Units...............................4.1

Programming the 60-820 .................................................4.2

Command Line Control ...................................................4.6

Using The Soft Front Panel...........................................4.13

Section 5

Connections.................................................................................5.1

Section 6

Trouble Shooting .........................................................................6.1

LXI Status Indicators .......................................................6.1

LAN Reset.........................................................................6.2

Section 7

Maintenance Information............................................................7.1

Microwave Multiplexer Parts List ...................................7.2

General Maintenance.......................................................7.5

RF Relay Removal/Retting ............................................7.8

Appendix A

Fitting Rack Mounting Flanges .................................................A.1

CONTENTS

Page (VI) LXI 75Ω MICROWAVE MULTIPLEXER 60-820

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

LXI 75Ω MICROWAVE MULTIPLEXER 60-820

pickering

Page vii

LXI HIGH VOLTAGE 2-POLE MATRIX 60-310

pickering

WARNINGS & CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This unit may contain hazardous voltages. Before removing the unit from the rack remove all supplies

and disconnect user I/O signals.

If the unit has removable modules, unused slots in the chassis must be populated with blanking

panels to prevent access to user I/O signals that may be present. Blanking panels are available to

order from Pickering. If the product is not used in this manner for example by using an extender card

then additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This unit must not be used for the switching of Mains Circuits. For the switching of voltages up to the

unit’s full specication, Secondary Circuit power supplies and the Device Under Test must be fully

isolated from the Mains Circuit and the safety earth.

The chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to the installation section of this manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

Switching

Function

Device

Under Test

Power

Supply

Power

Supply

LXI Unit’s Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) LXI 75Ω MICROWAVE MULTIPLEXER 60-820

pickering

Page viii

LXI HIGH VOLTAGE 2-POLE MATRIX 60-310

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

WARNING - RACK MOUNTING

If it is required to t this unit into a 19 inch rack, its weight must be

supported by side brackets, runners or a suitable equipment shelf.

The xing holes in the front panel anges are designed only for

securing the device in the rack and must NOT be used to support

the weight of the whole device.

Please refer to Appendix A for the procedure for tting the

supplied anges to either side of the front panel.

HIGH VOLTAGE SAFETY WARNING

THIS UNIT IS CAPABLE OF SWITCHING VOLTAGES AND CURRENTS THAT CAN

CAUSE SERIOUS INJURIES. IN APPLICATIONS INVOLVING HIGH VOLTAGES IT

IS STRONGLY RECOMMENDED THAT UNUSED CONNECTORS ARE CAPPED

TO PREVENT ACCIDENTAL CONTACT WHILE IN USE. SYSTEM INTEGRATORS

AND USERS SHOULD CONNECT TO THE FRONT PANEL CONNECTORS WITH

CONNECTORS OR CABLE ASSEMBLIES THAT ENSURE OPERATORS WILL NOT

INADVERTENTLY COME IN CONTACT WITH HIGH VOLTAGES.

Page 1.1

LXI 75Ω MICROWAVE MULTIPLEXER 60-820

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

LXI 75Ω Microwave Multiplexer 60-820

ISSUE 3.4 APR 2018

• High Performance 6-Channel RF Multiplexers

• Available With 4, 8, 12 or 16 Multiplexer Banks

• 2.5GHz Bandwidth

• 75Ω Characteristic Impedance

• Low Loss, High Isolation

• Compact 2U Form Factor

• Simple Remote Control Via LXI Interface

• LXI Standard 1.4 Compliant

• 3 Year Warranty

Schematic Diagram for the 60-820

Microwave MUX - up to 16 Multiplexer

Modules can be supported

4Com

MUX Bank 1

MUX Bank 2

off

4Com

off

4Com

off

MUX Bank N

The 60-820 Microwave Multiplexer is suitable for switching 75Ω

signals up to 2.5GHz. With up to 16 banks of 6 channels it is ideal

for constructing complex microwave switching systems for many

applications. Connection is by front panel mounted DIN1.6/5.6 style

connectors.

The multiplexer has an extremely high level of performance with

low VSWR, very high isolation, low loss and high power handling. It

is ideal for switching 75Ω systems from HF band to low microwave

frequencies. It occupies 2U of rack space, providing a compact

switching solution. Multiplexers can be user connected to create

customized switching systems which include both multiplexer and

matrix arrangements.

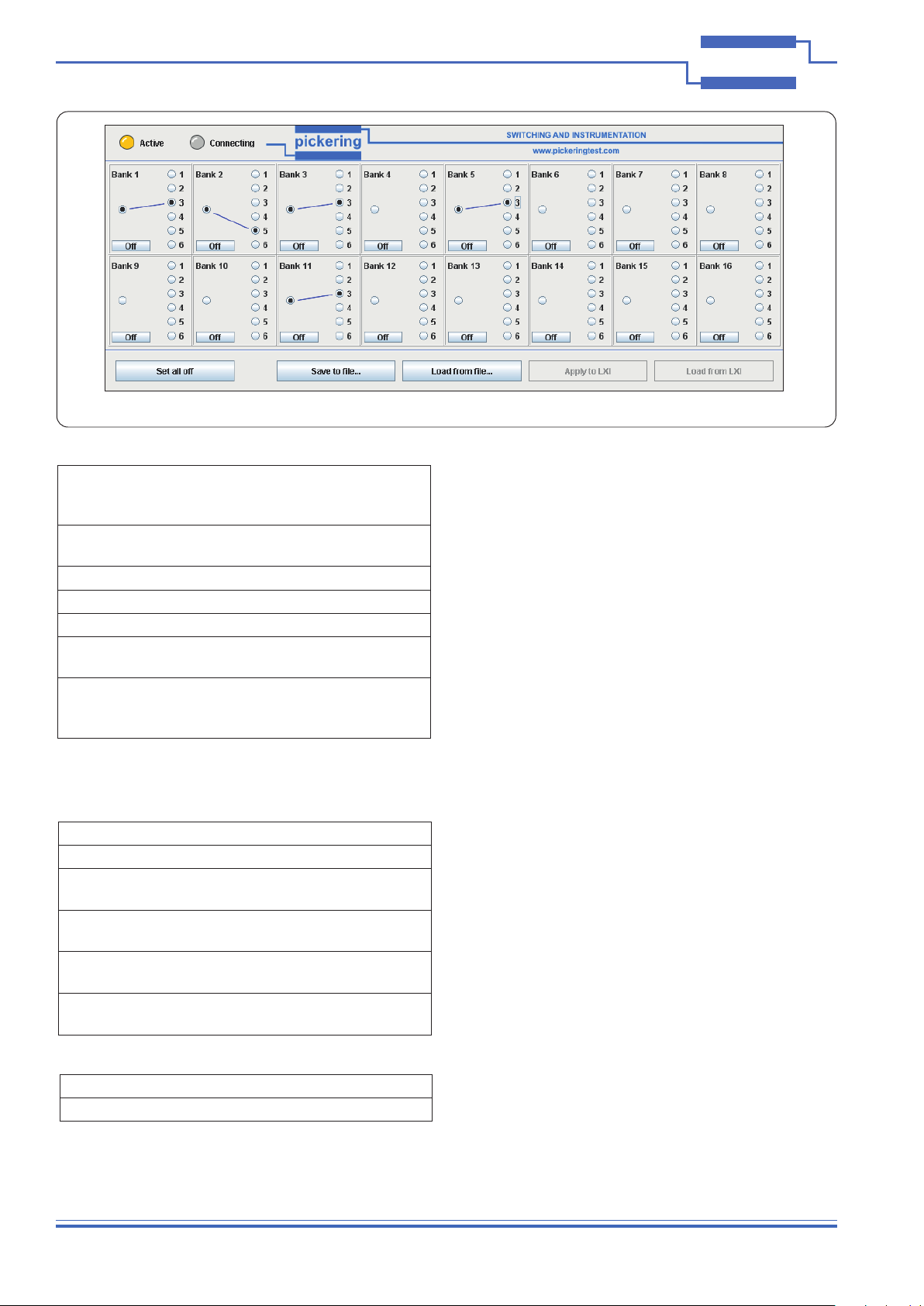

Controlling the Multiplexer

The 60-820 is controlled through an LXI interface based on

Ethernet 1000Base-T connectivity. This provides a quick and easy

method of installing the 60-820 and a simple way of controlling the

it at a remote location through its API or built in soft front panel. The

ability to control the unit at a distance aids the testing of systems

without the need for a physical presence.

Easy Repair

To allow fast in eld repair, relays may be individually replaced

without removing the covers from the chassis or the chassis from

the host rack.

Other Microwave Switching Conﬁgurations

We are able to offer other microwave switching solutions, if you

have a custom requirement for switching please contact your

Pickering sales representative. The 60-820 can be supplied with

other frequency ranges and connector styles. A 50Ω version of the

60-820, the 60-800, is also available.

Page 1.2 LXI 75Ω MICROWAVE MULTIPLEXER 60-820

pickering

SECTION 1 - TECHNICAL SPECIFICATION

LXI 75Ω Microwave Multiplexer – 60-820

pickeringtest.com

Speciﬁcations

Power Source

Universal AC mains supply, 90-264VAC, 50-60Hz

Power Inlet: Male IEC connector

Operating/Storage Conditions

Operating Conditions

Operating Temperature:

Humidity:

Altitude:

0°C to +55°C

Up to 90% non-condensing

5000m

Storage and Transport Conditions

Storage Temperature:

Humidity:

Altitude:

-20°C to +75°C

Up to 90% non-condensing

15000m

Soft Front Panel for the 60-820 16-Bank 6 to 1 Microwave Multiplexer

General Multiplexer Information

Conguration: 6 to 1 Microwave

Multiplexer with up to 16

independent banks.

Connectors: Front panel DIN1.6/5.6

(DIN47295)

Operating Time: <18ms

Max Voltage: 100VDC*

Max Switch Current: 1A

Path Resistance: On: <200mΩ

Off: >1010Ω(unterminated)

Expected Life: Low power: >2 million per

position

Max power: 0.3 million

* For full voltage rating, signal sources to be switched must be fully

isolated from mains supply and safety earth.

Multiplexer RF Speciﬁcation

Impedance: 75Ω

Bandwidth 2.5GHz

Maximum Power: 400W to 1GHz

240W to 2.5GHz

Isolation: >80dB to 1GHz

>70dB to 2.5GHz

Insertion Loss: <0.2dB to 1GHz

<0.3dB to 2.5GHz

VSWR: <1:1.2 to 1GHz

<1:1.3 to 2.5GHz

Mechanical Characteristics

Supplied with front panel ears to enable rack mounting on a shelf or

other rear support mechanism.

Dimensions: 2U high, full 19” rack width, 500mm depth

3D models for all versions in a variety of popular le formats are

available on request.

Connectors

Signals via front panel DIN1.6/5.6 connectors.

Cooling

Fan assisted cooling, side air intakes and rear exhaust.

LAN Interface

Compliant to LXI Standard 1.4, the 60-732 has a 1000Base-T

Ethernet Interface via a standard RJ-45 connector mounted on the

rear panel with an LCD display showing the unit’s IP address*.

*Note: Legacy units may not have 1000Base-T support or be tted

with an LCD display.

LXI Status Indicators

Front panel mounted LEDs: Power, Ready, Error, LAN, Active

Safety & CE Compliance

All products are fully CE compliant and meet applicable EU

directives: Low-voltage safety EN61010-1:2010, EMC Immunity

EN61326-1:2013, Emissions EN55011:2009+A1:2010.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Multiplexor de Pickering

Pickering

Pickering PXI 40-620 Manual de usuario

Pickering

Pickering 40-784A Manual de usuario

Pickering

Pickering 40-657 Manual de usuario

Pickering

Pickering PXI Power MUX BRIC 40-571A Manual de usuario

Pickering

Pickering LXI 50 Manual de usuario

Pickering

Pickering PXI 40-635A Manual de usuario

Pickering

Pickering 40-761 Series Manual de usuario

Pickering

Pickering PXI 40-740 Manual de usuario

Pickering

Pickering 40-619 Manual de usuario

Pickering

Pickering LXI 60-802 Manual de usuario

Pickering

Pickering LXI 60-890-053 Manual de usuario

Pickering

Pickering 40-614 Manual de usuario

Pickering

Pickering PXI Power MUX BRIC 40-571 Manual de usuario

Pickering

Pickering 40-616A Manual de usuario

Pickering

Pickering 40-630A Manual de usuario

Pickering

Pickering SYSTEM 10 Manual de usuario

Pickering

Pickering 50-670A Manual de usuario

Pickering

Pickering 60-590 Manual de usuario

Pickering

Pickering LXI 60-555 Manual de usuario

Pickering

Pickering PXI 40-882B Manual de usuario

Pickering

Pickering 40-681A Manual de usuario

Pickering

Pickering 40-610A Manual de usuario

Pickering

Pickering 40-640 Manual de usuario

Pickering

Pickering 40-612A Manual de usuario

Manuales populares de Multiplexor de otras marcas

Campbell

Campbell AM416 Manual de usuario

Paradyne

Paradyne SIM2000 Manual de usuario

Panasonic

Panasonic WJFS616 - SWITCHER Manual de usuario

Lanex

Lanex TM-77 Manual de usuario

Bosch

Bosch VSS8394/01T Manual de usuario

Quark-Elec

Quark-Elec QK-A035 Manual de usuario

ADTRAN

ADTRAN Frameport 768 Manual de usuario

Elo TouchSystems

Elo TouchSystems E247 Manual de usuario

Paradyne

Paradyne Hotwire 8786 Manual de usuario

RFL Electronics

RFL Electronics 9508D UCC Manual de usuario

Miranda

Miranda AMX-101i Manual de instrucciones

ShipModul

ShipModul MiniPlex-AIX NMEA-0183 Manual de usuario

GE StoreSafe SDVR-10 Manual de usuario

American Fibertek

American Fibertek MTX-8410C Manual de usuario

ADC

ADC HiGain ELU-319 5E Manual de usuario

Paradyne

Paradyne Hotwire 8774 Manual de usuario

American Fibertek

American Fibertek MTX-8810C-SL Manual de usuario

Viessmann

Viessmann 5229 Manual de usuario
