Page 1.1

PXI/PXIe 50Ω SP6T Terminated 8GHz RF Multiplexer 40/42-881B

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI/PXIe 50 Ω SP6T Terminated 8 GHz Multiplexers 40/42-881B

ISSUE 1.2 OCT 2021

yAvailable as PXI or PXIe Modules

yWide Frequency Range 10 MHz to 8 GHz

yHigh Performance Solid State Switch

y6 Channel Multiplexer

ySingle and Dual Versions

yAutomatic Termination of Unused MUX Channels

y+36 dBm Input Power Handling

yExcellent Crosstalk & Isolation

ySMA Coaxial Connectors

yVISA, IVI & Kernel Drivers Supplied for Windows

ySupported by PXI or LXI Chassis

y3 Year Warranty

R.F. Terminated MUX

50Ω

Com

40/42-881B-001 Single SP6T Terminated 8 GHz MUX

The 40-881B (PXI) and 42-881B (PXIe) are 50 Ω SP6T

multiplexers which can operate beyond 8 GHz. They are

available as single format in one PXI or PXIe slot or dual

format in two slots.

The 40/42-881B has low VSWR characteristics over the full

frequency range and consistent insertion loss. The use of

solid state switches ensure a long service life with no wear

out mechanism, making the module ideal for ATE systems

requiring frequent and fast operating RF switching with no

contact bounce. The multiplexer can handle RF power up

to +36 dBm CW and +38 dBm pulsed and is able to sustain

frequent hot switching without performance degradation.

The module is ﬁtted with SMA connectors, ensuring module

compatibility with commonly used cables.

The 40/42-881B is supplied with drivers that allow support

in all popular PXI software environments. The PXI version

can be supported in all Pickering’s LXI Modular Switching

chassis, allowing a PXI or LAN controlled switching solution.

1.1

1.2

1.3

1.4

R.F. Terminated MUX

50Ω

1.5

1.6

2.1

2.2

50Ω

2.3

2.4

2.5

2.6

50Ω

Bank 1

Bank 2

40/42-881B-002 Dual SP6T Terminated 8 GHz MUX

Page 1.2 PXI/PXIe 50Ω SP6T Terminated 8GHz RF Multiplexer 40/42-881B

pickering

SECTION 1 - TECHNICAL SPECIFICATION

50 Ω SP6T Terminated 8 GHz MUX, 40/42-881B

pickeringtest.com

Speciﬁcations

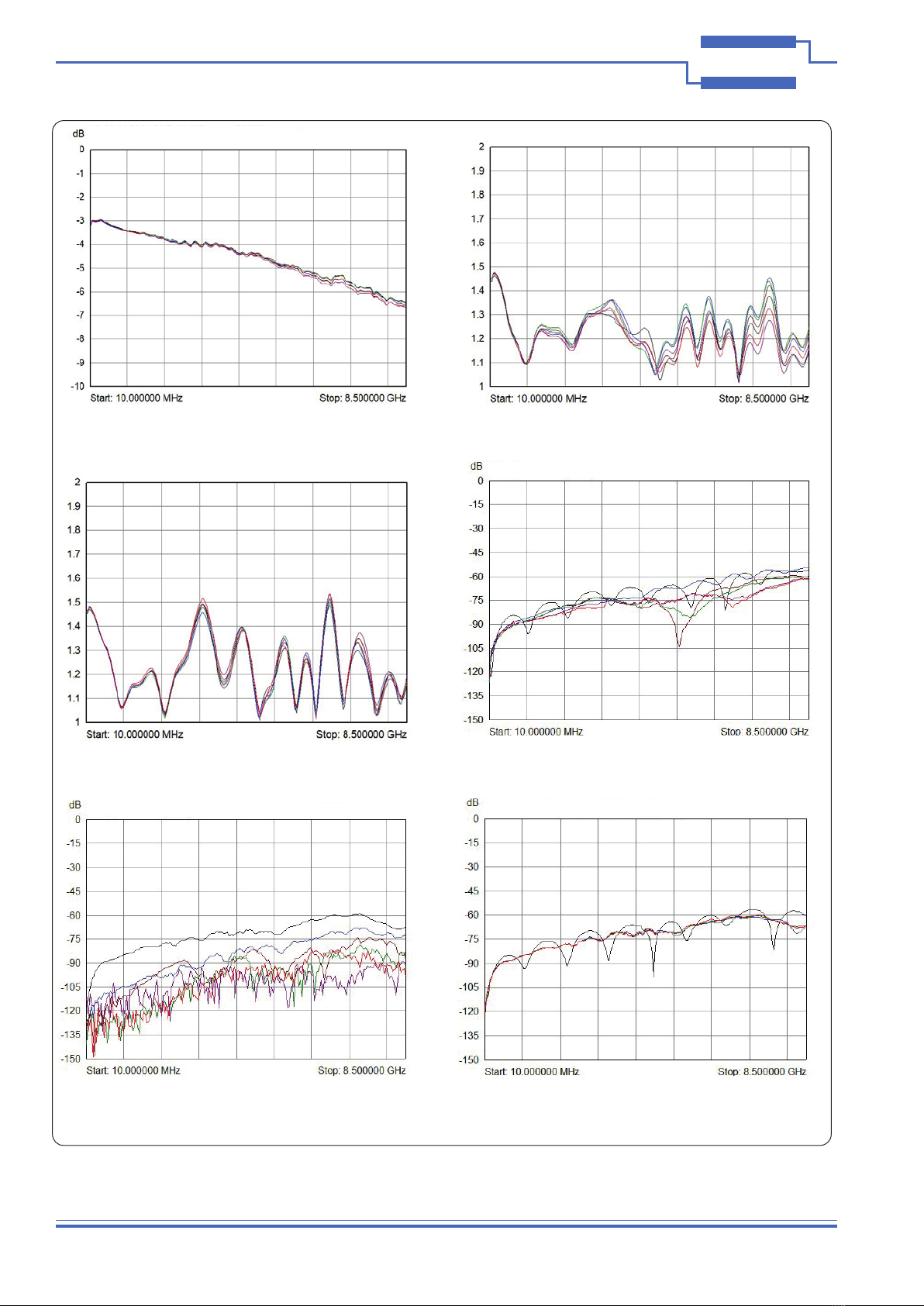

Insertion loss for 40-881B-001

showing all paths up to 8.5 GHz

VSWR Channel to COM for 40-881B-001

showing all paths up to 8.5 GHz

VSWR COM to Channel for 40-881B-001

showing all paths up to 8.5 GHz

Isolation between adjacent channels for

40-881B-001 showing all paths up to 8.5 GHz

Max isolation for each channel with distant path

selected for 40-881B-001 up to 8.5 GHz

Crosstalk for 40-881B-001 between channel 1

and all other paths (worst case) up to 8.5 GHz
