Issue 2.1 March 2020

40-614 User Manual

PXI High Density 2 Amp Multiplexer Module

Page (II) HIGH DENSITY 2A MUX MODULE 40-614

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

HIGH DENSITY 2A MUX MODULE 40-614

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) HIGH DENSITY 2A MUX MODULE 40-614

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

HIGH DENSITY 2A MUX MODULE 40-614

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description..........................................................2.1

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options For Pickering PXI Modules ............4.1

Module Architecture..............................................................4.2

Programming The Module ....................................................4.42

Section 5

Connector Information................................................................5.1

Section 6

Trouble Shooting .........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Relay Lookup Tables.............................................................7.2

Component Layout................................................................7.22

CONTENTS

Page (VI) HIGH DENSITY 2A MUX MODULE 40-614

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

HIGH DENSITY 2A MUX MODULE 40-614

pickering

Page (VII)

2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This module may contain hazardous voltages. Before removing the module from the rack remove all

supplies and disconnect user I/O signals.

Unused slots in the host chassis are populated with blanking plates to prevent access to user I/O

signals that may be present. Blanking panels are available to order from Pickering in a variety of

slot widths. If the product is not used in this manner for example by using an extender card then

additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This module must not be used for the switching of Mains Circuits. For the switching of voltages up

to the module’s full specication, Secondary Circuit power supplies and the Device Under Test must

be fully isolated from the Mains Circuit and the safety earth.

The host chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to your chassis installation manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

PXI Switching

Module

Device

Under Test

Power

Supply

Power

Supply

Host Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) HIGH DENSITY 2A MUX MODULE 40-614

pickering

Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page 1.1

HIGH DENSITY 2A MUX MODULE 40-614

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI High Density 2 Amp Multiplexer 40-614

ISSUE 2.1 JUN 2018

Supported by

eBIRST

eBIRST switching system test tools simplify fault-nding by quickly

testing the system and graphically identifying the faulty relay.

For more information go to: pickeringtest.com/ebirst

• Low Cost Fixed Conﬁguration Alternative to

Versatile Solutions - Simpler to Program &

Improved Isolation Between Banks

• 20 Conﬁgurations

• 1, 2, 4, 8 or 16 Multiplexer Banks

• Channel Counts of 4, 8, 16, 32, 64 or 128

• Available With 1, 2, 4, 8, 16 or 32 Poles

• 2A Hot or Cold Switching

• Switch up to 200VDC/140VAC and up to

60W Max Power

• VISA, IVI & Kernel Drivers Supplied for Windows

• Supported by PXI or LXI Chassis

• Supported by

eBIRST

™

• 3 Year Warranty

BANK 1

BANK 2

BANK 3

C15

BANK 15

C16

BANK 16

40-614-001 16-Bank, 8-Channel 1-Pole Multiplexer

The 40-614 High Density 2 Amp Multiplexer module is available in

20 congurations as outlined in the table. They all use high quality

electro-mechanical signal relays allowing each channel to switch

current up to 2A and voltage up to 200VDC/140VAC.

The module is suitable for signal routing in ATE and data

acquisition systems. Connections are made via a front panel 160-

pin DIN 41612 connector.Larger multiplexers may be constructed

by daisy chaining the common signals from multiple modules.

The majority of 40-614 models (see order codes) allow multiple

channels to be simultaneously selected. Alternatively, product

variants can be supplied that operate as a conventional multiplexer

with break-before-make action when a new channel is selected.

Note: The multiple channel selection option is not available for the

1-pole versions of the multiplexer.

40-614 2 Amp Multiplexer Range:

16 Banks, 8 Channels, 1-Pole.

16 Banks, 4 Channels, 2-Pole.

8 Banks, 16 Channels, 1-Pole.

8 Banks, 8 Channels, 2-Pole.

8 Banks, 4 Channels, 4-Pole.

4 Banks, 32 Channels, 1-Pole.

4 Banks, 16 Channels, 2-Pole.

4 Banks, 8 Channels, 4-Pole.

4 Banks, 4 Channels, 8-Pole.

2 Banks, 64 Channels, 1-Pole.

2 Banks, 32 Channels, 2-Pole.

2 Banks, 16 Channels, 4-Pole.

2 Banks, 8 Channels, 8-Pole.

2 Banks, 4 Channels, 16-Pole.

1 Bank, 128 Channels, 1-Pole.

1 Bank, 64 Channels, 2-Pole.

1 Bank, 32 Channels, 4-Pole.

1 Bank, 16 Channels, 8-Pole.

1 Bank, 8 Channels, 16-Pole.

1 Bank, 4 Channels, 32-Pole.

Page 1.2 HIGH DENSITY 2A MUX MODULE 40-614

pickering

SECTION 1 - TECHNICAL SPECIFICATION

High Density 2 Amp MUX – 40-614

pickeringtest.com

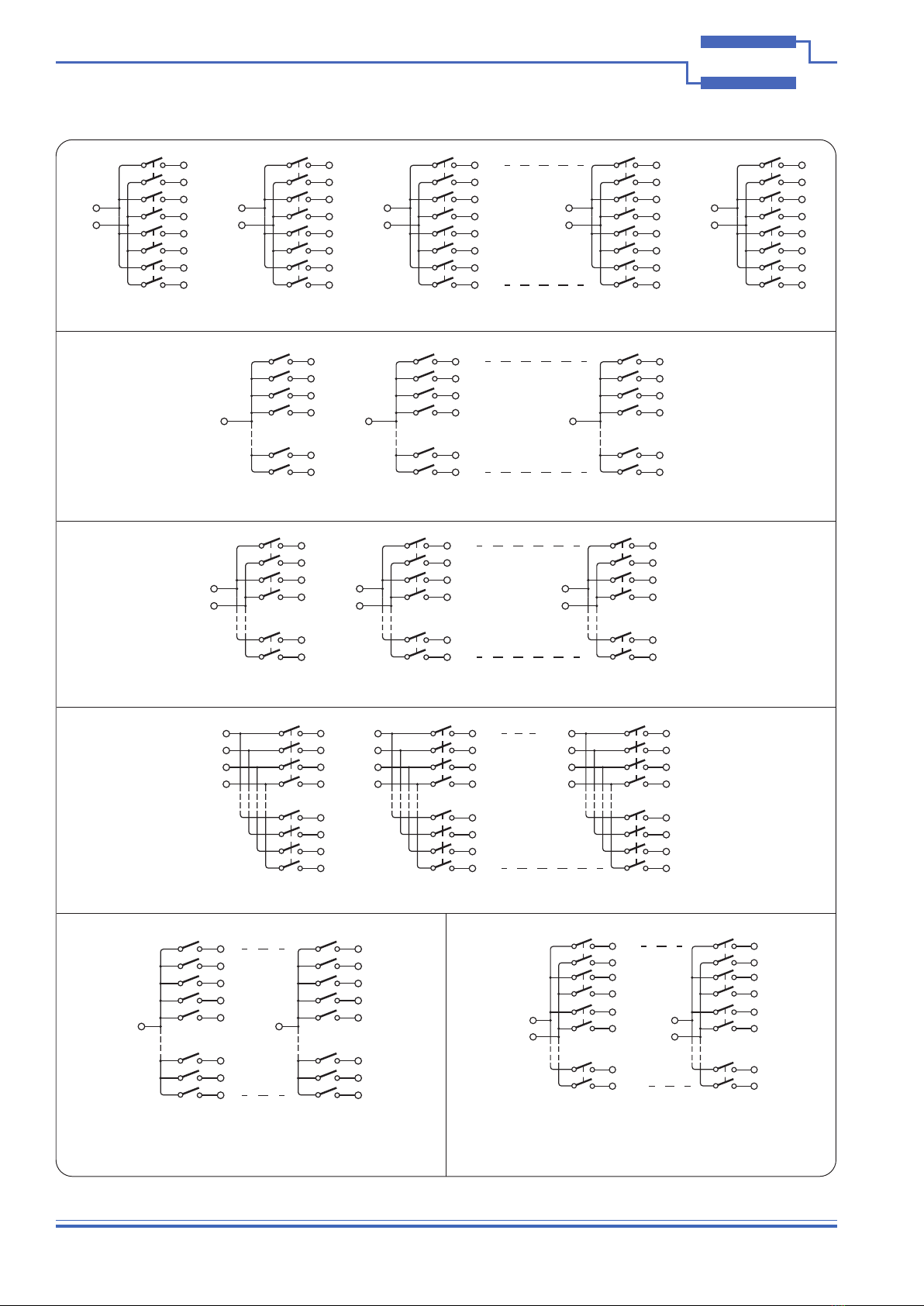

Overview

BANK 1

1.1

C1.1

4.1

2.1

3.1

1.2

C1.2

4.2

2.2

3.2

BANK 2

1.1

C2.1

4.1

2.1

3.1

1.2

C2.2

4.2

2.2

3.2

BANK 3

1.1

C3.1

4.1

2.1

3.1

1.2

C3.2

4.2

2.2

3.2

BANK 15

1.1

C15.1

4.1

2.1

3.1

1.2

C15.2

4.2

2.2

3.2

BANK 16

1.1

C16.1

4.1

2.1

3.1

1.2

C16.2

4.2

2.2

3.2

BANK 1

BANK 2

BANK 8

BANK 1

1.1

C1.1

8.1

2.1

1.2

C1.2

8.2

2.2

BANK 2

1.1

C2.1

8.1

2.1

1.2

C2.2

8.2

2.2

BANK 8

1.1

C8.1

8.1

2.1

1.2

C8.2

8.2

2.2

BANK 1

BANK 4

BANK 1

1.1C1.1

4.1

1.2C1.2

4.2

1.3C1.3

4.3

1.4C1.4

4.4

BANK 8

1.1C8.1

4.1

1.2C8.2

4.2

1.3C8.3

4.3

1.4C8.4

4.4

BANK 2

1.1C2.1

4.1

1.2C2.2

4.2

1.3C2.3

4.3

1.4C2.4

4.4

BANK 1

1.1

C1.1

16.1

3.1

1.2

C1.2

16.2

3.2

2.1

2.2

BANK 4

1.1

C4.1

16.1

3.1

1.2

C4.2

16.2

3.2

2.1

2.2

40-614-002 16-Bank, 4-Channel, 2-Pole Multiplexer

40-614-003 8-Bank, 16-Channel, 1-Pole Multiplexer

40-614-004 8-Bank, 8-Channel, 2-Pole Multiplexer

40-614-005 8-Bank, 4-Channel, 4-Pole Multiplexer

40-614-006 4-Bank, 32-Channel, 1-Pole Multiplexer 40-614-007 4-Bank, 16-Channel, 2-Pole Multiplexer

Tabla de contenidos

Otros manuales de Multiplexor de Pickering

Pickering

Pickering LXI 60-555 Manual de usuario

Pickering

Pickering 20-745 Manual de usuario

Pickering

Pickering PXI Power MUX BRIC 40-571A Manual de usuario

Pickering

Pickering 40-660A-001 Manual de usuario

Pickering

Pickering 40-666B Manual de usuario

Pickering

Pickering 40-659A Manual de usuario

Pickering

Pickering 40-683A Manual de usuario

Pickering

Pickering 40-611A Manual de usuario

Pickering

Pickering 40-667B Manual de usuario

Pickering

Pickering 40-614C Manual de usuario

Pickering

Pickering SYSTEM 10 Manual de usuario

Pickering

Pickering 40-658A Manual de usuario

Pickering

Pickering 40-760 Manual de usuario

Pickering

Pickering 40-675A Manual de usuario

Pickering

Pickering 60-850 Manual de usuario

Pickering

Pickering 40-630A Manual de usuario

Pickering

Pickering PXI 40-850A Manual de usuario

Pickering

Pickering PXI 40-661A Manual de usuario

Pickering

Pickering 40-320A Manual de usuario

Pickering

Pickering PXI 40-655 Manual de usuario

Pickering

Pickering LXI 60-890-053 Manual de usuario

Pickering

Pickering PXI 40-661 Manual de usuario

Pickering

Pickering PXI 40-748 1 Series Manual de usuario

Pickering

Pickering 4 878 Series Manual de usuario

Manuales populares de Multiplexor de otras marcas

Campbell

Campbell AM416 Manual de usuario

Paradyne

Paradyne SIM2000 Manual de usuario

Panasonic

Panasonic WJFS616 - SWITCHER Manual de usuario

Lanex

Lanex TM-77 Manual de usuario

Bosch

Bosch VSS8394/01T Manual de usuario

Quark-Elec

Quark-Elec QK-A035 Manual de usuario

ADTRAN

ADTRAN Frameport 768 Manual de usuario

Elo TouchSystems

Elo TouchSystems E247 Manual de usuario

Paradyne

Paradyne Hotwire 8786 Manual de usuario

RFL Electronics

RFL Electronics 9508D UCC Manual de usuario

Miranda

Miranda AMX-101i Manual de instrucciones

ShipModul

ShipModul MiniPlex-AIX NMEA-0183 Manual de usuario

GE StoreSafe SDVR-10 Manual de usuario

American Fibertek

American Fibertek MTX-8410C Manual de usuario

ADC

ADC HiGain ELU-319 5E Manual de usuario

Paradyne

Paradyne Hotwire 8774 Manual de usuario

American Fibertek

American Fibertek MTX-8810C-SL Manual de usuario

Viessmann

Viessmann 5229 Manual de usuario
