Section 1 - Technical Speciﬁcation

yAvailable as a PXI or PXIe Module

yMay be Speciﬁed With a Mix of High Performance

Microwave Relays up to 110 GHz Bandwidth & a

Range of Connector Types

yOptions Available in 50 Ω or 75 Ω Impedance

yAvailable Relays Include Transfer, SPDT, SP4T, SP6T,

SP8T, SP10T & SP12T in Unterminated & Terminated

Versions

yFlexibility in Topology & Speciﬁcation

yDeﬁne the Panel layout with Microwave Switch

Design Tool Application

yLED Indication (Conﬁguration Dependant)

yExcellent RF & Repeatability Characteristics

yRelay Cycle Counting Included

yDrivers Supplied for Windows & Linux, Plus

Support for Real-time Systems

yPXI Versions Supported by PXI or LXI Chassis

yPXIe Versions Supported by PXI Hybrid or PXIe Chassis

y3 Year Warranty (110 GHz Options, 1 Year Warranty)

The 40-890 (PXI) and 42-890 (PXIe) range of PXI microwave

modules allows users to specify the mix of relay types,

frequencies and quantities based on the application

requirements within the capabilities of the module driver

card. Choose from the extensive relay selection already

available in the Pickering microwave range to create a

ﬂexible solution.

Switch Type Termination

Bandwidth & Connector Type

2.5 GHz

DIN 1.6/5.6

(75 Ω)

3 GHz

SMA

(50 Ω)

6 GHz

SMA

(50 Ω)

8 GHz

N-Type

(50 Ω)

12.4 GHz

N-Type

(50 Ω)

18 GHz

SMA

(50 Ω)

22 GHz

SMA

(50 Ω)

26.5 GHz

SMA

(50 Ω)

40 GHz

SMA 2.9

(50 Ω)

50 GHz

SMA 2.4

(50 Ω)

67 GHz

SMA 1.85

(50 Ω)

110 GHz

SMA 1.0

(50 Ω)

Transfer (DPDT)

Unterminated

✔ ✔ ✔ ✔ ✔ ✔

SPDT ✔ ✔ ✔ ✔ ✔ ✔ ✔

SP4T ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

SP6T ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

SP8T ✔ ✔ ✔

SP10T ✔ ✔ ✔

SP12T ✔ ✔

SPDT

Terminated

✔ ✔ ✔ ✔ ✔

SP4T ✔ ✔ ✔ ✔ ✔ ✔

SP6T ✔ ✔ ✔ ✔ ✔ ✔

SP8T ✔ ✔

SP10T ✔ ✔

SP12T ✔

An example conﬁguration could include a combination of two

SP6T plus one SPDT relay that can be externally cabled to create

a SP12T multiplexer for frequency ranges where a dedicated

12:1 multiplexer is not available.

Flexible solutions can also reduce the chassis slot count by

permitting different relay types to be ﬁtted in a single module.

Each ﬂexible build will be assigned a speciﬁc part number in the

4x-890 series to provide traceability and to ease the reordering

process.

Microwave Switch Design Tool (MSDT)

The MSDT is an on-line application accessed via the Pickering

interfaces website that can be used to generate front panel

solutions for ﬂexible products. Users can select from the

full range of microwave relays then add LED indicators and

graphical features such as components identiﬁers / logos to

create a panel layout suited to the application.

Representative Images

of Microwave Modules

pickeringtest.com

4x-890

PXI/PXIe Flexible Microwave Module

PRELIMINARY DATA

Issue E November 2023

Page 1.2 pickeringtest.com

Section 1 - Technical Speciﬁcation

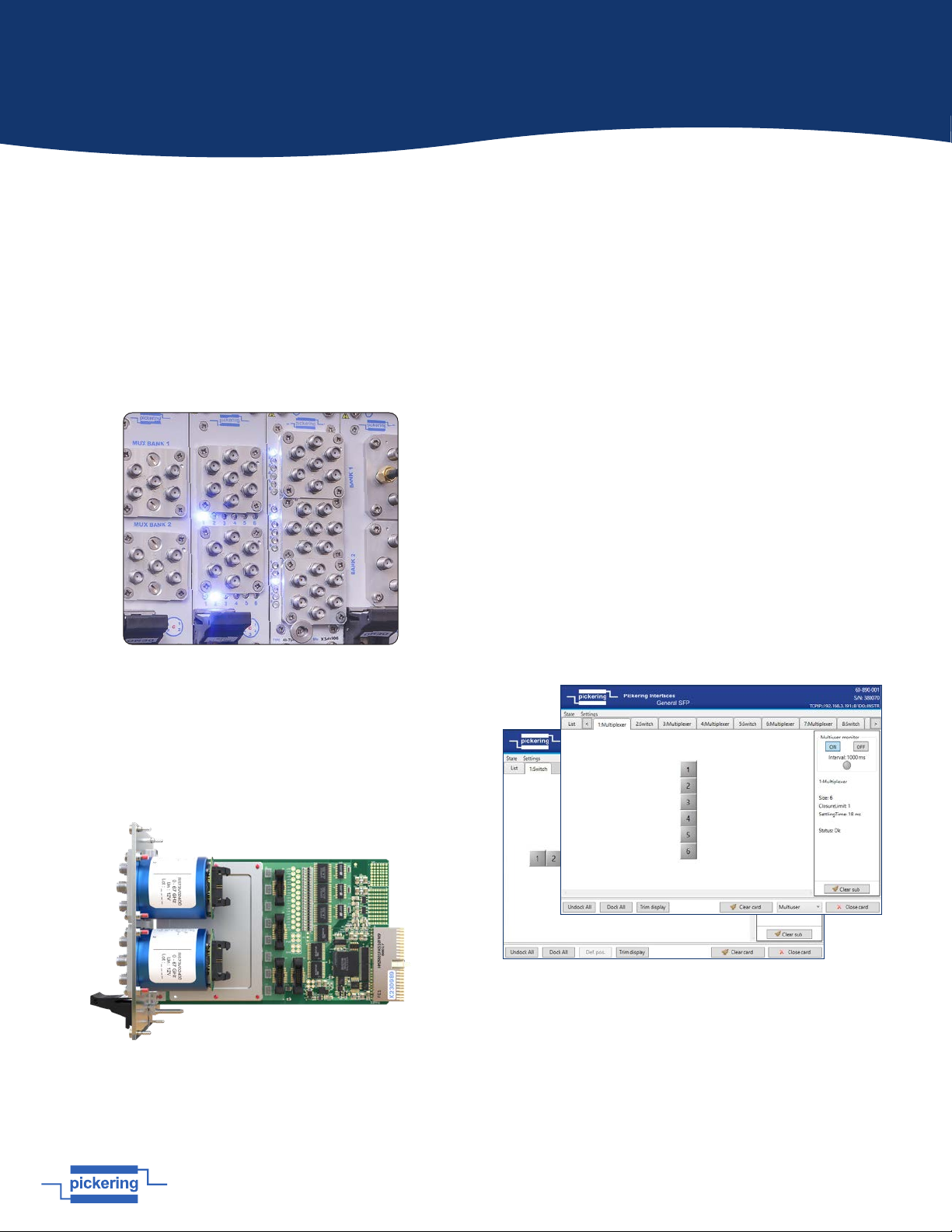

LED Energised Path Indicators

Space permitting, each microwave relay ﬁtted to a 4x-890

module has associated frontpanel LED indicators to show the

current energised path through the relay, as illustrated in the

ﬁgure above. This signal path indication greatly simpliﬁes the

debug of test application software.

Manual Control

The 4x-890 is supplied with soft front panels for each of the

ﬁtted relays, as shown here. These enable graphical manual

control of the switches to simplify application software

development and debug.

Easy Repair

To facilitate fast in-ﬁeld repair, wherever possible we ﬁt relay

types that may be quickly replaced by simply withdrawing

them through the front panel.

Conﬁguration Restrictions

Whilst offering a high degree of ﬂexibility in relay population

there are some restrictions applicable to the ﬂexible

conﬁgurations.

Mechanical - the maximum number of chassis slots occupied by

a single module is six. The relay physical sizes varies between

switch types, for details refer to the user manual. Alternately, to

assist with visualising the panel layout Pickering’s Microwave

Switch Design Tool (MSDT) online application can be used to

deﬁne the relay quantities, types and positions.

Electrical - the driver card has twenty-four control lines,

grouped both in banks of six or individually with each relay

coil typically requiring a single control line. Each SPDT or

transfer switches is controlled by an individual drive line.

For multiplexers, a single six channel bank is required for

SP4T and SP6T multiplexers with higher channel count

multiplexers controlled via multiple banks.

Due to the ﬂexible nature of the product range it is

recommended that your local sales ofﬁce is contacted to

review your requirements as this will allow for the most

efﬁcient relay loading to be determined.

Relay Cycle Counting

To aid with module “health” monitoring all versions are

provided with a relay cycle counting cycle feature. The

number of operations per contact are stored on the module

and can be used to determine if a relay is approaching EOL.

This information could allow system connections to be

revised so that signals applied to heavily used contacts are

swapped with lightly used contacts to prolong the working

life of the relay(s).

4x-890

pickeringtest.com Page 2

PRELIMINARY DATA

PXI/PXIe Flexible Microwave Module

Page 1.3 pickeringtest.com

Section 1 - Technical Speciﬁcation

off

Terminated SP6T Switch

off

Terminated SP4T Switch

SP6T Switch

off

SP4T Switch

Internally Terminated

SPDT Switch

Transfer Switch

B B

Position A: 1 to 2, 3 to 4

Position B: 1 to 3, 2 to 4

Terminated SP12T Switch

off

Terminated SP10T Switch

off

Terminated SP8T Switch

SP10T Switch

off

SP12T Switch

off

SP8T Switch

off

Externally Terminated

SPDT Switch

Available Switch Types

4x-890

pickeringtest.com Page 3

PRELIMINARY DATA

PXI/PXIe Flexible Microwave Module

Page 1.4 pickeringtest.com

Section 1 - Technical Speciﬁcation

Speciﬁcations - Transfer Switches

Bandwidth 2.5 GHz 3 GHz 18 GHz 26.5 GHz 40 GHz 50 GHz

Characteristic

Impedance 75 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω

Connector Type 1.6/5.6 SMA SMA SMA SMA-2.9 SMA-2.4

Operate Time 15 ms 15 ms 15 ms 15 ms 15 ms 15 ms

Insertion Loss

0.2 dB - 1 GHz

0.3 dB - 2.5 GHz

0.2 dB - 3 GHz 0.2 dB - 3 GHz

0.3 dB - 8 GHz

0.4 dB - 12.4 GHz

0.5 dB - 18 GHz

0.2 dB - 3 GHz

0.3 dB - 8 GHz

0.4 dB - 12.4 GHz

0.5 dB - 18 GHz

0.7 dB - 26.5 GHz

0.3 dB - 6 GHz

0.4 dB - 12.4 GHz

0.5 dB - 18G Hz

0.7 dB - 26.5 GHz

0.8 dB - 40 GHz

0.3 dB - 6 GHz

0.4 dB - 12.4 GHz

0.5 dB - 18 GHz

0.7 dB - 26.5 GHz

0.8 dB - 40 GHz

1.1 dB - 50 GHz

Isolation

80 dB - 1 GHz

70 dB - 2.5 GHz

80 dB - 3 GHz 80 dB - 3 GHz

70 dB - 8 GHz

65 dB - 12.4 GHz

60 dB - 18 GHz

80 dB - 3 GHz

70 dB - 8 GHz

65 dB - 12.4 GHz

60 dB - 18 GHz

50 dB - 26.5 GHz

70 dB - 6 GHz

60 dB - 12.4 GHz

60 dB - 18 GHz

55 dB - 26.5 GHz

50 dB - 40 GHz

70 dB - 6 GHz

60 dB - 12.4 GHz

60 dB - 18 GHz

55 dB - 26.5 GHz

50 dB - 40 GHz

50 dB - 50 GHz

VSWR

1.2:1 - 1 GHz

1.3:1 - 2.5 GHz

1.2:1 - 3 GHz 1.2:1 - 3 GHz

1.3:1 - 8 GHz

1.4:1 - 12.4 GHz

1.5:1 - 18 GHz

1.2:1 - 3 GHz

1.3:1 - 8 GHz

1.4:1 - 12.4 GHz

1.5:1 - 18 GHz

1.7:1 - 26.5 GHz

1.3:1 - 6 GHz

1.4:1 - 12.4 GHz

1.5:1 - 18 GHz

1.7:1 - 26.5 GHz

1.9:1 - 40 GHz

1.3:1 - 6 GHz

1.4:1 - 12.4 GHz

1.5:1 - 18 GHz

1.7:1 - 26.5 GHz

1.9:1 - 40 GHz

2.0:1 - 50 GHz

RF Average

Carry Power

at 25 °C

400 W - 1 GHz

240 W - 2.5 GHz

240 W - 3 GHz 240 W - 3 GHz

150 W - 8 GHz

120 W - 12.4 GHz

100 W - 18 GHz

240 W - 3 GHz

150 W - 8 GHz

120 W - 12.4 GHz

100 W - 18 GHz

40 W - 26.5 GHz

80 W - 6 GHz

60 W - 12.4 GHz

50 W - 18 GHz

20 W - 26.5 GHz

10 W - 40 GHz

40 W - 6 GHz

30 W - 12.4 GHz

25 W - 18 GHz

15 W - 26.5 GHz

5 W - 40 GHz

3 W - 50 GHz

Expected Life

(operations) 2.5 million 2.5 million 2.5 million 2.5 million 2.5 million 2.5 million

off

Terminated SP6T Switch

off

Terminated SP4T Switch

SP6T Switch

off

SP4T Switch

Internally Terminated

SPDT Switch

Transfer Switch

B B

Position A: 1 to 2, 3 to 4

Position B: 1 to 3, 2 to 4

Terminated SP12T Switch

off

Terminated SP10T Switch

off

Terminated SP8T Switch

SP10T Switch

off

SP12T Switch

off

SP8T Switch

off

Externally Terminated

SPDT Switch

4x-890

pickeringtest.com Page 4

PRELIMINARY DATA

Speciﬁcations

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de Pickering

Pickering

Pickering 40-191B Manual de usuario

Pickering

Pickering 40-656A Manual de usuario

Pickering

Pickering PXI BRIC 40-595A Manual de usuario

Pickering

Pickering PXI BRIC 40-560A Manual de usuario

Pickering

Pickering 40-567A Manual de usuario

Pickering

Pickering 40-534 Manual de usuario

Pickering

Pickering 41-760 Manual de usuario

Pickering

Pickering 40-727 Manual de usuario

Pickering

Pickering PXI BRIC 40-569B Manual de usuario

Pickering

Pickering 40-265 Manual de usuario

Pickering

Pickering 41-761 Manual de usuario

Pickering

Pickering PXI BRIC 40-569 Manual de usuario

Pickering

Pickering Pxi 41-660 Manual de usuario

Pickering

Pickering 40-651 Manual de usuario

Pickering

Pickering 40-618A Manual de usuario

Pickering

Pickering 40-292 Manual de usuario

Pickering

Pickering PXI 40-795-001 Manual de usuario

Pickering

Pickering PXI 40-785 Manual de usuario

Pickering

Pickering 43-182B Manual de usuario

Pickering

Pickering 40-331 Manual de usuario

Pickering

Pickering PXI BRIC 40-563A Manual de usuario

Pickering

Pickering PXI 40-787 Manual de usuario

Pickering

Pickering BRIC 40-565B Manual de usuario

Pickering

Pickering 60-553 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
