Issue 4.4 November 2021

40-500 User Manual

PXI Solid State Very High Density Matrix Module

Page (II) SOLID STATE VERY HIGH DENSITY MATRIX 40-500

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

SOLID STATE VERY HIGH DENSITY MATRIX 40-500

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) SOLID STATE VERY HIGH DENSITY MATRIX 40-500

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

SOLID STATE VERY HIGH DENSITY MATRIX 40-500

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description..........................................................2.1

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options For Pickering PXI Modules ............4.1

Module Architecture..............................................................4.2

Programming The Module ....................................................4.3

Section 5

Connector Information................................................................5.1

Section 6

Trouble Shooting.........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Switching System Test Tools ...............................................7.1

Relay Lookup Tables.............................................................7.1

CONTENTS

Page (VI) SOLID STATE VERY HIGH DENSITY MATRIX 40-500

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

SOLID STATE VERY HIGH DENSITY MATRIX 40-500

pickering

Page (VII)

2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This module may contain hazardous voltages. Before removing the module from the rack remove all

supplies and disconnect user I/O signals.

Unused slots in the host chassis are populated with blanking plates to prevent access to user I/O

signals that may be present. Blanking panels are available to order from Pickering in a variety of

slot widths. If the product is not used in this manner for example by using an extender card then

additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This module must not be used for the switching of Mains Circuits. For the switching of voltages up

to the module’s full specication, Secondary Circuit power supplies and the Device Under Test must

be fully isolated from the Mains Circuit and the safety earth.

The host chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to your chassis installation manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

PXI Switching

Module

Device

Under Test

Power

Supply

Power

Supply

Host Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) SOLID STATE VERY HIGH DENSITY MATRIX 40-500

pickering

Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page 1.1

SOLID STATE VERY HIGH DENSITY MATRIX 40-500

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

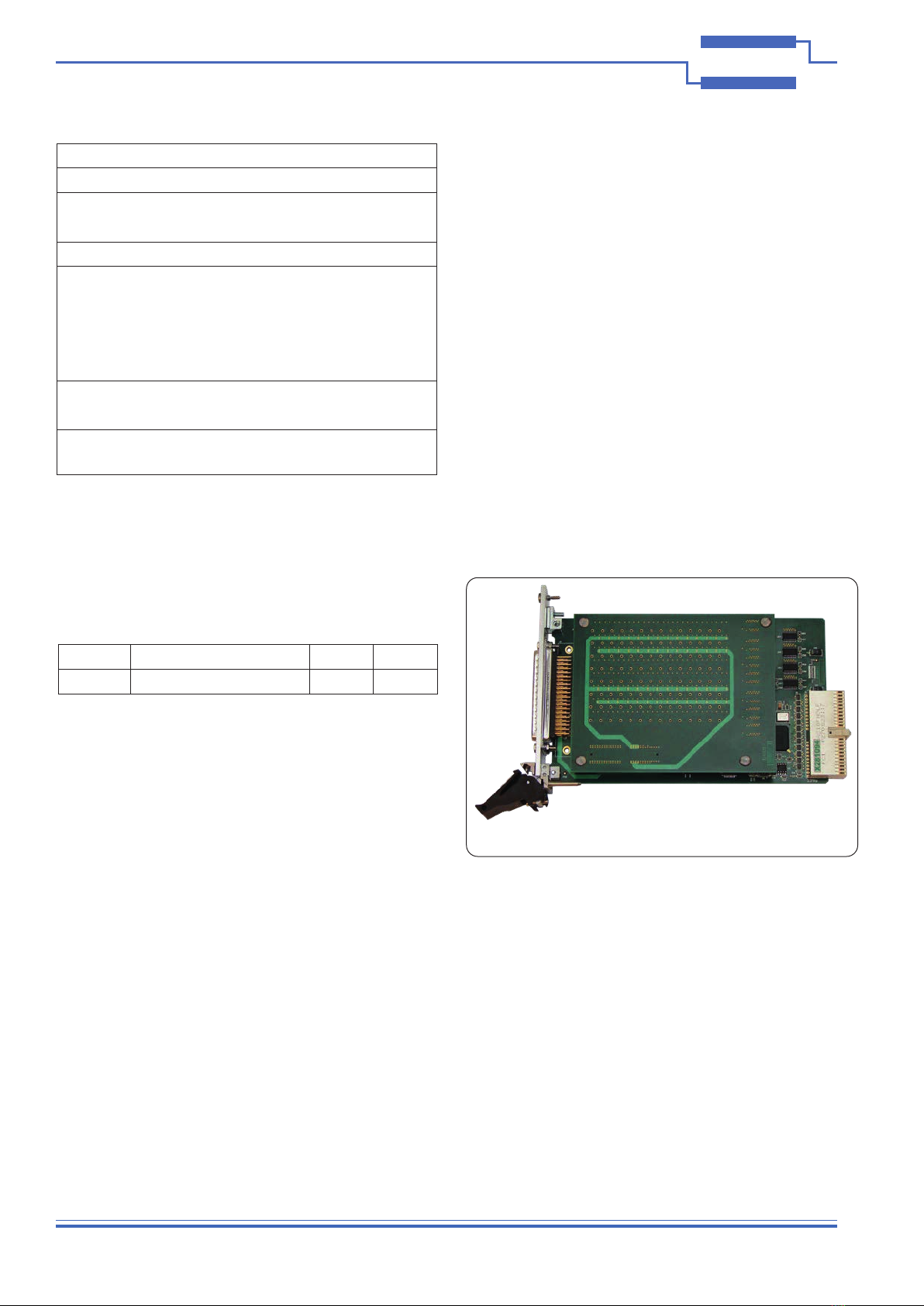

PXI Solid State Very High Density Matrix 40-500

ISSUE 5.2 NOV 2021

Supported by

eBIRST

eBIRST switching system test tools simplify switching

system fault-ﬁnding by quickly testing the system and

graphically identifying the faulty relay.

For more information go to: pickeringtest.com/ebirst

ySolid State 1-Pole Matrix

yHigh Density 64x4 Conﬁguration

y0.5 A Hot or Cold Switching

y1.5 A Crosspoint Inrush Current

y±60 V Rating

y3 A Y Bus Rating

yFast Switch Operation and Long Service Life

yVISA, IVI & Kernel Drivers Supplied for

Windows

ySupported by PXI or LXI Chassis

ySupported by

eBIRST

™

y3 Year Warranty

X12

X10

X11

X14

X16

X13

X15

X17

X18

X19

X64

X62

X63

4-way Y-bus with

3 A current capability

for each connection

1-Pole

Crosspoint

Switching Diagram for the 40-500 Very High Density Matrix

The 40-500 is a very high density matrix using solid state

switching. It is conﬁgured as a 64x4 1-pole matrix and

occupies a single PXI slot.

It is ideal for applications requiring fast operation and a

long service life with frequent switch operations at high

currents and voltages. Since the design is based on solid

state relays the matrix has no wear out mechanism.

The crosspoints can switch up to 0.5 A and can sustain an

inrush current of 1.5 A for 100 ms, allowing the matrix to be

used with capacitive loads. Each Y-bus signal can carry 3 A,

allowing multiple crosspoints with the same Y connection

to carrying their maximum current. The module can hot

switch up to 60 V at the full rated current and is suitable

for AC or DC operation.

Applications for the 40-500 include routing signals for

data acquisition systems or for the slave switching of high

current relays. The 40-500 can be used for low current

low voltage applications where cost, speed, zero contact

bounce and the ability to withstand frequent operation is

essential.

Pickering Interfaces offers PXI solid state switching

solutions in a variety of conﬁgurations. If you have a

different requirement for solid state switching contact your

local sales ofﬁce for a quotation.

Pickering’s Range of High Density Solid State Matrices

Model No. Matrix Size Current Rating Voltage Rating

40-500 64x4 500 mA 60 V

40-501 64x4 150 mA 100 V

Page 1.2 SOLID STATE VERY HIGH DENSITY MATRIX 40-500

pickering

SECTION 1 - TECHNICAL SPECIFICATION

Solid State VHD Matrix, 40-500

pickeringtest.com

Speciﬁcations

Switching Speciﬁcation

Switch Type: Solid State Switch

Max Switch Voltage: ±60 V* (AC peak or DC)†

Max Crosspoint Current: 0.5 A continuous

1.5 A for 100 ms

Max Y Bus Current: 3 A continuous for each bus

Initial On Path Resistance:

Switch Leakage

Capacitance:

Leakage Current

(off state):

0.9 Ω (Y to X)

2.5 nF (single Y to X)

<4 µA at 60 V

Turn On Time:

Turn Off Time:

<400 µs

<200 µs

Matrix Bandwidth: 2 MHz typical (one

crosspoint)

* For full voltage rating, signal sources to be switched

must be fully isolated from mains supply and safety earth.

† Differential voltage between channels must not exceed

rated voltage, additional caution should be used when

applying AC voltages as multiple asynchronous supplies

can create high differential voltages between channels.

Power Requirements

+3.3 V +5 V +12 V -12 V

0 0.9 A typical (64 closures) 0 0

Mechanical Characteristics

Single slot 3U PXI (CompactPCI card).

3D models for all versions in a variety of popular ﬁle

formats are available on request.

Connectors

PXI bus via 32-bit P1/J1 backplane connector.

Signals via front panel 78-pin male D-type connector, for

pin outs please refer to the operating manual.

Operating/Storage Conditions

Operating Conditions

Operating Temperature:

Humidity:

Altitude:

0 °C to +55 °C

Up to 90 % non-condensing

5000 m

Storage and Transport Conditions

Storage Temperature:

Humidity:

Altitude:

-20 °C to +75 °C

Up to 90 % non-condensing

15000 m

PXI & CompactPCI Compliance

The module is compliant with the PXI Speciﬁcation

2.2. Local Bus, Trigger Bus and Star Trigger are not

implemented.

Uses a 33 MHz 32-bit backplane interface.

Safety & CE Compliance

All modules are fully CE compliant and meet applicable

EU directives: Low-voltage safety EN61010-1:2010,

EMC Immunity EN61326-1:2013,

Emissions EN55011:2009+A1:2010.

Side View of the 40-500 Matrix Module

Tabla de contenidos

Otros manuales de Unidad de control de Pickering

Pickering

Pickering 40-573 Manual de usuario

Pickering

Pickering PXI 60-104 Manual de usuario

Pickering

Pickering 40-574 Manual de usuario

Pickering

Pickering 41-180 Manual de usuario

Pickering

Pickering 40-592A Manual de usuario

Pickering

Pickering 40-519B Manual de usuario

Pickering

Pickering 40-290-021 Manual de usuario

Pickering

Pickering 40-518A Manual de usuario

Pickering

Pickering 40-519A Manual de usuario

Pickering

Pickering PXI BRIC 40-569 Manual de usuario

Pickering

Pickering 40-567A Manual de usuario

Pickering

Pickering PXI BRIC 40-562A Manual de usuario

Pickering

Pickering 40-880 Manual de usuario

Pickering

Pickering 40-727 Manual de usuario

Pickering

Pickering 4x-585A Manual de usuario

Pickering

Pickering 40-670A Manual de usuario

Pickering

Pickering 41-765 Manual de usuario

Pickering

Pickering 40-582 Manual de usuario

Pickering

Pickering 4 890 Series Manual de usuario

Pickering

Pickering PXI 40-855 Manual de usuario

Pickering

Pickering BRIC Series Manual de usuario

Pickering

Pickering 4 785C Series Manual de usuario

Pickering

Pickering PXI 40-785 Manual de usuario

Pickering

Pickering PXI 30 A Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
