Assembly Instructions for TV Trolley Stand

PSTVMCO4

Thanks for choosing our stand. This stand was designed for mounting ﬂat panel televisions

weighing up to 25 kg. The height of TV can be easily adjusted. The integrated wheels provide ease

of movement.

Safety Warning: If you do not understand these directions, or have any doubts about the safety of

the installation, please call a qualiﬁed contractor. Check carefully to make sure there are no

missing or defective parts. Never use defective parts. Improper installation may cause damage or

serious injury. Do not use this product for any purpose that is not explicitly speciﬁed in this

manual. We can not be liable for damage or injury caused by incorrect mounting, incorrect

assembly, or incorrect use.

Required Tools: Phillips Screwdriver.

Long square tube

Short square tube

Tube connector

Tube connector cover

Pole with shelf add-on holes

Pole without holes

Pole connector

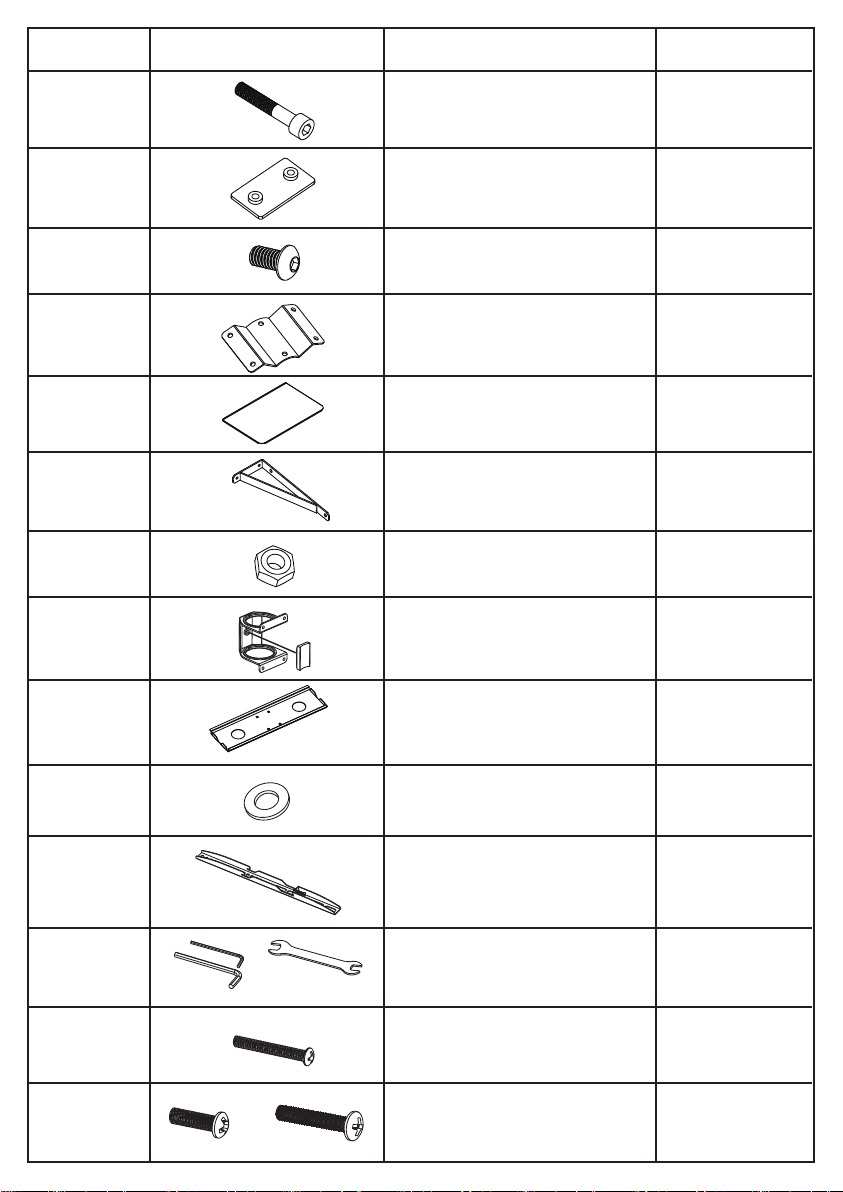

No. Picture Description Quantity

Pole cover

Wheel & Washer

Supplied Parts

TV arm set

M4x30 bolt

M6x15 bolt(x4)

M6x30 bolt(x4)

823

Tool kit

M6 washer

No. Picture Description Quantity

Square plate

M6 nut

Square plate connector

& Rubber Pad

M6x60 allen head bolt

M6 socket plate

Shelf support connecting plate

Shelf

Shelf support

M6x10 allen head bolt 12

M8x15 bolt(x4)

M8x45 bolt(x4)

27 4

M4 washer

M6 washer

M8 washer

M4 spacer

M6/M8 spacer(5mm)

Use Tool Kit(21)

Step 1 Install Wheels On The Square Tube

No. Picture Description Quantity

Attach wheels (9) to the long

and short square tube (1, 2) by

using the provided wrench (21)

Turn this nut to adjust the height of wheel.

Use Tool Kit(21)

Front

BACK

Step 2 Attach Square Tubes

Step 3 Attach Tube Connector Cover And Poles

Attach the square tubes (1, 2) to the

tube connection (3) by using M6x60

bolts (10) and socket plate (11)

1.Attach tube connector cover (4) to the tube

2.Attach the base pole (5) to the tube connector (4) by using M6x10 bolts (12).

3.Thread on the pole connector (7) to the top of the base pole (5)

4.Thread on the pole (6) to the pole connector (7) then install the pole cover (8) on the top

of the pole (6)

Use Tool Kit(21)

12 13

240mm

Use Tool Kit(21)

Step 4 Attach Shelf To Pole

Attach shelf supports (15) to the shelf (14)

by using M6 nuts (16)

4.1

4.3

4.2

Attach shelf connecting plate (13) to the

pole (5) by using M6x10 bolts (12)

Attach shelf (14) to the shelf connecting

plate (13) by using M6x10 bolts (12)

22 -24

25 -27

22-24 25-27

28-29

(if necessary)

Step 5 Attach Square Plate

Step 6 Secure The TV Brackets

5.1 5.2

Use Tool Kit(21)

Put the rubber pad in the square plate

connector (17) then use tool kit tighten

the small hole

Attach the square plate (18) by using

M6x10 bolts (12) and M6 washers (19)

CAUTION: Ensure the TV brackets

20 are EQUALLY

CENTERED on your TV AND securely fastened in place.

aScrew and washer

bScrew, washer and spacer(s)

Safety bolt

Step 8 Wire Management

Step 7 Secure Your TV

7.1

8.1

7.2

Tighten the safety bolt on the bottom of the TV brackets

Hang the TV on the plate

Option A

8.2

8.3

Option B

Option C
