Perlesmith PSLF2 Manual de usuario

INSTALLATION INSTRUCTION

PSLF2 [email protected]

Thank you for choosing our product! We strive to provide the best quality and

services for our customers. Would you kindly share your experience on Amazon if

you are satisﬁed? Should you have any issues, please don't hesitate to contact us.

Telephone：800-5566-806 Mon-Fri 10am - 6pm (PST) (USA)

Email：[email protected] (US/CA/DE/UK/FR/IT/ES/JP/AU)

V2.0

Supplied Parts List

VESA 200 Plate

b (x1)

Not Included 4mm Drill Bit

Phillips Screwdriver

10mm Masonry Bit

Carpenter's Level

M6 Wrench

c (x1)

M6 Washer

D (x8)

M6x35 Bolt

g (x4)

M6 Washer

k (x4)

Cushioned Nut

o (x3)

Wall Plate with Arm

a (x1)

Horizontal Bars

A (x2)

M4x12 Bolt

d (x4)

M8x20 Bolt

h (x4)

M8 Washer

l (x10)

Plastic Washer

p (x3)

M6x8 Bolt

C (x8)

M6x20 Bolt

f (x4)

M4 Washer

j (x4)

M6/M8 Spacer

n (x8)

M10x80 Concrete

r (x6)

Vertical Bars

B (x2)

M4x30 Bolt

e (x4)

M8x45 Bolt

i (x4)

M4 Spacer

m (x4)

M8x90 Lag Bolt

q (x6)

For parts shortage or damage, please contact us directly by customerservice@perlegear.com.

New delivery will be timely arranged to replace missed or defective parts.

Attention:

US WARNING!

Safety Warning: Thank you for choosing Perlesmith TV mount. For safe application of model

FSLF2, and preventing yourself or others from danger or property loss, please read through this

manual before use. If you do not understand these instructions or have any doubt over safety of

installation, please contact qualified contractor or Perlesmith customer service. Please check

carefully before assembly to ensure no parts missed or damaged. Our customer service representative

will assist you timely in installation to solve the issue of parts shortage or damage. Replacement parts

purchased through authorized distributor will be delivered toyour door. Please do not use defective

parts. Incorrect installation may result in product damage or body injury. Do not apply this product to

any purpose not indicated by Perlesmith. We shall bear no responsibility for any damage or

injury resulted from incorrect installation, incorrect assembly or misuse.

[email protected]

Before getting started, let's make sure this mount is

perfect for you!

1. Is your TV VESA equal to/greater than 100x100mm and equal

to/less than 600x400mm?

MAX:600mm

MAX:400mm

2. Does your TV (including accessories) weigh more than

132 lbs (60kg)?

132 lbs

(60kg)

NO --- Perfect!

Yes --- This mount is NOT compatible.

3. What is your wall made of?

CAUTION:

DO NOT install

into drywall alonePerfect!

Drywall with

wood studs? Solid concrete wall?

Perfect!

24"

Yes --- Perfect!

No --- This mount is NOT compatible.

If this mount is NOT compatible, please contact

[email protected] to find a compatible mount.

80mm

90mm

10mm

90mm

4mm

Mounting the Wall Plate to the Wall

Step 1

16"(406mm)

 



 

%ULFNRU&RQFUHWH:DOO

:RRG6WXGV:DOO

Step 2 Install VESA Plate to the Back of TV

Option A: Mounting instructions for VESA 100 x 100, 200 x 100, 200 x 200

Attach TV Plate (b) to Mounting Holes on TV using appropriate TV Bolts and TV Washers. Use TV

Spacers if necessary.

Option B: Mounting instructions for VESA 400 x 200

1. Attach TV Plate (b) to Horizontal Bars (A), using Bar Bolts (C) and Bar Washers (D).

GWRL M N O

PQ L IQHFHVVDU\

Step 2 Install VESA Plate to the Back of TV

1. Attach Vertical Bars (B) to Mounting Holes on TV using appropriate TV Bolts and TV Washers. Use

TV Spacers if necessary.

2. Attach Horizontal Bars (A) to Vertical Bars, using Bar Bolts (C) and Bar Washers (D).

3. Attach TV Plate (b) to Horizontal Bars, using Bar Bolts (C) and Bar Washers (D).

2. Attach Horizontal Bars to Mounting Holes on TV using appropriate TV Bolts and TV Washers. Use

TV Spacers if necessary.

Option C: Mounting instructions for VESA 300 x 300, 400 x 400, 600 x 400

GWRL

MNO

PQLIQHFHVVDU\

GWRL

MNO PQLIQHFHVVDU\

Step 3 Mounting the TV to the Wall Plate

Step 4 Final Installation

3.1 3.2

3.3 3.4

RSF

4.1

1. Attach TV Plate Washer (p) and Nut (o) to Upper

Post using included Wrench. Do not tighten Nut.

2. Using an assistant, lift TV, slide TV Plate Nut over

Notch on TV Mount and route Lower Posts through Lower

Post Holes.

3. Attach TV Plate Washers (p) and Nuts (o) to Lower

Posts using included Wrench. Do not tighten Nuts.

4. Level TV, then tighten Nuts on Upper and Lower Posts

securely.

Lower

Posts

TV Plate

Nut

Adjust Tilt if desired:

a. Loosen Tilt Adjustment Nuts on Wall Mount

(behind TV Plate) with included Wrench.

b. Adjust tilt.

c. Tighten Tilt Adjustment Nuts.

Step 4 Final Installation

Step 5 All Done

Route TV wires through clips. Level adjustment

 

100-400mm

100-600mm

56-458mm

245mm

640mm

Tabla de contenidos

Otros manuales de Rack y soporte de Perlesmith

Perlesmith

Perlesmith PSTVS12 Manual de usuario

Perlesmith

Perlesmith PSTVS09 Manual de usuario

Perlesmith

Perlesmith PSDSK1 Manual de usuario

Perlesmith

Perlesmith PSTVS04 Manual de usuario

Perlesmith

Perlesmith PSTVS15 Manual de usuario

Perlesmith

Perlesmith PSTM2 Manual de usuario

Perlesmith

Perlesmith PSDSK1 Manual de usuario

Perlesmith

Perlesmith PSSS2 Manual de usuario

Perlesmith

Perlesmith PSSS1 Manual de usuario

Perlesmith

Perlesmith PSMFK12 Manual de usuario

Perlesmith

Perlesmith PSTVS11 Manual de usuario

Perlesmith

Perlesmith PSXLF02 Manual de usuario

Perlesmith

Perlesmith PSLT3 Manual de usuario

Perlesmith

Perlesmith MD2296 Manual de programación

Perlesmith

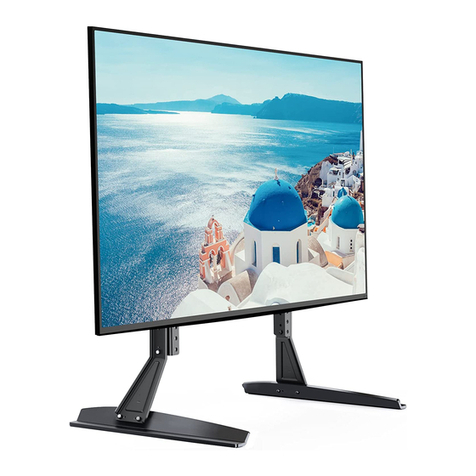

Perlesmith PSTVS01 Manual de usuario
